Baumatic BH644TCSS Bedienungsanleitung

BH644TCSS/BH645TCSS /

BH646TCSS 60 cm

Gas hob with thermocouples

BH754TCSS/BH755TCSS 70 cm

Gas hob with thermocouples

User Manual for your Baumatic

BH644TCSS 60cm 4 burner gas hob

with thermocouples

BH645TCSS 60cm 4 burner gas hob

with thermocouples

BH646TCSS 60cm 4 burner gas hob

with thermocouples

BH754TCSS 70cm 5 burner gas hob

with thermocouples

BH755TCSS 70cm 5 burner gas hob

with thermocouples

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 01/12/11

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8 - 13

BH644TCSS/BH646TCSS 8

BH645TCSS 9

BH754TCSS 10

BH755TCSS 11

Electricaldetails 12

Gasdetails 12

Gas hob surface layout 12 - 13

Using the gas hob 14 - 16

Beforefirstuse 14

Thegashob 14

Automatic ignition with flame failure safety device 15

Energy saving tips 15 - 16

Cleaning 16 - 17

Cleaning the hob top 16

Aftereachuse 16

Cleaning the hob burners 17

Maintaining the cast iron pan stands 17

Installation 18 - 28

Positioning 19

Unpacking the appliance 20

Installing the appliance 20 – 22

Gasconnection 22

Ventilation requirements 23

Gas Safety (Installation and Use) Regulations 24

Gas Adjustment (Conversion to LPG) 25

Minimum flow adjustment for hob gas taps 26

Gastapmaintenance 27

Electricalconnection 28

Replacing the mains supply cable 28

My appliance isn’t working correctly 29

Baumatic consumables 30

Contactdetails 31

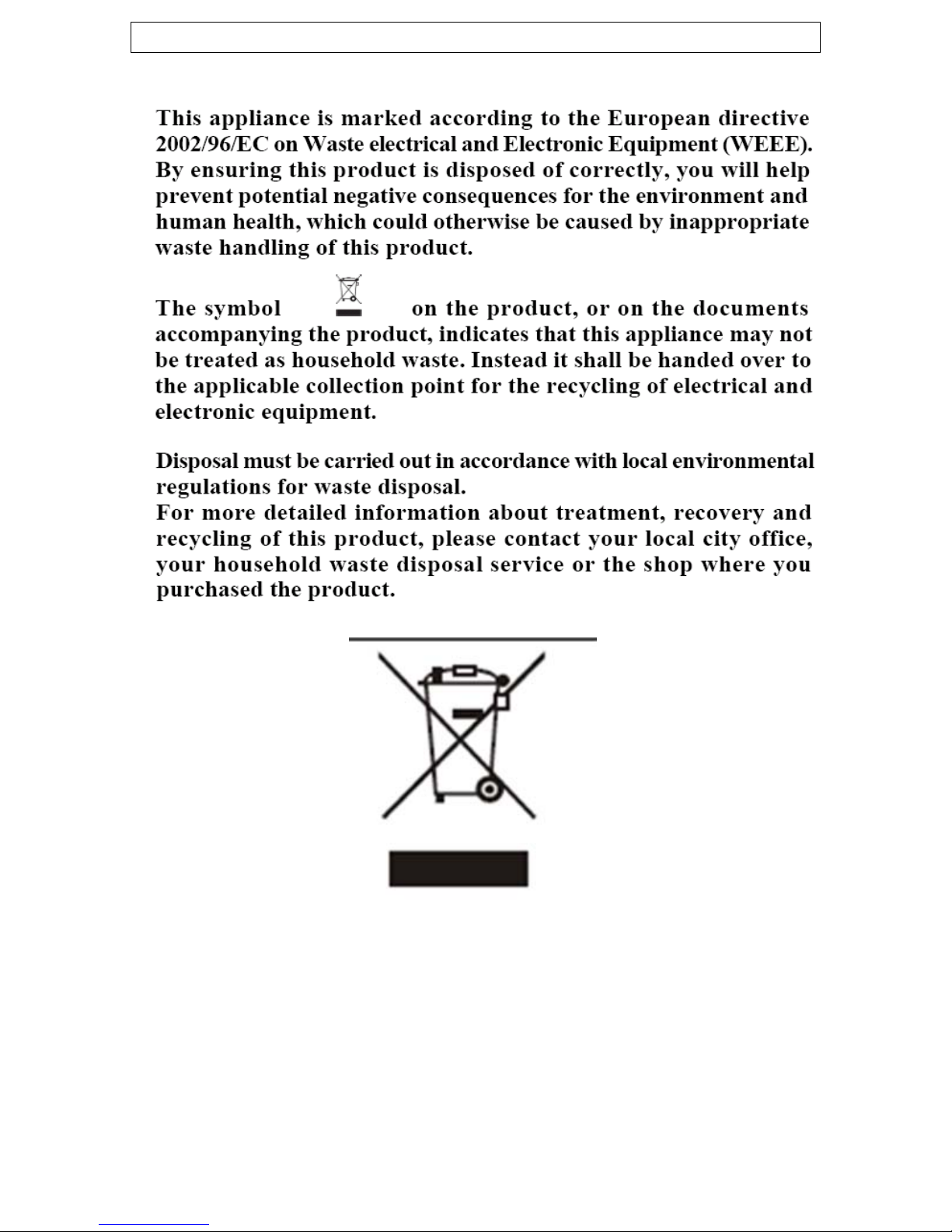

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agent.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will be hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

oThe appliance should only be installed and connected by a

GASSAFE registered installer.

oCare should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

During use

oAny film or stickers that are present on the hob surface when it

is delivered should be removed before use.

oCare should be taken when utilising the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

oMake sure that all of the cooking zones are switched off after

use.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

GASSAFE registered installer, strictly in

accordance with the manufacturer’s instructions

and the relevant British Standards. Please see the

specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed.

oBaumatic Ltd. DO NOT recommend that this appliance is

installed on any type of marine vessel.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-2009/142/CE Concerning gas appliances

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Specifications

BH644TCSS/BH646TCSS

Product dimensions:

Depth: 510 mm

Width: 600 mm

Height: 40 mm

Aperture dimensions:

Depth: 480 mm

Width: 560 mm

Product specifications:

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

BH645TCSS

Product dimensions:

Depth: 510 mm

Width: 600 mm

Height: 40 mm

Aperture dimensions:

Depth: 480 mm

Width: 560 mm

Product specifications:

o1 x 3.80 kW triple crown wok burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

oWok stand

BH754TCSS

Product dimensions:

Depth: 510 mm

Width: 700 mm

Height: 40 mm

Aperture dimensions:

Depth: 480 mm

Width: 560 mm

Product specifications:

o1 x 3.80 kW triple crown wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oHeavy duty cast iron pan stands

oAutomatic ignition

oFlame failure safety device on each burner

Standard accessories:

oLPG conversion jets

oWok stand
