Baumatic BHG602TCSS Bedienungsanleitung

BHG602SS 4 burner gas hob.

BHG602TCSS 4 burner gas hob

with thermocouples.

User Manual for your Baumatic

BHG602SS 4 burner gas hob.

BHG602TCSS 4 burner gas hob with

thermocouples.

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 09/12/08

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8

Product & Aperture dimensions 8

Product specifications 8

Standard accessories 8

Electricaldetails 8

Gasdetails 9

Gashobsurfacelayout 9

Using the gas hob 10

Beforefirstuse 10

Turningthehobon 10

Turning the hob on (BHG602TCSS) 11

Energy saving tips 11 – 12

Cleaning 12

Cleaning the hob top 12

Aftereachuse 12

Cleaning the hob burners 12 – 13

Installation 13

Positioning 14

Unpacking the appliance 15

Installing the appliance 15 – 17

Gasconnection 17

Ventilation requirements 18

Gas Safety (Installation and Use) Regulations 19

Gas Adjustment (Conversion to LPG) 20

Minimum flow adjustment for hob gas taps 21

Gastapmaintenance 22

Electricalconnection 23

Replacing the mains supply cable 23

My appliance isn’t working correctly 24

Contactdetails 25

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, will be the liability of

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYou should not use this appliance to store items on or as a work

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be kept away

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oOlder children should only be allowed to utilise the appliance

when supervised.

General Safety

The appliance should only be installed and connected by a

CORGI registered installer.

Care should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

During use

Any film or stickers that are present on the hob surface when it

is delivered should be removed before use.

Care should be used when utilizing the appliance, otherwise

there is a risk of burns being caused.

oYou should not allow the electrical connection cables to come

into contact with the hob surface when it is hot or any hot

cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooking with fat and oil the appliance should

not be left unattended.

Make sure that all of the cooking zones are switched off after

use.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

CORGI registered installer, strictly in accordance

with the manufacturer’s instructions and the

relevant British Standards. Please see the specific

section of this booklet that refers to installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed.

oBaumatic Ltd. DO NOT recommend that this appliance is

installed on any type of marine vessel.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC dated 19/02/1973 Low Voltage Directive.

-89/336/EEC dated 03/05/1989 EMC Directive inclusive of

Amending Directive 92/31/EEC.

-93/68/EEC dated 22/07/1993 CE Marking Directive.

-89/109/EEC dated 25/01/1992 Materials that can touch food.

-90/396/EEC Gas Products.

-EN60335-1, EN60335-2, EN301-1 Safety Standards.

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Specifications

Product dimensions: Aperture dimensions:

Height: 510 mm Height: 480 mm

Width: 595 mm Width: 560 mm

Depth: 35 mm

Product specifications:

o1 x 3.00 kW rapid burner

o2 x 1.65 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oSide control operation

oEnamelled pan stands

oUnderknob auto ignition

oFlame failure safety device on each burner (BHG602TCSS

only).

Standard accessories:

oLPG conversion jets

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 3 A (double pole switched fused outlet with

3mm contact gap)

Max Rated Inputs: 0.8W

Mains Supply Lead: 3 core x 0.75mm²

Gas details

Connection: Rp ½ (ISO R7), the gasket is not required

Type: Natural Gas (20mbar),

Alternative LPG G30(28-30/37 mbar)

to order.

Gas hob surface layout

1 x 1.65 kW

Semi-rapid

burner

1 x 1.65 kW

Semi-rapid

burner

1 x 3.00 kW

rapid

burner

1 x 1.00 kW

AUXILLARY

burner

CONTROL

KNOBS

Using the gas hob

Before first use

IMPORTANT: You should clean the hob surface (see

“Cleaning and maintenance” section).

Turning the hob on

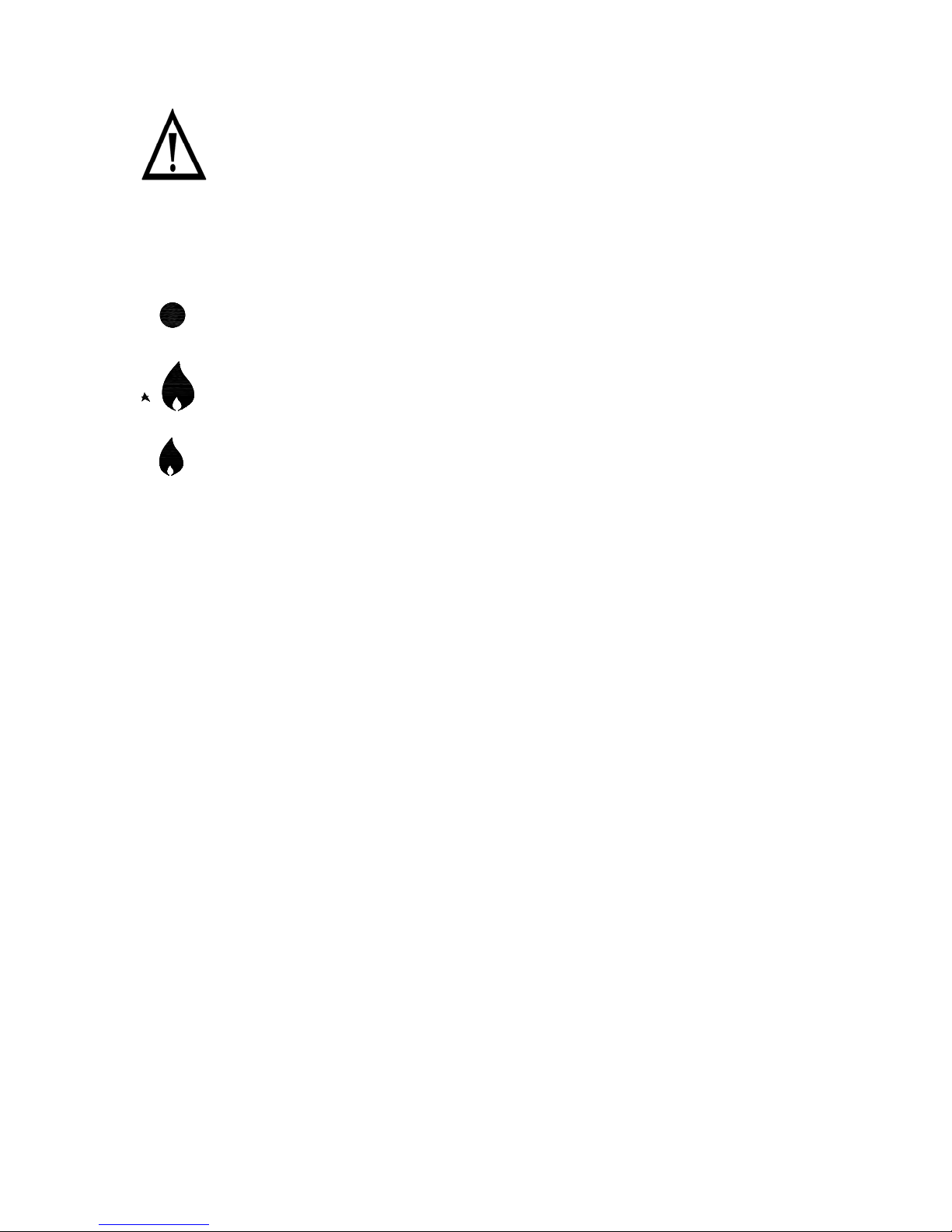

The following symbols will appear on the control panel, next to each

control knob:

Black circle: gas off

Large flame: maximum setting

Small flame: minimum setting

oThe minimum setting is at the end of the anti-clockwise rotation

of the control knob.

oAll operation positions must be selected between the maximum

and minimum position.

oNever select a knob position between the maximum and off

position.

oThe symbol on the control panel, next to the control knob will

indicate which gas burner it operates.

oPress in and turn the appropriate control knob anti-clockwise to

the large flame symbol.

oThe ignition spark will operate, you should hold down the knob

until the flame on the burner has lit.

oTo regulate the flame, you should continue turning the control

knob anti-clockwise until the flame is at a suitable level. The

operating position MUST be at a position between the maximum

and minimum position.

oTo turn the burner off, turn the control knob fully clockwise to

the gas off position.

oIn case of power failure, the burners can be lit by carefully using

a match.
