Baumatic BCG620SS Bedienungsanleitung

BCG620SS

BCG620W

60 cm Twin cavity gas

cooker

User Manual for your Baumatic

BCG620SS/W

60 cm Twin cavity gas

cooker

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 31/05/11

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 12

Dimensions 9

Product specifications 9 – 10

Standardaccessories 10

Electricaldetails 10

Gasdetails 10

Productfeatures 10

Controlpanel 11-12

Oventimer 12

Setting and using the oven programmer/timer 13

Setting the time of day 13

Setting the minute minder function 13

Usingtheoven 14 - 18

Before first use 14

Using the main oven 14 – 15

Base burner appliances 15 - 16

Usingthegrill 16-17

Cooking guidelines 17 - 18

Warnings 18

Usingthehobtop 18 – 20

Before first use 18

Using the hob top zones 19

Hobguidelines 19-20

Cleaning and maintenance 20 – 23

Cleaning the gas hob top 21

Aftereachuse 21

Cleaning the burners 21

Cleaning the oven 22

Replacing the oven bulb 22

Removing the oven door for cleaning 22 - 23

Installation 23 - 36

Positioning 24 – 25

Ventilation requirements 25

Safety chain anchors 25 - 26

Securing the safety chains 26 - 27

Electricalconnection 27-28

Gasconnection 28-29

Gassafety 29

Gas connection 29 – 31

Gas adjustment (conversion to LPG for the hob top) 31

Minimum flow adjustment for hob gas taps 32

Gas adjustment (conversion to LPG for the oven and grill) 33 – 34

Minimum flow adjustment for the oven and grill burners 34 - 36

My appliance isn’t working correctly 36 – 38

Contact details 39

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Information

oThis appliance is designed for domestic household use and for

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oIMPORTANT: Baumatic Ltd. DO NOT recommend that this

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic service

engineers or their authorised service agents.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off

after use.

Always stand back when opening the oven door, this will allow

heat to disperse.

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene;

this will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct

contact with any of the elements in the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in cabinets immediately above or next to the

cooker.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil; you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using a grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

oIMPORTANT: Care must be taken when cleaning between

the door glasses, and inside the inner frame as some of

the edges maybe sharp due to the manufacturing process.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

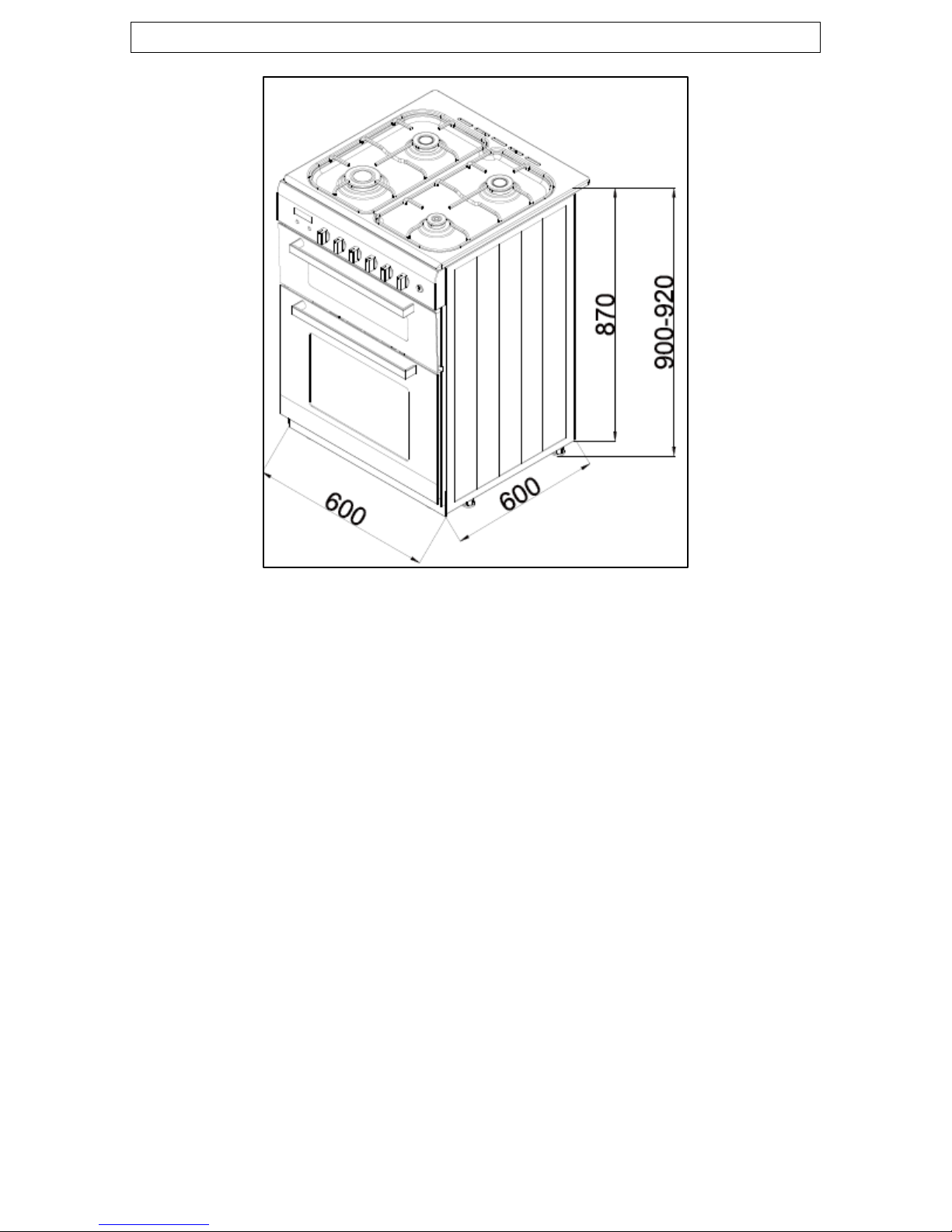

Product dimensions:

Height: 900 - 920 mm

Width: 600 mm

Depth: 600 mm

Product specifications:

o4 zone gas hob:

o2 x 1.75 kW zone

o1 x 3.00 kW zone

o1 x 1.00 kW zone

oGas oven

oGas grill

oMain oven gross / net capacity: 65 / 58 litres

oTop oven gross / net capacity: 30 / 27 litres

oLED minute minder

oPushbutton ignition

oEnamelled pan stands

oDouble-glazed removable doors

oAdjustable feet

oFlame failure safety device on all burners

Standard accessories

o2 x Enamelled baking tray with handle

o2 x Wire shelves

o1 x Trivet

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 3 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 10.00 kW

Mains Supply Lead: 3 core x 1.5 mm² (not supplied)

Oven Light Bulb: E14 15 W/300°C screw type pygmy

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

Product features

1) 1.00 kW auxiliary

burner

2) 1.75 kW semi-rapid

burners

3) 3.00 kW rapid burner

4) Pan stand

5) Control knob

6) Grill pan

7) 2 x wire shelves

8) Igniter and light

control

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Baumatic Küchengerät Handbücher

Baumatic

Baumatic BCD905SS Bedienungsanleitung

Baumatic

Baumatic BBCSZ150GL Bedienungsanleitung

Baumatic

Baumatic BT2355SS Bedienungsanleitung

Baumatic

Baumatic BT3060SS Bedienungsanleitung

Baumatic

Baumatic BU54EE Bedienungsanleitung

Baumatic

Baumatic BCD510SS/W Bedienungsanleitung

Baumatic

Baumatic PT2800SS Bedienungsanleitung

Baumatic

Baumatic BWCU15SS Bedienungsanleitung

Baumatic

Baumatic BWC157 Bedienungsanleitung

Baumatic

Baumatic BT2431SS Bedienungsanleitung

Baumatic

Baumatic TG1 Bedienungsanleitung

Baumatic

Baumatic BVP460SS Bedienungsanleitung

Baumatic

Baumatic BAU91EG Bedienungsanleitung

Baumatic

Baumatic BWBDZ150GL Bedienungsanleitung

Baumatic

Baumatic SUPREMA1SS Bedienungsanleitung

Baumatic

Baumatic BT2000SS Bedienungsanleitung

Baumatic

Baumatic BCG900SS Bedienungsanleitung

Baumatic

Baumatic BC392.2TCSS Bedienungsanleitung

Baumatic

Baumatic Royal Chiantishire BRC2BDY Bedienungsanleitung

Baumatic

Baumatic BT2730SS Bedienungsanleitung

Baumatic

Baumatic BT2000SS Bedienungsanleitung

Baumatic

Baumatic BT2385SS Bedienungsanleitung

Baumatic

Baumatic IBERNA BWCU60SS Bedienungsanleitung

Baumatic

Baumatic P460 Installationsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
