Baumatic BTM25.7SS Bedienungsanleitung

User Manual for your Baumatic 1

BTM25.7SS 25 Litre

combination microwave

oven with grill

User Manual for your Baumatic

BTM25.7SS

25 Litre combination

microwave oven with grill

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 03/09/12

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 – 13

Product dimensions 9

Product specifications 9

Electricaldetails 9

Description of the appliance 10 - 11

Controlpanel 11

Theturntable 12

LEDdisplay 12-13

Usingyourmicrowave 13 – 29

Settingtheclock 13

Before first use 13

Microwavecooking 14

Microwave power level chart 15

Timesettingchart 15

Quickstartfunction 16

Convection / Combination cooking 16 – 17

Convection / Combination chart 18

Convection cooking table 18

Grill / Combination cooking 18 – 19

Grillfunctionchart 19

Autodefrost 20

Defrostprogramchart 21

Defrostguide 21-22

Autocooking 22

Autocookingchart 23

Delaystartfunction 24-25

Multi-sequence cooking 25 - 26

Safetylock 26

Microwave cooking guidelines 27

Materials you can use for microwave cooking 27 - 28

Materials you cannot use for microwave cooking 28

Utensilstable 29

Cleaning and maintenance 29 – 30

The appliance exterior 29

The appliance interior 29

Turntable and turntable support 30

General cleaning advice 30

Installation 31 – 33

Electrical connection 31 – 32

Fitting the distance limiter 33

Positioning 33

My appliance isn’t working correctly 34 – 35

Baumaticconsumables 36

Contact details 37

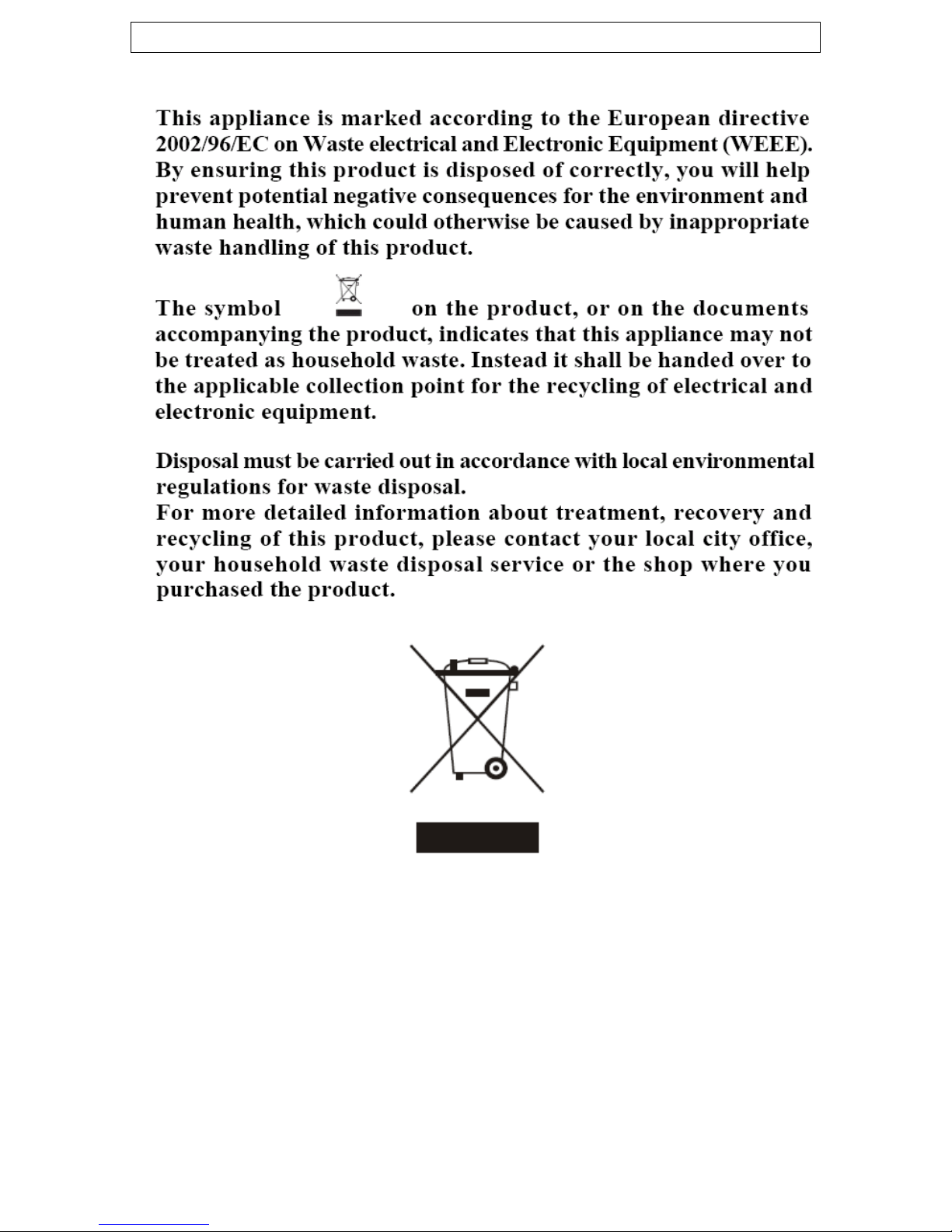

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

ent.

eneral Information

liance when the turntable and

nly use ovenware that is suitable for being used in a

microwave should be wiped dry

le materials. If left unattended, they could pose a

your microwave oven, if you

ed by Baumatic and

ambient temperature of the

scolouration at

Departm

This appliance is designed for domestic household use. It canoNOT be used as a built in microwave and must be freestanding.

oYou should only operate the app

turntable support are in position.

oYou should o

microwave.

oTo prevent corrosion occurring due to moisture/condensation,

the cavity and the door of the

after each use of the appliance.

oThe appliance must not be left unattended if you are heating or

cooking food in containers that are made of paper, plastic or

other flammab

fire hazard.

oIf you notice smoke coming from the appliance, you should keep

the door of the microwave closed and then disconnect it from

your mains supply. DO NOT use

think it is not operating correctly.

Installation

IMPORTANT: Only the installation sanctionooutlined in this manual should be followed.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

perature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

accommodation vehicles, please refer to

the appropriate information given in the installation instructions

ose or in any other

environment without the express agreement of Baumatic Ltd.

to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

ct your statutory rights.

afely, only an engineer that

is approved by the Baumatic Customer Care Department

work

on the appliance, in particular if they remove the cover that

hould stop using the appliance,

disconnect it from the mains supply and contact the Baumatic

Baumatic spare parts should be fitted to your

appliance. These can be obtained from the Baumatic Spares

does not remove the fact that the appliance surfaces will

oDO NOT store anything that is flammable inside of the

microwave. When it is switched on, the items could catch fire.

oAny damage caused by the appliance being installed in

contravention of this tem

liability of the owner.

oFor use in leisure

for this appliance.

oThe use of this appliance for any other purp

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject

affe

Service

oYour microwave complies with all relevant safety standards. In

order for it to continue to operate s

should work on the appliance.

oIMPORTANT: It is dangerous for a non qualified person to

provides protection against exposure to microwave energy.

oIf you notice that the door seal, door surfaces, power cord and

plug are damaged. You s

Customer Care Department.

oOnly genuine

Department.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this complian

become hot during use and retain heat after operation.

oDO NOT place anything between the door and the door frame.

oDO NOT switch the appliance on if there is no food or liquid

inside of the microwave. If you run the microwave whilst it is

empty, there is a chance that it will overload.

oThe door seals and the door surfaces should ALWAYS be kept

clean and free from debris.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oIMPORTANT: This appliance should only be operated by adults.

You SHOULD NOT allow young children to use the microwave

without supervision. Older children should only operate the

appliance if they have been thoroughly instructed on how to use

the microwave and the consequences of improper usage.

General Safety

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in.

oDo not use the appliance to dry paper, textiles or animals.

oDo not install the appliance next to curtains or soft furnishings.

oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is

the chance of spontaneous combustion.

oDo not boil eggs or similar foods in their shells, otherwise they

may burst. It is possible to poach eggs in your microwave,

providing you prick the yolks first.

oDo not attempt to lift or move cooking appliances by using the

oven door, as this may cause damage to the appliance or result

in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

Specifications

Product dimensions

Height: 303 mm

Width: 509 mm

Depth: 472 mm

Product specifications

8 functions: Rice / Pasta

Freshvegetables

Frozenvegetables

Popcorn

Beverages

Potatoes

Pizza

Fish

o5 power levels

oLED full programmer with temperature and function display

oPushbutton operation

oInternal light

oQuick start function

oSafety lock

oStainless steel interior

oDefrost by weight

oCapacity: 25 litres

oMicrowave output: 900 W

oGrill output: 1000 W

oHot air output: 1300 W

Standard accessory

oGrill rack

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 1.40 kW

Mains Supply Lead: 3 x 1.5 mm²

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the microwave oven door and looking on the right

hand side of the chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

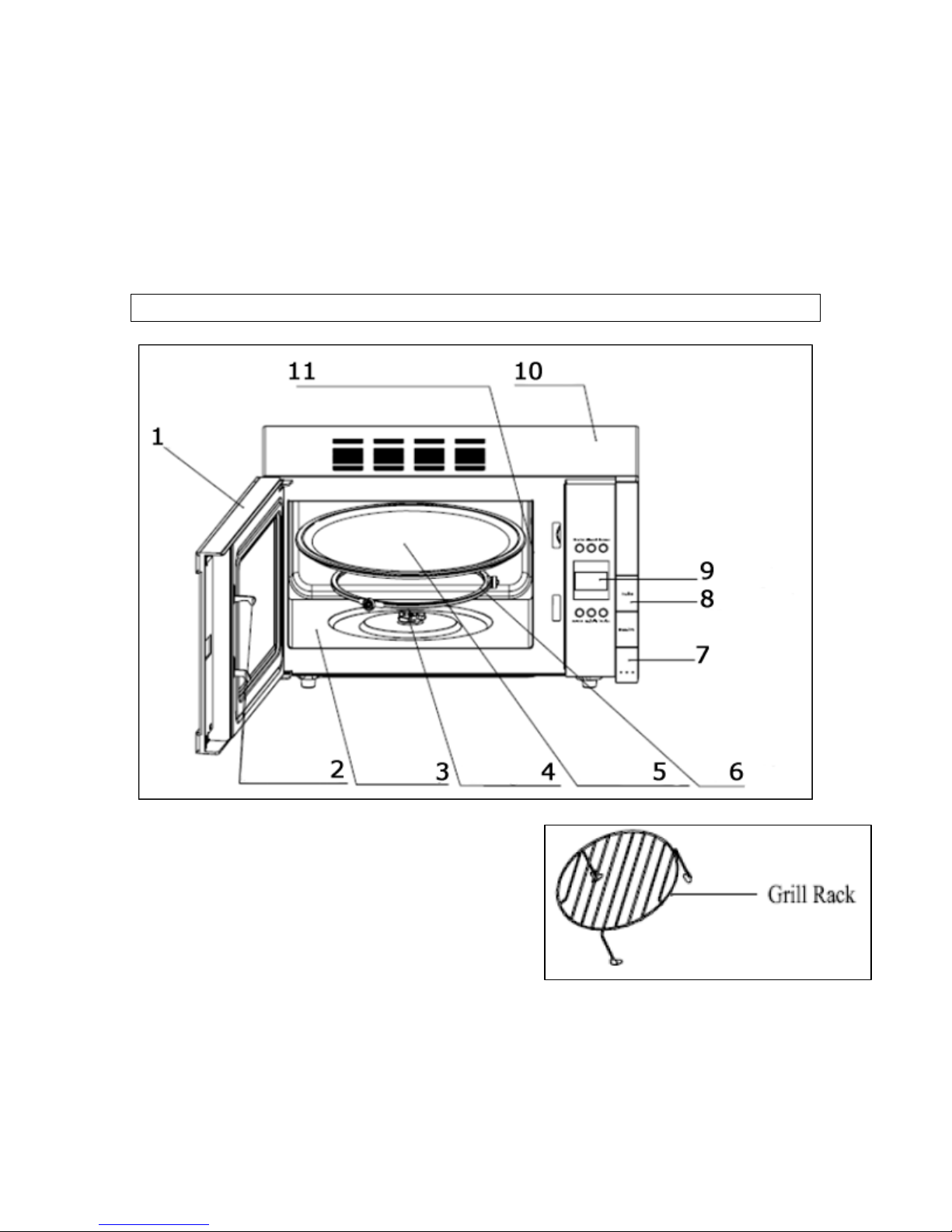

Description of the appliance

1) Microwave oven door

2) Microwave door latch

3) Microwave oven cavity

4) Rotating axis

5) Glass turntable

6) Rotating ring

7) Microwave door release button

8) Outer control panel

9) Inner control panel

10) Microwave oven exterior

11) Waveguide cover (inside)

Inhaltsverzeichnis

Andere Baumatic Mikrowellenofen Handbücher

Baumatic

Baumatic BAM251TK Bedienungsanleitung

Baumatic

Baumatic BTM31SS Bedienungsanleitung

Baumatic

Baumatic BMIG4625M Bedienungsanleitung

Baumatic

Baumatic BTM25.2M Bedienungsanleitung

Baumatic

Baumatic BTM25.3SS Bedienungsanleitung

Baumatic

Baumatic BTM25.5SS Bedienungsanleitung

Baumatic

Baumatic BMGI250SS Bedienungsanleitung

Baumatic

Baumatic BTM23.2M Bedienungsanleitung

Baumatic

Baumatic BTM17.4SS Bedienungsanleitung

Baumatic

Baumatic BYMM204SS/BL Bedienungsanleitung

Baumatic

Baumatic B900SS-B Bedienungsanleitung

Baumatic

Baumatic BTM17SS Betriebsanleitung

Baumatic

Baumatic BMM174SS Bedienungsanleitung

Baumatic

Baumatic BMC255SS Bedienungsanleitung

Baumatic

Baumatic BTM23.1SS Bedienungsanleitung

Baumatic

Baumatic GEM252TK Bedienungsanleitung

Baumatic

Baumatic BSCM45-ANZ Bedienungsanleitung

Baumatic

Baumatic GMGI250SS Bedienungsanleitung

Baumatic

Baumatic BTWM2SS Betriebsanleitung

Baumatic

Baumatic BS099 Bedienungsanleitung

Baumatic

Baumatic BMGI255SS Bedienungsanleitung

Baumatic

Baumatic BMC455TS Bedienungsanleitung

Baumatic

Baumatic BTM34SS Bedienungsanleitung

Baumatic

Baumatic BMC460SS Bedienungsanleitung

Beliebte Mikrowellenofen Handbücher anderer Marken

Daewoo

Daewoo KOG-574R0S Bedienungsanleitung

LG MH7040SS Bedienungsanleitung

Sharp

Sharp R-895(AL)M Bedienungsanleitung

Dometic

Dometic DOTRM13W Bedienungsanleitung

Sanyo

Sanyo EM-X680 Bedienungsanleitung

Sharp

Sharp R-393M Bedienungsanleitung

KitchenAid

KitchenAid KMCX4510 Montageanleitung

Smeg

Smeg S45MCX1 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHM2044 Bedienungsanleitung

Sunbeam

Sunbeam SMW759 Bedienungsanleitung

Gallet

Gallet FMOE230S Bedienungsanleitung

Bosch

Bosch CEG732X.1B Bedienungsanleitung

Dometic

Dometic Roadmate 230 Bedienungsanleitung

Samsung

Samsung SJ0396W Bedienungsanleitung

Sanyo

Sanyo EM-P494WS Bedienungsanleitung

Sharp

Sharp R-240 Bedienungsanleitung

Electrolux

Electrolux EMS2840 Bedienungsanleitung

Daewoo

Daewoo KOC-984T2S13 Bedienungsanleitung
