Baumatic BYMM204SS/BL Bedienungsanleitung

User Manual for your

BYMM204SS/BL

20 Litre microwave oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 20/02/12

Contents

Environmental note 3

Important safety information 4 – 8

Specifications 9 – 13

Product and aperture dimensions 9

Product specifications 9 - 10

Electricaldetails 10

Description of the appliance 11

Controlpanel 11

Theturntable 12

LEDdisplay 12-13

Usingyourmicrowave 13 – 22

Settingtheclock 13

Beforefirstuse 13-14

Cookingfood 14-15

Quickstart 15

Microwave power level chart 15

Timesettingchart 15

Interrupting a cooking cycle 15

Cancelling a cooking cycle 16

Enquirymode 16

Defrostbytime 16

Defrostbyweight 17

Setting multiple cooking phases 17

Setting a cooking time in advance 18

Automenufunction 19

Automenuchart 19

Safetylock 20

Microwave cooking guidelines 20 – 21

Materials you can use in a microwave oven 21 – 22

Materials not to be placed in a microwave oven 22

Cleaning and maintenance 22 – 23

The appliance exterior 22

The appliance interior 23

Turntable and turntable support 23

General cleaning advice 23

Installation 24–30

Electrical connection 24 – 25

Aperture and ventilation requirements 26

Built under installation requirements 27 - 28

Supplied installation components 28

Installing the oven into a housing unit 28 – 30

Troubleshooting 30 – 32

Contactdetails 36

Environmental note

oThe packaging materials that we use are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to us. Please

make sure that you read this instruction booklet before

attempting to install or use the appliance. If you are

unsure of any of the information contained in this

booklet, please contact the Advice Line.

General Information

oThis appliance is designed for domestic household use. It can

NOT be used as a freestanding microwave and must be built in

to a standard kitchen cabinet or housing unit (see the section

entitled “Installation” below).

oYou should only operate the appliance when the turntable and

turntable support are in position.

oYou should only use ovenware that is suitable for being used in a

microwave.

oTo prevent corrosion occurring due to moisture/condensation,

the cavity and the door of the microwave should be wiped dry

after each use of the appliance.

oThe appliance must not be left unattended if you are heating or

cooking food in containers that are made of paper, plastic or

other flammable materials. If left unattended, they could pose a

fire hazard.

oIf you notice smoke coming from the appliance, you should keep

the door of the microwave closed and then disconnect it from

your mains supply. DO NOT use your microwave oven, if you

think it is not operating correctly.

Installation

oIMPORTANT: Only the built in/built under installation

sanctioned by the manufacturer and outlined in this manual

should be followed.

oA separate building in kit will be supplied with the microwave, to

allow you to complete a built in installation.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles,please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of the manufacturer

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in the Conditions Of Guarantee. The foregoing does not affect

your statutory rights.

Service

oYour microwave complies with all relevant safety standards. In

order for it to continue to operate safely, only an engineer that

is approved by the Customer Care Department should

work on the appliance.

oIMPORTANT: It is dangerous for a non qualified person to work

on the appliance, in particular if they remove the cover that

provides protection against exposure to microwave energy.

oIf you notice that the door seal, door surfaces, power cord and

plug are damaged. You should stop using the appliance,

disconnect it from the mains supply and contact the Customer

Care Department.

oOnly genuine spare parts should be fitted to your appliance.

These can be obtained from the Spares Department.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. We do wish to emphasise that this compliance does

not remove the fact that the appliance surfaces will become

hot during use and retain heat after operation.

oDO NOT place anything between the door and the door frame.

oDO NOT store anything that is flammable inside of the

microwave. When it is switched on, the items could catch fire.

oDO NOT switch the appliance on if there is no food or liquid

inside of the microwave. If you run the microwave whilst it is

empty, there is a chance that it will overload.

oThe door seals and the door surfaces should ALWAYS be kept

clean and free from debris.

Child Safety

oWe strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

oIMPORTANT: This appliance should only be operated by adults.

You SHOULD NOT allow young children to use the microwave

without supervision. Older children should only operate the

appliance if they have been thoroughly instructed on how to use

the microwave and the consequences of improper usage.

General Safety

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in.

oDo not use the appliance to dry paper, textiles or animals.

oDo not install the appliance next to curtains or soft furnishings.

oDo not use the appliance to heat unopened bottles or cans etc.

oDo not heat cooking oil or liquid containing alcohol, as there is

the chance of spontaneous combustion.

oDo not boil eggs or similar foods in their shells, otherwise they

may burst. It is possible to poach eggs in your microwave,

providing you prick the yolks first.

oDo not attempt to lift or move cooking appliances by using the

oven door, as this may cause damage to the appliance or result

in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oThe manufacturer declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

Specifications

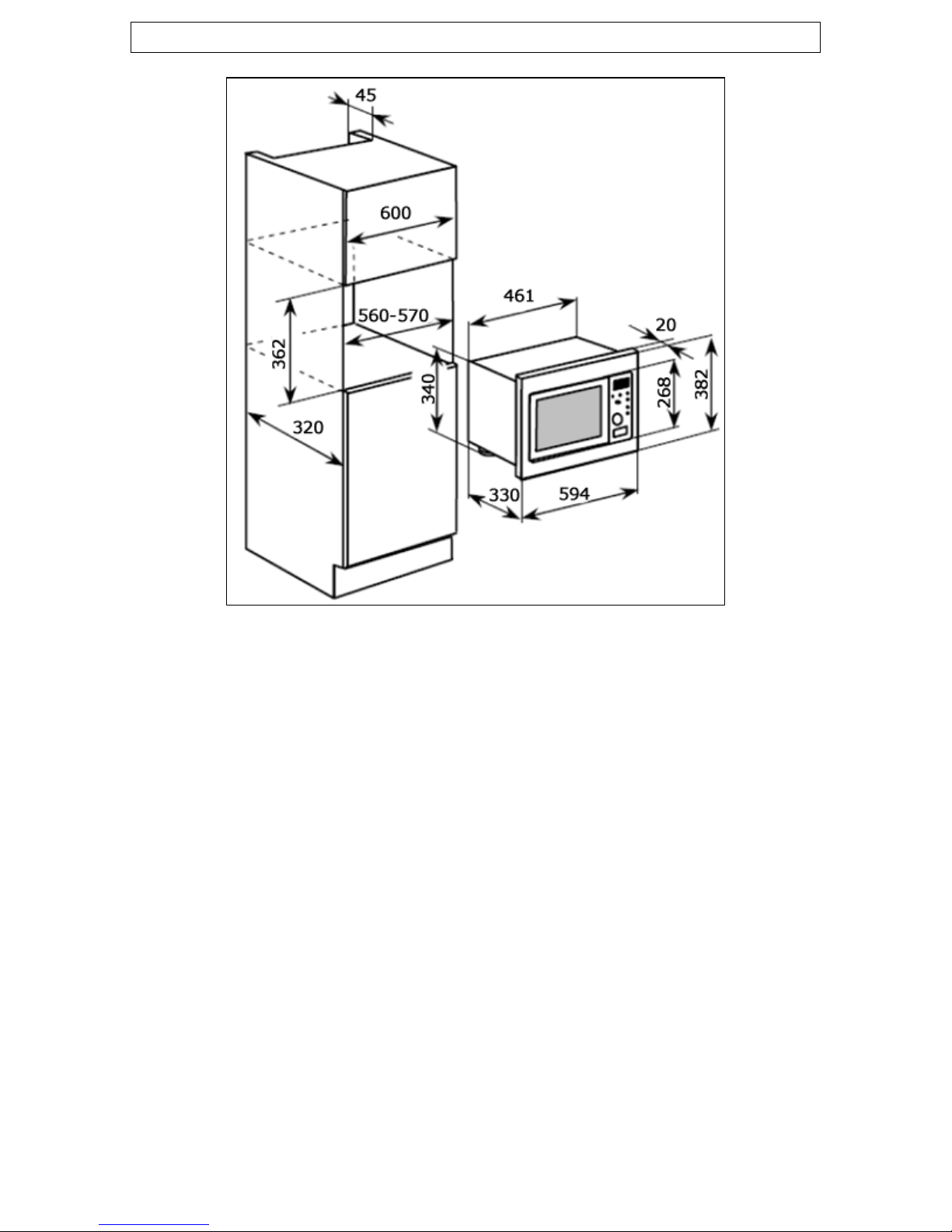

Product dimensions

(including frame kit)

Height: 382 mm

Width: 594 mm

Depth: 330 mm

Aperture dimensions

Height: 362 mm

Width: 560-570 mm

Depth: 320 mm

Product specifications

o5 power levels

o8 functions: Auto-reheat

Vegetables

Fish

Meat

Pasta

Potato

Pizza

Soup

oQuick start

oLED full programmer with function display

oPushbutton control operation

oSafety lock

oMark resistant coating

oCapacity: 20 litres

oMicrowave output: 800 W

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 1.25 kW

Mains Supply Lead: 3 x 0.75 mm²

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the microwave oven door and looking on the right

hand side of the chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Baumatic Mikrowellenofen Handbücher

Baumatic

Baumatic BMIC4644X Bedienungsanleitung

Baumatic

Baumatic BMC455TS Bedienungsanleitung

Baumatic

Baumatic GMGI250SS Bedienungsanleitung

Baumatic

Baumatic BTM31SS Bedienungsanleitung

Baumatic

Baumatic BWMC253SS Bedienungsanleitung

Baumatic

Baumatic BMMI170SS Bedienungsanleitung

Baumatic

Baumatic BAMW2330-P Bedienungsanleitung

Baumatic

Baumatic BTM20SS Bedienungsanleitung

Baumatic

Baumatic BMG200SS Bedienungsanleitung

Baumatic

Baumatic BMC460SS Bedienungsanleitung

Baumatic

Baumatic BTM23.3M Bedienungsanleitung

Baumatic

Baumatic BTM25.7SS Bedienungsanleitung

Baumatic

Baumatic BTM23SS Betriebsanleitung

Baumatic

Baumatic BTM25.2M Bedienungsanleitung

Baumatic

Baumatic BTM23.2M Bedienungsanleitung

Baumatic

Baumatic BTM25.3SS Bedienungsanleitung

Baumatic

Baumatic BAM28TK- 2 Bedienungsanleitung

Baumatic

Baumatic BMC253SS Bedienungsanleitung

Baumatic

Baumatic BTM40SL Bedienerhandbuch

Baumatic

Baumatic BTM23.1SS Bedienungsanleitung

Baumatic

Baumatic BTM17.2SS Bedienerhandbuch

Baumatic

Baumatic BTM25.5SS Bedienungsanleitung

Baumatic

Baumatic BTM17SS Betriebsanleitung

Baumatic

Baumatic BMCI300SS Bedienungsanleitung

Beliebte Mikrowellenofen Handbücher anderer Marken

Daewoo

Daewoo KOG-574R0S Bedienungsanleitung

LG MH7040SS Bedienungsanleitung

Sharp

Sharp R-895(AL)M Bedienungsanleitung

Dometic

Dometic DOTRM13W Bedienungsanleitung

Sanyo

Sanyo EM-X680 Bedienungsanleitung

Sharp

Sharp R-393M Bedienungsanleitung

KitchenAid

KitchenAid KMCX4510 Montageanleitung

Smeg

Smeg S45MCX1 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHM2044 Bedienungsanleitung

Sunbeam

Sunbeam SMW759 Bedienungsanleitung

Gallet

Gallet FMOE230S Bedienungsanleitung

Bosch

Bosch CEG732X.1B Bedienungsanleitung

Dometic

Dometic Roadmate 230 Bedienungsanleitung

Samsung

Samsung SJ0396W Bedienungsanleitung

Sanyo

Sanyo EM-P494WS Bedienungsanleitung

Sharp

Sharp R-240 Bedienungsanleitung

Electrolux

Electrolux EMS2840 Bedienungsanleitung

Daewoo

Daewoo KOC-984T2S13 Bedienungsanleitung
