Baumatic BOS65MS Bedienungsanleitung

User Manual for your Baumatic

BOS6FS

60 cm Fan oven

BOS65MS

60 cm Multifunction oven

NOTE: This user manual contains important information including safety & installation

points which will enable you to get the most out of your Baumatic appliance. Please keep

it in a safe place so that it is readily available for future reference.

Contents

Important safety information 1

Environmental note 3

Installation 4

Using the appliance

Description of the appliance 7

Before first use 9

Setting the clock 10

Selecting an oven function and temperature 11

Using the timer 14

Cleaning and maintenance 20

Troubleshooting 24

Cooking guidelines 27

Technical information 28

Important safety information

Your safety is of the utmost importance. Please make sure that you read this

instruction booklet before attempting to install or use the appliance. If you are

unsure of any of the information contained in this booklet, please contact the

retailer where you purchased your appliance from.

General Information

•This appliance is designed for domestic household use and can be built into a standard

kitchen cabinet or housing unit.

•The adjacent furniture or housing and all materials used in the installation must be able to

withstand a minimum temperature of 85°C above the ambient temperature of the room it

is located in, whilst in use.

•Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage

or discolouration at temperatures below the guidelines given above.

•Any damage caused by the appliance being installed in contravention of this temperature

limit, or by placing adjacent cabinet materials closer than 4mm to the appliance, will be

the liability of the owner.

•For use in leisure accommodation vehicles, please refer to the appropriate information

given in the installation instructions for this appliance.

•The use of this appliance for any other purpose or in any other environment without the

express agreement of our company will invalidate any warranty or liability claim.

•Repairs may only be carried out by an authorised service agent. Log onto

www.Baumatic.co.nz to locate an agent near you.

•This appliance complies with all current safety legislation. We do wish to emphasise that

this compliance does not remove the fact that the appliance surfaces will become hot

during use and retain heat after operation.

Child Safety

•Baumatic strongly recommend that babies and young children are prevented from

being near to the appliance and not allowed to touch the appliance

at any time

•If it is necessary for younger family members to be in the kitchen, please ensure that they

are kept under close supervision at all times.

General Safety

•Do not place heavy objects on the oven door or lean on the oven door when it is open,

as this can cause damage to the oven door hinges.

•Do not leave heated oil or fat unattended, as this is a fire risk.

•Do not place pans or baking trays directly on the base of the oven cavity, or line it with

aluminium foil.

•Do not allow electrical fittings or cables to come into contact with areas on the

appliance that get hot.

•Do not use the appliance to heat the room it is located in or to dry clothing.

•Do not install the appliance next to curtains or soft furnishings.

•Do not

attempt to lift or move cooking appliances by using the oven door or handle, as

this may cause damage to the appliance or result in injury to the person lifting the

appliance.

Cleaning

•Cleaning of the oven should be carried out on a regular basis.

•Great care should be taken whilst using this appliance and when following the cleaning

procedure outlined in this user manual. IMPORTANT: The appliance must be

disconnected from the mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a suitably qualified person,

strictly in accordance with the manufacturer’s instructions.

•The manufacturer declines any responsibility for injury or damage, to person or property,

as a result of improper use or installation of this appliance.

•Heat, steam and moisture will be created during use of the appliance, take care to avoid

injury and ensure that the room is adequately ventilated. If the appliance is going to be

used for prolonged periods of time, then additional ventilation may be required.

•Please consult with your qualified installer if you are in any doubt about the amount of

ventilation that you will require.

Environmental note

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut

off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse.

This should be undertaken by a competent person.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical

and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product or on the documents accompanying the product indicates that this

appliance may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste

disposal. For more detailed information about treatment, recovery and recycling of this product,

please contact your local city office or local waste management office.

The packaging materials that we use are environmentally friendly and can be recycled. Please

discard all packaging material with due regard for the environment.

Installation

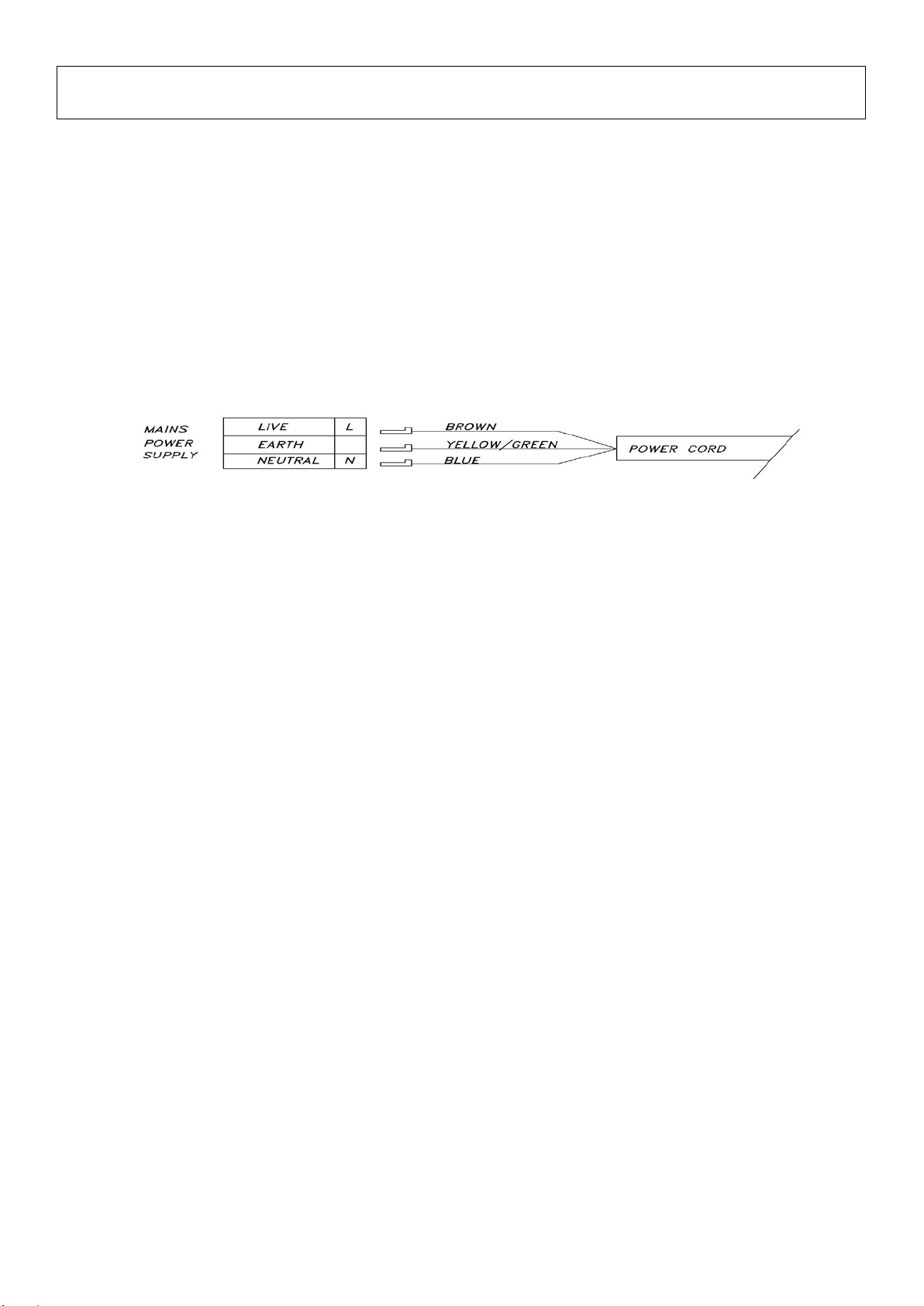

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED.

This appliance should be wired into a 16Adouble pole switched fused spur outlet, having

3 mm contact separation and placed in an easily accessible position adjacent to the

appliance. The spur outlet must still be accessible even when your oven is located in its

housing to enable the appliance to be disconnected from the mains supply.

To connect the oven power cord, loosen and remove the cover on the terminal block, in

order to gain access to the contacts inside. Make the connection, securing the cord in

place with the cable clamp provided and then immediately close the terminal block cover

again.

If you have to change the oven power cord, the earthing (yellow/green) conductor must

always be 10 mm longer than the line conductors.

Care must be taken to ensure that the temperature of the mains supply cable does not

exceed 50°C.

If the mains supply cable is damaged, then it must be replaced by an appropriate

replacement which can be obtained from the Spares Department.

Installing the oven into the kitchen cabinet

The kitchen area should be dry and aired and equipped with efficient ventilation.

When installing the oven, easy access to all control elements should be

ensured.

Positioning the appliance

Ensure that the aperture that you will be fitting the oven into is of the size given

in the above diagram.

The oven must be fitted into an oven housing with the ventilation cut-outs

shown in the “Ventilation requirements” section on the next page.

Ensure that the rear panel of the furniture housing unit has been removed.

Ensure that the oven has been securely fixed into the housing unit. The fixing of

the oven into the housing is made by using four screws. These should be

screwed through the oven cabinet and into the housing unit.

When installing below a cooktop, please ensure the minimum required

clearances specified by the cooktop manufacturer.

Ventilation requirements

(Figure shows the ventilation and cut-out requirements for the installation of the

appliance into a standard kitchen unit).

(Figure shows the ventilation and cut-out requirements for the installation of the

appliance into a tall housing unit).

Ensure that the oven has been securely fixed into the

housing unit. The fixing of the oven into the

housing is made by using four screws. These

should be screwed through the oven cabinet

and into the housing unit.

Description of the appliance

Control panel

Side rack Lamp

Wire rack

Oven door

Door handle

Accessories

Description Illustration Qty. BO6FS Qty. BO65MS

Oven unit 1 1

Lift Handle 1 1

Roasting dish 1 1

Oven rack 1 1

Wire insert 1 1

Side rack / 1 pair

Pizza stone / 1

Screw and nut

4 4

Control panel (BOS6FS)

1) Oven function selector knob

2) Minute minder / manual operation control knob

3) Thermostat control knob

4) Power indicator light

5) Oven operating light

Control panel (BOS65MS)

1) Oven function selector knob

2) Power indicator light (The light will be on, when a function is selected.)

3) Oven programmer/timer

4) Oven heating indicator light (The light will be on, when the oven is heating.)

5) Thermostat control knob

6) LED display

Oven programmer/timer display

7) “AUTO”: Automatic function symbol

8) : oven heating symbol

9) “﹒”: Time adjustment symbol

10) ：Minute minder symbol

11) “+”: Plus button

12) “M”：Manual button

13) “-“: Minus button

14) “00﹒00”: Time display
