Baumatic TG1 Bedienungsanleitung

TG1/MG1/SB1

60cm Multifunction

built in oven.

User Manual for your Baumatic

TG1/MG1/SB1

60 cm Multifunction built in oven

You will be mine

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 10/10/06

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8

Controlpanel 9

Oven programmer/timer display 9

Setting and using the oven programmer/timer 10

Settingthetimeofday 10

Setting the minute minder function 10

Setting the duration function 11

Setting the end cook function 12

Setting the start and end time function 13

Selecting a cooking function and temperature 14

Selecting manual operation mode 14

Selecting an oven function 14-15

Thermostatcontrolknob 15

Ovenoperatinglight 15

Cookingguidelines 16

Warnings 16-17

Accessories 17

Cleaning and maintenance 18

Removable oven roof liner 19

Replacing the oven bulb 19

Installation 20

Electricalconnection 20

Reversing the door of your appliance 21-24

Installing the oven into the kitchen cabinet 25

My appliance isn’t working correctly 26-27

Baumatic Ltd. conditions of guarantee 28

Contact details

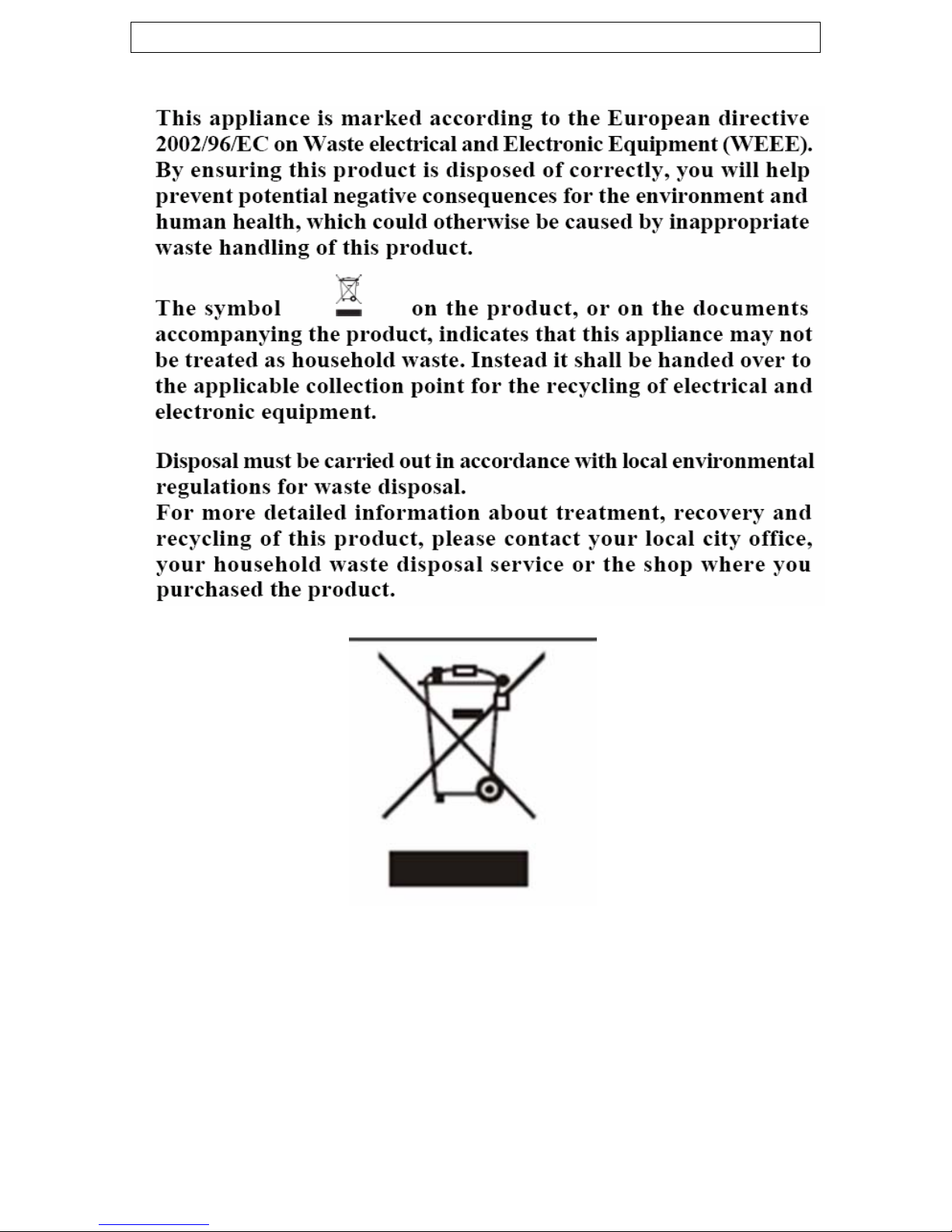

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Information

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oIn the parts destined to come into contact with foodstuffs, this

appliance is in accordance with the requirements of the EC

directive 89/109 transposed in the Italian Legislative Decree No.

108 of 25/01/92.

oCE: Appliance conforming to the European directives

89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions

and “RoHS” directive 2002/95/CE.*

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

*The RoHS directive stands for “the restriction of the use of

certain hazardous substances in electrical and electronic

equipment”. This directive bans the placing on the EU market of

new electrical and electronic equipment containing more than

the agreed levels of lead, cadmium, mercury, hexavalent

chromium, polybrominated biphenyl (PBB) and polybrominated

diphenyl ether (PBDE) flame retardants.

Specifications

Product Dimensions

Height: 596 mm

Width: 596 mm

Depth: 545 mm

Aperture Dimensions

Height: 585 mm

Width: 560 mm

Depth: 560 mm

Cooling fan

oA tangential cooking fan is fitted inside of this appliance, to make

the internal temperature of the oven stable and the external

surface temperature lower.

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap

Max Rated Inputs: 2.4 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C screw type pigmy

For future reference please record the following information which can

be found on the Rating Plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the oven door and looking on the right hand side of

the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Control Panel

1) Oven function selector knob

2) Power indicator light

3) Oven programmer/timer

4) Timer “minute minder” button

5) Timer “duration” button

6) Timer “end cook” button

7) Timer “manual operation” button

8) Timer “minus” button

9) Timer “plus” button

10) Oven operating light

11) Thermostat control knob

Oven programmer/timer display

12) “Auto” function symbol

13) “Minute minder” symbol

14) “Manual operation” symbol.

Setting and using the oven programmer/timer

Selecting manual operation mode

After your appliance is connected to your mains supply for the

first time, the numbers on the timer display will flash. Before

you can select a cooking function or set a temperature, you

must set the appliance into “manual operation” mode.

oTo select manual operation mode, press the “manual operation”

button (7) on the control panel.

Setting the time of day

After setting your oven for manual operation, you should also

set the time of day.

oUse the “minus” button (8) and “plus” button (9) to adjust the

time that appears in the display. After getting the display to the

correct time, release the “minus” and “plus” buttons. After a few

seconds the time will fix in the display and you will be able to

use your oven.

Setting the minute minder function

You are able to set the minute minder at any time, regardless

of whether an oven function has been selected. You can set a

period of time using the minute minder function and an alarm

will sound when this period of time has elapsed.

oPress the “minute minder” button (4), the display will show a

value of 00:00. Set the period of time that you wish the minute

minder to countdown for, by using the “minus” (8) and “plus”

(9) buttons.

oOnce the display has got to your desired countdown time, let go

of the “minus” and “plus” buttons. The minute minder symbol

(13) will appear on the timer display.

oOnce a countdown time has been set, it is possible to shorten or

lengthen the time by using the “minus” or “plus” buttons.

oAn alarm will sound when the countdown time has elapsed. The

alarm can be silenced by pressing the “minute minder” button.

oImportant: The oven will continue to heat once the alarm has

been silenced. If you have finished cooking, then you should turn

the oven function selector and thermostat control knob to 0.

Andere Handbücher für TG1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Baumatic Ofen Handbücher

Baumatic

Baumatic BO910SS Bedienungsanleitung

Baumatic

Baumatic B155.1 Bedienungsanleitung

Baumatic

Baumatic B262ss Bedienungsanleitung

Baumatic

Baumatic BAO6001-P Bedienungsanleitung

Baumatic

Baumatic BCS460SS-AUS Bedienungsanleitung

Baumatic

Baumatic BY9006SS Bedienungsanleitung

Baumatic

Baumatic B724SS-A Bedienungsanleitung

Baumatic

Baumatic BK26P5PSS Bedienungsanleitung

Baumatic

Baumatic BOF625SS Bedienungsanleitung

Baumatic

Baumatic P960SS Pythagora Bedienungsanleitung

Baumatic

Baumatic B260.1SS-A Bedienungsanleitung

Baumatic

Baumatic B99 Betriebsanleitung

Baumatic

Baumatic BS65MS Bedienungsanleitung

Baumatic

Baumatic B153SS-A Bedienungsanleitung

Baumatic

Baumatic BO988BL Bedienungsanleitung

Baumatic

Baumatic MG1 Bedienungsanleitung

Baumatic

Baumatic BO667TS-DD Bedienungsanleitung

Baumatic

Baumatic BMOP12 Bedienungsanleitung

Baumatic

Baumatic AS13.1SS-A Bedienungsanleitung

Baumatic

Baumatic BM90S Bedienungsanleitung

Baumatic

Baumatic B724SS-A Bedienungsanleitung

Baumatic

Baumatic P640SS Bedienungsanleitung

Baumatic

Baumatic BO988BL Bedienungsanleitung

Baumatic

Baumatic MEGACHEF B600MC Bedienungsanleitung

Beliebte Ofen Handbücher anderer Marken

Bosch

Bosch HVA531NS0 Bedienungsanleitung

Electrolux

Electrolux EOF6P46X Bedienungsanleitung

NEFF

NEFF B44S32 5GB Series Bedienungsanleitung

Combi

Combi BLODGETT BC142GDS Bedienungsanleitung

AEG

AEG COMPETENCE 311704300 Bedienungsanleitung

Falcon

Falcon DOMINATOR PLUS G3106 Series Benutzerhandbuch

Rational

Rational SCC WE 61G Bedienungsanleitung

Smeg

Smeg DOSPA38X Installations- und Betriebshandbuch

Electrolux

Electrolux air-o-convect 20 GN 2/1 Bedienungsanleitung

Miele

Miele HR 1954-2 Bedienungsanleitung

KHIND

KHIND OT50 Bedienungsanleitung

Henny Penny

Henny Penny Smoker Box Bedienungsanleitung

Lang

Lang ECOD-AP Bedienungsanleitung

AEG

AEG BEK455310M Bedienungsanleitung

Frigidaire

Frigidaire FNGE90JGR Bedienungsanleitung

Hotpoint

Hotpoint FE9 S831 JSH IX Bedienungsanleitung

GE Advantium SCB2000 Bedienungsanleitung

AEG

AEG DE401301DM Bedienungsanleitung
