Baumatic RETRO3 Bedienungsanleitung

RETRO3BL/IV

RETRO4BL/IV

Fridge freezer

USER MANUAL FOR YOUR BAUMATIC

RETRO3BL/IV

RETRO4BL/IV

315 Litre retro style fridge freezer

316 Litre retro style fridge freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

DD 14/03/08

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your RETRO3BL/RETRO3IV 7

Specifications of your RETRO4BL/RETRO4IV 8

DescriptionoftheRETRO3BL/IV 9

DescriptionoftheRETRO4BL/IV 10

Description of the product features 11

Using your Baumatic fridge freezer 12-17

Beforeswitchingon 12

Duringfirstuse 12

Turning on the appliance and setting the thermostat 13-14

Arranging and storing food in the fridge section 14-15

The freezer compartment 15

Freezing fresh food 15-17

Tipsonfreezing 17

Makingicecubes 17

Cleaning and maintenance 18-22

Defrosting the refrigerator compartment 19

Defrosting the freezer compartment 19-21

Replacing the light bulb 22

Installation 23-25

Electrical connection 23-24

Positioning 24-25

Troubleshooting 26-27

Contactdetails 28

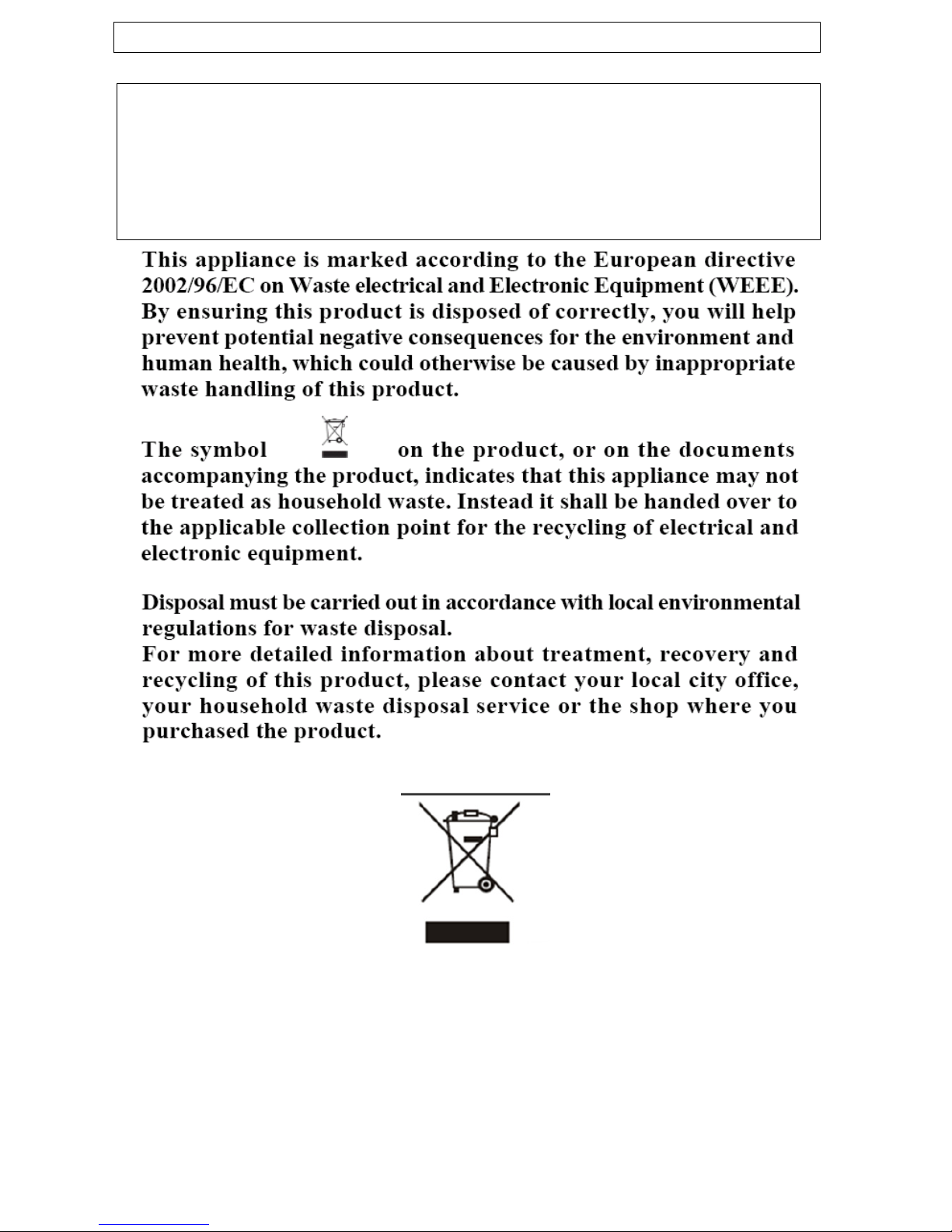

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Baumatic Service Department.

Specifications of your RETRO3BL/RETRO3IV

Congratulations on purchasing a Baumatic fridge freezer

oTotal gross/net capacity: 315/311 litres

oGross capacity (fridge/freezer): 257/58 litres

oNet capacity (fridge/freezer): 255/56 litres

oEnergy efficiency: A+

oStar rating: ****

o4 Safety glass shelves

o2 Salad crispers

oButter compartment

oEgg rack

oBottle rack

oGeneral rack

oShelf in freezer compartment

Dimensions of appliance

Height: 1710 mm

Width: 600 mm

Depth: 650 mm

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge section. You will need to open the door of

your appliance to be able to find it. The rating plate will indicate the

ambient temperature range that your appliance will function correctly

within.

Specifications of your RETRO4BL/RETRO4IV

Congratulations on purchasing a Baumatic fridge freezer

oTotal gross/net capacity: 316/301 litres

oGross capacity (fridge/freezer): 216/100 litres

oNet capacity (fridge/freezer): 218/83 litres

oEnergy efficiency: A+

oStar rating: ****

o3 Safety glass shelves

o2 Salad crispers

oButter compartment

oEgg rack

oBottle rack

oGeneral rack

o3 freezer drawers

Dimensions of appliance

Height: 1880 mm

Width: 600 mm

Depth: 650 mm

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the inside of the fridge section. You will need to open the door of

your appliance to be able to find it. The rating plate will indicate the

ambient temperature range that your appliance will function correctly

within.

Description of the RETRO3BL/IV

1) Dairy section

2) Middle shelf

3) Bottle shelf

4) Doors

5) Salad crisper drawers

6) Fridge shelves

7) Thermostat and light

8) Freezer compartment

Description of the RETRO4BL/IV

1) Thermostat

2) Adjustable shelves

3) Meat Box

4) Salad crisper drawers

5) Compartment for freezing fresh food*

6) Freezer drawers

7) Middle door shelves

8) Dairy section

9) Bottle shelf

10) Internal light

* There is an ice cube storage drawer above this drawer (not shown in

the above drawing).
