TRIO.BL

323 Litre 3 door combi

frost free fridge freezer

USER MANUAL FOR YOUR BAUMATIC

TRIO.BL

323 Litre 3 door combi

frost free fridge freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

JW 13/09/12

Contents

Environmental note 4

Important safety information 5-6

Specifications of your fridge freezer 7-11

Description of the appliance 8

Product features (fridge section) 9-11

Product features (freezer section) 11

Using your Baumatic fridge freezer 12-13

Beforeswitchingon 12

Duringfirstuse 12

Control panel 13-18

Switching on the appliance 14

Manually setting the temperature (fridge section) 14

Manually setting the temperature (freezer section) 14

Manually setting the temperature (chiller drawer) 15

Switching on Zero Fresh mode 15

Switching on Super Cool mode 16

Switching on Super Freeze mode 16

Switching on Energy Saving mode 17

Switching on Intelligent mode 17

Returning the appliance to normal operation 18

Switching on the control panel lock 18

Opendooralarm 18

Temperature rise alarm 18

Arranging and storing food in the fridge section 19-20

The **** freezer section 20-23

Freezingfreshfood 21

Tipsonfreezing 21

Storing commercially frozen food 22

Defrosting frozen food 22

In the event of power failure 22

Normaloperatingnoises 23

Importantuserinformation 23

Saving energy when using your fridge-freezer 24-25

Cleaning and maintenance 25-27

Generalcleaning 25-27

Replacing the light bulb 27

Installation 28-30

Electricalconnection 28

Positioning 29

Troubleshooting 30-31

Baumaticconsumables 32

Technicaldata 33

Contact details 35

Environmental note

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be carried

out by a qualified electrician or competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipe-

work does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing maintenance work,

ensure that the appliance has been disconnected from your

mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated, so

that there is proper air flow between the bottom of

the unit and the plinth/kick plate which it is sitting

on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

oDo not store aerosol cans with a flammable propellant in this

appliance.

Service

You should not attempt to repair the appliance yourself,

as this could cause injury or a more serious malfunction.

If you require a service call then please contact the

Baumatic Customer Care Department.

Specifications of your fridge freezer

Dimensions of your appliance

oHeight: 1913 mm

oWidth: 629 mm

oDepth: 651 mm (excluding handles)

Energy efficiency class

oEnergy class: A+

Cubic capacities

oTotal gross/net capacity: 323/312 litres

oGross capacity (fridge/freezer): 244/79 litres

oNet capacity (fridge/freezer): 235/77 litres

Specifications of the appliance

oFrost free fridge and freezer

oStar rating ****

oMulti airflow cooling system

oElectronic temperature control

oDigital control panel

oAdjustable thermostat

oFast cooling switch

oFast Freeze switch

oFast freeze indicator light

oDoor open warning indicator

oTemperature rise warning indicator

oAdjustable feet

oReversible door

o2 Adjustable fridge safety glass shelves

o1 Salad crisper shelf (Safety glass)

o1 Salad crisper

o1 Chiller drawer

o1 Bottle rack

o2 General door racks

o1 Butter and cheese compartment

o1 Egg rack

o2 Non-transparent freezer drawers

o1 Ice cube tray

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located inside of the fridge

section, on the left side. You will need to open the door of the fridge

section and you may need to remove one of the middle safety glass

shelves. The rating plate will indicate the ambient temperature range

that your appliance will function correctly within.

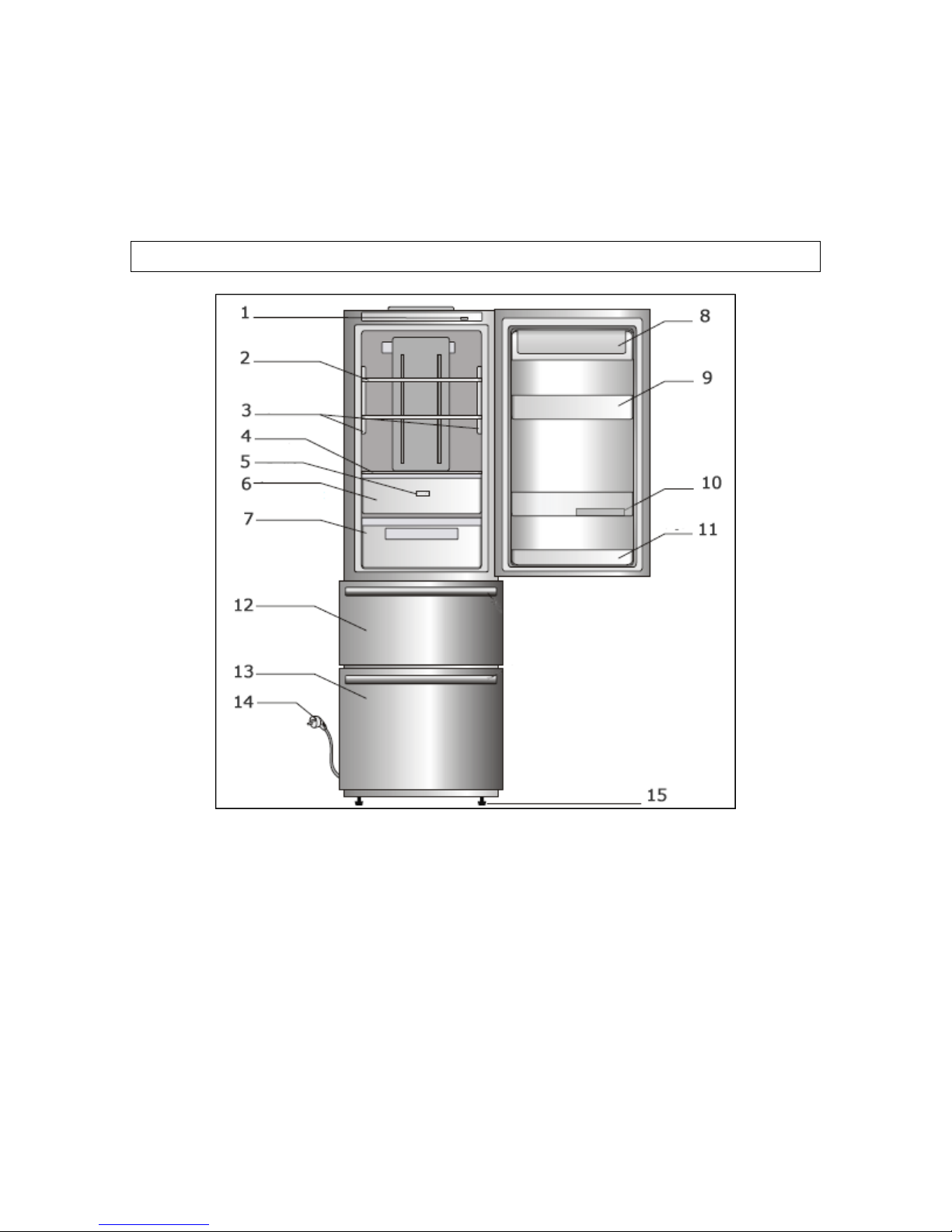

Description of the appliance

1) Light switch (door close)

2) Adjustable safety glass shelf (x2)

3) Interior side lights

4) Salad Crisper cover (safety glass)

5) Salad Crisper UV-fresh light

6) Salad Crisper

7) Chiller drawer

8) Dairy compartment

9) Upper general door rack

10) Bottle rack

11) Lower general door rack

12) Upper freezer drawer

13) Lower freezer drawer

14) Power lead

15) Adjustable feet

Description of the product features (fridge)

Adjustable safety glass shelves

oThe shelves may be placed in any of

the guide slots within the interior of the

appliance. They are protected from

sliding out.

oTo remove a shelf: Take off all of the

items that are stored on the shelf that

you want to remove. Then lift the back

of the shelf and carefully pull it out of

the grooves.

Salad crisper drawer and cover

oThe crisper drawer is suitable for storing fruits, salad and

vegetables. They are designed to keep the contents fresh for as

long as possible.

oThe crisper cover helps to prevent fruit and vegetables from

drying out prematurely, and can also be used as a shelf.

oCare should be taken when storing tropical fruit (bananas and

pineapples etc) and tomatoes. As these types of items can easily

deteriorate at a lower temperature.

oTo remove the safety glass crisper cover, remove the salad

crisper drawer, lift up the front of the shelf and then pull it

towards you.

Salad crisper with UV-light technology

oThe salad crisper drawer contains a unique UV light which helps

to keep fruit and vegetables fresh for longer.

oThe UV light works by promoting photosynthesis and assists in

locking in vitamins and nutrients by stimulating growth and

slowing decay.

Chiller drawer

oThe chiller drawer has its own temperature regulation with a

range from -2°C to 3°C enabling you to carefully chill foods to

your required preference.

oFor the storage of fresh meat and fish, we would recommend

that they are stored in a foil cover or a vinyl wrap at a

temperature of approximately 0°C.

oIf used for chilling drinks, we would recommend that they are

stored at approximately 2°C to 3°C

oCare should be taken when storing tropical fruit (bananas and

pineapples etc) and tomatoes. As these types of items can easily

deteriorate in a lower temperature.

IMPORTANT: You should only chill similar types of food in the

chiller drawer at a time because different food types should be

stored at different temperatures. This will help to avoid

freezing liquid or inadvertent frost damage, etc.

The dairy compartment

oThe top rack on the fridge

door should be used to store

eggs, butter, cheese, yogurts

etc.

IMPORTANT: You should take

care not to trap your fingers

when opening and shutting the

cover of the dairy compartment.

General door racks*

oThe door liners hold various racks, which are suitable for storing

eggs, cheese, butter, yogurt, smaller packages, tubes, cans etc.

Bottle rack*

oThe lower middle door rack should be used for storing

reasonably sized bottles.

oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE

SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS

THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.

Inhaltsverzeichnis

Andere Baumatic Kühlschrank Handbücher

Baumatic

Baumatic 34900409 Bedienungsanleitung

Baumatic

Baumatic BR201.3A Bedienungsanleitung

Baumatic

Baumatic BF585 Bedienungsanleitung

Baumatic

Baumatic B40DSS Bedienungsanleitung

Baumatic

Baumatic BRB2713.5 Bedienungsanleitung

Baumatic

Baumatic BR27B Bedienungsanleitung

Baumatic

Baumatic BR221.3A Bedienungsanleitung

Baumatic

Baumatic BR17A Bedienungsanleitung

Baumatic

Baumatic BRB2617 Bedienungsanleitung

Baumatic

Baumatic BRCIF7030 Bedienungsanleitung

Baumatic

Baumatic BRCIF5050 Bedienungsanleitung

Baumatic

Baumatic BR221.3A Bedienungsanleitung

Baumatic

Baumatic BF457 Bedienungsanleitung

Baumatic

Baumatic TITAN2 Bedienungsanleitung

Baumatic

Baumatic BRCIF7535 266 Bedienungsanleitung

Baumatic

Baumatic BR26A Bedienungsanleitung

Baumatic

Baumatic BRUL 135 Bedienungsanleitung

Baumatic

Baumatic SB6 Bedienungsanleitung

Baumatic

Baumatic BF290SS Betriebsanleitung

Baumatic

Baumatic BRCI2575 Bedienungsanleitung

Baumatic

Baumatic BR500 Bedienungsanleitung

Baumatic

Baumatic BRUI 119 Bedienungsanleitung

Baumatic

Baumatic RETRO14BL Bedienungsanleitung

Baumatic

Baumatic BR200.3A Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
