BBG Industry 30 Bedienungsanleitung

Industry 30

Weighing indicator

USER MANUAL

Edition:10052001A

Safety Instruction

For safety operation pls. follow the safety instruction.

WARNING

Setting. Calibration Inspection and Maintain of the indicator is

prohibited by Non-professional staff.

WARNING

Pls. make sure the weighing display have good ground in using

WARNING

The indicator is the static and sensitive equipment,

cut off the power during electrical connections,

internal components touched by hand is prohibited,

and please take the measure of anti-static.

LIST

1. Instruction..............................................................................................1

1.1 Main function..................................................................................1

1.2 Technical parameter ........................................................................1

1.3 Drawing...........................................................................................2

1.4 Battery instruction............................................................................3

2. Installation and calibration....................................................................4

2.1 Power supply connection...............................................................4

2.2 Loadcell connection .......................................................................4

2.3 communcation interface.................................................................5

2.4 4~20mA..........................................................................................6

2.5 Relay output signal.........................................................................6

3. Basic operation........................................................................................9

3.1 Keyboards......................................................................................9

3.2 Power on......................................................................................11

3.3 Zero function ................................................................................11

3.4 Tare function.................................................................................11

3.5 Total function................................................................................11

3.6 Print function ................................................................................13

3.7 Hold function ................................................................................13

4. Calibartion and Technical parameter setting.........................................13

4.1 Enter calibartion ...........................................................................13

4.2 Caliaration....................................................................................14

4.3 Technical parameter setting.........................................................16

5. Output format.........................................................................................22

5.1 Second display continuous output...............................................22

5.2 Conputer continous output...........................................................22

5.3 Serial interface receive PC command..........................................23

5.4 Print output format........................................................................24

5.5 PC/ Second display continuous output format.............................24

6. Maintain.................................................................................................25

6.1Toubleshooting for common problems..........................................25

6.2 Daily maintenance.........................................................................26

6.3 Default parameter recovery..........................................................26

6.4 Packing list...................................................................................29

1. Instruction

This weighing indicator is designed for bench scale. Floor scale, the basic

weighing function include: Hold. Print kg/lb conversion . optional: I/O , 4-20mA

output.

1.1 Main function

Weighing function:

Zero, tare, G.W, N.W, accumulation. printing, animal -weighing.

kg/lb convert. Overload remind.

Print format: S.N. G.W N.W Tare. Date, Time

Options:

Pinter

RS232/RS485 serial interface or second display

I/O

4-20mA

1.2 technical parameter

Accuracy class 5000 e

Resolution display: 30, 000 ADC: 2,000,000

Zero stability error TK0 < 0.1μV//K

Span stability error TKspn < ± 6 ppm//K

Sensitivity (internal) 0. 3 μV /d

Input voltage -30~30mV DC

Excitation circuit 5 VDC, 4 wire connection,

Maximum connect 6 load cell of 350Ω

AC power AC100~250V

Operation temperature - 10 °C ~ + 40 °C

Operation humidity ≤90%RH

Storage temperature - 40 °C ~ + 70 °C

1.3 Outline（mm）

1.4 Battery instruction

1. . when you use the internal battery first time，you should charge

the battery fully, to prevent low voltage resulted from self leakage

of battery.

2. when the “red” light flash means low battery, pls. charge it in

time3. the light turns to red during charging

4. when the light turns to green, means fully charged.

5. if battery is not used for long time, take it out to avoid the

leakage.

6. In order to keep the battery in best using condition, it is suggest

that you fully discharge the battery every month, the method is that

using the indicator till it is automatically power off.

2.Installation and calibration

2.1 Power supply connection

The indicator is powered by adapter, you plug the adapter directly into

the “DC” pin at the back cover the indicator is ok.

2.2 Connection of load cell and indicator

The indicator can connect with 6 load cell of 350Ω at most, 4 wire or 6

wire load cell both ok.

There are two methods connection between load cell and indicator

A. quick disconnect, as below:

B. Terminal trip connection (inner connection)

1. the exciting voltage for the load cell is 5VDC, the largest output

current 120mA, maximum connect 6 pcs 350Ω load cell;

2. Load cell (or the signal cable for the junction box) is connected

with 5 bit

Terminal trip ( J3) on the circuit-board of weighing indicator.

3. Open Weighing indicator back cover, insert signal cable to the

terminal trip(J3), and make sure the screw is fixed tightly, the

connection as below:

Weighing display Load cell

+EXC + voltage

+IN + output signal

HD ----------- Shielded wire

-IN - output signal

-EXC -IN HD +IN +EXC -EXC - voltage

2.3 Communication interface

RS232 : DB9 Pin or 3 Pin

DB9 definition

5 4 3 2 1

9 8 7 6

Pin function and definition as bellows:

DB9 joint

Definition

Function

TXD

Sending data

RXD

Receiving data

GND

Ground interface

Note: if RS485, The connection pin is 2 and 5 pin.

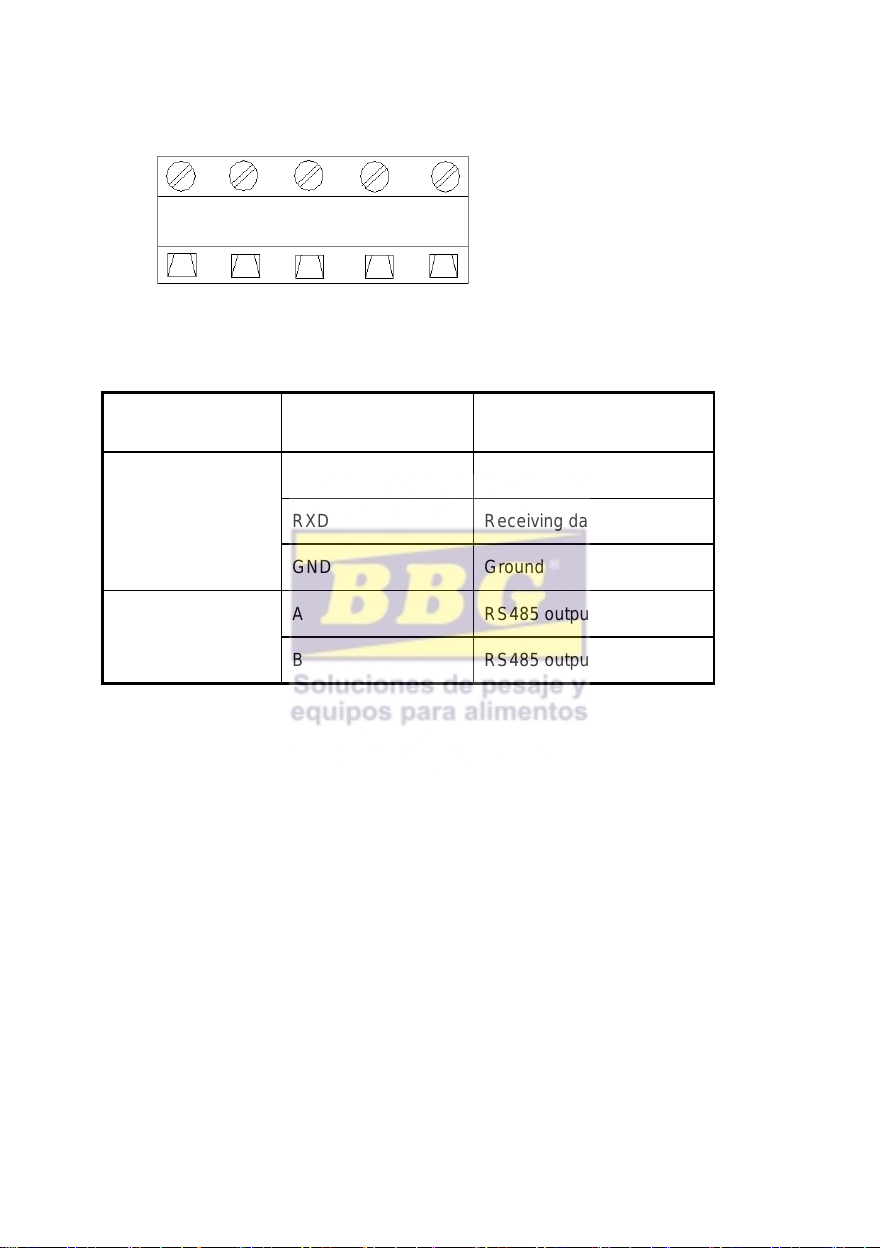

3 Pin definition

Inner connection

TXD RXD GND A B

Pin definitions：

Pins

Definitions

Function

RS232

TXD

Sending data

RXD

Receiving data

GND

Ground

RS485

RS485 output “A”port

RS485 output”B”port

2.4 4-20mA output

Technical parameters:

Resolutions: 1/1000

Outside Load: 100-350Ω

Connection:

1. Inside connection: 4-20mA, load input port connect with “I” of J2, Ground port

connect with “ GND” of J2

2. Outside connection: 4-20mA, load input port connect with “1” pin of DB9,

Ground port connect with “6” pin of DB9

Testing :

Connect the 250Ω to the 4-20mA, adjust the multimeter to the current stalls, the

red pan connect the loading port, and the black pan connect” GND” to test the

output current.

Calibration:

1. Press” Print” and “ Total” go to C32, show[out-4], the output current should be

4mA.

2. If Press [↑]show[out-5]，Pres[↓]show[out-20]，the output current should be

20mA.

3. Adjust the current, for example, adjust to [out-20], the output current should be

12mA, if not 12mA. Press [←](“Zero” key)or[→](Net/gross key)to adjust the current

to 12mA

2.5 Relay output signal function

The indicator can output 4 signal , connect with the outside equipment

the indicator can perform automatic control function and upper limit

and lower limit alarm function. Perform the 4 kinds function through

setting C33, 4 signals

As below

Output

port

Port definition

Function

C33＝0

Out1

Close output function

No output signal

Out2

Close output function

No output signal

Out3

Close output function

No output signal

Out4

Close output function

No output signal

C33＝1

Out1

Open overload control function

Output overload

control signal

Out2

Open compliance control function

Output compliance

control signal

Out3

Open underload control function

Output underload

control signal
