Link Mini
BC Link Mini
Owner’s Manual
Congratulations on purchasing your BC Link Mini radio from Backcountry
Access. This is an important step toward improving communication within
your group in the backcountry. At BCA, we believe that backcountry
safety starts with good planning and clear communication. While gear
like the BC Link Mini and other BCA safety products are essential, they
are only part of the equation. Education is equally important, especially
regarding terrain selection, avalanche safety, and rst aid. For more
information on backcountry and snow safety, see
https://backcountryaccess.com/en-us/learn-avalanche-safety
Disclaimer
ATTENTION! The radio is a multitask FRS transceiver. Combining the latest
technology in radio communication along with a sturdy mechanical frame,
the radio is the ideal and eective solution for the backcountry travelers
who need to stay in touch with group members while skiing, climbing,
mountain biking, or participating in other outdoor activities, or for leisure
users that just want to keep up with friends and family. To help you ward
o bodily injury or property loss that may arise from improper operation,
please read all the information carefully before using our products. Before
operating the radio, please read all safety and operating instructions.
Save all instructions in a safe place for future reference.
All action sports involve inherent risks, and injuries or death may occur
during these activities. Do not rely on this product as your only means of
communication. Never travel alone and always make sure that a responsible
person knows where you are going and when you plan to return. Familiarize
yourself with the area in which you are traveling and the current weather and
avalanche conditions. Backcountry Access, Inc. is not responsible for any
loss of communication between you and your group due to this product’s
improper use, the failure to properly charge and maintain the product’s
battery, and/or poor or no reception in the operating area.
2
USB-C Charging Port
Charging Light Leash Anchor
LED:
Transmit: Red Light
Receive: Green Light
Antenna
Clip Attachment
Interface
Speaker
PTT Button
(Push-to-talk)
Microphone
Power / Volume
Component Outline
Getting Started
In the BC Link Mini package, you will nd the radio (1), webbing clips (2),
belt clip (1), velcro strap (1), carabiner leash (1), USB-C cable (1), and
quick reference card (1). To start, check all the accessories and charge the
battery.
VelcroStrapCarabiner LeashStandard Webbing Clip Belt Clip
3
Charging battery
Connect the radio to a power outlet using the included cable and a USB
power adapter. Insert the cable into the radio’s charging port until you hear
a “click”. A full recharge can take up to six hours. The light next to the USB
port will be read when the radio is charging. The light will turn green when
the radio is fully charged.
Remaining Battery Power Display
This radio has a Battery Level Meter that shows the battery power
level. The greater the number of bars visible, the stronger the battery level.
When the battery level is low, the Battery Shell icon will ash in the
display indicating your battery should be recharged.
WARNING! To avoid the risk of personal injury or property damage from
re or electrical shock, only use accessories specically designated for this
product.
Connecting Belt Clip
Connect the Belt Clip to the radio by sliding the clip into the slot on the back
of the radio until it snaps into place.
Connecting the Webbing Clip & Strap

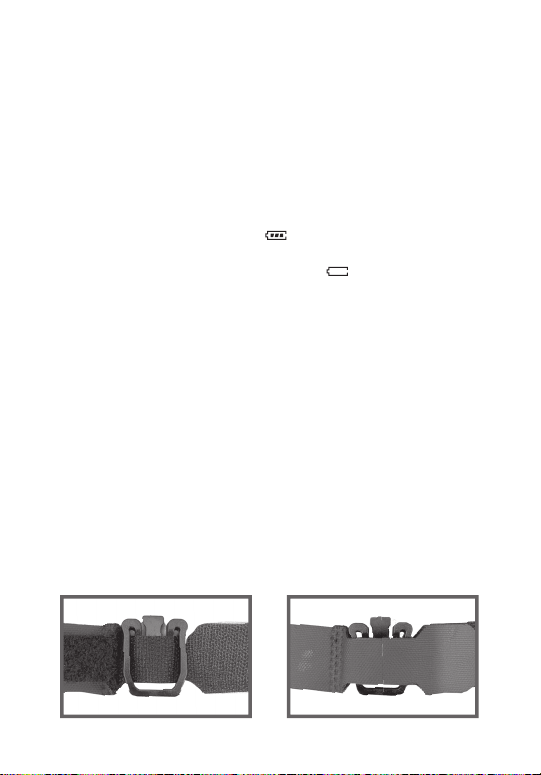

Connect the Webbing Clip to any webbing as shown in the image below.
Connect the Webbing Clip to the radio by sliding the clip into the slot on the
back of the radio until it snaps into place.
4
Basic Functions
This chapter describes how to use basic functions on your BC Link Mini.
LCD Display
Screen Icons
AO1.000
BO5.010
Channel (05) Privacy Code (010)
5
User Interface
This chapter describes how to use basic functions on your BC Link Mini.
Press
MENU
Press
MENU
Press
MENU
Press
MENU
Press
MENU
Choose
Preset B
*arrow designates Transmit Channel
Lock
Preset B
*arrow designates Transmit Channel
*Lock Icon pops up when keys are locked
Choose
Preset
*arrow designates Transmit Channel
6
ON
or
OFF
LIGHT
Function
*Use up and down arrows to turn on/o
BEEP
Function
*Use up and down arrows to turn on/o
ON
or
OFF
Set
Privacy Code
*Use up and down arrows to scroll to desired PC
*PC 1-121 will relate to Frequency Chart
*CT Icon pops up for privacy codes 1-38. DCS
Icon pops up for privacy codes 39-121.
Select
1-121
Select
1-22
Set
Channel
*Use up and down arrows to scroll to desired CH
*CH 1-22 will relate to Frequency Chart
Set
Channel
*Use up and down arrows to choose CH A/B
Channel A
or
Channel B
Hold
or
Hold
Hold down
/
simultaneously (3s)
Power on/o
To turn the radio on, simply rotate the volume/power knob clockwise until
you hear a “click”. If your radio powers on correctly there should be an
audible tone after about one second. Turn the volume/power knob counter-
clockwise all the way until you hear a “click”. The radio is now o.
Adjusting the volume
To turn up the volume, turn the volume/power knob clockwise. To turn the
volume down, turn the volume/power knob counter-clockwise. Be careful not
to turn it too far, as you may inadvertently turn your radio o.
Talking on your radio
Clip the radio where desired or secure the radio onto your pack’s shoulder
strap. Rotate the power knob clockwise/counter clockwise to power on,
raise volume, or power o. To transmit, press and hold the [ PTT ] button,
wait one second before speaking. Release when nished speaking. Lights on
the radio: solid red = transmitting, solid green = receiving.
Presetting the channels
Channels 1 through 7 are 2.0W FRS channels. Channels 8 through 14 are
0.5W FRS channels. Channels 15 through 22 are 2.0W FRS channels.
While battery life is longer when using channels 8-14, the range of
transmission is shorter.
The BC Link Mini comes with two factory pre-set channels, but you can
customize them.
a. Press the [ MENU ] button and use the buttons to scroll
and select Channel A or Channel B.
b. Press the [ MENU ] button and use the buttons to scroll
and select a channel code.
7
c. Stop on the desired channel code and wait three seconds, or
press the [ MENU ] button.
d. To set a privacy code, press the [MENU] button after selecting
a channel code, scroll to the desired privacy code and wait
three seconds, or press the [MENU] button.
The BC Link Mini comes with two preset channels from the factory:
A. Channel 1 privacy code o
B. Channel 5 privacy code 10
Key Lock
Hold down the buttons simultaneously for three seconds to lock the
keys. The icon will appear on the display. The [ PTT ] button will still be
active. Repeat the same procedure to unlock the keys.
Communication
To communicate between all units, all radios in the group must be set to the
same frequency and privacy setting. This includes radios of other brands.
To talk to other members in your group, hold the radio two inches from your
mouth. Press the [ PTT ] button and keep it pressed for at least one second
before talking. To listen, release the [ PTT ] button.
Return-to-Standby
180-second return-to-standby mode saves airtime and battery power. If
the [ PTT ] button is pressed for more than 180 seconds, the BC Link
Mini will revert to standby mode, to save battery power and prevent
channel blockage.
8
Advanced Functions
Dual Channel Watch
The BC Link Mini is a dual channel receiver radio, meaning a user can listen
and transmit on one frequency, while also listening on a second frequency.
This dual channel watch function enhances communication capabilities and
allows users to simultaneously monitor private group and public community
channels in high-trac backcountry zones. When transmitting, users
will only transmit to their one, preset channel that the arrow on the main
display is pointing to; when receiving, users will be able to hear incoming
transmissions for the two preset channels on the main display.
Low Transmit Power
The 0.5W transmit power icons and are located on the
bottom of the display. When the BC Link Mini is transmitting at 0.5W power
(FRS channels 8-14), the and icons are present. When
channels other than 8-14 are being used and the BC Link Mini is transmitting
at 2.0W power, there is no L icon and is present.
Button Sounds
When the button sounds are activated, the BC Link Mini beeps when any
button is pressed and the icon is located at the top of the display. These
button sounds can be activated by pressing the [MENU] button four times
until “BEEP ON” is displayed. Turn the button sounds on or o using the
buttons. Press the [PTT] button to exit menu or [MENU] button to continue
set up.
Roger Beep
The roger beep is a tone that sounds at the end of each transmission, when
the PTT button is released. The roger beep is activated or deactivated by
pressing the [MENU] button four times until “BEEP ON” is displayed. Turn
the button sounds on or o using the buttons. Press the [PTT] button to
exit menu or [MENU] button to continue set up.
Display Backlight
When the backlight is activated, the BC Link Mini will light up the display
with a white backlight. If no buttons are pressed for 10 seconds, the radio
9
will turn o the backlight to save battery power, but the backlight will turn
on again as soon as a button is pressed. This backlight can be activated by
pressing the [MENU] button ve times until “LIGHT ON” is displayed. Turn
the backlight on or o using the buttons. Press the [PTT] button to exit
menu or [MENU] button to continue set up.
Using Your Radio in the Field
For recommendations on how to most eciently use your BC Link Mini in
the eld and for emergencies please visit https://backcountryaccess.com/
support/bc-link-radio-resources.
Technology Specications
Product Weight
(oz)
Weight
(g)
BC Link Mini
Dimensions (in)
BC Link Mini
Dimensions (cm)
BC Link Mini Radio 6 oz 170 g 6.25” x 2.5” x 1.25” 15.9 x 6.4 x 3.2 cm
Channels 22 FRS
Sub-Channels 121 (38 CTCSS tones, 82 DCS codes)
Frequency Range FRS
Operation Voltage DC 2.7 V ± 10%
FM Modulation 11K0F3E @ 12.5kHz
Adjacent Channel
Power 60dB @ 12.5kHz
Transmission Current ≤ 1200mA.
Battery Battery: 3.7VDC Li-ion with 1800mAh of usable capacity.
Battery Life Dependent on usage; 33 hours normal use when radio is stored in
backpack.Transmitting in high power mode will shorten battery life.
Range
Approximately 6 miles line of sight, actual range dependent on
topography. Electrical interference and objects between the transmitting
and receiving radio can decrease range. In optimum circumstances,
range can be signicantly greater.
10
