BCM Advanced Research MX45GM Bedienungsanleitung

COM Port

Cable

SATA & Power cable

CPU Cooler

MX45GM

Intel®Core™2 Quad / Intel®Core™2 Duo / Intel® Celeron

Socket P Processors Support

User’s Quick Start Card Version 1.2 http://www.bcmcom.com

Inspect the Package:

One MX45GM Motherboard

One CPU Cooler

One Standard I/O Shield

One PS2-Y Cable

One SATA Power Cable

Two SATA Cables

Two Serial Cable

One Driver CD

One User’sQuickStartCard

MX45GM

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the implied

warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any loss of

profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential damages of

any kind, even the possibility of such damages arising from any defect or error in this manual or product. We reserve the

right to modify and update the user manual without prior notice.

WARNING: CMOS Battery Damage

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery

type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to

explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local

ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer

warranty.

Perchlorate Material- Special Handling May Apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Additional Information:

Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The

Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:

http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your

messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.

ATTENTION: Incorrect BIOS Setup

If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify any

of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment or

modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by your

motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings

change.

I/O Shield

PS2-Y cable

WARNING: Electrostatic Sensitive Device (ESD)

Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard

and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface

before you remove any system component from its protective anti-static packaging. Unpacking and installation should be

done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same

points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any

static electrical charge that may have built up in your body. Avoid touching the components when handling the

motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral

card case-mounting bracket.

WARNING: Misplaced Jumper Damage

Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard

warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers

while the motherboard has power.

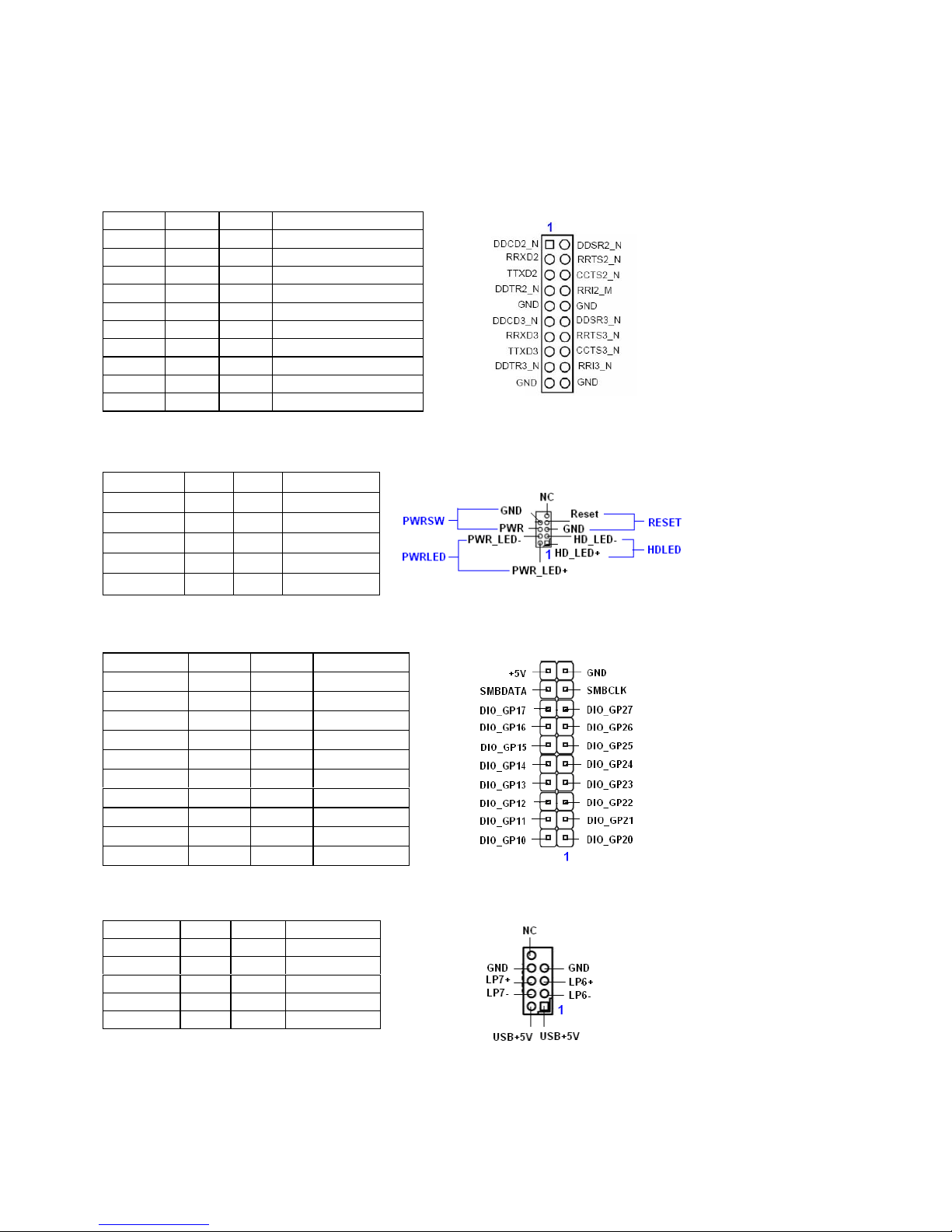

Connectors & Headers

• Front panel audio (AAFP1)

Signal Pin Pin Signal

MIC2_L 1 2 AGND

MIC2_R 3 4 FP_PRES#

LIN2_R 5 6 SRTN1

SENSE_B 7 8 [KEY]

LIN2_L 9 10 SRTN2

• Audio Amplifier (JAMP1)

Pin Signal

1 AMP_L-

2 AMP_L+

3 AMP_R-

4 AMP_R+

• Digital Audio (SPDIF_OUT)

Pin Signal

1 +5V

2 [KEY]

3 SPDIF_O

4 GND

• Serial Port (COM2, COM3, COM4, COM5)

Signal Pin Pin Signal

DCD# 1 2 DSR#

RXD 3 4 RTS#

TXD 5 6 CTS#

DTR# 7 8 RI#(COM2 _PWR)

GND 9 10 GND

DCD# 11 12 DSR#

RXD 13 14 RTS#

TXD 15 16 CTS#

DTR# 17 18 RI#

GND 19 20 GND

• System Panel (F_PANEL1)

Signal Pin Pin Signal

HD_LED+ 1 2 PWR_LED+

HD_LED- 3 4 PWR_LED-

GND 5 6 PWR_BTN+

RST 7 8 PWR_BTN-

NC 9 10 [KEY]

• Digital IO (JDIO1)

Signal Pin Pin Signal

+5V 20 19 GND

SMBDATA 18 17 SMBCLK

DIO17 16 15 DIO27

DIO16 14 13 DIO26

DIO15 12 11 DIO25

DIO14 10 9 DIO24

DIO13 8 7 DIO23

DIO12 6 5 DIO22

DIO11 4 3 DIO21

DIO10 2 1 DIO20

• Front USB (USB1, USB2)

Signal Pin Pin Signal

NC 10 9 [KEY]

GND 8 7 GND

USB+ 6 5 USB+

USB- 4 3 USB-

USB+5V 2 1 USB+5V

• LVDS (JLVDS1)

Signal Pin Pin Signal

+12V 39 40 +12V

GND 37 38 GND

LVDS1_CLKN 35 36 LVDS0_CLKN

LVDS1_CLKP 33 34 LVDS0_CLKP

GND 31 32 GND

LVDS1_N3 29 30 LVDS1_N2

LVDS1_P3 27 28 LVDS1_P2

GND 25 26 GND

LVDS1_N1 23 24 LVDS1_N1

LVDS1_P1 21 22 LVDS1_P0

GND 19 20 GND

LVDS0_N3 17 18 LVDS0_N2

LVDS0_P3 15 16 LVDS0_P2

GND 13 14 GND

LVDS0_N1 11 12 LVDS0_N0

LVDS0_P1 9 10 LVDS0_P0

GND 7 8 GND

SC_DDC 5 6 SD_DDC

+3.3V 3 4 +5V

+3.3V 1 2 +5V

• LCD Inverter (JBKL1)

Pin Signal

5 +5V

4 VR

3 ENBKL

2 GND

1 +12V

• Serial SATA (SATA1, SATA2, SATA3, SATA4)

Pin Signal

7 GND

6 SATA_RXN

5 SATA_RXP

4 GND

3 SATA_TXN

2 SATA_TXP

1 GND

• Serial SATA Power (SATA_POWER1, SATA_POWER2)

Signal Pin Pin Signal

GND 2 1 GND

+5V 4 3 +12V

• CPU Fan (CPU_FAN1)

Pin Signal

1 SENSE

2 POWER PIN

3 GND

• System Fan (SYS_FAN1)

Pin Signal

1 SENSE

2 POWER PIN

3 GND

•Chassis Intrusion (CHASSIS1)

Pin Signal

1 +5VSB

2 [KEY]

3 O_INTRUDER#

4 GND

Jumpers

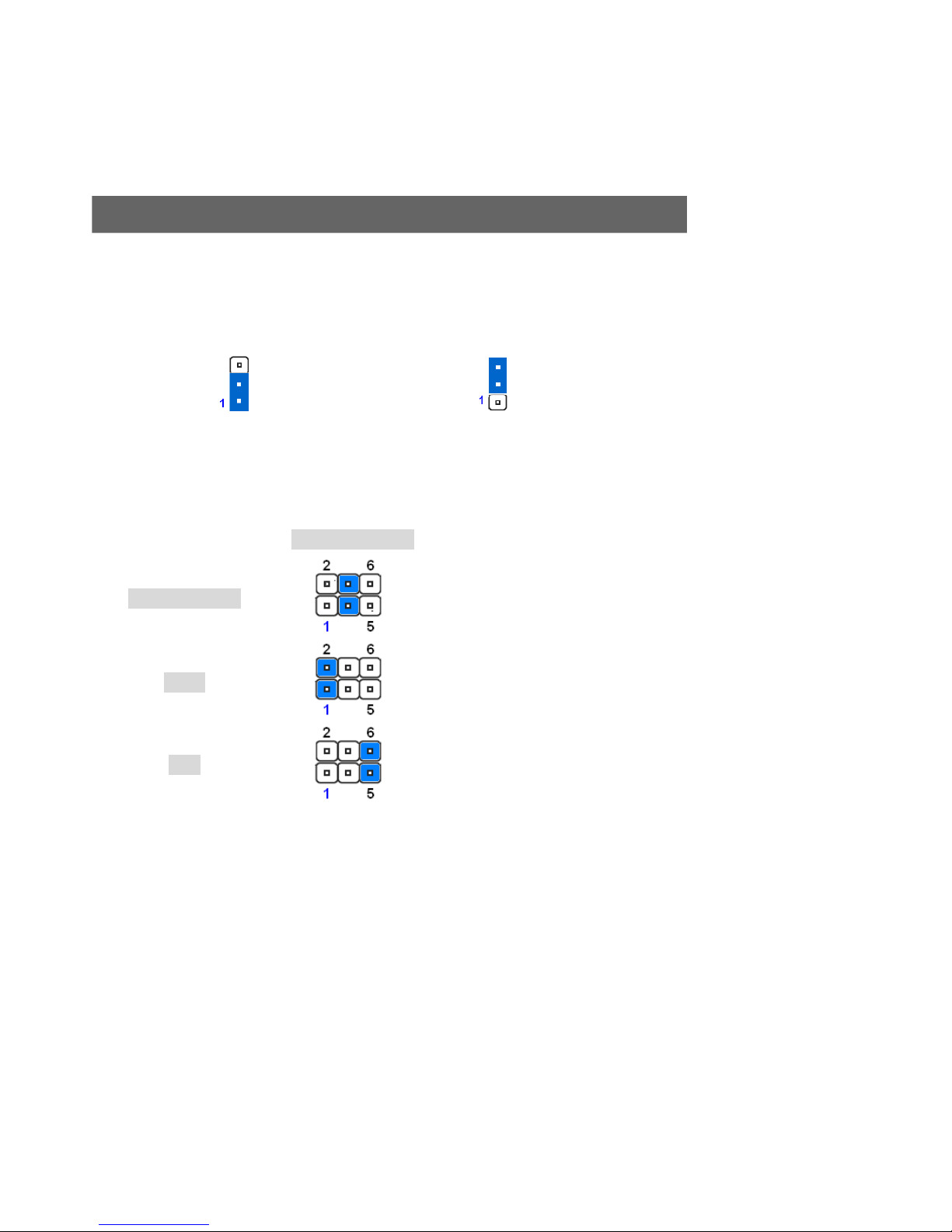

• Clear CMOS Jumper (CLRTC1)

Normal (Default) Clear CMOS

• COM1, 2 RI/+5V/+12V Jumper (JCOMPWR2, 3)

JCOMPWR2,3

Ring (Default)

+12V

+5V

Motherboard Layout:

19V DC-IN COM1 DVI

LAN_USB2

LAN_USB1

PS2 KB/MS HDMI VGA

LINE-IN

MIC

LINE-OUT

PCI 1

JAMP1

USB1, 2

BT1

CLRTC1

JDIO1

F_PANEL1

COM 4, 5

JPCIE X1

CF1 (BOTTOM SIDE)

CHASSIS1

SATA POWER1, 2

SATA1-4

SPI1

CPU SOCKET

SYS FAN1

CPU FAN1

JBKL1

JLVDS1

JCOMPWR3

SPDIF OUT

JCOMPWR2

SODIMM1, 2

AAFP1

MINI_PCIE1

COM 2, 3

CPU Installation

This processor is intended to be professionally installed. Take proper electrostatics discharge (ESD)

precautions such as using appropriate ground strips, gloves, and ESD mats.

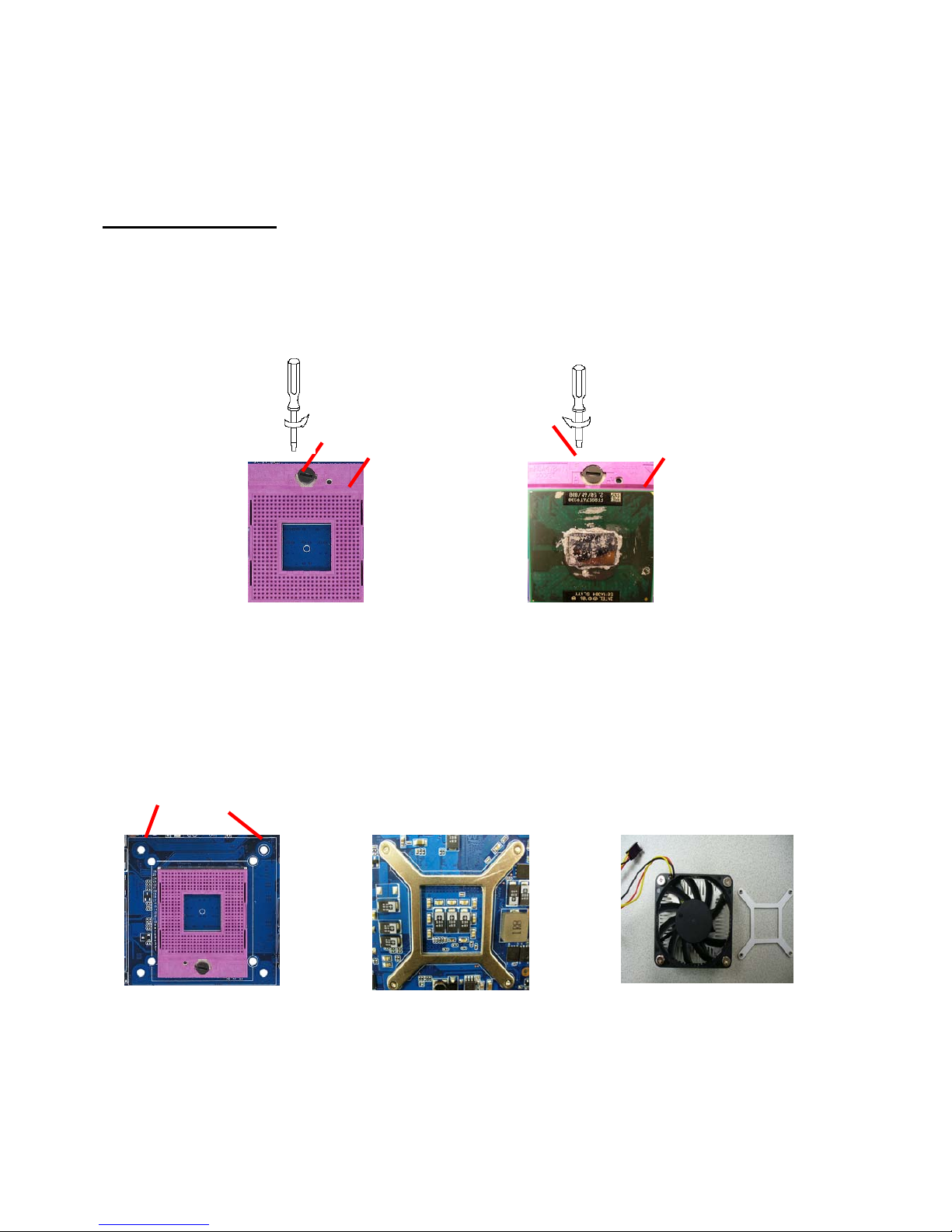

•Insert CPU into CPU socket and turn the screw to the lock position.

Note: Do not force the CPU into the socket. It may bend the pins and damage the CPU.

Installing the CPU Cooler

z-Insert the retention bracket through the screw hole from bottom side of motherboard.

-Match and place CPU cooler assembly on the top of CPU and retention bracket.

-Tighten the screws into the retention bracket.

Screwholes Retentionbracket CPU cooler & Retention bracket

(rear side)

Note: Make sure CPU cooler assembly and CPU top surface are in total contact to avoid CPU

overheating problem which would cause the system to hang or unstable.

Unlock Pin 1 of the

socket

Gold triangular

mark

Lock
