BDE BDE-WF3235SX Bedienungsanleitung
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
info@bdecomm.com
BDE Technology Inc.
User Guide
1/ 19
BDE-WF3235SX/SFX USER GUIDE
Introduction
This user guide is for BDE-WF3235SX and BDE-WF3235SFX, wireless modules based on TI
CC3235S and CC3235SF.
It is a quick start guide for how to use the BDE-WF3235SX and BDE-WF3235SFX with the
SimpleLink™ CC3235 Launchpad™Development Kit, and how to build the first application. It also
shows a demo for how to send commands to control the BDE-WF3235SX and BDE-WF3235SFX
module by UART.
Get Ready
The following tools are recommended to develop with BDE-WF3235SX/SFX.
Hardware tools:
•A BDE-WF3235SX or BDE-WF3235SFX(BDE-WF3235SX/SFX-BDE Technology
Inc.(bdecomm.com))
•A adaptor board
•PC or Laptop
•the SimpleLink™ CC3235 Launchpad™Development Kit
•USB cable for power supply and debugging
Software tools:
•CCS
•Uart Assistant
•Uniflash
•Service Pack
(path:ti\simplelink_cc32xx_sdk_5_30_00_08\tools\cc32xx_tools\servicepack-cc3x35)
•Software Development Kit (SDK):
➢simplelink_cc32xx_sdk
Build Your First Application
Once have the Hardware and Software tools in place, please follow the following steps:
A. Connect the Hardware
•Connect the 3135 moudle and the LanchPad with jumpers as the fallowing
shows.
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
2/ 19
WF-3235SX/SFX
LAUNCHXL-CC3235SF
3V3
J24(3V3)
GND
J28(GND)
TX1
RX
RX1
TX
NRST
RST
TMS
TMS
TCK
TCK
TDI
TDO
TDO
TDI
B. Build the Application
◼Download and install the CCS and SDK
From the above links, follow the instructions in the following steps to download and
install the CCS and SDK. Some versions will be prompted with a mismatch. If this occurs,
please download CCS11.1.0.
◼CCS Installation
1. Click on this option
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
3/ 19

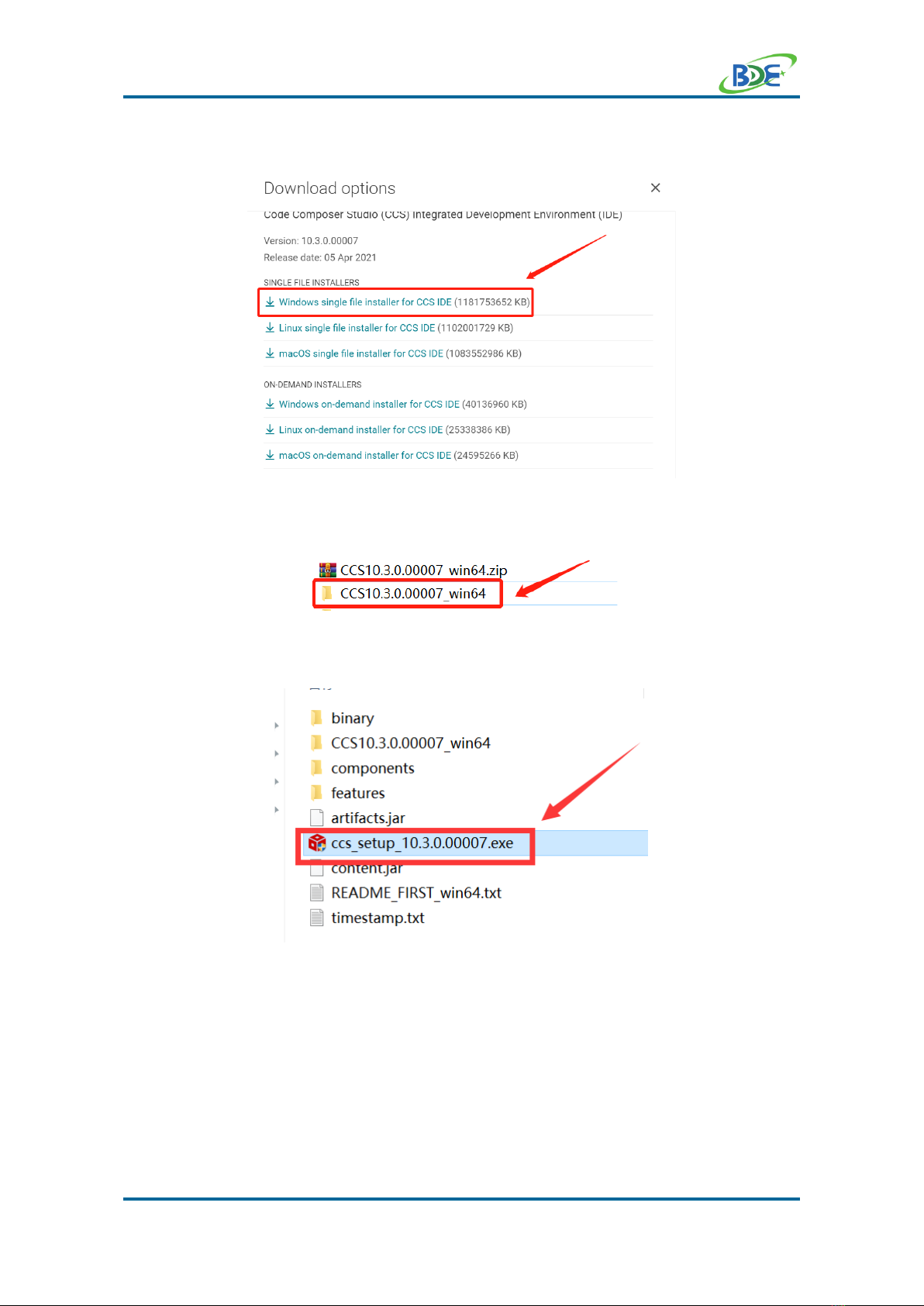

2. Select an option to download CCS
3. Unzip the package to a local disc
4. Click the setup of CCS
5. Click “Next”
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
4/ 19
6. Select the default option
7. Click “Next”
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
5/ 19
8. Select the Installation Directory
9. Select the default option
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
6/ 19
10. Select the component
11. Select the default option
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
7/ 19
12. Click “Next”
13. Click “Next”
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
8/ 19
14. Waiting for installation to complete
◼Software Development Kit (SDK) installation
•simplelink_cc32xx_sdk_5_30_00_08
1. Click on this option
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
9/ 19
2. Select an option you need to download SDK
3. Installation
4. Click “Next”
BDE-WF3235SX/SFX
XUSER GUIDE
Multi-Band Wireless Module
inf[email protected]om
BDE Technology Inc.
User Guide
10 / 19
5. Select the default option
6. Select the Installation directory
