Beamz 150.666 Bedienungsanleitung

Ref. Nr. 150.666

LCP-48 LED COLOR PANEL

48X 1W RGB

MANUAL

- 2 -

Thank you for purchasing our company products. Please read these instructions carefully to enjoy

optimum performance and a longer service life before you start to use.

CONTENTS

CONTENTS............................................................................................................................................. 2

Unpacking Inspections ............................................................................................................................ 3

Unpacking instructions ........................................................................................................................ 3

Checking the contents of the carton:................................................................................................... 3

Safety Instructions................................................................................................................................... 3

Product Overview.................................................................................................................................... 4

Functions Introductions ........................................................................................................................... 4

Main Functions .................................................................................................................................... 4

Operation Instructions ............................................................................................................................. 5

Functions for control panel.............................................................................................................. 5

Master/Slave mode.............................................................................................................................. 6

Master/Slave connection................................................................................................................. 6

Sound Active Mode ............................................................................................................................. 6

Automatic Mode................................................................................................................................... 6

Controlled by DMX512 ........................................................................................................................ 7

DMX Value Functions.......................................................................................................................... 8

27 Channel mode............................................................................................................................ 8

15 Channel mode............................................................................................................................ 9

9 Channel mode.............................................................................................................................. 9

6 Channel mode.............................................................................................................................. 9

3 Channel mode............................................................................................................................ 10

Maintenance.......................................................................................................................................... 10

Specification .......................................................................................................................................... 10

CE & R&TTE Declaration of Conformity................................................................................................ 11

- 3 -

UNPACKING INSPECTIONS

Unpacking instructions

Please unpack the carton and check the goods carefully when you receive it , if discover

packing damage, shortage or quality problem, please notify the shipper and reject the goods.

Before using this product, please read the instructions carefully and keep it in a safe place for

future reference.

Checking the contents of the carton:

The product, Power cord, Instruction Manual

SAFETY INSTRUCTIONS

Safety and regulatory power socket with high quality output should be used .

Always connect the product to a grounded circuit to avoid the risk of electrocution.

Never put tiny metal objects such as a screwdriver, iron wire and coins, etc. into the internal or

stretch into the machine in case of short circuit .

Please make sure to connect the proper voltage and do not higher or lower than that stated on

the decal or rear panel of the product .

Avoid hitting, crashing or squeezing with other objects in transportation. Never carry the

product from the power cord or any moving part . Always use the hanging / mounting bracket

or the handles.

The product is used in door only .

Never pull or tug on the cord and change it for another one , stop using it when it is damaged

or becomes hot .

Stop using the product once there is sparks when connecting with the power plug .

Can not operate product with wet hands and never place it near the water or other liquid.

Make sure there are no flammable materials close to the fixture while operating . Always install

it in a location with adequate ventilation.

Never replace the lighting source with different specification and rating when the original one

is damaged.

Make sure to power off before replacing the light source or the fuse. Never do it while it is on.

The ambient temperature is no more than 40°C(104°F) .

Never clean the fixture by water, thinner or other dissolved agent .

Stop using the product in case of a serious operating problem and send it to our maintenance

agent immediately. Never repair by non-professional workers .

Avoid direct eye exposure to the light source while the product is on.

- 4 -

PRODUCT OVERVIEW

1. Safety eyebolt

2. Microphone

3. Sound sensitivity adjustment

4. DMX signal output

5. DMX signal input

6. Control panel

7. Power input

8. Power output

9. Hanging bracket

10. LEDs

FUNCTIONS INTRODUCTIONS

Main Functions

3,6,9,15 & 27 DMX channels

Automatic, sound active and master/slave mode

Built-in 24 actions,individual control of RGB LEDs. running and strobe speed can be adjusted.

With static colors,strobe,color mixing,chasing and fade effect.

- 5 -

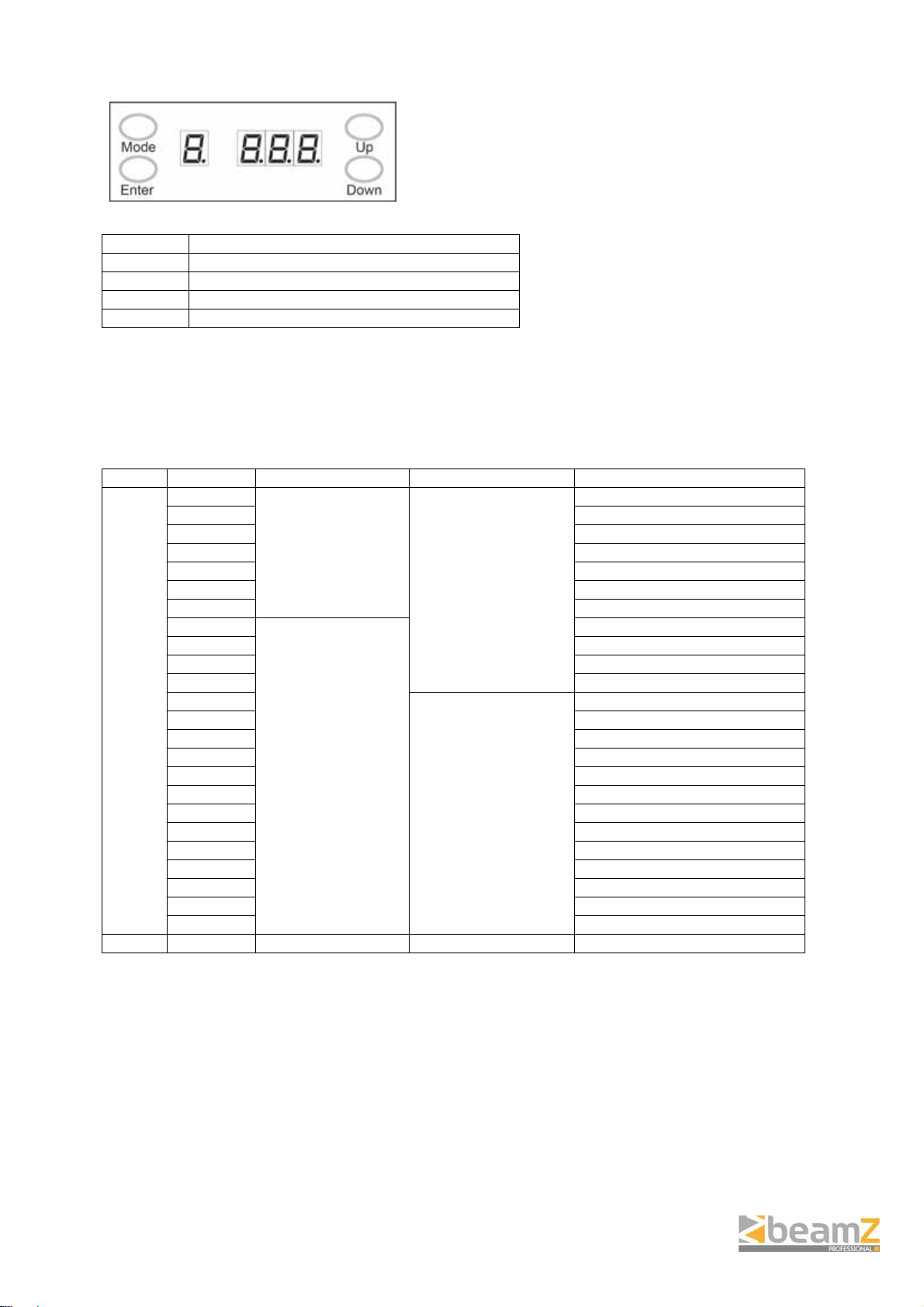

OPERATION INSTRUCTIONS

Operation instructions for control panel

BUTTON FUNCTION

Mode Select a function of mode

Enter Confirm a function of mode and save

Up Select increasing advancement in the value

Down Select decreasing advancement in the value

The Control Panel shows the current state of the unit, it is used to select the operating mode ,as well

as the sub-features. For a detailed layout of the control panel functions, please see the “menu map”

section below.

Functions for control panel

Menu Program Run Speed (P) Strobe Speed (F) Description

001

000

No Strobe

001 – 099

Strobe

Slow->Fast

100

Sound-active strobe

Red (static)

002 Green (static)

003 Blue (static)

004 Yellow (static)

005 Magenta (static)

006 Cyan (static)

007 White (static)

008

000

Only sound-active

001 – 009

Run Speed

Slow->Fast

100

No Delay

Auto/Sound Mode 1

009 Auto/Sound Mode 2

010 Auto/Sound Mode 3

011 Auto/Sound Mode 4

012

Auto/Sound Mode 5

013 Auto/Sound Mode 6

014 Auto/Sound Mode 7

015 Auto/Sound Mode 8

016 Auto/Sound Mode 9

017 Auto/Sound Mode 10

018 Auto/Sound Mode 11

019 Auto/Sound Mode 12

020 Auto/Sound Mode 13

021 Auto/Sound Mode 14

022 Auto/Sound Mode 15

023 Auto/Sound Mode 16

024 Color Fade

d 001 - 485 DMX address

- 6 -

Master/Slave mode

The first unit is master without signal of DMX ,the others connected are slave units and follow the

actions of Master.

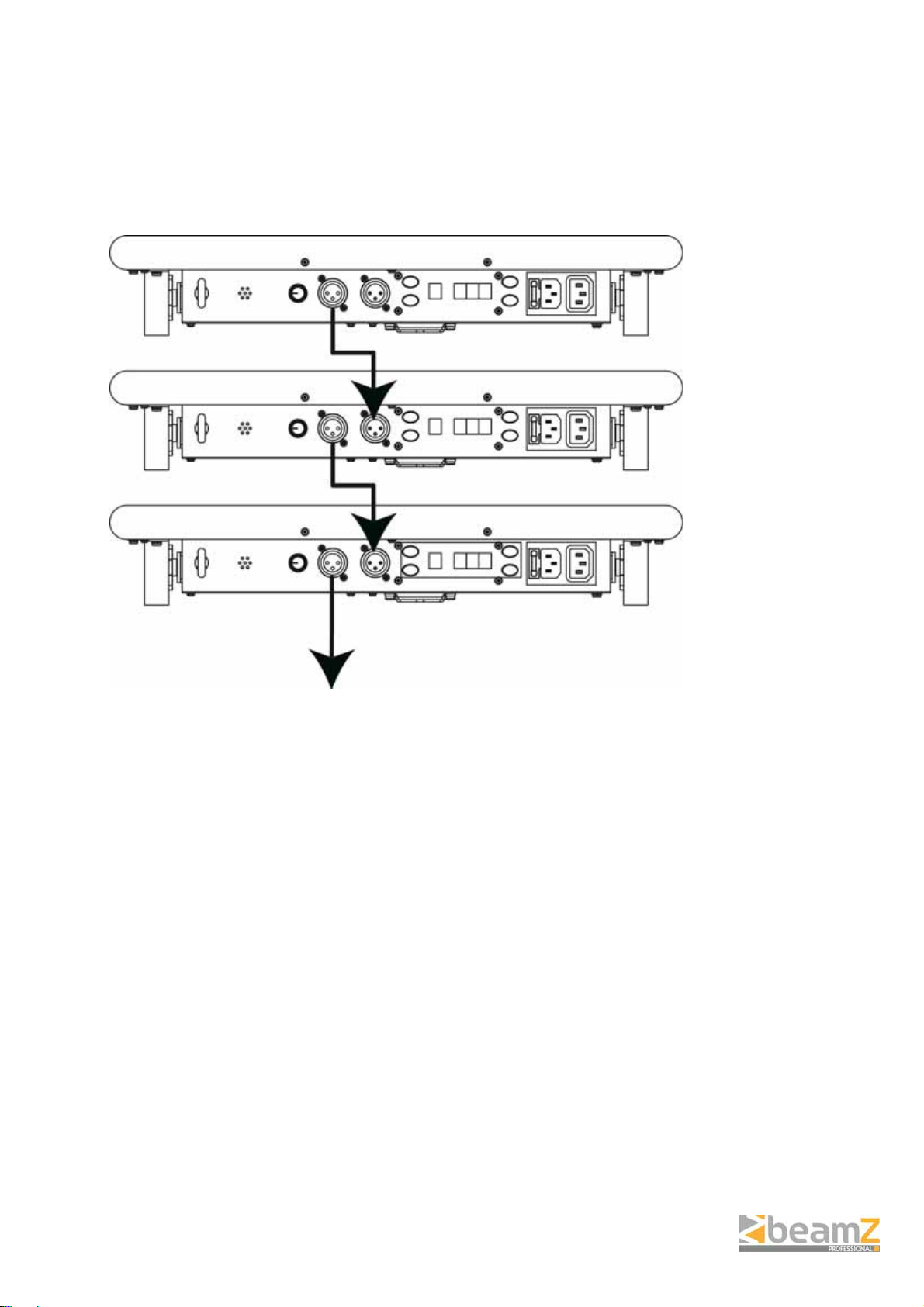

Master/Slave connection

Sound Active Mode

It is sound active with music, without sound controlling when running speed is zero, it stops. Running;

when strobe speed is zero, no strobe; when strobe speed is one hundred, strobe by sound.

Automatic Mode

Turn off the sound sensitivity adjustment knob or music, the product displays current actions

automatically.

Master

Slave

Continue

- 7 -

Controlled by DMX512

Follow below picture and power on all connected at the same time. The products will be controlled

once the address is set up.

DMX input

DMX output

Continue

- 8 -

DMX Value Functions

27 Channel mode

CHANNEL VALUE FUNCTION SECTION / NOTES

1 000 – 019 27 Channel Mode Set this channel between these values for this mode

2 This Channel is not used for this mode

3 000 – 002 Strobe No Strobe

003 – 249 Slow -> Fast

250 – 255 Sound-Active (static color only)

4 000 – 255 Red Section 1

5 000 – 255 Green

6 000 – 255 Blue

7 000 – 255 Red Section 2

8 000 – 255 Green

9 000 – 255 Blue

10 000 – 255 Red Section 3

11 000 – 255 Green

12 000 – 255 Blue

13 000 – 255 Red Section 4

14 000 – 255 Green

15 000 – 255 Blue

16 000 – 255 Red Section 5

17 000 – 255 Green

18 000 – 255 Blue

19 000 – 255 Red Section 6

20 000 – 255 Green

21 000 – 255 Blue

22 000 – 255 Red Section 7

23 000 – 255 Green

24 000 – 255 Blue

25 000 – 255 Red Section 8

26 000 – 255 Green

27 000 – 255 Blue

- 9 -

15 Channel mode

CHANNEL VALUE FUNCTION SECTION / NOTES

1 020 – 039 15 Channel Mode Set this channel between these values for this

mode

2 This Channel is not used for this mode

000 – 002 Strobe No Strobe

003 – 249 Slow -> Fast

250 – 255 Sound-Active (static color only)

4 000 – 255 Red Section 1

5 000 – 255 Green

6 000 – 255 Blue

7 000 – 255 Red Section 2

8 000 – 255 Green

9 000 – 255 Blue

10 000 – 255 Red Section 3

11 000 – 255 Green

12 000 – 255 Blue

13 000 – 255 Red Section 4

14 000 – 255 Green

15 000 – 255 Blue

9 Channel mode

CHANNEL VALUE FUNCTION SECTION / NOTES

1 040 – 059 9 Channel Mode Set this channel between these values for this mode

2 This Channel is not used for this mode

3 000 – 002 Strobe No Strobe

003 – 249 Slow -> Fast

250 – 255 Sound-Active (static color only)

4 000 – 255 Red Section 1

5 000 – 255 Green

6 000 – 255 Blue

7 000 – 255 Red Section 2

8 000 – 255 Green

9 000 – 255 Blue

6 Channel mode

CHANNEL VALUE FUNCTION SECTION / NOTES

1 060 – 079 6 Channel Mode Set this channel between these values for this mode

2 This Channel is not used for this mode

3 000 – 002 Strobe No Strobe

003 – 249 Slow -> Fast

250 – 255 Sound-Active (static color only)

4 000 – 255 Red Section 1

5 000 – 255 Green

6 000 – 255 Blue

- 10 -

3 Channel mode

CHANNEL VALUE FUNCTION

080 – 089 Auto Sound Mode 1

090 – 099 Auto Sound Mode 2

100 – 109 Auto Sound Mode 3

110 – 119 Auto Sound Mode 4

120 – 129 Auto Sound Mode 5

130 – 139 Auto Sound Mode 6

140 – 149 Auto Sound Mode 7

150 – 159 Auto Sound Mode 8

160 – 169 Auto Sound Mode 9

170 – 179 Auto Sound Mode 10

180 – 189 Auto Sound Mode 11

190 – 199 Auto Sound Mode 12

200 – 209 Auto Sound Mode 13

210 – 219 Auto Sound Mode 14

220 – 229 Auto Sound Mode 15

230 – 239 Auto Sound Mode 16

240 – 255 Auto Mode 1

2 000 – 249 Speed Fast -> Slow

250 – 255 Speed stop

3 000 – 002 No strobe

003 – 249 Strobe Slow -> Fast

250 – 255 Strobe Sound Active

MAINTENANCE

The unit should be cleaned periodically to ensure the optimum performance, the smudginess can

decrease the life of light and the output of light is affected by the dust which can make the machine

overheating. In general, make the maintenance at least two times a month. Be sure to power off the

unit before cleaning .

Do not clean until the unit recovers normal temperature since high temperature for using, use the lens

tissue or soft cotton cloth with alcohol to wipe gently.

Cleaning frequency depends on the environment in which the fixture operates, damp, smoky or dirty

surrounding can cause greater accumulation of dirt on the optics. Never rub or press strongly on the

panel.

SPECIFICATION

Voltage......................................100-240V AC 50/60Hz

Input current .............................................................2A

Power.....................................................................87W

Fuse............................................................3.15A 250V

Light source...................................................... 48x 1W

........................................................................16x Red

.....................................................................16x Green

....................................................................... 16x Blue

Weight...................................................................3.7kg

Size..........................................L470 x W82 x H190mm

Inhaltsverzeichnis

Andere Beamz Beleuchtungsausrüstung Handbücher

Beamz

Beamz BPP210 Bedienungsanleitung

Beamz

Beamz BFP130 Bedienungsanleitung

Beamz

Beamz MHL 115 Bedienungsanleitung

Beamz

Beamz S1500 DMX Bedienungsanleitung

Beamz

Beamz 151.240 Bedienungsanleitung

Beamz

Beamz LED PARBAR 4Way Tricolor Bedienungsanleitung

Beamz

Beamz PS12W Bedienungsanleitung

Beamz

Beamz FlatPAR-5 x 8W Quad DMX Bedienungsanleitung

Beamz

Beamz 151.238 LED PAR 64-36x1W RGB DMX Bedienungsanleitung

Beamz

Beamz MHL90 Bedienungsanleitung

Beamz

Beamz LS-RG11 Bedienungsanleitung

Beamz

Beamz RADICAL II Bedienungsanleitung

Beamz

Beamz UplIght Par Bedienungsanleitung

Beamz

Beamz LS-1W RGB DMX Bedienungsanleitung

Beamz

Beamz LED DJ Bank BX 4 RGBA IRC Bedienungsanleitung

Beamz

Beamz BT310 Bedienungsanleitung

Beamz

Beamz SparkleWall LED96 RGBW 3x2mtr Bedienungsanleitung

Beamz

Beamz BSS50 Bedienungsanleitung

Beamz

Beamz PLP PartyPar Bedienungsanleitung

Beamz

Beamz MINI UPLIGHT Bedienungsanleitung

Beamz

Beamz Butterfly II 6x3W RGBAWP IR Bedienungsanleitung

Beamz

Beamz 2-SOME Bedienungsanleitung

Beamz

Beamz LED PARBAR 4Way Kit 7x 10Watt Quad LED DMX Bedienungsanleitung

Beamz

Beamz LED ACIS II 8 WAY 10W RGBW DMX Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
