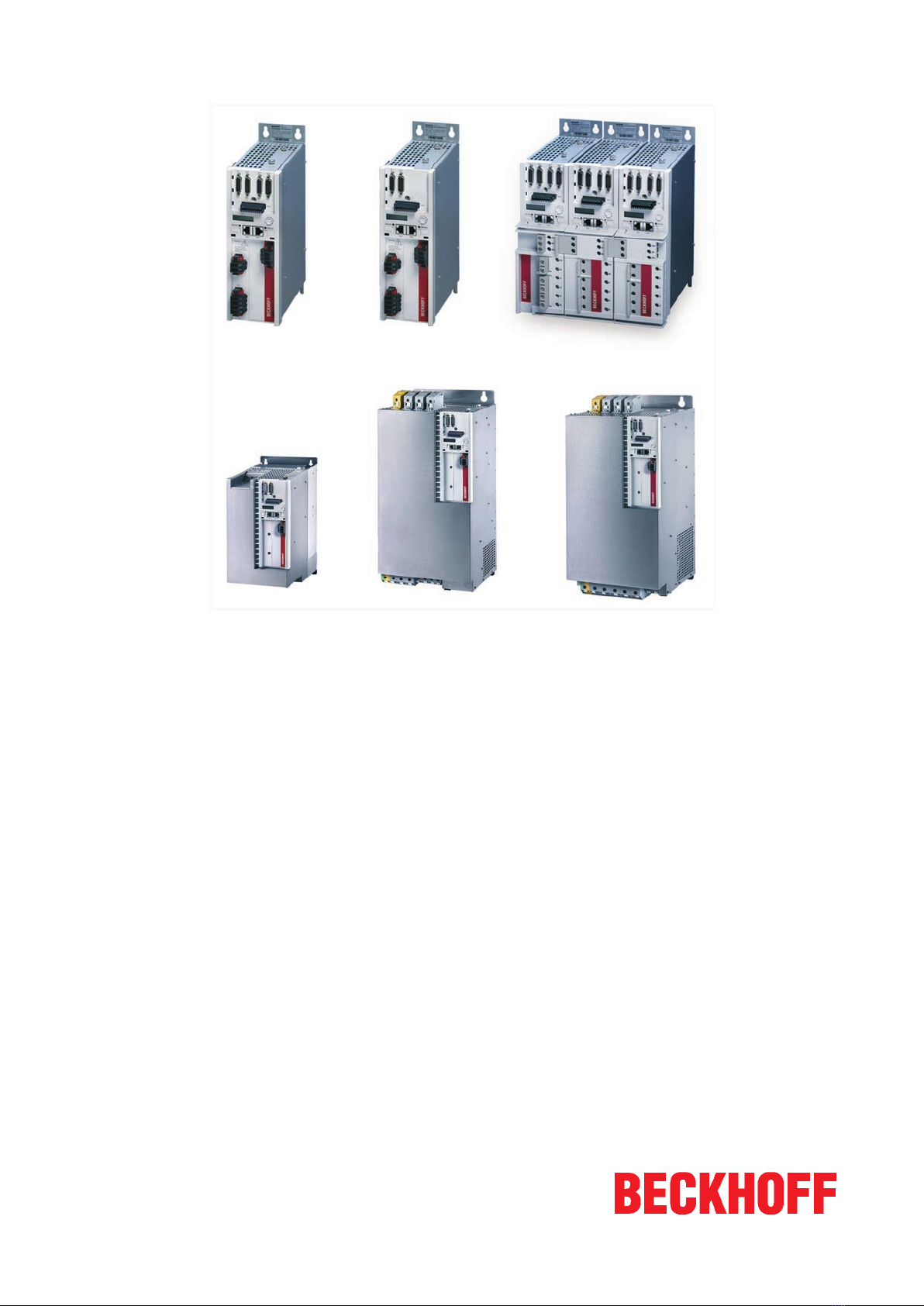

Beckhoff AX5000 Series Kurzanleitung

Dokumentation

AX5000 Tuning - Guide

1.0

2017-03-01

Version:

Date:

Table of content

AX5000 Tuning - Guide 3

Version: 1.0

Table of content

1 Foreword ...................................................................................................................................................4

1.1 Notes on the documentation........................................................................................................... 4

1.2 Documentation issue status............................................................................................................ 5

2 Safety..........................................................................................................................................................6

2.1 Safety instructions .......................................................................................................................... 6

3 Tuning Velocity Controller (Ziegler&Nichols).........................................................................................7

3.1 General Information ........................................................................................................................ 7

3.2 Preparation ..................................................................................................................................... 7

3.3 Determining the stability limit for Kp ............................................................................................... 8

3.4 Setting up TwinCAT Scope View.................................................................................................... 8

3.5 Starting the test movement............................................................................................................. 9

3.6 Evaluating the oscilloscope pattern .............................................................................................. 10

3.7 Reducing Kp ................................................................................................................................. 10

3.8 Determining Tn ............................................................................................................................. 10

4 Support and Service................................................................................................................................11

Foreword

AX5000 Tuning - Guide4 Version: 1.0

1 Foreword

1.1 Notes on the documentation

This description is only intended for the use of trained specialists in control and automation engineering who

are familiar with the applicable national standards.

It is essential that the documentation and the following notes and explanations are followed when installing

and commissioning the components.

It is the duty of the technical personnel to use the documentation published at the respective time of each

installation and commissioning.

The responsible staff must ensure that the application or use of the products described satisfy all the

requirements for safety, including all the relevant laws, regulations, guidelines and standards.

Disclaimer

The documentation has been prepared with care. The products described are, however, constantly under

development.

We reserve the right to revise and change the documentation at any time and without prior announcement.

No claims for the modification of products that have already been supplied may be made on the basis of the

data, diagrams and descriptions in this documentation.

Trademarks

Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®, XFC® and XTS® are registered

trademarks of and licensed by Beckhoff Automation GmbH.

Other designations used in this publication may be trademarks whose use by third parties for their own

purposes could violate the rights of the owners.

Patent Pending

The EtherCAT Technology is covered, including but not limited to the following patent applications and

patents:

EP1590927, EP1789857, DE102004044764, DE102007017835

with corresponding applications or registrations in various other countries.

The TwinCAT Technology is covered, including but not limited to the following patent applications and

patents:

EP0851348, US6167425 with corresponding applications or registrations in various other countries.

EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH,

Germany

The reproduction, distribution and utilization of this document as well as the communication of its contents to

others without express authorization are prohibited.

patent, utility model or design.

Foreword

AX5000 Tuning - Guide 5

Version: 1.0

1.2 Documentation issue status

Version Comment

1.0 First Edition

0.1 internal Version

Safety

AX5000 Tuning - Guide6 Version: 1.0

2 Safety

2.1 Safety instructions

Safety regulations

Please note the following safety instructions and explanations!

Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,

commissioning etc.

Exclusion of liability

All the components are supplied in particular hardware and software configurations appropriate for the

application. Modifications to hardware or software configurations other than those described in the

documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.

Personnel qualification

This description is only intended for trained specialists in control, automation and drive engineering who are

familiar with the applicable national standards.

Description of symbols

In this documentation the following symbols are used with an accompanying safety instruction or note. The

safety instructions must be read carefully and followed without fail!

DANGER

Serious risk of injury!

Failure to follow the safety instructions associated with this symbol directly endangers the

life and health of persons.

WARNING

Risk of injury!

Failure to follow the safety instructions associated with this symbol endangers the life and

health of persons.

CAUTION

Personal injuries!

Failure to follow the safety instructions associated with this symbol can lead to injuries to

persons.

Attention

Damage to the environment or devices

Failure to follow the instructions associated with this symbol can lead to damage to the en-

vironment or equipment.

Note

Tip or pointer

This symbol indicates information that contributes to better understanding.

Tuning Velocity Controller (Ziegler&Nichols)

AX5000 Tuning - Guide 7

Version: 1.0

3 Tuning Velocity Controller (Ziegler&Nichols)

3.1 General Information

The main velocity controller parameters are the proportional gain Kp (S-0-0100) and the integral action time

Tn (S-0-0101).

On selection of the motor default values are set,

which enable the motor to be operated safely without

load.

During commissioning the two parameters should be

adjusted in order to find a good compromise between

drive responsiveness (controller bandwidth) and

noise generation.

The method described below initially determines the

stability limit of the control loop. The value

determined for the gain is then multiplied with a field-

proven factor, based on the rules of Ziegler and

Nichols, in order to obtain a stable control loop.

If the bandwidth of the control loop turns out to be inadequate for the application, other methods should be

used. A description of these methods would be beyond the scope of this documentation.

Attention

Nature and source of the danger

This does not apply to vertical axes that are subjected to a continuous force, since it would

cause the axis to drop. In order to minimize the influence of the integral controller, Tn

should be set to a large value, e.g. 100 ms. Be sure to test carefully!

3.2 Preparation

For the tuning process the axis must be able to move in both directions, without reaching the mechanical end

stops. For example, it should be pushed manually to the center of the travel path.

In most cases the AX5000 operates in mode "11:

Position control feedback 1". In order to eliminate the

influence of the position controller, Kv should be 0 for

the tuning process in the position controller. In

addition, Tn is set to 0 in the velocity controller.

Following-error monitoring should be disabled for the

NC axis or set to a large value so that it is not

triggered in the following tests.

Tuning Velocity Controller (Ziegler&Nichols)

AX5000 Tuning - Guide8 Version: 1.0

3.3 Determining the stability limit for Kp

To determine the stability limit, while the axis is active, Kp is increased in the velocity controller in small steps

until the axis starts to oscillate. Depending on the axis type and the environment in which the axis is

operated, it may be sufficient to determine the stability limit based on the noise generation. When Kp

reaches a critical value, many axes start "squeaking" audibly. In noisy environments and for axes for which

oscillation must be avoided, the TwinCAT "Scope View" oscilloscope should be used. The next chapter

describes the setup. If the oscilloscope is not used, you can skip the next chapter and continue reading at

"Starting the test movement [}9]".

3.4 Setting up TwinCAT Scope View

Use the function:

• File → Add → New project

to add a "TwinCAT Measurement" project of type

"Scope YT NC Project".

Right-click on the chart to add two axes, so that a

total of three axes are available.

Notice!

If you have a sufficiently large monitor, right-click on

the chart again and select "Stacked Axes" for a better

overview.

The axes are then shown one below the other. Add

the "Torque feedback value" (S-0-0084), the velocity

command value and the actual velocity value

(P-0-0504 and S-0-0040) to the AX5000 process

data.

In the process image of the EtherCAT master activate

the ADS server and the symbol generation facility.

Tuning Velocity Controller (Ziegler&Nichols)

AX5000 Tuning - Guide 9

Version: 1.0

Now reactivate the configuration.

Right-click on an axis in the oscilloscope and open the target

browser.

Select:

• the controller,

• the ADS port,

• the drive and the channel.

Use “drag and drop” to assign the signals to the oscilloscope

axes, as shown (picture below).

The signal scaling is not important for determining the stability

limit. To establish the relationship with the drive axis it may be

useful to enter the scaling factors in the property window of

the axis. The values can be taken from the "Scaling and NC

Parameters" window in the TC DriveManager.

If you start the recording now, the oscilloscope should not

issue an error message.

Nature and source of the danger!

If a German keyboard is used, the decimal symbol must be comma!

3.5 Starting the test movement

From "NC Functions" select the function "Velo Step

Sequence". To make the axis reverse, you have to

specify two velocities with different sign. Enter 1

second as "Idle time", for example, and a number of

cycles.

Attention

Nature and source of the danger

Since the position controller and the integral component of the velocity controller are not

active, the axis may drift into another positioning range during reversing.

Tuning Velocity Controller (Ziegler&Nichols)

AX5000 Tuning - Guide10 Version: 1.0

3.6 Evaluating the oscilloscope pattern

While the axis reverses, observe the behavior with the

oscilloscope. The following oscilloscope pattern shows the

velocity command value and actual velocity value in the upper

diagram and the current or torque ("torque feedback value") in

the lower diagram.

The red line is based on an increased value for Kp. The next

motion shows that an oscillation occurs, which continues for

the whole motion.

Depending on the mechanical system, the value that was

reached can be regarded as Kpcrit, or Kp can be increased

further, until the oscillation also shows up in the velocity

value. It will then also be more audible.

In the sample application with a ball screw, the oscillation in

the current signal starts at Kp = 0.22. Only a soft "squeaking"

can be heard, which is inaudible in a noisy environment.

At Kp = 0.25 the oscillation also shows up in the speed signal.

3.7 Reducing Kp

Based on the rules of Ziegler and Nichols, the correct value for Kp should be determined using the following

formula.

Kp = 0.45 x Kpcrit

In the example,

• Kp = 0.45 x 0.22 = 0.10 or

• Kp = 0.45 x 0.25 = 0.11

is the correct value.

3.8 Determining Tn

Tn determines the integral action time of the integral controller. The smaller Tn, the larger the gain of the

Integral controllers. The correct value for Tn is mainly dependent on the type of coupling between motor and

load. Many applications run satisfactorily with the default value Tn = 8 ms. At the Rigid coupling and if the

tracking error appears to be too large, Tn can e.g. up to 5 ms.

Attention

Value ranges from Tn!

Do not reduce Tn any further without using the TC ScopeView to ensure that the current or

speed actual value does not start to oscillate! Values ≤ 5 ms are not required in most appli-

cations. With elastic coupling between engine and load or even with long straps it may be

useful for Tn Values> 10 ms. Swinging of the axis is thereby prevented.

Andere Handbücher für AX5000 Series

Inhaltsverzeichnis

Andere Beckhoff Servoantrieb Handbücher

Beckhoff

Beckhoff AX2090-ND80 Series Bedienungsanleitung

Beckhoff

Beckhoff EL7201-0010 Bedienerhandbuch

Beckhoff

Beckhoff EP7211-0034 Benutzerhandbuch

Beckhoff

Beckhoff AX8000 Bedienungsanleitung

Beckhoff

Beckhoff AMI8100 Bedienungsanleitung

Beckhoff

Beckhoff AX2500 Series Bedienungsanleitung

Beckhoff

Beckhoff AL8000 Bedienungsanleitung

Beckhoff

Beckhoff AMP8000 Bedienungsanleitung

Beckhoff

Beckhoff AX5000 Series Installationshandbuch

Beckhoff

Beckhoff AX8000 Benutzerhandbuch

Beckhoff

Beckhoff AX8000 Bedienungsanleitung

Beckhoff

Beckhoff AX8-1 Series Bedienerhandbuch

Beckhoff

Beckhoff AM3000 Series Stücklistenhandbuch

Beckhoff

Beckhoff AMP8500 Bedienungsanleitung

Beckhoff

Beckhoff AX5000 Series Bedienungsanleitung

Beckhoff

Beckhoff AX5000 Series Stücklistenhandbuch

Beckhoff

Beckhoff AX5000 Series Installations- und Betriebshandbuch

Beckhoff

Beckhoff AM8100 Series Bedienungsanleitung

Beckhoff

Beckhoff AX8000 Bedienungsanleitung

Beliebte Servoantrieb Handbücher anderer Marken

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J5 MR-J5-G Series Bedienungsanleitung

Robotis

Robotis XH430-W350-T Bedienungsanleitung

NTI AG

NTI AG LinMot C1250 Series Bedienungsanleitung

Welcon

Welcon WE2A D048 Series Bedienungsanleitung

Parallax

Parallax 900-00005 Bedienungsanleitung

Festo

Festo TP 1410 Bedienungsanleitung

Axor

Axor MAGNUM 400 Bedienungsanleitung

Siemens

Siemens SINAMICS S120 Bedienungsanleitung

Danfoss

Danfoss 176F6494 Bedienungsanleitung

THORLABS

THORLABS TDC001 Bedienungsanleitung

TECO

TECO JSDAP Series Bedienungsanleitung

Rockwell Automation

Rockwell Automation Allen-Bradley Kinetix 6000 Bedienungsanleitung

GSK

GSK DA98D Bedienungsanleitung

Lenze

Lenze m850 Leitfaden

Baumuller

Baumuller b maXX 3000 Handbuch

Baumuller

Baumuller b maXX 5000 Handbuch

Baumuller

Baumuller b maXX 5500 Handbuch

Danfoss

Danfoss VLT HVAC Drive FC 102 Bedienungsanleitung
