INSTRUCTIONS

INSTALLATION

WALL MOUNT - SINGLE FACE:

1. Extend unswitched 24 hour AC supply of rated voltage to junction box or appropriate wiring (supplied by others).

Leave at least eight (8) inches of slack wire. The circuit should not be energized at this time.

2. Remove the exit sign faceplate with a slotted screwdriver by depressing the tabs at the top of the sign. Take care not

to damage the red fiber which is loose behind the exit face.

3. Remove the exit sign universal canopy kit.

4. Knock out the appropriate mounting pattern and/or wire pass-thru hole on the exit back plate to fit the junction box

or wiring connector being used (supplied by others).

5. Bring wires through the back of the sign and mount the exit securely in place. Screw directly to junction box if

possible.

6. Connect supply (Figure 3) as follows:

Red - Line 347 volt; Black - Line 120 volts; White - Neutral; Green - Ground. For 277 volt use orange wire. Cap any

unused wires. Insulate unused wire! CAUTION! - Failure to insulate unused wire may result in a shock hazard

or unsafe condition as well as equipment failure.

7. Route wires and secure them in place.

8. Remove or replace any directional chevron arrows to be indicated as required from the exit stencil.

9. Replace the exit faceplate together with the red fiber by snapping the face to the body.

10. Turn on the AC voltage supply.

Esco Exit (ECE)

926000132

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed including the following:

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS

2. Disconnect power before performing work on electrical equipment.

3. Do not use outdoors.

4. Use caution when servicing batteries.

5. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to

tampering.

6. The use of accessory equipment not recommended by Beluce Canada Inc., may cause an unsafe condition, and

will void the unit’s warranty.

7. Do not use this equipment for other than its intended purpose.

8. Servicing of this equipment should be performed by qualified service personnel.

9. SAVE THESE INSTRUCTIONS!

Beluce Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673

04/09/2019

MAINTENANCE

1. The lamps listed herein when used according to the instructions with this unit are in accordance with the requirements

of CSA Standard C22.2, No. 141 – Unit Equipment for Emergency Lighting.

2. Clean lenses on a regular basis.

NOTE: The servicing of any parts should be performed by qualified service personnel only. The use of replacement

parts not furnished by Beluce Canada Inc., may cause equipment failure and will void the warranty.

SAVE THESE INSTRUCTIONS

Figure 1

Figure 3

Figure 2

LED BOARD

RED 24VDC

BLUE 12VDC

YELLOW 6VDC

VIOLET L(-)

RED 347VAC

BLACK 120VAC

WHITE COM

TRS

ORANGE 277VAC

926000132

Beluce Canada Inc., 3900 14th Avenue, Markham, ON L3R 4R3 Tel: (905) 948-9500 Fax: (905) 948-8673

04/09/2019

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Beghelli Leuchte Handbücher

Beghelli

Beghelli ILLUMINA Series Bedienungsanleitung

Beghelli

Beghelli LEDLUMINA BS400LED Bedienungsanleitung

Beghelli

Beghelli ILLUMINA BS100LED Series Bedienungsanleitung

Beghelli

Beghelli Fortezza Plu Bedienungsanleitung

Beghelli

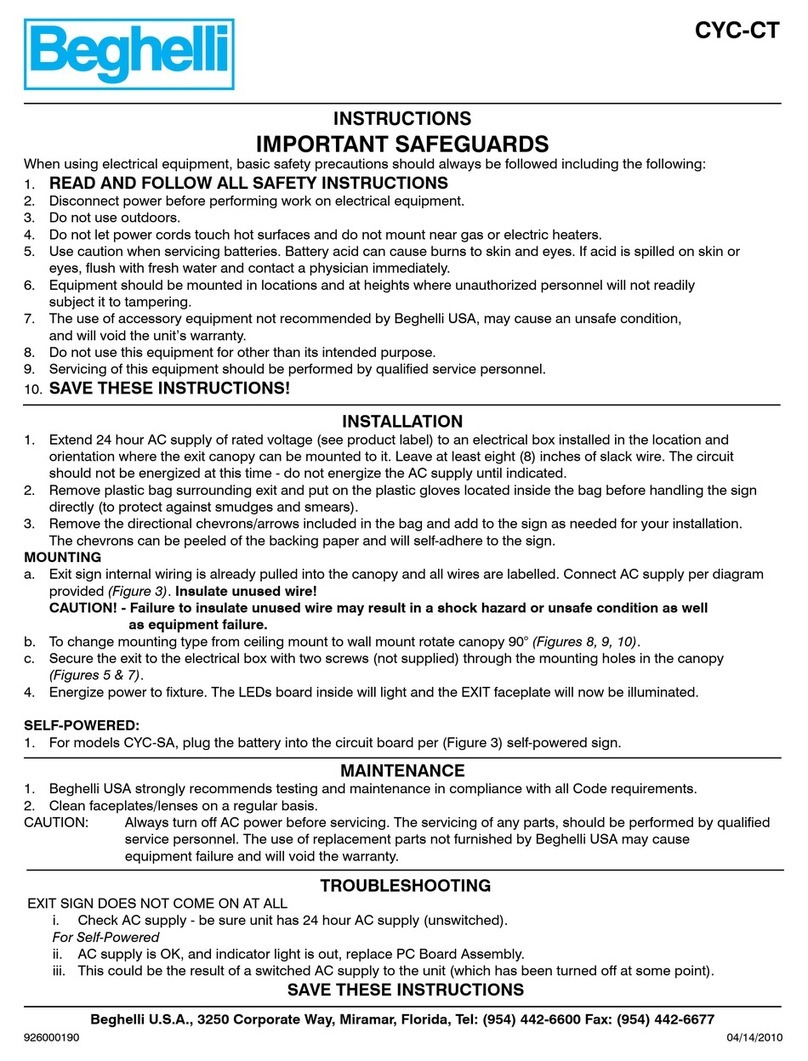

Beghelli CYC-CT Bedienungsanleitung

Beghelli

Beghelli 40866TR1 Bedienungsanleitung

Beghelli

Beghelli ROBUSTO RM Bedienungsanleitung

Beghelli

Beghelli DECO Bedienungsanleitung

Beghelli

Beghelli Fortezza Plus RM Bedienungsanleitung

Beghelli

Beghelli Illumina BS111 Bedienungsanleitung

Beghelli

Beghelli FME Bedienungsanleitung

Beghelli

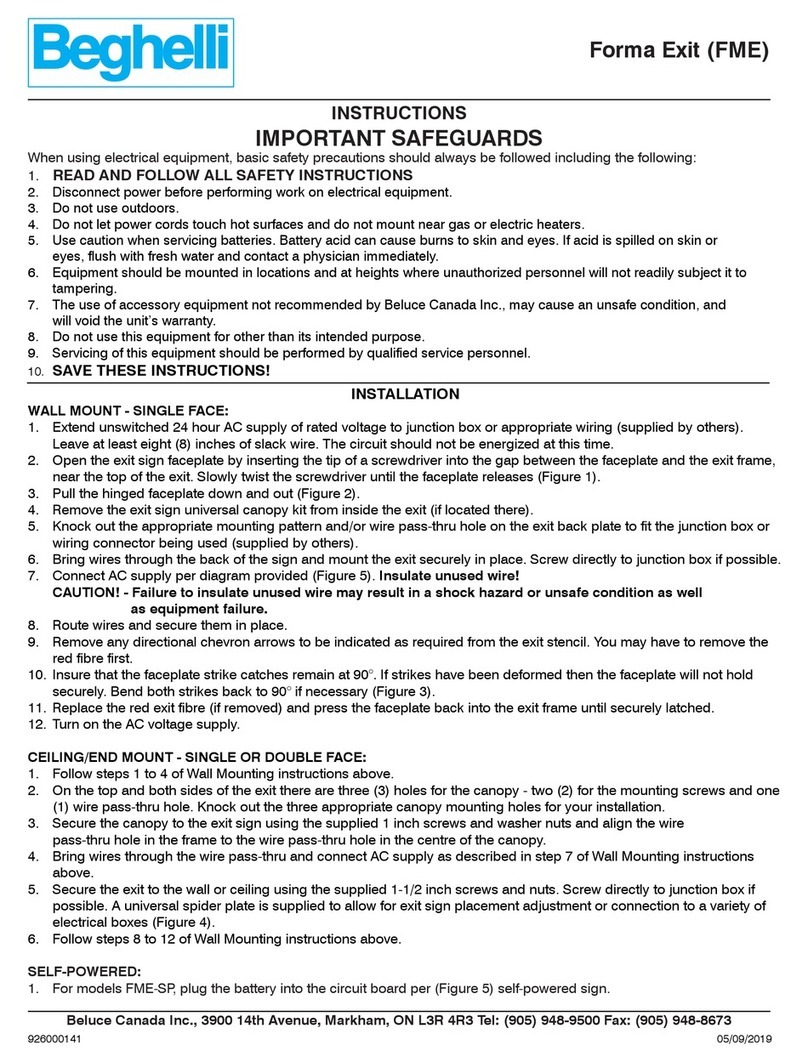

Beghelli Forma Exit Bedienungsanleitung
