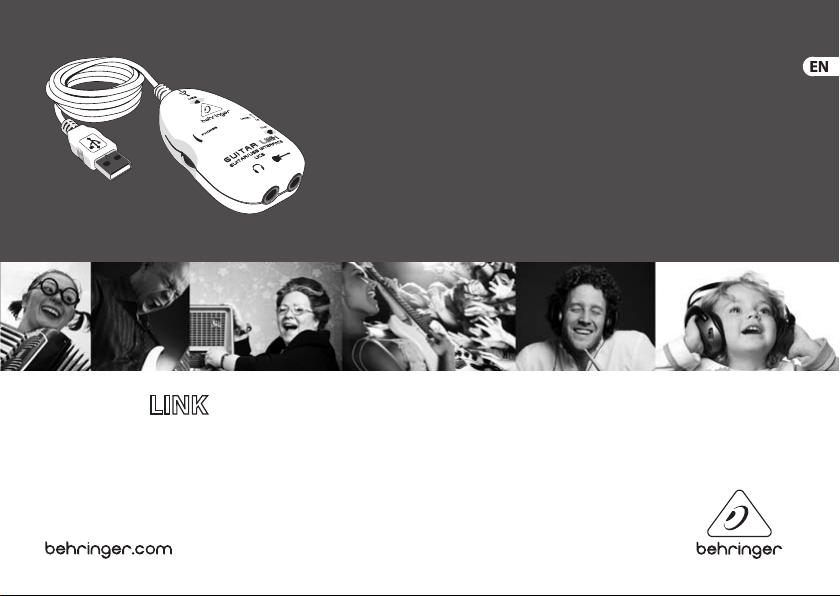

Technical Specications

GUITAR UCG102

The Ultimate Guitar-to-USB Interface to Jam and

Record with Killer Modeling Amps and Eects

2GUITAR LINK UCG102 Technical Specifications

GUITAR UCG102

The Ultimate Guitar-to-USB Interface to Jam and Record with

Killer Modeling Amps and Eects

Plug in your favorite guitar and turn your PC or Mac computer into a guitar amp and recording system without the need for any

other hardware

Enjoy immediate access to Guitar Combos from Native Instruments—a leading guitar amp and stomp box modeling

software—now including VST, AU and RTAS plugin versions

Directly works with your PC or Mac computer—ultra-low latency ASIO driver for PC audio optimization included

Stereo Headphone output lets you jam with your computer and can also be used for monitoring with active monitor speakers

Guitar Combos with variable-speed le playback function for MP3, WAV, AIFF audio les—perfect for easy learning and

practicing—tuner and metronome function

Powered via USB—no additional power supply required

High-quality components and exceptionally rugged construction ensure long life

Conceived and designed by BEHRINGER Germany

3GUITAR LINK UCG102 Technical Specifications

Specications

Guitar In

Connector ¼" TRS

Input Impedance (High) 250 k

Input Impedance (Low) 400 k

Phones Out

Connector ¼" TRS

Output impedance approx. 50 

Max. output pegel -2 dBu,2 x 3.7 mW @ 100 

USB 1.1

Connector type A

Digital Processing

Converter 16-bit converter

Sample rate 32.0 / 44.1 / 48 kHz

Power Supply

USB connection 5 V , 100 mA max.

Dimensions / Weight

Dimensions (H x W x D) approx. 1 x 2 x 3 ¾"

approx. 24.6 x 50.8 x 95.6 mm

Cable length approx. 5 ⁄" / 15 cm

Weight approx. 0.198 lbs / 0.09 kg

System Requirements (PC / Mac)

Operating system Win XP / Mac OS X

Processor min. (PC) Pentium 700 MHz /

Athlon XP 1.33 GHz

Processor min. (Mac) G4 733 MHz /

Intel Core Duo 1.66

RAM (PC) 256 MB

RAM (Mac) 512 MB

4GUITAR LINK UCG102 Technical Specifications

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice.

Specifications and appearance may differ from those listed or illustrated.

TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER IS PART OF THE MUSIC GROUP

MUSICGROUP.COM. ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON

WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORSAND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.

MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSICGROUP AND HAVE ABSOLUTELY

NO AUTHORITY TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THISMANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED

OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONICOR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FORANY PURPOSE, WITHOUT THE EXPRESS

BRITISHVIRGIN ISLANDS

Software

Applications please see “Software

Installation Guide”

Driver (Windows) high-performance driver

BEHRINGER USB AUDIO for

Win 98 (SE) / ME / 2000 /

XP/Vista

Driver (Mac OS X) Core Audio
