Hood

User Manual

Please read this manual first!

Dear Customers!

Thank you for preferring a Beko product. We hope that you get the best results from

your product which has been manufactured with high quality and state-of-the-art

technology. Therefore, please read this entire user manual and all other accompanying

documents carefully before using the product and keep it as a reference for future use.

If you handover the product to someone else, give the user manual as well. Follow all

warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences

between the models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about

usage.

AWARNING:

Warnings for dangerous situa-

tions concerning the safety of life and property.

Warning for electric shock.









Hood / User Manual 3 / EN

ENGLISH

POLSKI

ESKY

SLOVENSKÝ

EESTI

LATVIJAS



БЪЛГАРСКИ



CONTENTS

4 / EN Hood / User Manual

This section contains safety in-

structions that will help protect

from risk of personal injury or prop-

erty damage. Failure to follow these

instructions invalidates the granted

warranty.

1.1 General safety

•This Operation Manual shall be

maintained, in order to be able to

use it in every further moment.

•The device may be used by the

children in the age of at least 8

years, and by the persons with

limited physical, mental abilities,

or by persons with a lack of ex-

perience in device operation, pro-

vided that the due supervision or

training in terms of the safe device

operation was ensured, in order to

make clear all the related risks.

•Read this Operation Manual atten-

tively, as it contains the detailed

information regarding the instal-

lation, assembly and maintenance

of the hood.

•The hood appearance may dif-

fer from the hood presented at

drawings in this Manual, however

all recommendations regarding

the operation, maintenance and

assembly of the hood remain un-

changed.

•Do not make any electrical or me-

chanical changes in the hood con-

struction.

•Do not connect the device to

power before finishing the assem-

bly.

•Any assembly or maintenance op-

erations shall be performed in the

protective gloves.

•Do not use the hood without the

correctly installed filter.

•The assembly non-complying with

this Operation Manual, may cause

the electrical shock danger.

•Do not use the open flame under

the kitchen hood.

•The meals cooked on the fat base

shall be constantly controlled, as

overheated fat may flame out eas-

ily.





Hood / User Manual 5 / EN

•The air sucked by the hood may

not be withdrawn into the chim-

ney channel used for extraction of

the combustion gases from gas or

other fuel devices (does not apply

to the closed circuit hoods).

•If any other non-electric devices

are used in the house besides the

hood (for example, liquid fuel fur-

naces, blowthrough heaters, boil-

ers), the sufficient ventilation of

air (air supply) shall be ensured.

•Do not disconnect the plug from

the socket drawing the power

cable.

•The power cable may not touch

the hot surface.

•Do not start the device if the

power cable is damaged.

•The replacement of the damaged

power cable may be performed

by the manufacturer; the service

maintenance shall be performed

by the qualified technician.

•The hood shall be cleaned both in-

side and outside, at least monthly,

or every 35 hours of hood opera-

tion. Each time, before the hood

cleaning, the hood shall be discon-

nected from the power (discon-

nect the power cable plug or turn

off the safety levers).

•The children shall not play with the

device.

•The children without the supervi-

sion shall not perform the device

cleaning and maintenance.

•The device is market accord-

ing to European Union Directive

2002/96/EU, about the electric

and electronic equipment (WEEE).

Ensuring the correct disposal of

the device, you will help to limit

the risks of a negative impact over

the environment and health.

•The accessible parts may become

hot in course of the cooking range

operation. The use of screws or

other fastening elements with vio-

lation of the Manual requirements,

may cause the electrical shock.





6 / EN Hood / User Manual







This product complies with EU WEEE

Directive (2012/19/EU). This product

bears a classification symbol for waste

electrical and electronic equipment

(WEEE).

This product has been manufactured with high

quality parts and materials which can be reused

and are suitable for recycling. Do not dispose of

the waste product with normal domestic and oth-

er wastes at the end of its service life. Take it to

the collection center for the recycling of electrical

     

local authorities to learn about these collection

centers.





The product you have purchased complies with EU

RoHS Directive (2011/65/EU). It does not contain

harmful and prohibited materials specified in the

Directive.



-

clable materials in accordance with our

National Legislation. Do not dispose of

the packaging materials together with the domes-

tic or other wastes. Take them to the packaging

material collection points designated by the local

authorities.





Hood / User Manual 7 / EN

2 

Technical data contained in this manual and labels

attached to the hood were obtained from meas-

urements and calculations in accordance with the

requirements of EU Regulation No. 65/2014 and

66/2014.

Chimney

body 

cabel

Mechanical

control

Lighting

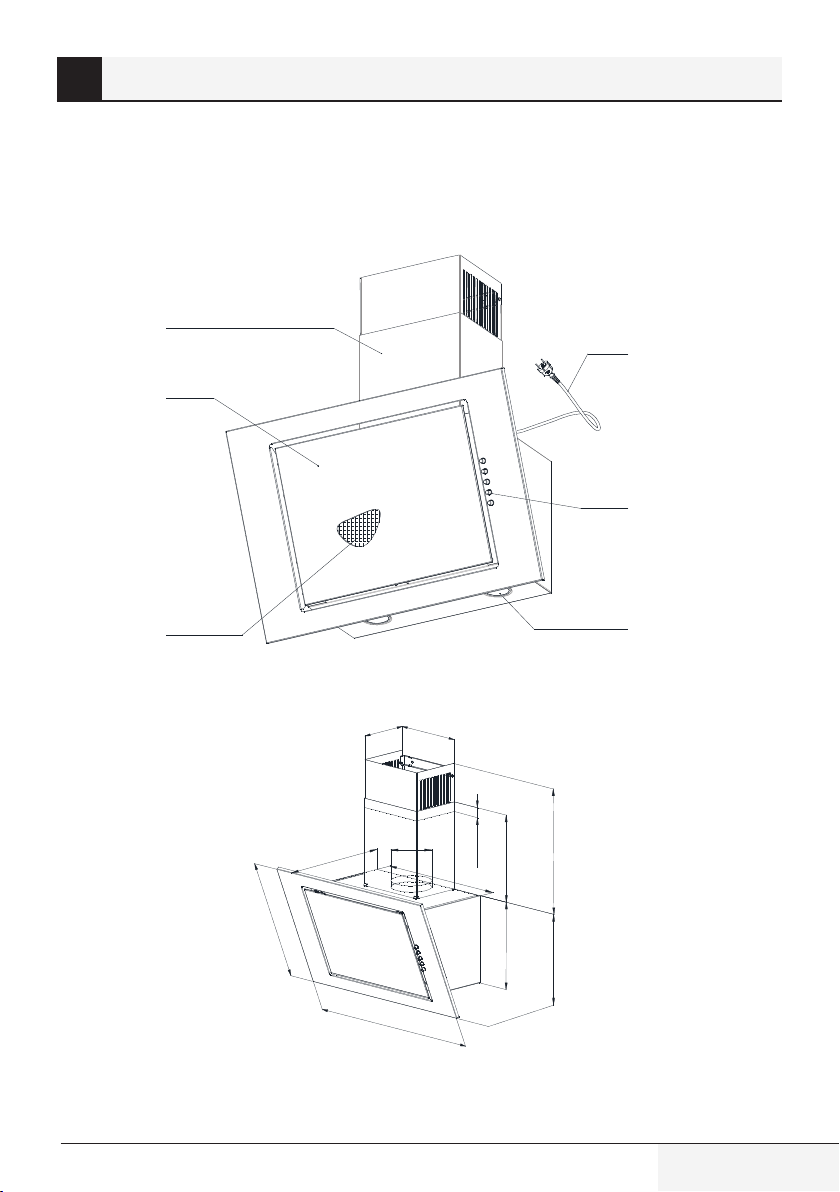

Fig.1 General view of the range hood

Hinged

flap

Aluminium

grease

filter

330

333

430

120

min:20

596

405

268

218

158

268

min:320max:548

Fig.2 Dimension drawing

8 / EN Hood / User Manual

3 Operation



The hood is intended for sucking in the vapours

during the meals cooking. The device may work in

two modes:

As the extracting hood: the vapours are extracted

from the premise through the withdrawal tube.

The withdrawal tube is not supplied with the de-

vice, and should be acquired separately.

•The shortest possible vapours

evacuating channel shall be used.

•Use the flue pipe with maximally

smooth internal surface (the use

of Spiro type pipes is not recom-

mended).

•Use the flue channel with as low

number of bends as possible (the

bending angles shall not exceed

90º).

•The changes in flue channel sec-

tions are not advised (from higher

section to lower section, for ex-

ample the change from Ø150 mm

to Ø120 mm).

As the absorber: the vapours are cleaned from fat

and odours, before they are returned back to the

premise through the grills in the top part of the

chimney body. To make the hood work in the ab-

sorber mode, install the coal filter

(Fig.10). The coal filter is not included in the stand-

ard equipment, and should be acquired separately.



The hood is equipped with the mechanical control

system.

•Button “0” – hood fan switched off

•Button “1” - hood fan switched on, with mini-

mum speed

•Button “2” - hood fan switched on with medium

speed

•Button “3” - hood fan switched with maximum

speed

The higher speed means the higher air circulation.

•Button switches the light on. To switch the

life off, press the button one more time.

Hood / User Manual 9 / EN

4 Installation



The use of screws and fasten-

ing elements not specified in the

Operation Manual may cause the

electrical shock.

The minimum distance of hood hanging between

the surface of kitchenware placement over the

cooking range (gas, electric range), and lowest

part of the hood (Fig.3) shall amount at least 45

cm for electric cooking ranges and at least 65 cm

for gas cooking ranges. Should the cooking range

operation manual provide the higher distance for

hood installation, such higher distance require-

ment shall be maintained. The installation of the

hood and chimney body is shown at the figures

(Fig.4 - Fig.9). The hood is equipped with the fix-

ing pins matching to the most part of walls and

ceilings. In course of the assembly, observe the

common rules for air exhaust from the premises.

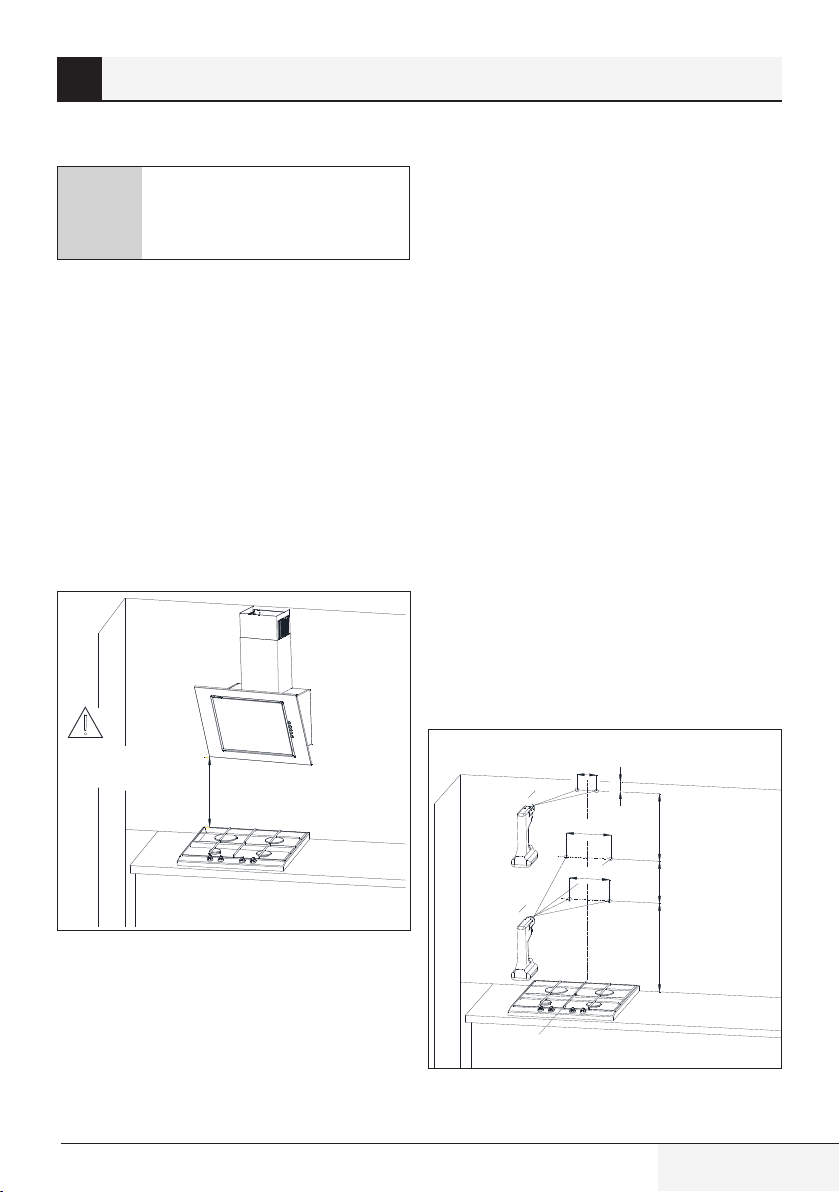

Fig.3 Recommended distances from the cooking

range







•Check if the purchased device dimensions match

to the planned installation place.

•Disassembly and remove (if possible) any furni-

ture remaining in the hood installation area, in

order to ensure the easy access to ceiling or wall,

where the hood shall be mounted. If it is not pos-

sible, protect the furniture elements remaining

in the adjacent area.

•Check, if there is a socket near the mounting

area, and control if the hood may be connected

to the ventilation channel for vapours evacua-

tion.

•Check if there are no cables (electrical, hydrau-

lic, etc.) in places in which the drilling will be per-

formed.

•

drill / electric screwdriver, drilling tool Ø8, screw-

driver, builder’s level.



1. 





Make the openings with the drill. (Fig. 4)

325mm

4xO8

2xO8

325mm

142mm

L+170mm 124mm max:550mm

min:30

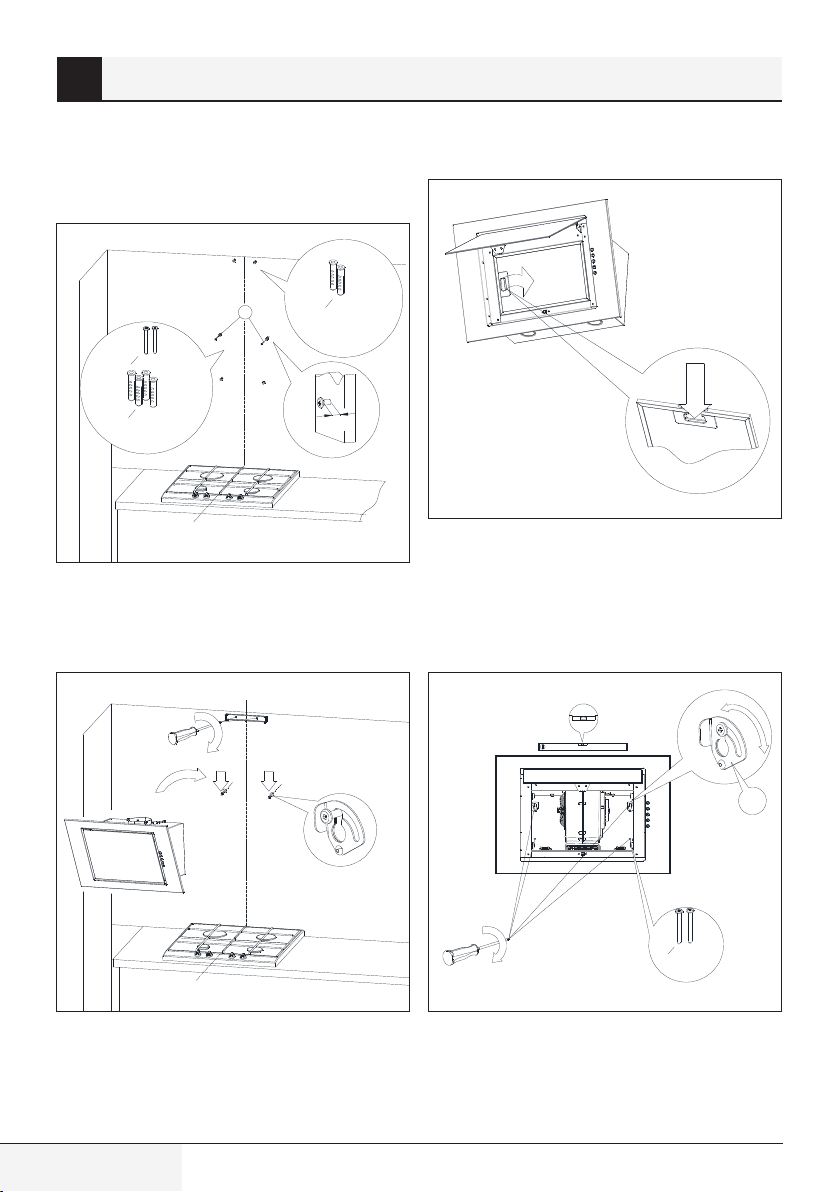

Fig.4 Assembly dimensions

10 / EN Hood / User Manual

2. 

A screw also the screws

(leaving 7 mm of screw length outside the

screw plug, Fig.5).

2 x O5 x 45mm

4 x O8 x 40mm

7mm

2 x O8 x 40mm

Fig.5 Screw plugs assembly

3.      



6).

Fig.6 Hood hanging

4 Installation

4. 



Fig.7 Aluminium fat filter removing

5. 

   

     





2 x O5 x 45mm

Fig.8 Range hood positioning

Inhaltsverzeichnis

Sprachen:

Andere Beko Dunstabzugshaube Handbücher

Beko

Beko HCA62640B Bedienungsanleitung

Beko

Beko BHCB67841BBHSI Bedienungsanleitung

Beko

Beko HNS 91211 X Bedienungsanleitung

Beko

Beko HNU51310SH Bedienungsanleitung

Beko

Beko BHCA96741BBHF Bedienungsanleitung

Beko

Beko HCF61620X Bedienungsanleitung

Beko

Beko CWB 6410 R Bedienungsanleitung

Beko

Beko CCB 7140 XA Bedienungsanleitung

Beko

Beko BHCIW 31322 BBH Bedienungsanleitung

Beko

Beko CFB 6432 WH Bedienungsanleitung

Beko

Beko CFB 6400 XA Bedienungsanleitung

Beko

Beko CWB 950 Bedienungsanleitung

Beko

Beko BHCA 64640 B Bedienungsanleitung

Beko

Beko CWB 9910 Bedienungsanleitung

Beko

Beko HNT61210X Bedienungsanleitung

Beko

Beko CFB 6463 X Bedienungsanleitung

Beko

Beko HNT 62210 B Bedienungsanleitung

Beko

Beko BRH60TW Bedienungsanleitung

Beko

Beko BHCB 63640 B Bedienungsanleitung

Beko

Beko BHCB96641BBBHS Bedienungsanleitung

Beko

Beko HNT61630X Bedienungsanleitung

Beko

Beko BHCB96741BBHS Bedienungsanleitung

Beko

Beko BRH52UX Bedienungsanleitung

Beko

Beko HCA92844BH Installations- und Betriebshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
