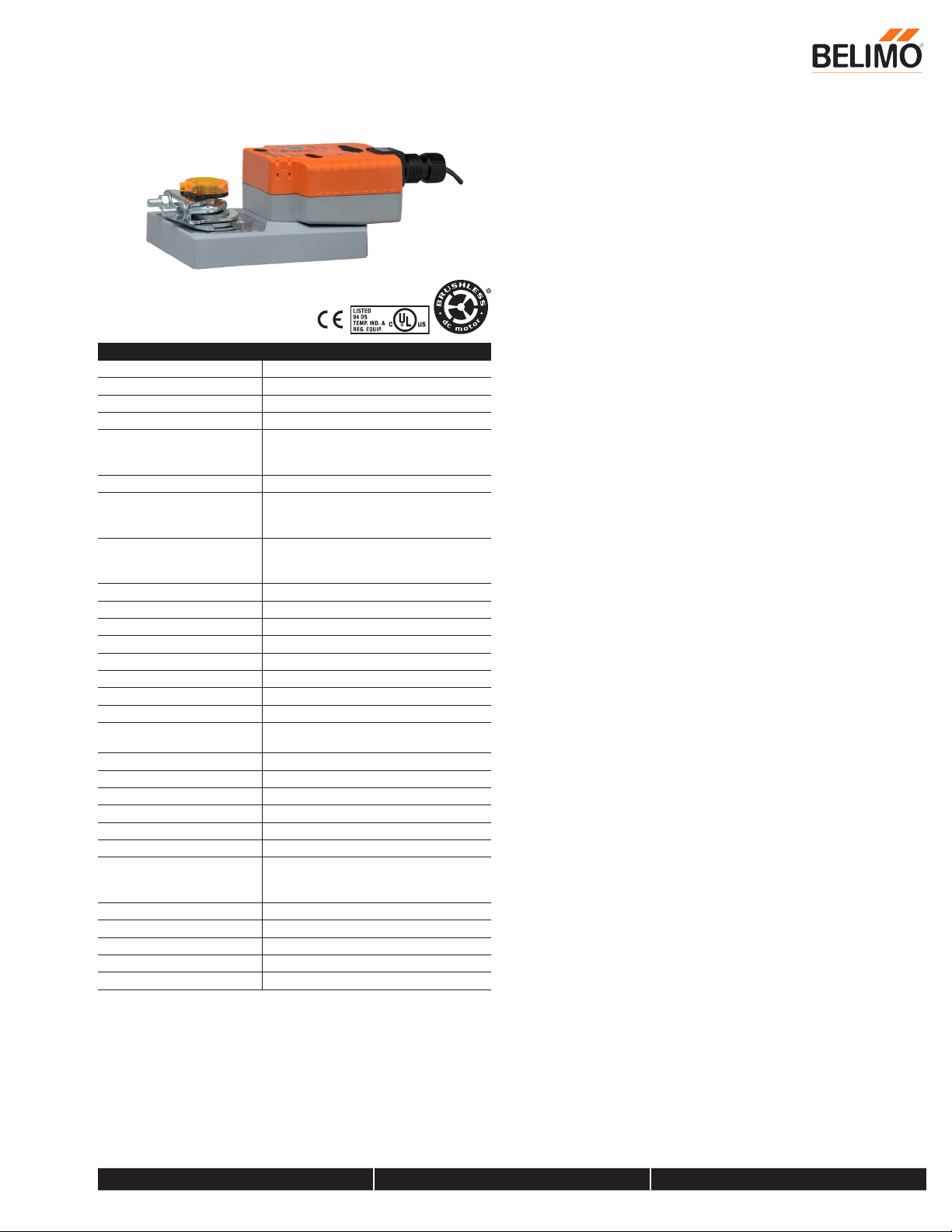

Belimo GKX24-MFT-X1 Bedienungsanleitung
Technical Data 2194
Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running 12 W
Power Consumption Holding 3 W
Transformer Sizing 21 VA (class 2 power source)
Electrical Connection 18 GA plenum rated cable with 1/2” conduit
connector protected NEMA 2 (IP54) 3ft [1m]
10 ft [3m] and 16 ft [5m]
Overload Protection electronic throughout 0° to 95° rotation
Operating Range Y 2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω,
1/4 W resistor), variable (VDC, floating point,
on/off)
Input Impedance 100 k Ωfor 2 to 10 VDC (0.1 mA), 500 Ωfor
4 to 20 mA, 1500 Ωfor PWM, floating point
and On/Off
Feedback Output U 2 to 10 VDC, 0.5 mA max, VDC variable
Angle of Rotation max. 95°, adjustable with mechanical stop
Direction of Rotation (Motor) reversible with built-in switch
Direction of Rotation (Fail-Safe) reversible with switch
Position Indication reflective visual indicator (snap on)
Manual Override external push button
Running Time (Motor) 150 sec (default), variable (95 to 150 sec)
Running Time (Fail-Safe) 35 sec
Bridge Time programmable 0 to 10 sec (2 sec default)
delay before fail-safe activates
Pre-charging Time 5 to 20 seconds
Humidity 5 to 95% RH non condensing (EN 60730-1)
Ambient Temperature Range -22°F to +122°F [-30°C to +50°C]
Storage Temperature Range -40°F to +176°F [-40°C TO +80°C]
Housing NEMA 2, IP54, UL enclosure type 2
Housing Material UL94-5VA
Agency Listings† cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC and
2006/95/EC
Noise Level (Motor) <45 dB (A)
Noise Level (Fail-Safe) <45 dB (A)
Servicing maintenance free
Quality Standard ISO 9001
Weight 4 lb [1.8 kg]
†Rated Impulse Voltage 800V, Type of action 1.AA, Control Pollution Degree 3
GKX24-MFT-X1
Modulating, Electronic Fail-Safe, 24 V, for 2 to 10 VDC or 4 to 20 mA Control Signal
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Date created, 09/01/2016 - Subject to change. © Belimo Aircontrols (USA), Inc.
Wiring Diagrams
INSTALLATION NOTES
A
Actuators with appliance cables are numbered.
Provide overload protection and disconnect as required.
Actuators may also be powered by 24 VDC.
Only connect common to negative (-) leg of control circuits.
A 500 Ωresistor (ZG-R01) converts the 4 to 20 mA control signal to 2
to 10 VDC.
Control signal may be pulsed from either the Hot (Source) or Common
(Sink) 24 VAC line.
For triac sink the Common connection from the actuator must be
connected to the Hot connection of the controller. Position feedback
cannot be used with a triac sink controller; the actuator internal
common reference is not compatible.
IN4004 or IN4007 diode. (IN4007 supplied, Belimo part number
40155).
46
Actuators may be controlled in parallel. Current draw and input
impedance must be observed.
47
Master-Slave wiring required for piggy-back applications. Feedback
from Master to conrol input(s) of Slave(s).
Meets cULus requirements without the need of an electrical ground
connection.
!WARNING! LIVE ELECTRICAL COMPONENTS!
During installation, testing, servicing and troubleshooting of this
product, it may be necessary to work with live electrical components.
Have a qualified licensed electrician or other individual who has been
properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to
live electrical components could result in death or serious injury.
Blk (1)
Red (2)
Pnk (4)
Wht (3)
Org (5)
Line
Volts
24 VAC Transformer
Position
Feedback VDC
(+)
(–)
Common
+ Hot
Y
2
Input
Y
1
Input
U Output
A
1 3 46 47
On/Off
24 VAC Transformer (AC Only)
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output
Pnk (4) Y2 Input
Line
Volts
(–)
(+)
Position
Feedback VDC
110 46 47
Floating Point
Blk (1) Common
Red (2) + Hot
Pnk (4) Y2 Input
Wht (3) Y1 Input
Org (5) U Output
(–)
(+)
Line
V
olts
24 VAC Transformer
500
1/4 watt
Ω
Control Signal
VDC / mA
A
1 3 5 46 47
7
Ω
VDC/mA Control
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input
Pnk (4) Y2Input
Org (5) U Output
Line
Volts
24 VAC Transformer (AC only)
(–)
(+)
Position
Feedback VDC
A
1 8 46 47
PWM Control
GKX24-MFT-X1
Modulating, Electronic Fail-Safe, 24 V, for 2 to 10 VDC or 4 to 20 mA Control Signal
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Date created, 09/01/2016 - Subject to change. © Belimo Aircontrols (USA), Inc.
Functions
0%
50%
100%
Control mode acc. to Y
1
Min
Mid
Max
Normal
abcOrg (5)
24 VAC Transformer (AC Only)
U Output
A
1 5
Blk (1) Common
Red (2) + Hot
Pnk (4)
Wht (3)
(–)
(+)
Line
Volts
B
C
A
VDC / mA
Control Signal
Y2Input
Y1Input
12
7
Ω
Override Control
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output
Master
24 VAC Transformer
Line
Volts
Control Signal
(–)
(+)
Blk (1) Common
Red (2) + Hot
Wht (3) Y1Input
Org (5) U Output
Ω
1 5 46 47
7
Slave
1
Master - Slave
GKX24-MFT-X1
Modulating, Electronic Fail-Safe, 24 V, for 2 to 10 VDC or 4 to 20 mA Control Signal
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Date created, 09/01/2016 - Subject to change. © Belimo Aircontrols (USA), Inc.
