Belkin 74113 Bedienungsanleitung

P74113 F8E815-BNDL

Wireless Keyboard and Mouse

User Manual

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 1

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 2

Table of Contents

About Your Wireless Keyboard and Mouse . . . . . . . . . . . . . . . .1

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Software Installation for Windows®98, Me, 2000, and XP . . . . .4

Software Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Uninstallation for Windows 98, Me, 2000, and XP . . . . . . . . . .8

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 3

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 4

About Your Wireless Keyboard and Mouse

Welcome to the freedom of wireless computing. Engineered with

digital radio technology, your keyboard and mouse are designed to

work wherever you are most comfortable within its 6-foot operating

range. This advanced technology does not require “line of sight” for

operation. We have eliminated the cable clutter and added enhanced

features such as one-touch Internet and multimedia keys that give

you quick access to the Web or your CD/DVD media.

The receiver connects to the PS/2 mouse port (green connector)

and the PS/2 keyboard port (purple connector) of your computer.

Battery Life

Under average usage, 3-4 hours per day, the batteries should last

for approximately one month.

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 1

Hardware Installation

1. Be sure that your computer is turned off.

2. Connect the receiver to your computer. The receiver has a 2-head

connector for the keyboard and mouse connections (purple is for

the keyboard and green is for the mouse.) They also have pictures

on the top of the connector to identify them. Your computer

should either have the same color scheme or there will be a

picture next to the plug to identify it.

3. Install the batteries into your keyboard and mouse. Please make

sure you follow the picture on the inside compartment for the

batteries to make sure the batteries are installed correctly. Refer

to Fig. 1 and Fig. 2 below.

Fig. 1 Keyboard Bottom

Fig. 2 Mouse Bottom

Reset Button

Battery

Compartment

Reset Button

Battery Compartment

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 2

Hardware Installation

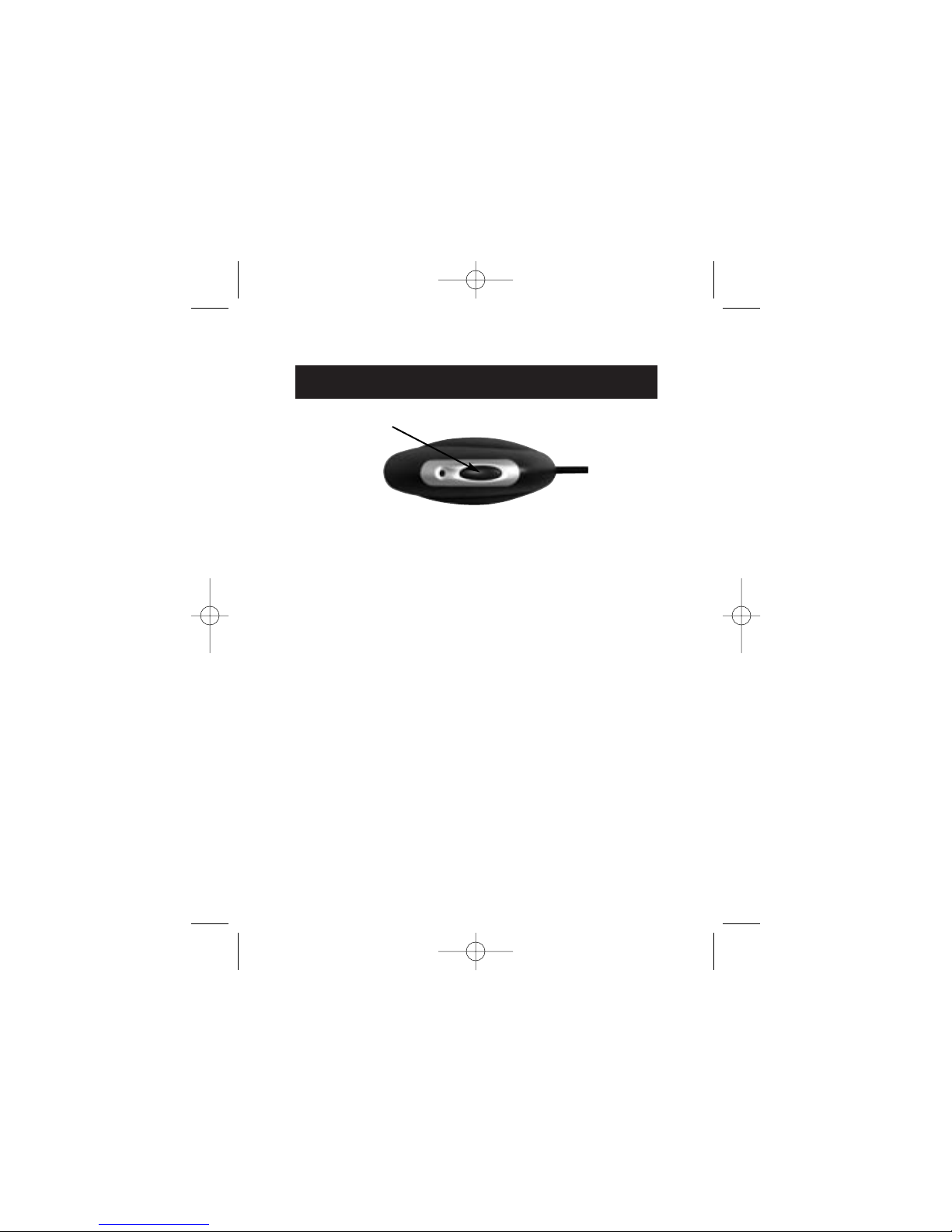

Fig. 3 Receiver Top

4. Turn your computer on.

5. The receiver was set by the factory to automatically scan for

and synchronize the keyboard and mouse once the computer is

turned on. The keyboard and mouse should now be functioning.

6. If the automatic synchronization does not occur, please see the

Troubleshooting section.

Reset Button

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 3

Software Installation for Windows 98, Me, 2000, and XP

Note: The keyboard and mouse should now be functioning. If not,

repeat the setup instructions. The software can now be installed.

Warning: It is recommended that you uninstall any previously

installed keyboard and mouse software prior to installing your

new Belkin software.

1. Make sure the computer is on.

2. Insert the CD into the computer.

3. If you have no previously installed keyboard or mouse

software, click “OK” and the installation will begin. Follow

the on-screen instructions.

4. Upon completion of installation, you will be prompted to

restart your computer. You must restart at this time for the

software to function.

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 4

Software Features

Keyboard

Using your mouse, right-click on the keyboard icon in your system

tray located at the bottom right of your screen. This will open the

dialog box.

The dialog box allows you to hide the keyboard icon, set your

OSD (on-screen display) time-out, and provides “About” for

the software.

Mouse

Using your mouse, right-click on the mouse icon in your system

tray located at the bottom right of your screen. This will open the

dialog box.

The dialog box allows you to hide the mouse icon, select “Set

Mouse Properties”, and provides “About” for the software.

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 5

Troubleshooting

The keyboard and/or mouse is/are not detected or do not work

after installation.

• Make sure the receiver cables are plugged into the PS/2 mouse port

and PS/2 keyboard port. Do not unplug or plug-in the receiver

cable while the computer is on.

• For optimal performance, place the receiver at least eight inches

(20 centimeters) away from the computer monitor, the computer,

any external storage devices, or other electrical devices.

• Make sure you have properly installed the batteries. Check to make

sure the batteries you have installed are not dead (you can do this

by installing them into another device).

• You may have other system devices that are conflicting with the

mouse and/or the keyboard. Check the IRQ/address settings of

these devices for conflicts and change the settings as required.

Refer to your computer documentation to make these changes.

• Make sure you have properly established

communication/synchronization between the receiver and the

mouse and keyboard.

• If the keyboard and/or mouse are not working, make sure that the

LED on the keyboard and/or the mouse start flashing when you

push any of the keyboard keys, mouse buttons, or move the mouse.

If the LED does not flash, check to make sure you have installed

the batteries correctly.

• When the keyboard or mouse LEDs are flashing, the LED on the

receiver should also flash to indicate they are speaking to each

other. If the LED on the receiver does not flash, it means that the

devices have not connected properly. Push the reset button on the

receiver. Within five seconds, push the reset buttons on the mouse

and on the keyboard. Refer to Fig. 1, Fig. 2, and Fig. 3 in the

Hardware Installation section.

The mouse pointer becomes choppy on-screen or the keyboard

does not register keystrokes.

• Remove batteries and replace with a fresh set.

P74113-F8E815-BNDL-man.qxd 9/19/02 2:52 PM Page 6
