Package Contents:

Introduction 1

Introduction

This booklet will guide you through the basic steps needed to install the LCD

Rack Console with Built-In PRO3 KVM Switch – Dual-Rail Technology.

Side-Rail Kit DB9-to-RJ11

Serial Flash Cable

LCD Rack Console

User Manual

Quick Installation

Guide

12V DC,

6A Power Supply

Keys

Installation 2

Installation

Step 1: Place the Console inside the rack.

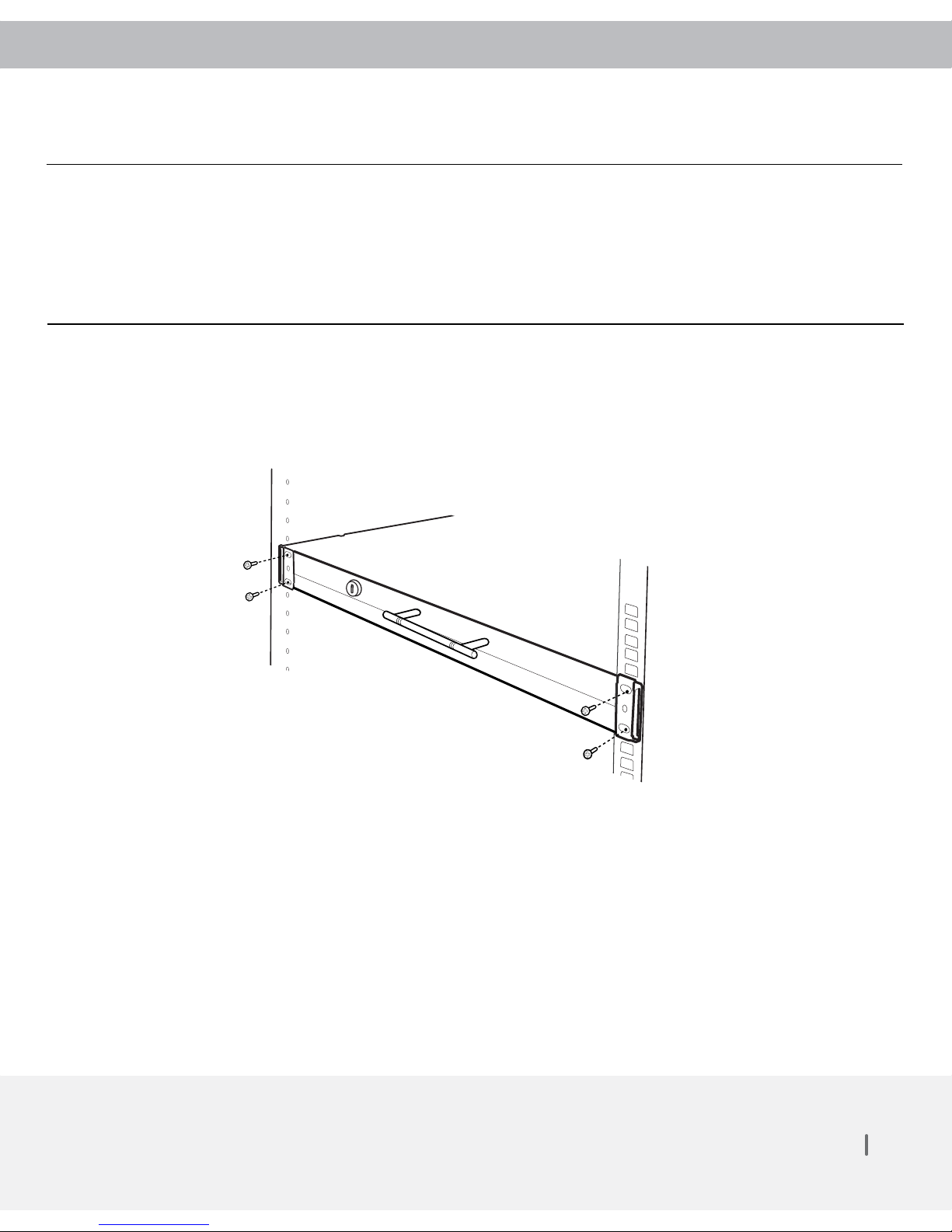

Step 2: Mount the front brackets to the rack.

Step 3: Slide the side rails onto the mounting studs.

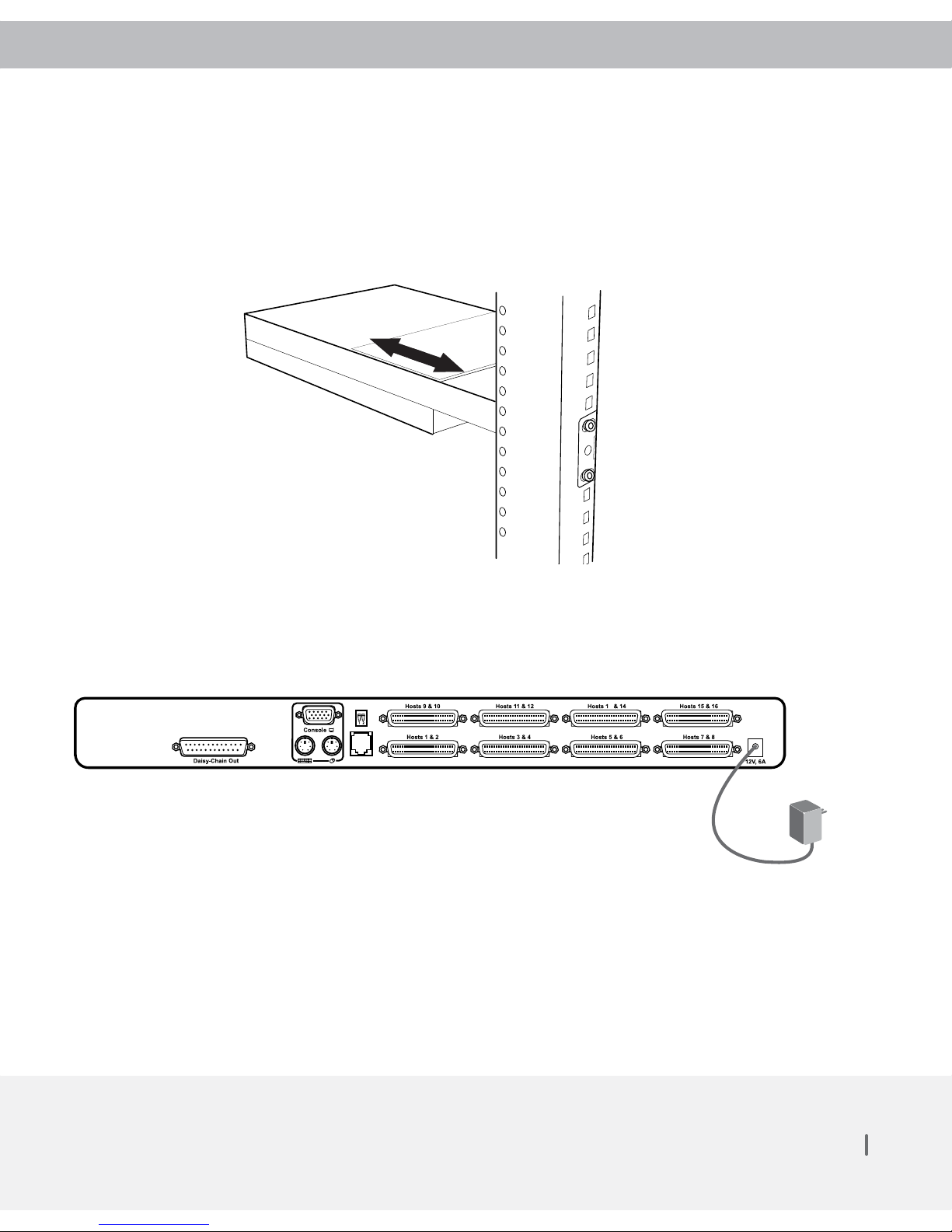

Installation 3

Step 4: Mount the side rails to the rear of the rack.



Step 5: Connect the IEC power cable to an active power outlet

and power up the Console.

Troubleshooting 4

Troubleshooting

My Console doesn’t appear to be on.

Make sure that the power switch located at the front of the keyboard drawer is “on” and

that the power cable is connected properly.

What is the maximum video resolution that the LCD

panel supports?

The LCD panel supports a resolution of up to 1280x1024.

Do I have to install any software to use the Console?

No, the Console does not require any drivers or software to be installed in your

computers. Simply connect the Console directly to computers or servers, and it is ready

for use.

Belkin Tech Support

US: 800-223-5546, ext. 2263

310-898-1100, ext. 2263

UK: 0845 607 77 87

Australia: 1800 235 546

New Zealand: 0800 235 546

Singapore: 65 64857620

Europe: www.belkin.com/support

Belkin International, Inc.

501 West Walnut Street

Los Angeles, CA 90220, USA

310-898-1100

310-898-1111 fax

Belkin Ltd.

Express Business Park, Shipton Way

Rushden, NN10 6GL, United Kingdom

+44 (0) 1933 35 2000

+44 (0) 1933 31 2000 fax

Belkin Ltd.

4 Pioneer Avenue

Tuggerah Business Park

Tuggerah, NSW 2259, Australia

+61 (0) 2 4350 4600

+61 (0) 2 4350 4700 fax

Belkin B.V.

Boeing Avenue 333

1119 PH Schiphol-Rijk, The Netherlands

+31 (0) 20 654 7300

+31 (0) 20 654 7349 fax
