All-In-One Print Server Setup
Synopsis:
Please read the following carefully;
Requirements:
The following guide is designed to assist you with
the installation and configuration of your Wireless
All-In-One Print Server (F1UP0002).
The Guide assumes that you already have all the
details of your existing Wireless Network, and that
this is working successfully.
To complete this Guide you will need to ensure
that you have the following equipment;
•Working Wireless Network
•Wireless All-In-One Print Server
•Printer (can be a Multifunction device)
•USB A-B (Device) cable
•Power Cables (as required)
•Computer running Min. Windows 2000 (SP4)
TSG-UK-1-003 | www.belkin.com | Page 1 of 10
F1UP0002
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
Connect the Print Server to the Wireless Router using the Ethernet Cable supplied.
Insert the Print Server Software CD and install the Software. Click ‘Next’ to continue.
A Window will then appear giving you the option to change where the installed files will
be located on your Computer. Belkin recommends using the default option. Click ‘Next’
and the software will install.
Once the installation has completed you will be asked whether or not you would like to
configure the Print Server.
Self Help Guide
All-In-One Print Server Setup
TSG-UK-1-003 | www.belkin.com | Page 2 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
Ensure that ‘Yes, I Would Like To Configure My All-In-One Print Server’ is selected then
click ‘Next’. Windows will then search for the available Print Server.
Once the Print Server is detected highlight this under the heading ‘Available Print
Servers’ and then click ‘Next’. You will then be asked to log in to the Print Server so
that you may configure it. Enter your Password for the Print Server – The Default
Password is ‘1234’. Once entered click ‘OK’.
You will then be required to name (Alias) the Print Server and give this a description.
(This is particularly useful if you have more than one Print Server)
Self Help Guide
TSG-UK-1-003 | www.belkin.com | Page 3 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
Once you have entered these details click ‘Next’. Windows will then attempt to detect
the IP Address (numerical) of the Print Server.
Here you can change the IP Address (numerical) of the Print Server. As the Print Server
is connected to a Router please leave this setting as is. (DHCP indicates the Print
Server will automatically get its IP Address from the Router).
You will then see a list of the available wireless networks that the Print Server can
connect to.
Select the SSID (Wireless Name) of your Wireless Router and then click ‘Next’.
Self Help Guide
TSG-UK-1-003 | www.belkin.com | Page 4 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
You will then see a Window detailing the settings of your selected Wireless Network.
Confirm the details listed. If they are not correct click ‘Back’ and select your Network
again. If these details are correct click ‘Next’. The Print Server will then be configured
with the settings you entered. Click ‘Finish’.
You will then be asked whether or not you wish the Belkin All-In-One Printer Manager
to automatically start when Windows loads. Click ‘Yes’
Self Help Guide
TSG-UK-1-003 | www.belkin.com | Page 5 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
The All-In-One Printer Manager will now load. You will also see an icon for the All-
In-One Printer Manager located by the System Clock.
Disconnect the Power and Ethernet Cables from the Print Server. Then, disconnect the
Power Cable from the Printer.
Now connect the Printer to the USB Port of the Print Server and then power up both
devices. After approximately 30 seconds the Wireless LED on the Print Server will
become solid. This indicates that a Wireless Connection between the Print Server and
your Wireless Router has been established.
Install the Printer Software. If the Printer Software is already installed please see the
section entitled ‘Printer Software Pre-Installed’.
Once the Printer Software has been installed click the ‘+’ (plus sign) next to the heading
‘Print Server’.
The All-In-One Printer Manager Software
Self Help Guide
TSG-UK-1-003 | www.belkin.com | Page 6 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
The newly installed Printer will now be listed. Select the Printer from this list and then
click ‘Connect’. Windows will then detect the Printer and then installed the required
Printer Drivers. Click the button labelled ‘Auto Connect’.
Click the button. You will now be able configure the Print Server so that it
automatically connects and disconnects from your installed Printer. (This is useful
should there be more than one Computer that wishes to print to this Printer)
Select your Print Server from the list. Select the appropriate Printer Queue (This is
normally the name of the Printer). Once complete click ‘OK’. The Printer you selected
will now be listed in the Auto Connect list. Close down the Belkin All-In-One Printer
Manager Software. You will now be able to print automatically.
TSG-UK-1-003 | www.belkin.com | Page 7 of 10
Self Help Guide
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
Install the All-In-One Printer Manager Software on to your Computer using the Default
locations. You will then be asked whether or not you wish to configure the All-In-One
Print Server. Select ‘No, Please Skip This Step’ followed by ‘Finish’.
You will now be asked whether or not you wish the All-In-One Printer Manager to run
automatically when Windows starts. Click ‘Yes’.
The All-In-One Printer Manager will now load. You will also see an icon for the All-
In-One Printer Manager located by the System Clock.
Self Help Guide
Adding Additional Computers
TSG-UK-1-003 | www.belkin.com | Page 8 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
Install the Printer Software. If the Printer Software is already installed please see the
section entitled ‘Printer Software Pre-Installed’. Once the Printer Software has been
installed click the ‘+’ (plus sign) next to the heading ‘Print Server’.
The newly installed Printer will now be listed. Select the Printer from this list and then
click ‘Connect’. Windows will then detect the Printer and then installed the required
Printer Drivers. Click the button labelled ‘Auto Connect’.
Click the button. You will now be able configure the Print Server so that it
automatically connects and disconnects from your installed Printer. (This is useful
should there be more than one Computer that wishes to print to this Printer)
Select your Print Server from the list. Select the appropriate Printer Queue (This is
normally the name of the Printer). Once complete click ‘OK’. The Printer you selected
will now be listed in the Auto Connect list. Close down the Belkin All-In-One Printer
Manager Software. You will now be able to print automatically.
Self Help Guide
TSG-UK-1-003 | www.belkin.com | Page 9 of 10
®Self Help Guide
TSG-UK-1-001 | www.belkin.com | Page 1 of 1
®
It is possible to install the Print Server after your Printer Software has been installed.
To install the Print Server please follow any of the instructions listed in this document.

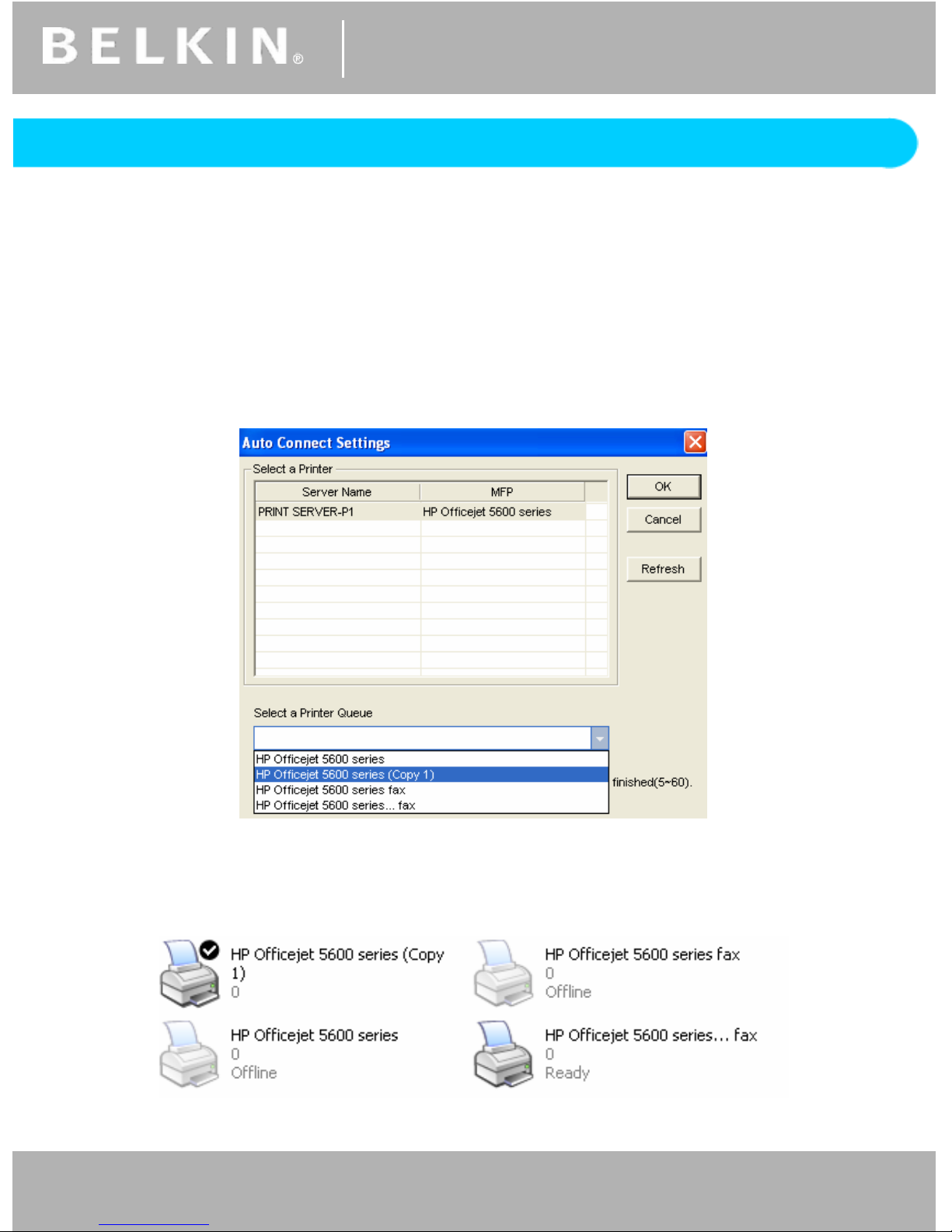

When you highlight your Printer in the Printer Manager and click ‘Connect’ Windows
will automatically detect the Printer and install this again.
In order to ensure that your Computer can print automatically to this Printer please
ensure that you select the newly installed Printer (i.e. (copy1) from within the Auto
Connect Window.
As a result of installing the Print Server in this manner you will see that there are
multiple entries for the same Printer listed in ‘Printers and Faxes’.
Self Help Guide
Printer Software Pre-Installed
TSG-UK-1-003 | www.belkin.com | Page 10 of 10
