Belkin Bitronics F1U128-KIT Bedienungsanleitung

P73046 F1U128-KIT

Bitronics DualBus Switch Kit

User Manual

Kit du commutateur Bitronics DualBus

Guide de l’utilisateur

Bitronics DualBus Switch Set

Benutzerhandbuch

Bitronics DualBus Switch Kit

Handleiding

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 1

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 2

Table of Contents

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Deutsche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Nederlands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 3

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 4

Introduction

Features

Thank you for purchasing the Belkin Components Bitronics DualBus Switch

Kit! Now, you and your colleagues can share and select between two

different parallel devices from your desktop. And, if you are using

Windows®95, 98 or NT®, you will be able to take advantage of Bitronics

Software, which allows you to print automatically even if you have more

than one printer!

• Allows four computers to access any two parallel devices simultaneously

and independently

• Virtual Port printer driver software allows fully automatic printer selection

through Windows®95/98 and NT®

• File-transfer feature between two PCs compatible with Windows®Direct

Cable Connection, LapLink®and DOS Interlink™

• Includes two 6 ft. (1.8m) IEEE 1284-compliant cables to connect the computers

• Includes power adapter

• Adjustable timeout

Package Contents:

Bitronics DualBus Switch, 4-2 F1U128

Power Adapter, 9VDC, 600mA F1D065-PWR-UK

2 x IEEE 1284-compliant cables F2A047-06

User manual P73406

Registration card P72009

Other Parts Needed (if necessary)

• IEEE 1284 printer cable, Belkin Part# F2A046-XX. You will need this

cable to connect a printer to the autoswitch. Your current printer cables

may work, but IEEE-compliant cables are recommended.

• IEEE 1284 device cable, Belkin Part# F2A047-XX. You will need this

cable to connect a computer to the autoswitch.

NOTE: "XX" is the length in feet.

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 1

Compatible Standards:

IEEE 1284-1994 Parallel Port Communication Standard

Electrical:

Input Voltage 9VDC

Max Input Current 600mA

Max Power Consumption 5.4W

Max Heat Dissipation 0.31 BTU/min

Dimensions:

Width: 7.0” (17.8cm)

Height: 3.75” (9.5cm)

Depth: 1.25” (3.2cm)

Weight: 7.1 oz. (202 g)

Storage Temperature: -10ºC to 50ºC

(14ºF to 122ºF)

Operating Temperature: 0ºC to 40ºC

(32ºF to 104ºF)

Humidity: 0 to 95%

Non-condensing

Technical Specifications

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 2

DIP switch settings (located underneath switch):

SW1: Reset Switch

To reset, OFF→ON→OFF

SW2 and SW3: TimeOut Setting

TimeOut is the amount of time the switch remains locked on a PC port after

data transfer. Use a longer TimeOut when connecting to scanners, mass

storage devices and for large print jobs.

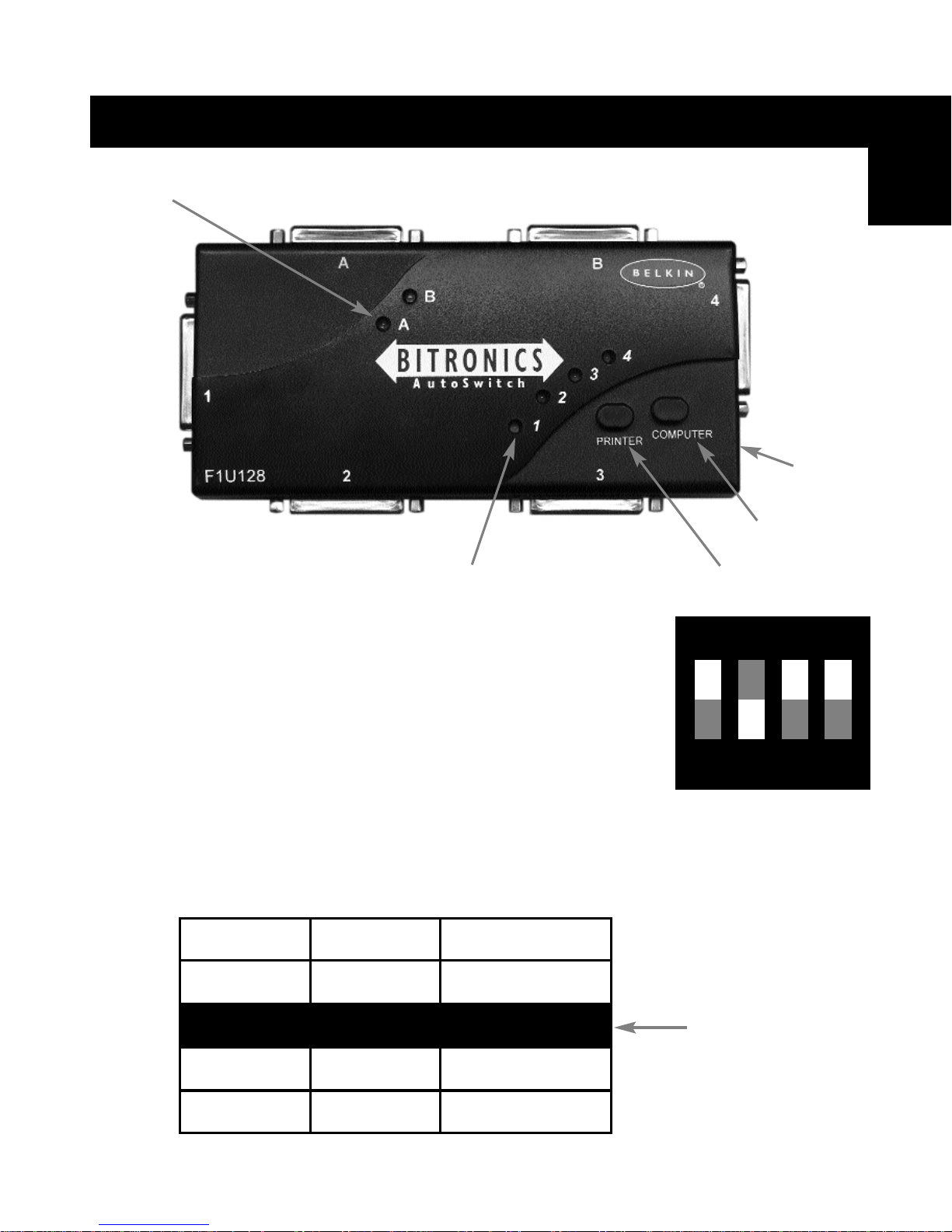

Product Detail

Device activity LEDs

Connector to Device A Connector to Device B

Connector to PC2

PC activity LEDs

Recommended

Printer button

Computer button

DC power jack

(side)

Connector to PC3

ON DIP

1234

ON is UP. SW4 is not used.

SW2

ON ON 5 seconds

ON OFF 10 seconds

OFF ON 20 seconds

OFF OFF 40 seconds

SW3 TimeOut

Connector

to PC1

Connector

to PC4

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 3

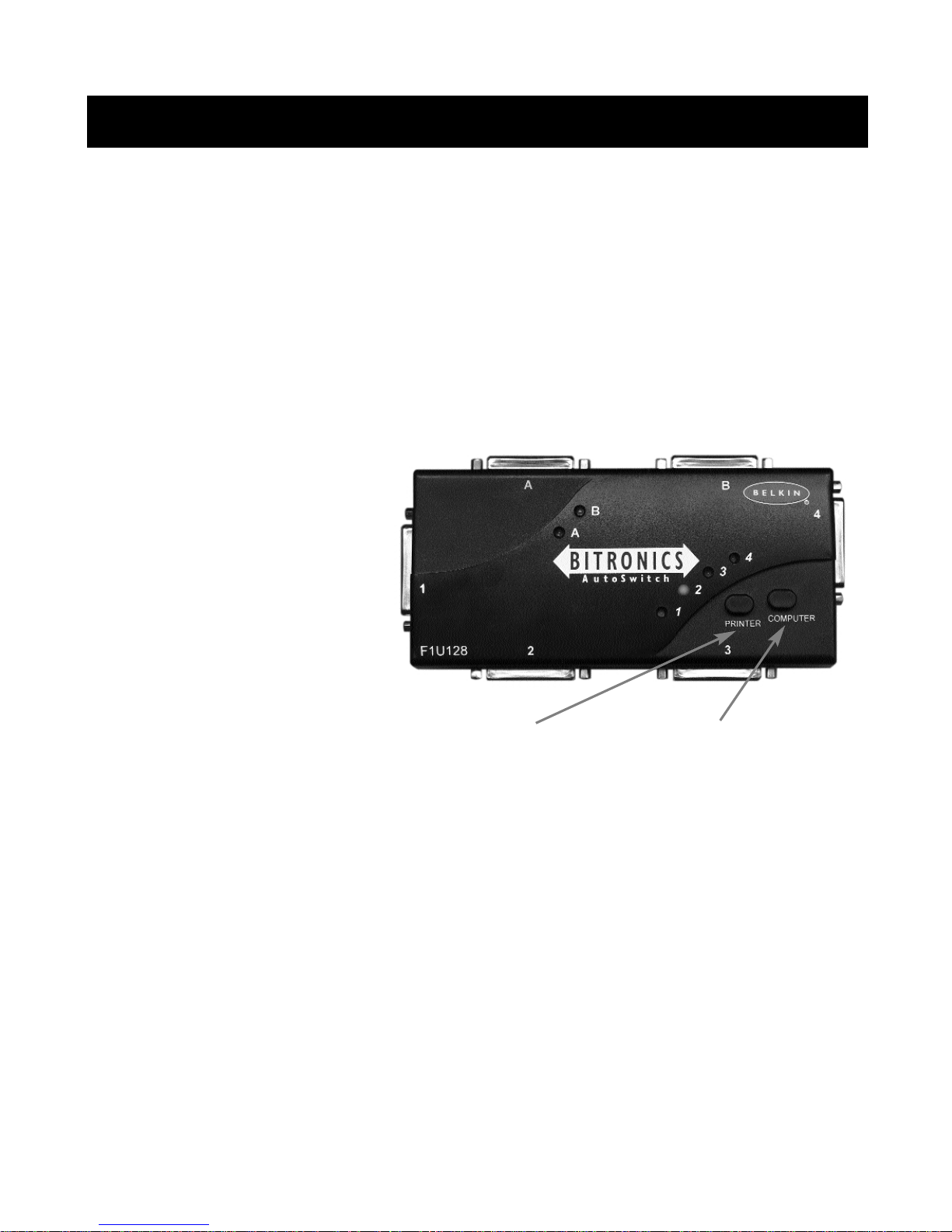

In manual mode, you can select a port manually through the buttons on the

Bitronics switch. You can also use this mode in conjunction with software to

see your switch in action!

• Press COMPUTER to select which computer port you wish to configure or

monitor. For the computer connected to Port 1, press the COMPUTER

button until the LED on Port 1 is lit up either in red or green.

• Press the PRINTER button until the LED of the appropriate device port

you wish to use is lit up.

For example, if you want

computer 2 to use the

device on port B, press the

COMPUTER button until the

LED on "2" is lit up. Then,

press the PRINTER button

until LED "B" is lit up.

To use File Transfer mode, press the PRINTER button until the LED on the

computer port turns green. When the LED turns green, the port is ready for

file transfer mode. For file transfer mode to be successful for both PCs, both

computer ports must be set to file transfer mode – which is evident when the

LEDs next to 1 and 2 are green. For more information on File Transfer, please

see page 25.

Note: Computer 1 can only file transfer to computer 2, and computer

3 can file transfer to computer 4. If you change the ports

manually using the buttons, the changes made will not be

reflected in the software.

Manual Mode and Port Monitoring

Printer button Computer button

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 4

Windows®3.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

MS-DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Windows®95/98 and NT®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

NOTE: When installing software on any operating system, the

software must be installed on all the computers connected to

the Bitronics switch so that each machine can control the

switch properly.

Choose your operating system

P73046_F1U128uKIT univ_man.qxd 4/28/00 2:12 PM Page 5
