Belkin F5D5130-5 Bedienungsanleitung

Share your files and Internet connection

5-and 8-Port 10/100

network

F5D5130-5

F5D5130-8

Network Switch

able of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

Belkin Docking Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connecting a Simple Network . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9

Installing the Network Card Drivers . . . . . . . . . . . . . . . . . . . . . . . .10

Installing Software to All PCs onYour Network . . . . . . . . . . . . . . . .11

Configuring Your Computer Using Belkin NetSetup . . . . . . . . . .12-16

Configuring Additional Computers

Using Belkin NetSetup Software . . . . . . . . . . . . . . . . . . . . .17-19

Sharing Files and Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .20-24

Accessing Resources on Other Computers . . . . . . . . . . . . . . . .25-26

Software Internet Connection Sharing with Multiple PCs . . . . . .27-44

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Warranty, FCC, CE Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Congratulations on your purchase of this quality Belkin product.

You can now enjoy the benefits of sharing printers and

peripherals, sharing one Internet account*, exchanging data

quickly between connected computers, and communication

via-e-mail and the Internet. The Network Switch can be used to

connect PCs, additional switches, Gateway Routers, and other

networking components. This guide explains how to install and

use the Belkin 5- and 8-Port 10/100Mbps Network Switch.

Features:

• Conforms to the Ethernet IEEE 802.3 and 802.3u standards

• Provides LED indicators for monitoring network traffic

• Provides 5 or 8 10/100Mbps auto-sensing RJ45 ports for easy

migration from 10Base-T to 100Base-T networks

• Shared RJ45 uplink port allows you to easily add computers to

your network at any time

• Dedicated bandwidth provided for each port provides for an

efficient and error-free network

Contents of Package:

• One Belkin 5- or 8-Port 10/100Mbps Network Switch

• One Power Supply

• One CD-ROM

• User Guide

*Requires Windows 98 SE, ME, or 2000

Introduction

Product Descriptions

Port Activity/Status Lights

Provide information about the network

Power Light

Indicates the power is on or off

LAN Ports

Connect your PCs to these ports

DC Power Jack

Connect the included power

supply to this jack

Front Panel

F5D5130-5

5-Port 10/100 Network Switch Product Description

Rear Panel

Product Descriptions

Front Panel

Power Light–When lit, indicates that the 5-Port Switch is

receiving power

Port Activity/Status Lights

Amber–A steady amber light indicates that there is a 100Mbps

(100Base-TX) link between the 5-Port Switch and the

computer connected to that port.

Green–A steady green light indicates that there is a 10Mbps

(10Base-T) link between the 5-Port Switch and the computer

connected to that port.

Flashing–A flashing port-status (either amber or green), indicates that

data is flowing between the Belkin 5-Port Network Switch

and the computer connected to that port.

Rear Panel

Power Input Jack–Connect 6V DC power supply

LAN Ports–Numbered 1-5. Connect the network cable from your

PC’s network interface card/adapter to these ports. It is not

important which LAN ports you use. For example, in a two-

computer network you can connect one computer to Port 4

and the other to Port 1.

Product Descriptions

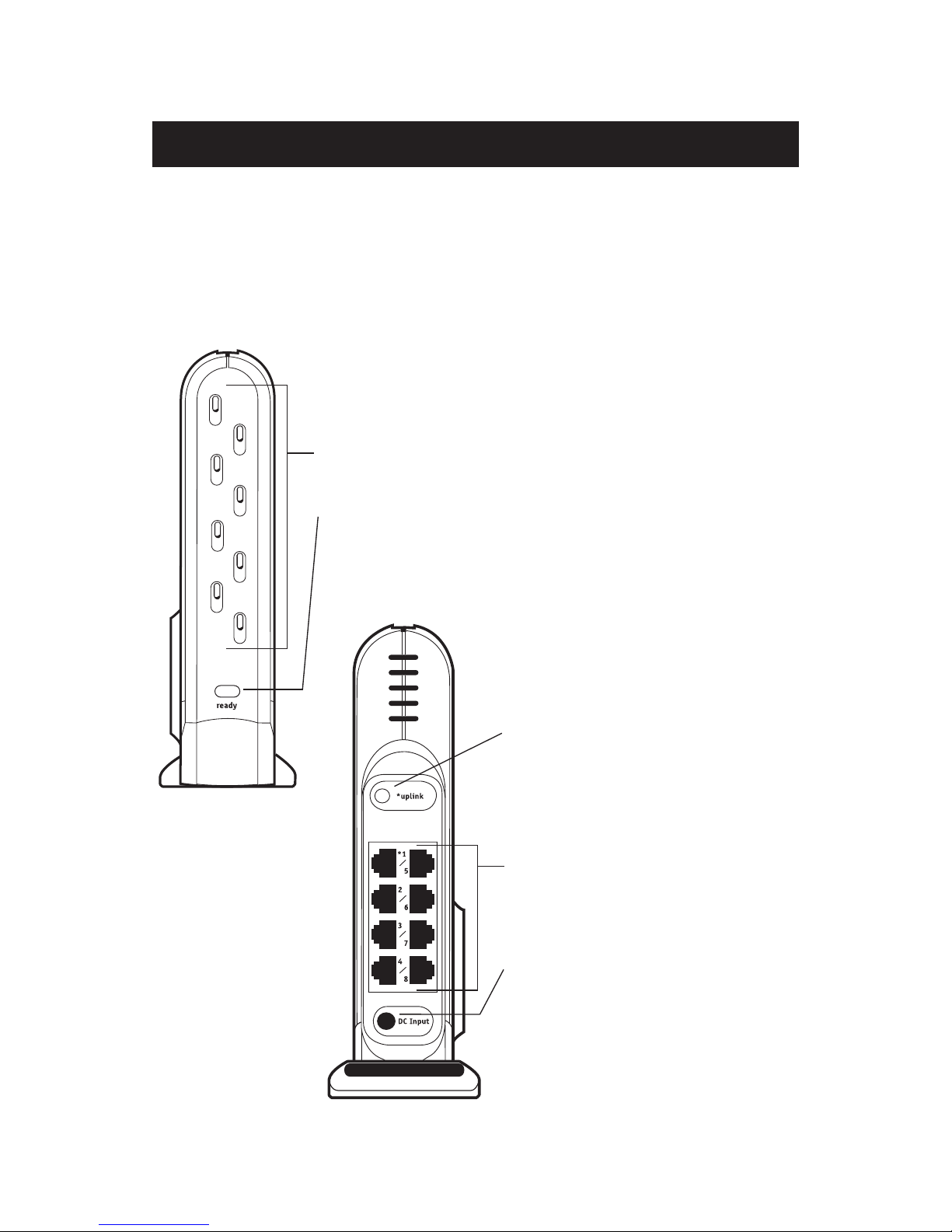

F5D5130-8

8-Port 10/100 Network Switch Product Description

Port Activity/Status Lights

Provide information about the network

Power Light

Indicates the power is on or off

Uplink Button

Allows you to easily add additional

ports to your network

LAN Ports

Connect your PCs to these ports

DC Power Jack

Connect the included power

supply to this jack

Front Panel

Rear Panel

Product Descriptions

Front Panel

Power Light–When lit, indicates that the 8-Port Switch is receiving

power

Port Activity/Status Lights

Amber–A steady amber light indicates that there is a 100Mbps

(100Base-TX) link between the 8-Port Switch and the

computer connected to that port.

Green–A steady green light indicates that there is a 10Mbps

(10Base-T) link between the 8-Port Switch and the computer

connected to that port.

Flashing–a flashing port status light (either amber or green),

indicates that data is flowing between the Belkin 8-Port

Network Switch and the computer connected to that port.

Rear Panel

Power Input Jack–Connect 6V DC power supply

LAN Ports–Numbered 1-8. Connect the network cable from your PCs

network interface card/adapter to these ports. It is not

important which LAN ports you use. For example, in two-

computer network you can connect one computer to Port

4 and the other to Port 1.

Uplink button–Push the uplink button to make port 1 an uplink port

to which you can add switches, routers, and other

networking components.

Belkin Docking Options

The Belkin Docking Ring

Belkin has designed the SOHO switches to link together with other

Belkin networking products through the docking ring on the side of the

module. The ring will fit into the mating ring of another Belkin network

product such as a gateway router, a wireless access point. Simply place

modules side by side and push them together.

The Belkin Wall Mount

Belkin provides an adapter that will allow the Switch to be mounted

to the wall.The adapter is available at belkin.com. To install the wall

mount follow these steps.

1. Use the wall mount as a template and mark the screw holes on

your wall with a pencil.

2. Drill holes in the wall and insert screw anchors (not included)

into the wall.

3. Insert screws into the anchors and turn them in just far enough that

when the wall mount is placed on the screws it will be snug but still

able to slide.

4. Snap the wall mount into the docking ring on the Belkin Switch.

5. Align the wall mount’s holes with the screw heads and push the wall

mount over screws. Slide the Belkin Switch and wall mount down

over the screw heads to secure it to the wall.

Connecting a Simple Network

Connecting multiple computers in your home or office via a network

switch lets you cooperate, collaborate, and make the most of your

hardware. You can share files and printers and even access the

Internet from every computer in your network.

While networking was once a complicated matter, Windows 95, 98

and later versions, along with hardware and software like Belkin

networking products have made networking very easy to do. The

following section of this manual will help you set up a simple

network in your home or office. If you are connecting to a larger

existing network, it is recommended that you consult your network

administrator (the person who originally set up the network) for

instruction on how to connect additional computers to the network.

Connecting three or more computers

To connect your network you will need a network switch or hub with

enough ports for the number of computers you intend to connect

immediately or in the near future. (The F5D5130-5 provides five ports

and the F5D5130-8 provides eight ports.) Although hubs and

switches perform the same function, they do so at different rates of

performance, efficiency, and speed.

While a hub transmits information to all PCs on your network, a

switch is a "Smart Hub" that features a store-and-forward function.

This function retains the originator’s IP address and transmits

information to the specified PC rather than over the entire network.

Less network traffic and the elimination of the time needed to process

information sent to unintended recipients means minimal data

collisions and data loss.

To connect your computers to the Belkin Switch, each computer must

be equipped with a network interface card/adapter such as an

internal PCI card (for desktop computers), a PC card (for notebook

computers), or a USB Ethernet adapter (an alternative to opening up

your PC; for USB-equipped computers only). Each computer connects

to the Belkin Switch via a CAT5 networking cable. You will need one

networking cable for each PC.

1. Be sure that the power to the Belkin Switch, your modem, and

all of your PCs has been turned OFF or disconnected from the

power supply.

2. Install the Network Cards into each PC (skip this step if this

is already done).

3. Connect each computer’s installed Network Card to the Network

Switch port using a straight through unshielded twisted pair (UTP)

Ethernet Cat5e patch cable (A3L850-XX-S) or for higher

performance use Belkin Cat6 patch cables (A3L980-XX-S).

4. Plug one end of the power-supply adapter into the power

socket found at the rear of the switch and the other end into

the power outlet.

5. If the LED power indicator is green, there is power going to the

switch.

6. Turn on the rest of your computers and let them boot up. After

your computers boot up, the LAN link lights on the front of the

Belkin Switch should be ON for each port to which a computer is

attached.Verify that your computers are connected by checking

these lights.

Connecting a Simple Network
