1. Introduction .....................................................................1

2. Setting Up your Network USB Hub ..................................2

3. Using the Network USB Hub Control Center ....................5

4. Appendix – Operation/Compatibility Notes ....................15

5. Information ....................................................................16

Table of Contents

P75465ea_F5L009.indb 2 7/27/2007 3:08:26 PM

uk-1

Introduction

Congratulations and thank you for purchasing the Network

USB Hub (the Hub) from Belkin. By connecting to your

network router, this innovative sharing tool gives you a great

way to enhance its capabilities, as well as those of all the USB

devices connected throughout your network. It lets you access

your USB devices remotely without the hassle of setting up

network software. Now you can easily print to the USB printer

in your home office from your living room or bedroom—

through any network router.

uk-1

P75465ea_F5L009.indb 1 7/27/2007 3:08:27 PM

uk-2

Setting Up your Network USB Hub

uk-2

The Hub works with Windows® XP and Windows Vista™

(32-bit). In order to use the Hub, you must have a networking

router connecting your network.

1. Preparing for Setup

NOTE: If you are connected to a network router that uses

Dynamic Host Configuration Protocol (DHCP), which most

networks do, you do not need to set up your Hub.

1.1 Plug the AC adapter into the Hub.

1.2 Check the Power LED (green). It should be illuminated.

1.3 Plug the Ethernet cable into the Hub.

1.4 Plug the other end of the Ethernet cable into your

network router.

2. Installing the Software

IMPORTANT: If you do not install the software on your PC,

the Hub will not work.

2.1 Insert the setup CD into

your CD-ROM drive.

You will see the Hub

Setup CD screen. Click

“Install Control Center”.

P75465ea_F5L009.indb 2 7/27/2007 3:08:27 PM

uk-3

Setting Up your Network USB Hub

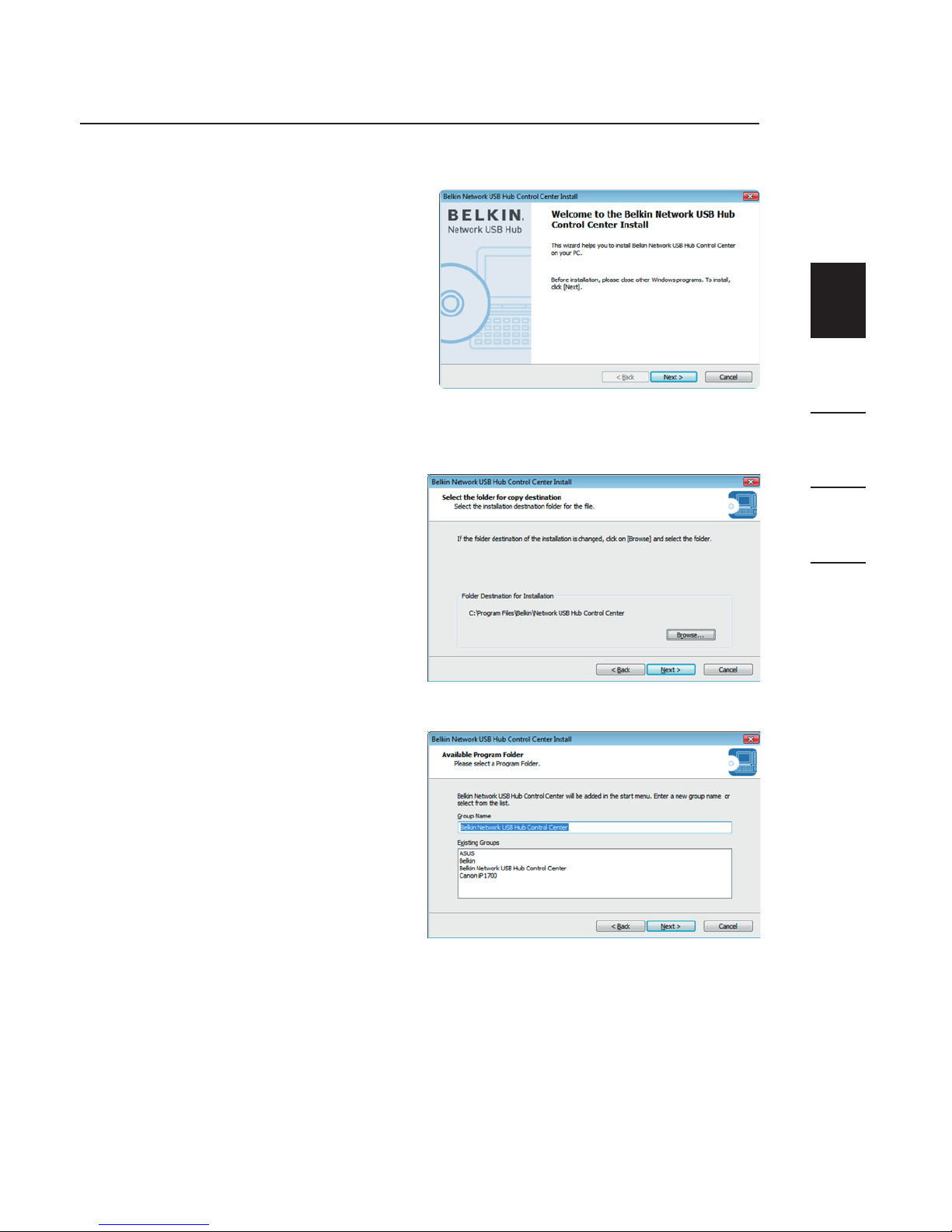

2.2 You will see the

“Welcome” screen.

Click “Next”.

2.3 Choose a destination

folder in which to install

the software, or simply

click “Next”

2.4 Choose the program

group for the software,

or simply click “Next”.

P75465ea_F5L009.indb 3 7/27/2007 3:08:29 PM

uk-4

Setting Up your Network USB Hub

uk-4

2.5 To start the installation.

Click “Start”.

2.6 Installation is complete.

Click “Finish”.

P75465ea_F5L009.indb 4 7/27/2007 3:08:31 PM

uk-5uk-5

Using the Network USB Hub Control Center

Once the setup is completed, launch the Belkin Network

USB Hub Control Center through the “Start” menu. The main

Control Center (see image below) gives you a visual depiction

of your connection configuration.

You can connect to a device by double-clicking the device

on the list, or by selecting it on the list, and then clicking

“Connect”, on the bottom of the screen. To disconnect a

device, just double-click it on the list, or select it and then click

“Disconnect”, on the bottom of the screen.

You can change device names, settings, and more by

selecting the device from the list, and then clicking

“Properties”.

P75465ea_F5L009.indb 5 7/27/2007 3:08:32 PM

uk-6

Using the Network USB Hub Control Center

uk-6

What the designations mean

Device: Name of the device. You can change the name by

clicking “Properties”.

Status: Status of the device. The status changes automatically.

Connected to this computer: Devices shown are currently

connected to the computer that you are using.

Type: Category of the device. This is detected automatically.

Automatically connect: This allows the PC to automatically

connect to this device. This can be enabled or disabled

in “Properties”.

Hub ID: The ID of the Hub into which the device is plugged.

This is detected automatically.

Not Connected: It is available for you to use. You can

connect to this device by double-clicking the bar or by

clicking “Connect”.

P75465ea_F5L009.indb 6 7/27/2007 3:08:32 PM

uk-7

Using the Network USB Hub Control Center

Not Connected: The device is being used by someone else

and it is not available. You can make a request for the device

by clicking “Request Use”.

Unavailable: The device has been disconnected from the Hub.

It will be removed from the list when you click “Refresh”.

P75465ea_F5L009.indb 7 7/27/2007 3:08:33 PM

uk-8

Using the Network USB Hub Control Center

uk-8

Requesting a device when it is being used by someone else

If someone else is connected to a device that you want to

use, you can make a device request. Right-click on the device

in the list and select “Request Use” from the pop-up menu,

or, you can select the device from the list and click

“Request Use”.

“Device Request” displays a message

on the other user’s computer screen

that looks like this:

The user of the other computer must

accept the request, by clicking “Yes”,

in order to make it available to you.

P75465ea_F5L009.indb 8 7/27/2007 3:08:34 PM
