Belkin F5U301 - CableFree USB Hub Bedienungsanleitung
User Manual
F5U301
Cable-Free
USB Hub
1. Introduction ....................................................................1
Features ........................................................................ 3
System Requirements ................................................... 3
Package Includes .......................................................... 3
Technical Specifications ................................................ 4
2. Installation ......................................................................6
3. Operation ......................................................................10
4. Troubleshooting ............................................................18
5. Technical Specifications ................................................22
6. Information ...................................................................24
Table of Contents
2
Introduction
1
2
3
4
5
6
2

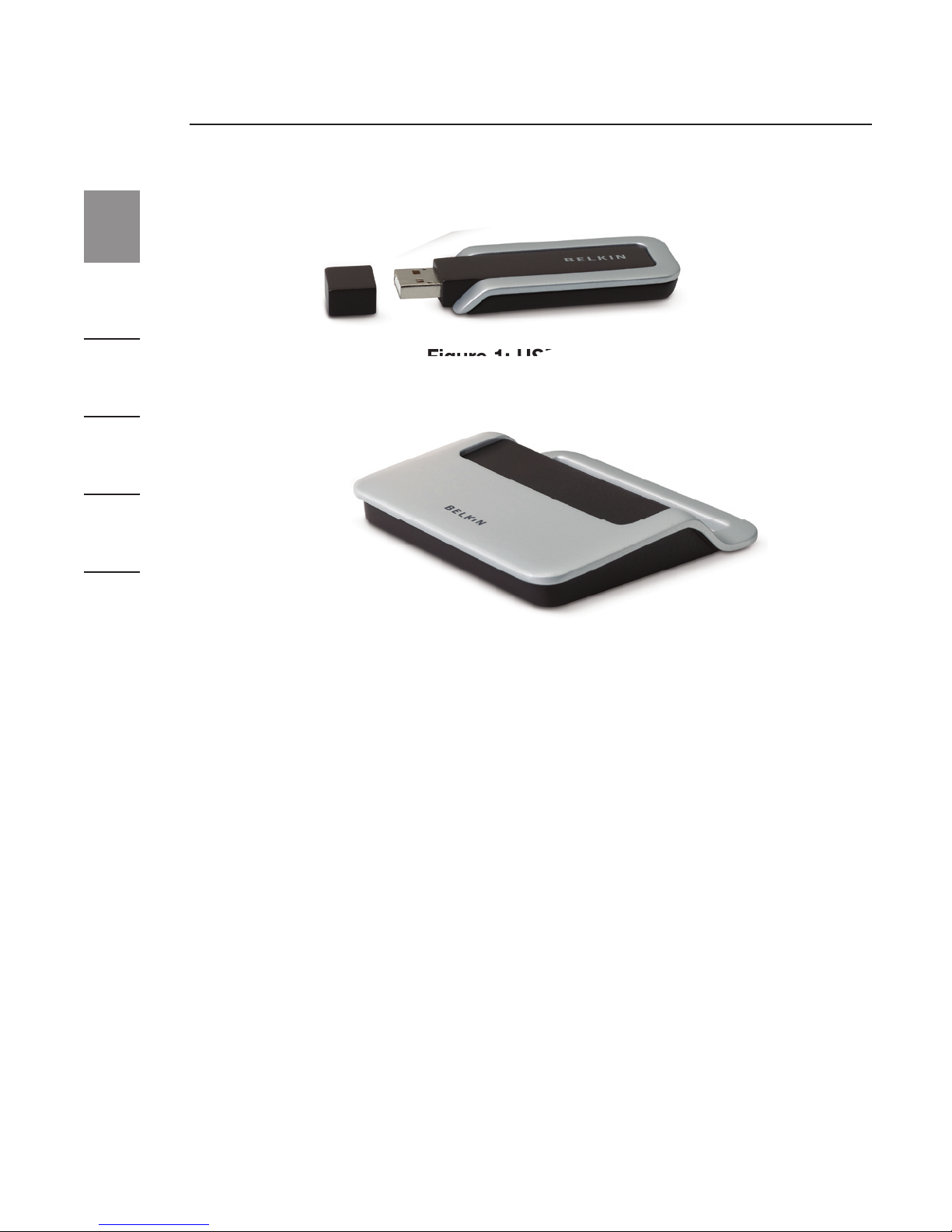

Figure 1: USB Dongle
Figure 2: Wireless Hub
Figure 1: USB Dongle
3
3
Introduction
1
2
3
4
5
6
Features
• Wireless connectivity through USB for printers, cameras,
scanners, and other devices to your computer, from up
to 30 ft. away
• Reduced cable clutter
• Data-transfer speeds of up to 480Mbps for
USB 2.0 devices
• Ports for linking up to 4 high- or low-speed devices with
your computer
• Belkin Lifetime Warranty
System Requirements
For PC Users
• Pentium® processor-based computer with Hi-Speed
USB 2.0 port available
• Windows® XP with Service Pack 2
Package Includes
• Cable-Free USB Hub
• Cable-Free USB Dongle
• Power Adapter
• Installation CD
• User Manual
1
Introduction
1
2
3
4
5
6
Belkin unleashes USB.
Congratulations and thank you for purchasing the Belkin
Cable-Free USB Hub. This revolutionary product lets you
connect all your USB devices to your computer—wirelessly.
Now you can print, play music, scan, download photos, and
burn CDs from anywhere in the room, from up to 30 feet
away, without the hassle of connecting cables. The Hub is
easy to use and gives you the freedom to roam—and
stay connected.
Please review this User Manual carefully so that you are sure
to get the most from your Cable-Free USB Hub.
4
Introduction
1
2
3
4
5
6
4
Technical Specifications
Upstream Ports: 1
Downstream Ports: 4
Per-Port Voltage: 5V
Per-Port Current: 500mA
Power Mode: Self
Operating Temperature: 41° to 104° F (5° to 40° C)
Storage Temperature: -4° to 140° F (-20° to 60° C)
Power Supply:
Output: 5V, 2.6mA
Plug Size: 3.5mm
Plug Polarity: Center-pin
positive
Main-Power-LED Color
Definitions
Green: Constant on when 5V DC
is applied
Port-Status-LED Color
Definitions
Green: Blinks rapidly to indicate
Rx/Tx traffic
5
5
Introduction
1
2
3
4
5
6
Certifications
FCC
Humidity
5% to 95% non-condensing
Chipset
Wisair
Ports
4 USB A
Indicator-Light Status
Individual-status LED for each downstream port
Power LED
Power Supply
5V
Operating Range
Up to 30 ft.
6
1
2
3
4
5
6
Installation
6

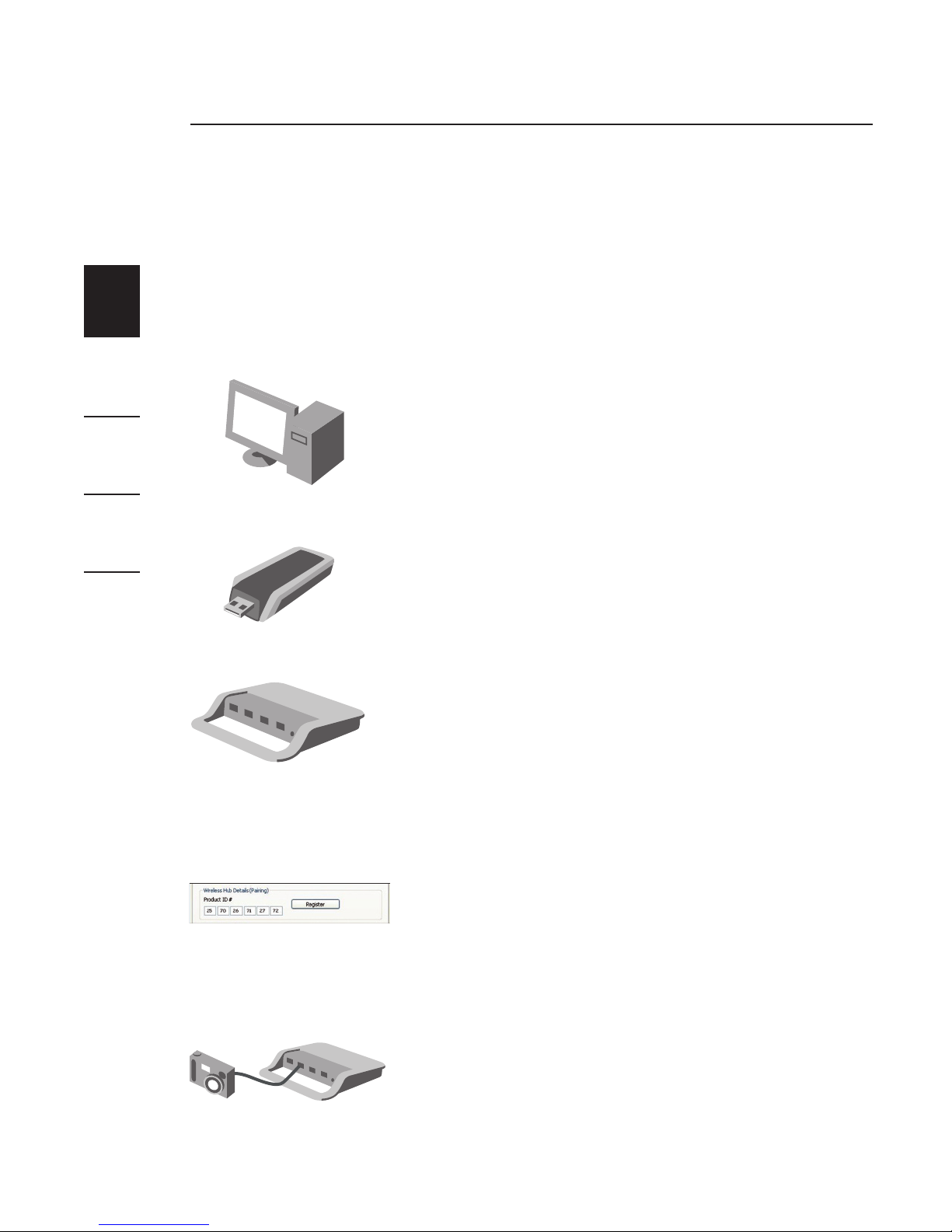

The following diagram illustrates the basic steps in
connecting and getting started with the dongle.
Note: Do not attach the USB dongle before the host
drivers are installed.
Step 1
Install software and drivers from the
included CD-ROM.
Step 2
Connect the USB Dongle to the PC and
approve the multiple-driver installation.
Step 3
Connect the included power adapter to
the Cable-Free USB Hub.
Step 4
Open the Wireless Hub utility from the
system tray and register the product ID
number found on the bottom of the Hub.
Then, approve the final driver installation
on the PC.
Step 5
Connect USB peripherals to the
Cable-Free USB Hub.
7
7
Installation
1
2
3
4
5
6
After you install the software and drivers, connect the dongle
to a free USB 2.0 port on your computer. The Windows
Hardware Installation Wizard automatically registers the
corresponding drivers.
Note: If a previous installation of USB drivers already exists
in your PC, uninstall the previous version using the uninstall
utility (select “Start > Programs > Belkin >”).
Install the USB Drivers and Software
Ensure that your PC system hardware and software are
both operational.
1. Insert the Belkin driver-installation CD.
a. After a few moments, the setup application should
appear on your computer screen.
b. If the setup application does not appear,
double-click on “My Computer”, then click on
your CD-ROM-drive icon. This will load the setup
application’s main page.
2. Click the “Install Driver” button.
3. The InstallShield Wizard starts.
4. When the Device Driver Installation Wizard appears,
click “Next” to install the device drivers.
5. Click “Finish”.
6. Click “Finish” again to exit the Wizard.
8
1
2
3
4
5
6
Installation
8
Connecting the USB Dongle
1. Place the Hub no more than three feet from the dongle.
2. Power OFF the Hub and disconnect it from all USB
devices (e.g., cameras, hard drives, scanners).
3. Ensure that the dongle and Hub are facing each other.
4. Connect the USB dongle to the PC’s high-speed USB
port. The system will automatically detect and complete
installation of the drivers for the connected dongle.
5. Restart your computer.
Connecting the Hub
1. Ensure that the Hub is switched OFF.
2. Place the Hub within three feet from the dongle. Ensure
that the two units are facing each other.
3. Connect the power adapter to the Hub. Check that
the LEDs light.
4. To complete installation of the final driver, follow the
instructions for the registration of the product ID
number in the section “Registration (Pairing)”, on
page 14 of this User Manual.
5. Restart your computer.
To verify a successful installation, run the Windows Device Manager
utility (“Start > Run > devmgmt.msc”) and verify that it recognizes the
new drivers that were installed. You should see the following names:
UWB Dongle Control, USB Composite Device, UWB Dongle over USB,
and Wireless Hub Device.
