The OmniCube™User Manual
Guide d’utilisation de
l’OmniCube™
Manual del usuario del
OmniCube™
OmniCube™- Manual do
Usuário
En
Ca
Es
P73049 F1D092
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 1
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 2
Table of Contents
En
Ca
Es
Po
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Français (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Espanõl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Português . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 3
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 4
1
En
Introduction
Thank you for purchasing the Belkin Components OmniCube™KVM
(Keyboard Video Mouse) switch. Controlling two PCs from one keyboard,
mouse and monitor has never been easier or more affordable!
The OmniCube™is small in size, but big in performance. Compatible with any
PS/2 style computer, it is loaded with features comparable with more
expensive KVM switches. It has complete keyboard and mouse emulation for
error-free boot-ups, plus Microsoft®IntelliMouse®support. The OmniCube™is
also designed to handle the most demanding resolutions up to 1600 x 1200,
without any noticeable degradation in image quality. Switching can be done
through the convenient front-panel pushbutton, or by keyboard “Hot” key
commands. And if you wish to control a Macintosh®computer, simply add the
Belkin MAC Adapter™for even more system control – ideal for graphic artists!
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 1
2
Features
• Allows a user to control two PS/2 style computers from one keyboard,
mouse and monitor
• Keyboard and mouse emulation for error-free boot-ups
• Microsoft®IntelliMouse®support
• Up to 1600 x 1200 resolution support
• Supports both AT and PS/2 style keyboards (AT requires AT-PS/2 adapter)
• Support VGA, SVGA and Multisync monitors
• Uses standard cables
• Pushbutton on keyboard “Hot” key command switching
• AutoScan mode for even more convenience
• Audible feedback when switching
• Recalls CAPS LOCK, NUM LOCK and SCROLL LOCK keys' status for each
computer automatically
• Front-panel status LEDs
• Works with OmniView™PS/2 MAC Adapter™
• No software required
• One year product warranty
Package Contents:
OmniCube™2-Port F1D092
9VDC, 600mA power supply F1D065-PWR
This manual P72476
Registration card P72009
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 2
3
En
Technical Specifications
Console Connectors:
Keyboard: 6 pin MiniDIN female
Mouse: 6 pin MiniDIN female
Monitor: HDDB15 female
Computer Port Connectors:
Keyboard: 6 pin MiniDIN female
Mouse: 6 pin MiniDIN female
Monitor: HDDB15 male
Dimensions:
Width: 4 5/8" (118mm)
Height: 1 3/4" (45mm)
Depth: 4 5/8" (118mm)
Weight: 1.06 lbs (483g)
Operating Temp: 32 to 104 deg. F (0~40 deg. C)
Storage Temp: -4 to 140 deg. F (-20~60 deg. C)
Humidity: 0~80% RH
non-condensing
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 3
4
Product Detail
PS/2
Keyboard
Connector
PS/2 Mouse
Connector
Port Status LEDs
Port Select Button
HDDB15 Female
Connector to Monitor
HDDB15 Male
Connectors
to Computer
VGA Ports
PS/2 Connectors to
Computer Keyboard ports PS/2 Connectors to
Computer PS/2 Mouse ports
PC2 Connectors PC1 Connectors
Front View
Rear View
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 4
5
En
List of Parts Needed
Make sure you have the right cables!
The OmniCube™requires two sets of cables to connect to the two computers
you will be controlling. Below are the Belkin part numbers and their
descriptions. We recommend purchasing a PS/2 Cable Kit, as it contains all
the cables you need to connect one computer to the OmniCube™.
High-Resolution PS/2 Cable Kit - A3X982
Includes:
• 2 x F2N036-06
• 1 x F2N025-06-T
(see below for descriptions of each)
Individual Cables:
• PS/2 cable for keyboard and mouse ports
6 pin MiniDIN male/male
Part# F2N036-XX
• Standard VGA cable for monitor port
HDDB15 male/female with thumbscrews
Part# F2N025-XX-T
Other Cables and Adapters:
High-Resolution PS/2 Cable Kit - A3X983
Includes high-resolution/high-refresh rate VGA monitor cable
Includes:
• 2 x F2N036-06
• 1 x A3H981-06-T
• High-resolution/high-refresh rate VGA cable for monitor port
HDDB15 male/female with thumbscrews
Part# A3H981-XX
• AT to PS/2 keyboard adapter for use with an AT-style keyboard
5 pin DIN female/6 pin MiniDIN male
Part# F2N017
• PS/2 to AT keyboard adapter
for use with a computer having an AT-style keyboard port
6 pin MiniDIN female/ 5 pin DIN male
Part# F2N018
NOTE: The "XX" in the part number represents the length in feet.
6 pin MiniDIN
HDDB15
5 pin DIN Female 6 pin
MiniDIN Male
6 pin MiniDIN Female 5 pin
DIN Male
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 5
6
WARNING: Follow these directions closely and in the proper order. Failure
to do so may result in mouse and/or keyboard errors.
Before attempting to connecting anything to the OmniCube™or the
computers, make sure everything is powered off. Plugging and unplugging
cables may cause irreversible damage to your computers and the OmniCube™.
Belkin Components will not be held responsible for damage caused.

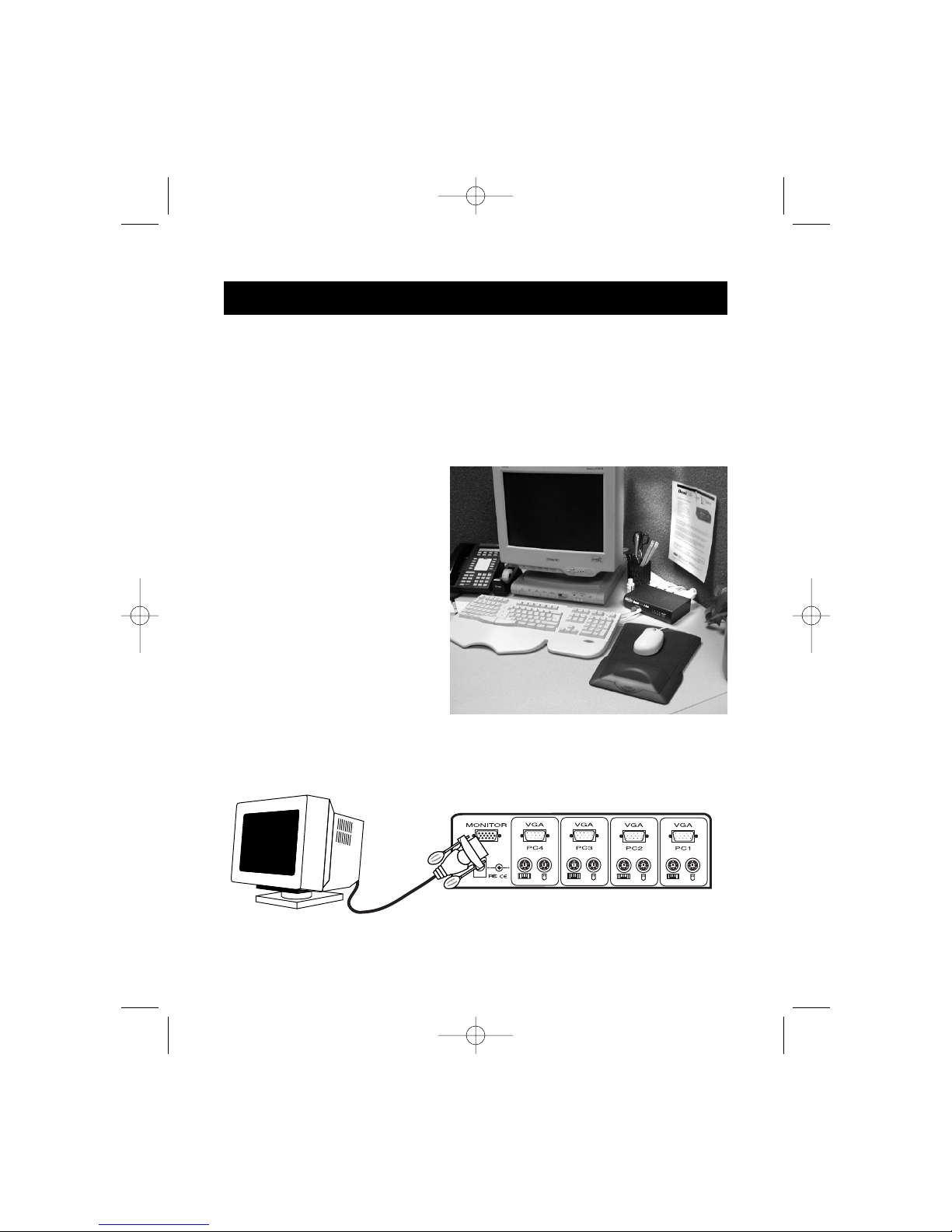

Hardware Installation
Back of OmniCube™
1. Find a convenient place to
put your OmniCube™. Its
small size makes it ideal for
the desktop. Take note of
the length of your cable kits
so that your computers,
OmniCube™, keyboard,
mouse and monitor are
distanced properly.
2. Connect the monitor to the
OmniCube™. Using the
attached cable which
is included with your
monitor, connect it to the
HDDB15 female port on
the back of the OmniCube™
labeled MONITOR.
P73050/F1D092AM/man.qxd 4/28/00 1:43 PM Page 6
