Pachislo
Owner’s Manual
Bellco
This manual is printed in black and white and includes only the basic information. To
obtain a full-colored copy of this manual, please visit our www.stealthhomeamusement.com
website and download from our manuals section.
Stealth Home Amusement
Version 1
REVIEW THIS MANUAL BEFORE OPENING PACHISLO
Copyright © 2005 Stealth Home Amusement all rights reserved.

Copyright © 2005 Stealth Home Amusement all rights reserved.
Index
Important Safeguards.................................................................... 3
Things in the package ................................................................... 3
Getting Started .............................................................................. 3
Outside Description ....................................................................... 4
Changing Payout Rates/Full Reset Procedure ............................. 5
Basic Description........................................................................... 5
Power box ................................................................................. 7
Odds changing button and Odds level credit counter............... 8
Volume controller...................................................................... 8
Additional Information.................................................................... 9
Refilling the Hopper .................................................................. 9
Replacing Light Bulbs ............................................................... 9
Reset......................................................................................... 9
Approximate Payout Odds Rate ............................................... 9
Error Messages ........................................................................... 10
Whoops! I locked my keys in the machine ................................. 11
FAQ ............................................................................................. 12
Parts and Accessories................................................................. 13
Contact Information ..................................................................... 13

Important Safeguards
To prevent the pachislo from falling forward when you open the front
panel, we recommend attaching it with nails or screws to both a stable
base and back wall.
3
Copyright © 2005 Stealth Home Amusement all rights reserved.
When using an electrical product basic safety precautions should
always be followed, including the following:
Warning: to reduce the risk of fire and electric shock:
▸close supervision is necessary when any product is used by or near
children.
▸ do not open the operating console or uncover the computer
motherboards.
▸ do not use the pachislo near any other electric devices, water, or heat
sources.
▸do not attempt to operate the pachislo if it is damaged.
Things in the package
Unpack the pachislo from the carton and confirm the following items are included:
1. A pachislo machine
The pachislo
weighs about
85 lbs. Please
pick it up
carefully!
2. Tokens
3. Door and reset keys
4. Extra light bulbs (If required, many new machines are LED only)
5. Coil key chain
6. Owner’s manual
Getting Started
1. Open the front door with a door key by turning the key to the right. Take out the power cable
through the hole in the back and plug it in a wall socket.
2. Push the hopper all the way to the back. Put half a bag of tokens into the hopper.
3. Turn the power switch on Close the front door. Insert tokens into the Token Slot. Make sure the
Credit Counter starts counting from the fourth token you put in. Note: Many of the newer machines
require 3 tokens to be inserted for game play.
4. The machine is ready to play. Press the reel spin knob. The reels will start spinning.
5. Press the skill stop buttons to stop the reels.

Outside Description
1. Spin knob
2. Cash- out / Cancel button
3. 1 or 2 Bet button
4. Max bet button
5. Reels
6. Token slot
7. Door key hole
8. Skill stop buttons
9. Digislo Game Counter
2
1
1
2
3
3
4
5
5
6
7
6
7
8
8
9
4
9
Model #1
Model #2
4
Copyright © 2005 Stealth Home Amusement all rights reserved.

Changing Payout Rates/Full Reset Procedure
Game odds are adjustable to 6 different levels and the odds will vary slightly depending on the machine.
Your Pachislo machine is set at Level 6 which is programmed at the highest payout rate (the easiest
level). If you want to change your odds, follow the steps below.
1. Turn the power switch OFF.
2. Put the setting key into the key hole on the
power supply.
3. Turn the setting key to the right to the “ON”
position.
4. Turn the power switch ON.
5. Make sure the credit counter inside of the
front door indicates <1>--<6> *
6. Push the odds rate changing button on the
power box OR next to the credit counter
inside of the door.
7. Set the payout level.
8. Pull down the spin knob.
9. Turn the key back to the “OFF" (left)
position.
*The above picture shows an example of how to change the odd’s level from 1 to 6.
Basic Description
Size & Weight
The machines are
approximately 32" high,
18" wide, and 13" deep.
The dimensions may vary
by an inch or so, it depends
on which company made
the model. They weigh
anywhere from 70 to 90 lbs,
depending on the model.
5
Copyright © 2005 Stealth Home Amusement all rights reserved.

Inside Inside of the Pachislo machine varies by the model.
6
Copyright © 2005 Stealth Home Amusement all rights reserved.
1. Speaker
2. Reset button
3. Token
mechanism
4. Motherboard
5. Reel
6. Power box
7. Hopper
8. Volume
controlle
r
1
3
4
5
6
7
2
Model #1
1
1
3
4
5 6
7
8
8
Model #2

The location of the Power box, Reset button, and Volume controller inside of the pachislo
machine varies by the model.
Power box
Samples Models Basic Description
Number 1
The Power box is located in the bottom left
corner of your machine.
① Power switch
② Fuse holder
③Auto reset switch (Always-OFF)
④ Memory clear button (Credit clear button)
⑤ Error reset button
⑥Setting key hole
Number 2
The Power box is located in the right side of
your machine, next to the reels.
① Power switch
② Fuse holder
③Auto reset switch (Always-OFF)
④ Odds changing button
⑤ Error reset button
⑥Setting key hole
R
W
R
W
7
Copyright © 2005 Stealth Home Amusement all rights reserved.

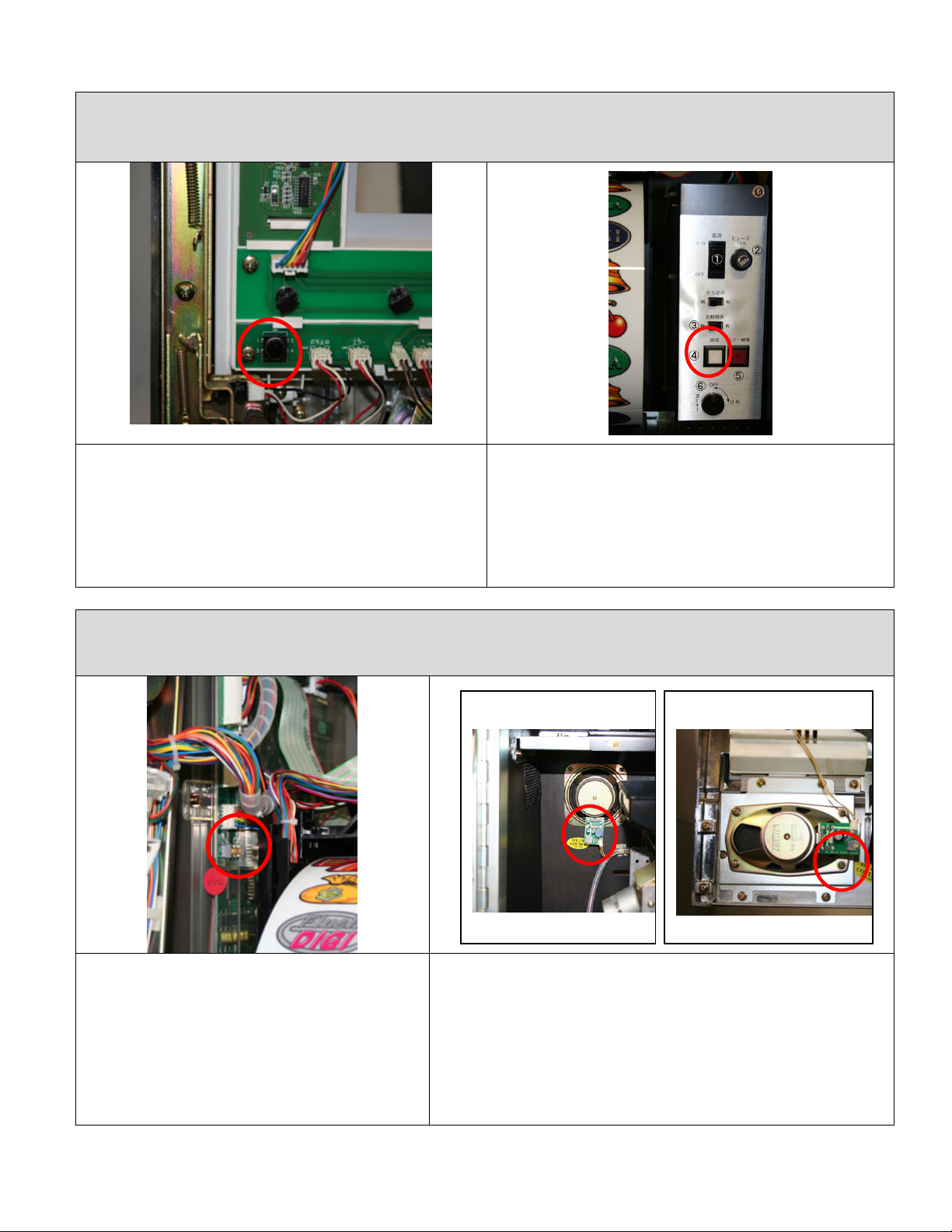

Odds changing button and Odds level credit counter
Model #1
The Odds changing button is a small black button. It
is located at the bottom left corner of the reel
window, inside the machine’s front door.
Model #2
The Odds changing button is a small white square
shape button. It is located in the power box of your
machine.
Volume controller
Model #1
The volume controller is located on the left
side of the machine, next to the reels.
Model #2
This Model has two volume controllers on each speaker.
One is located in the machine’s left side, behind the
Hopper. The second one is located at the bottom left
corner of the machine’s front door.
① ②
8
Copyright © 2005 Stealth Home Amusement all rights reserved.

Additional Information
Refilling the Hopper
1. Open the front cover.
2. Put tokens in the hopper.
3. Push the reset button. (Be ready for the tokens to come out!)
4. Close the front cover.
Replacing Light Bulbs
1. Turn off the power switch. Need more
light bulbs?
Call us!
2. Twist the plastic base off the board.
3. Pull the light bulb off the plastic base.
4. Insert a new bulb into the base.
5. Put the plastic base back on the board.
Reset
During the course of play, you may be required to reset the machine. For minor resets such as coin
acceptor / hopper malfunctions or a stop after the completion of a bonus game, insert the door key into
the door key hole and turn to the LEFT. It will reset the game or clear the error code, but not open the
door. For major resets such as RAM crash, power surge / outage, or big bonus game interruption, push
the reset button inside of the machine or follow the Changing Payout Rates/Full Reset Procedure
process.
Approximate Payout Odds Rate
Rates for 1000 tokens invested
LEVEL BIG BONUS REG BONUS PAYOUT
1 1/298 1/607 93.9 - 98.5%
2 1/298 1/607 93.9 - 98.5%
3 1/282 1/512 98.3 - 102.8%
4 1/269 1/443 102.6 - 106.4%
5 1/256 1/390 106.4 - 110.9%
6 1/241 1/364 111.9 – 116.8 %
9
Copyright © 2005 Stealth Home Amusement all rights reserved.

10
Copyright © 2005 Stealth Home Amusement all rights reserved.
Error Messages
When your machine has a problem, it indicates it with an error message. Error codes are the
following:
E-0/ (CE/CJ) A token slot is
jammed.
Push the button at the token slot.
E-1/ (HE/ HJ) A hopper is
jammed.
Turn off your machine, remove the hopper and take
out all the tokens.
E-2/ (HE/ HJ) Hopper
dysfunction.
Check the hopper.
E-3/ (HE/ HJ) A hopper is
empty.
Refill the hopper.
E-4/ (RR) RAM error. Push the reset button.
E-5 Reel error. Restart the machine and push the reset button.
E-6/ (CO) Prize error. Push the reset button.
E-7 Hopper
Overload.
Check the hopper.
E-8 Hopper
disconnected.
Check the cable.
CE/ CJ/ C2 A token slot is
jammed.
Need to be cleared and clean with alcohol. Then,
press the reset button.
Note 1: The reels on most Bellco models have a high pitch noise while they are spinning. This
is normal for this model machine.
