Bemodern Arteon Pryzm 10003SL Programmierhandbuch

3 Sided Electric Fire

1000 - 3SL (3083) –1250-3SL (4165)

Instructions For Installation & Operation

Prior to installing this product locate the data label and note the model

and serial number.

Model:____________________

Serial Number:___________________________

200826_1

R1- May 2022

Contents

Page

Technical Specification 3

Manual Handling 4

Contents of the Box(es) 5

Unpacking the Fire 6 - 7

Preparing the Fire 8 - 9

Installation –Stud wall 10 -11

Installing the Fire 12

Fuel Bed Layout 13

Log Positioning 13

Replacing the Glass 14

Troubleshooting 15

200826_1

Technical Specification

Fire Logs Dimensions (mm)

A B C D E F G

1000-3SL (3083) 5 SML + 2

LRG 1016 1054 19 236 217 488 302

1250-3SL (4165) 10 SML + 2

LRG 1266 1304 19 236 217 488 302

Note: The above image and dimensions detail the fire set up for a 3 sided installation- adjust the dimensions

accordingly for 2 sided (B-19mm) and 1 sided (B-38mm) installation.

Fire Visible Glass Area (mm) Boxed

Weight

W H D 2/3 Sided (Kg)

1000-3SL (3083) 1008 296 111 36.1Kg

1250-3SL (4165) 1258 296 111 45.2Kg

200826_1

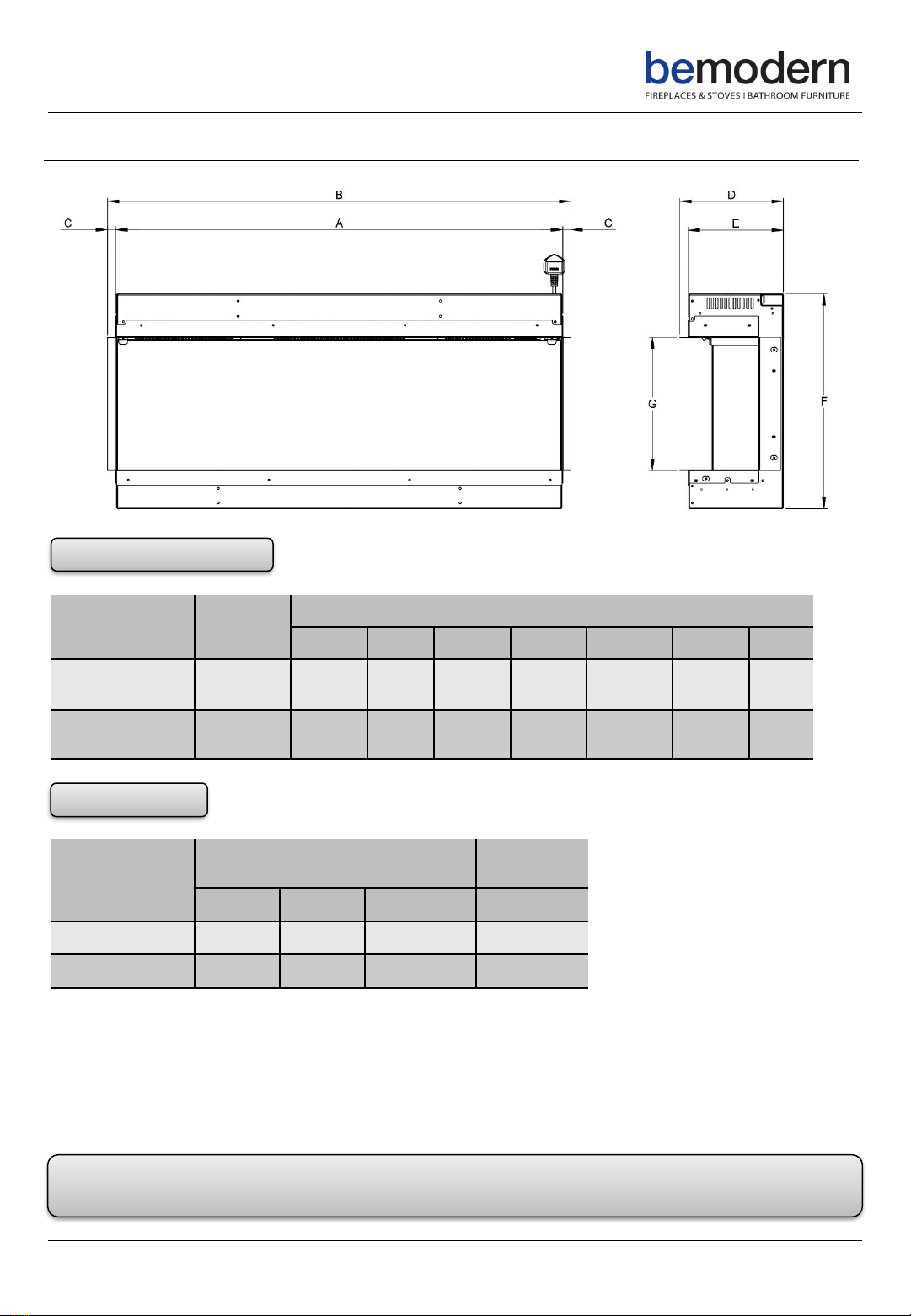

Detailed: 3 Sided Fire Set Up

Tolerance +/- 2mm

200826_1

Manual Handling

BEFORE STARTING THE INSTALLATION OF THIS FIRE, PLEASE READ THE FOLLOWING:

CAUTION: This appliance is heavy. Always seek assistance whilst unpacking and / or during installation.

The installation should be carried out by two adults to avoid injury or damage. If for any reason it is considered too

heavy, please obtain assistance.

When lifting the electric appliance, always keep your back straight. Bend your legs and not your back. Avoid

twisting at the waist. It is better to reposition your feet.

Avoid upper body / top heavy bending. Always bend from the knees rather than the waist. Do not lean forward or

sideways while handling the fire.

Always grip the fire with the palm of the hand –do not use the tips of fingers for support.

Always keep the fire as close to the body as possible. This will minimize the cantilever action.

Use gloves to provide additional grip.

Contents of the box(es)

200826_1

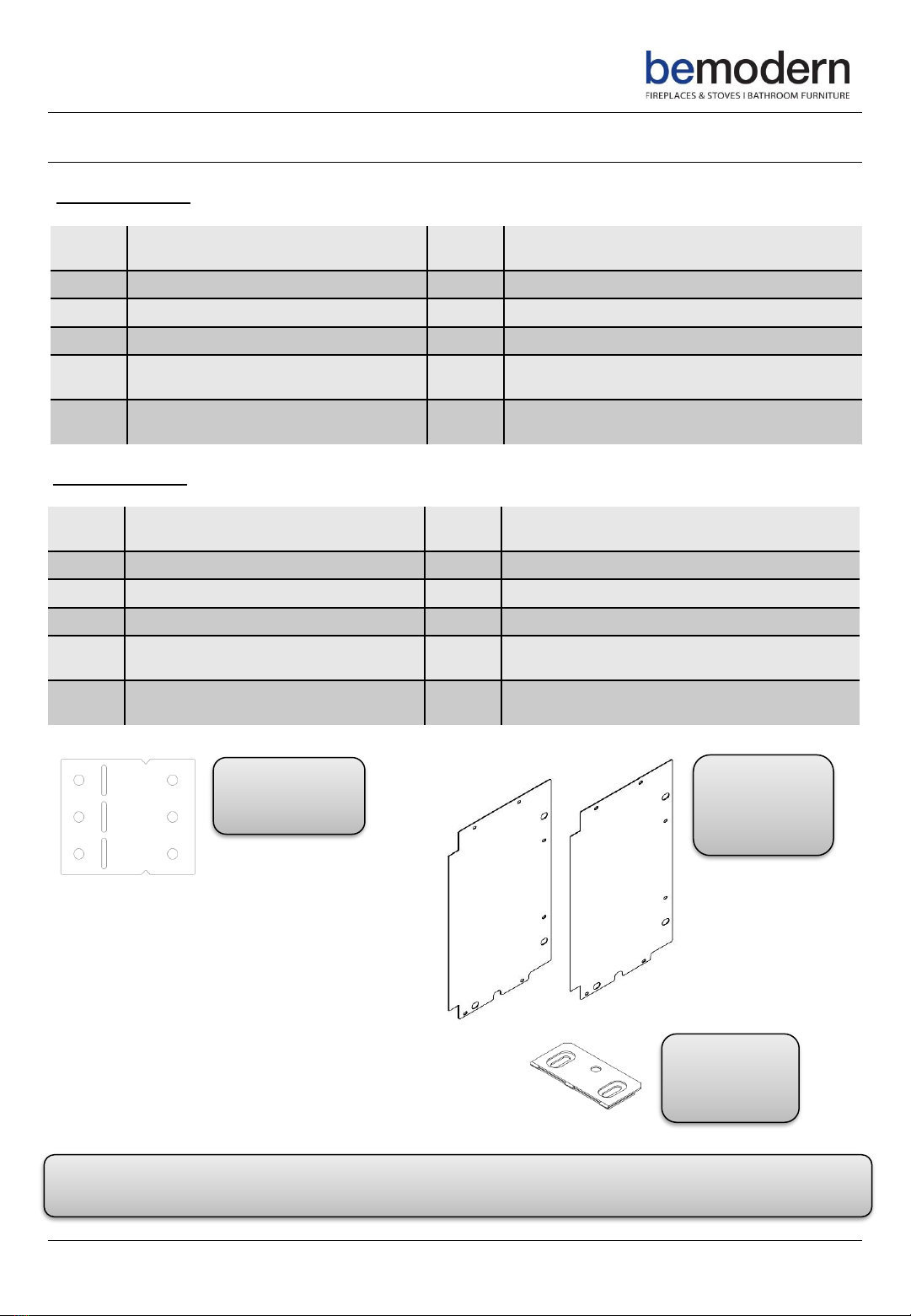

Please ensure all fixings are present before commencing installation. If anything is missing please call Customer

Services on 01914300901 or email us at customerservi[email protected]k

Quantity Description Quantity Description

11000-3SL (3083)- Electric Fire 1 Foam Strip- (Bagged Separately)

7 5 x Small Logs & 2 x Large Logs (Boxed Inside Fire) 1 Fire Operating Instruction- (Bagged Separately)

1 Bags of Crystals (Boxed Inside Fire) 1 Wall Hanging Bracket- (Supplied fixed to the fire Rear)

1 Bags of Pebbles (Boxed Inside Fire) 2 Side Panels (Boxed Separately at the rear of the fire)- (For 1

Sided Installation)

1 Fire Remote Control & 2 x AAA Batteries (Bagged

Separately) 4 Fixing Brackets (Boxed Separately at the rear of the fire)-

(For 1, 2 & 3 Sided Installation)

1000-3SL (3083)

Quantity Description Quantity Description

11250-3SL (4165)- Electric Fire 1 Foam Strip- (Bagged Separately)

10 8 x Small Logs & 2 x Large Logs (Boxed Inside Fire) 1 Fire Operating Instruction- (Bagged Separately)

1 Bags of Crystals (Boxed Inside Fire) 1 Wall Hanging Bracket- (Supplied fixed to the fire Rear)

1 Bags of Pebbles (Boxed Inside Fire) 2 Side Panels (Boxed Separately at the rear of the fire) - For 1

Sided Installation.

1 Fire Remote Control & 2 x AAA Batteries (Bagged

Separately) 4 Fixing Brackets (Boxed Separately at the rear of the fire) -

For 1, 2 & 3 Sided Installation.

1250-3SL (4165)

Note: Discard the 2x

Metal Brackets (left) -

Not required for this

Installation.

2 X Side Panels

(For 1 Sided

Installation, boxed

separately at the rear

of the fire).

4 X Fixing Brackets

(For 1, 2 & 3 Sided

Installation, boxed

separately at the rear

of the fire).

Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. This will

affect the stages of the installation process. We advise a qualified electrician conduct any electrical parts of the

installation.

Note: An accessible single socket is required for the operation of the fire.

Unpack your new fire- DO NOT dispose of the packaging until you have checked and made sure all the parts and

fixings listed on Page 7 are present. Note: The Side Panels and Fixing Brackets are boxed separately at the rear.

Unpacking The Fire

200826_1

Please ensure all fixings are present before commencing installation. If anything is missing please call Customer

Services on 01914300901 or email us at customerservi[email protected]k

Note: The fire is a two adult person lift. A second person will be required to lift and support the fire during

installation.

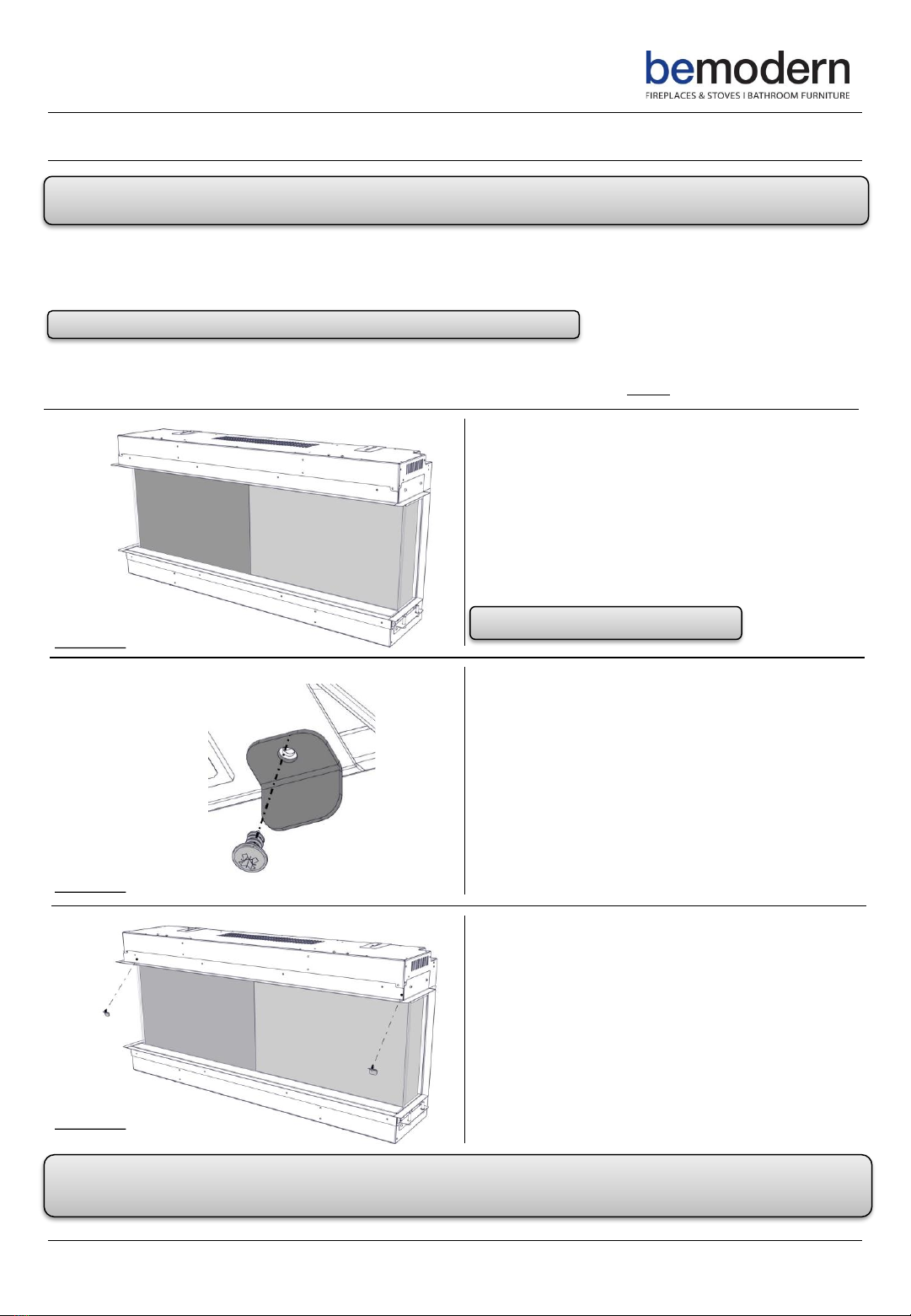

Once the fire is unpacked the 1 X Cardboard Box and

packaging inside the fire needs to be removed and the

contents checked, as listed on Page 7.

See Diagram 1.

Note: The fire is a two adult person lift.

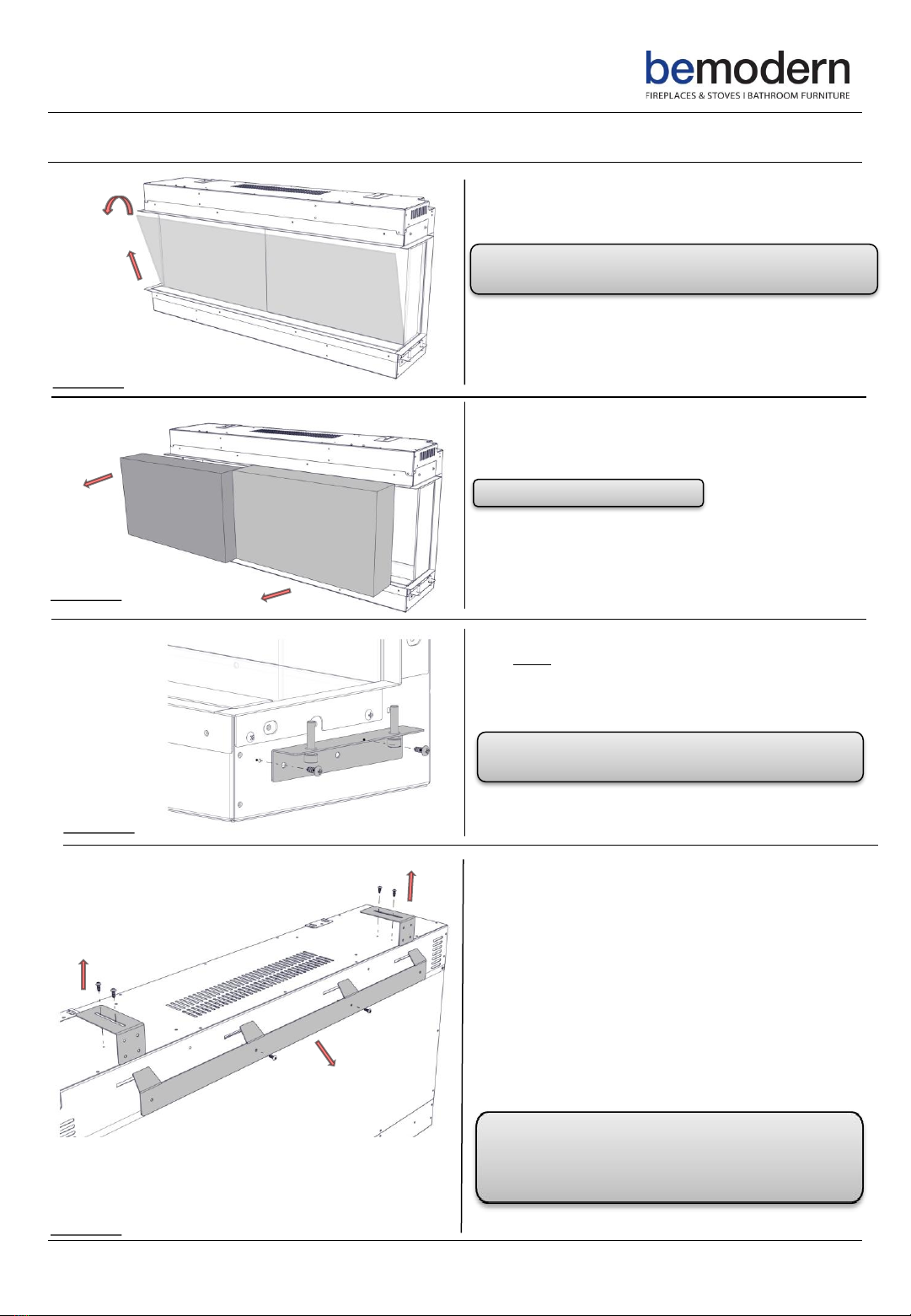

To do this, unscrew the 2 X Screws holding the Glass

Brackets in place.

See Diagram 2.

Diagram 1

Diagram 2

Diagram 3

There is 1 X Screw and 1 X Bracket either side of the fire.

See Diagram 3.

BOX

PACKAGING

BOX PACKAGING

Unpacking The Fire Continued…..

200826_1

Once the screws are removed - the Glass can be angled

forward from the top of the fire and lifted out of the

channel at the base of the glass.

Note: Place the Glass, 2 x Glass Brackets and 2 x Screws

in a safe place- these will be required later.

See Diagram 4.

Remove the 1 x Cardboard Box and packaging from

inside the fire and depending on the model purchased,

check the contents as listed on Page 7.

Note: Discard all other packaging.

See Diagram 5.

Diagram 4

Diagram 5

Diagram 6

Next remove the 1 x Clamping Bracket and 2 x Screws

from either side of the fire and discard.

See Diagram 6.

Diagram 7

For installation into a floor to ceiling stud wall, the Rear Mounting

Bracket must be first removed from the fire.

Remove the 2 x L- Brackets and 4 x Screws holding the L -Brackets

on the top of the fire in place and discard.

Once the L- Brackets are removed- remove the 2 x Screws holding

the Rear Mount Bracket in place and also discard.

See Diagram 7.

Note: For other methods of installation, the Rear Fixing

Bracket maybe required to fix the fire to the wall. Please

ensure that suitable fixings are used dependent on the

wall medium.

BOX

PACKAGING

Note: There is 1 x Clamping Bracket either side of the

fire.

Preparing the Fire

200826_1

Diagram 8

Diagram 9

Diagram 10

Diagram 11

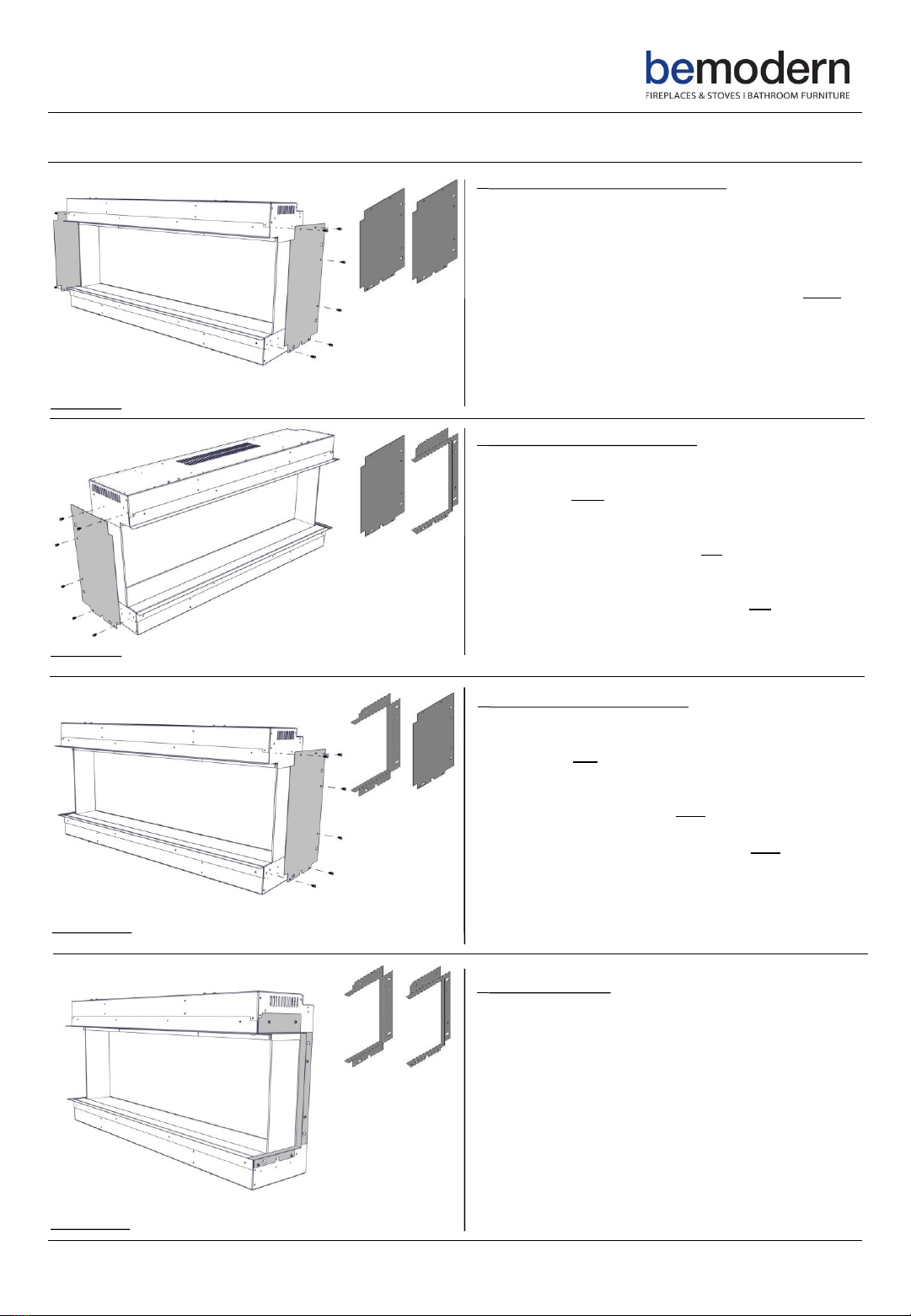

1 Sided (Fully Recessed) Installation

The fire comes out the box, set up for a 3 sided installation.

See Diagram 11

For a 1 Sided Installation. Remove the 6 x Screws and 2 x

Small Side Brackets and 1 x Large Side Bracket from either

side of the fire.

Locate the 2 x Side Panels and using the previously removed

12 x Screws fix the 2 x Side Panels in place.

See Diagram 8

2 Sided Installation- Right Hand

Leaving the 2 x Small Side Brackets and 1 x Large Side

Bracket on the right hand side of the fire fixed.

Remove the 6 x Screws and the 2 x Small Side Brackets

and 1 x Large Side Bracket from the left hand side of the

fire.

Locate 1 x Side Panel and fix in place on the left hand side

of the fire using the previously removed 6 x Screws.

See Diagram 9

2 Sided Installation- Left Hand

Leaving the 2 x Small Side Brackets and 1 x Large Side

Bracket on the left hand side of the fire fixed.

Remove the 6 x Screws and the 2 x Small Side Brackets and

1 x Large Side Bracket from the right hand side of the fire.

Locate 1 x Side Panel and fix in place on the right hand side

of the fire, using the previously removed 6 x Screws.

See Diagram 10

3 Sided Installation

The fire comes out the box, already set up for a 3 sided

installation.

The 2 x Small Side Brackets and 1 x Large Side Bracket

either side of the fire are attached.

See Diagram 11

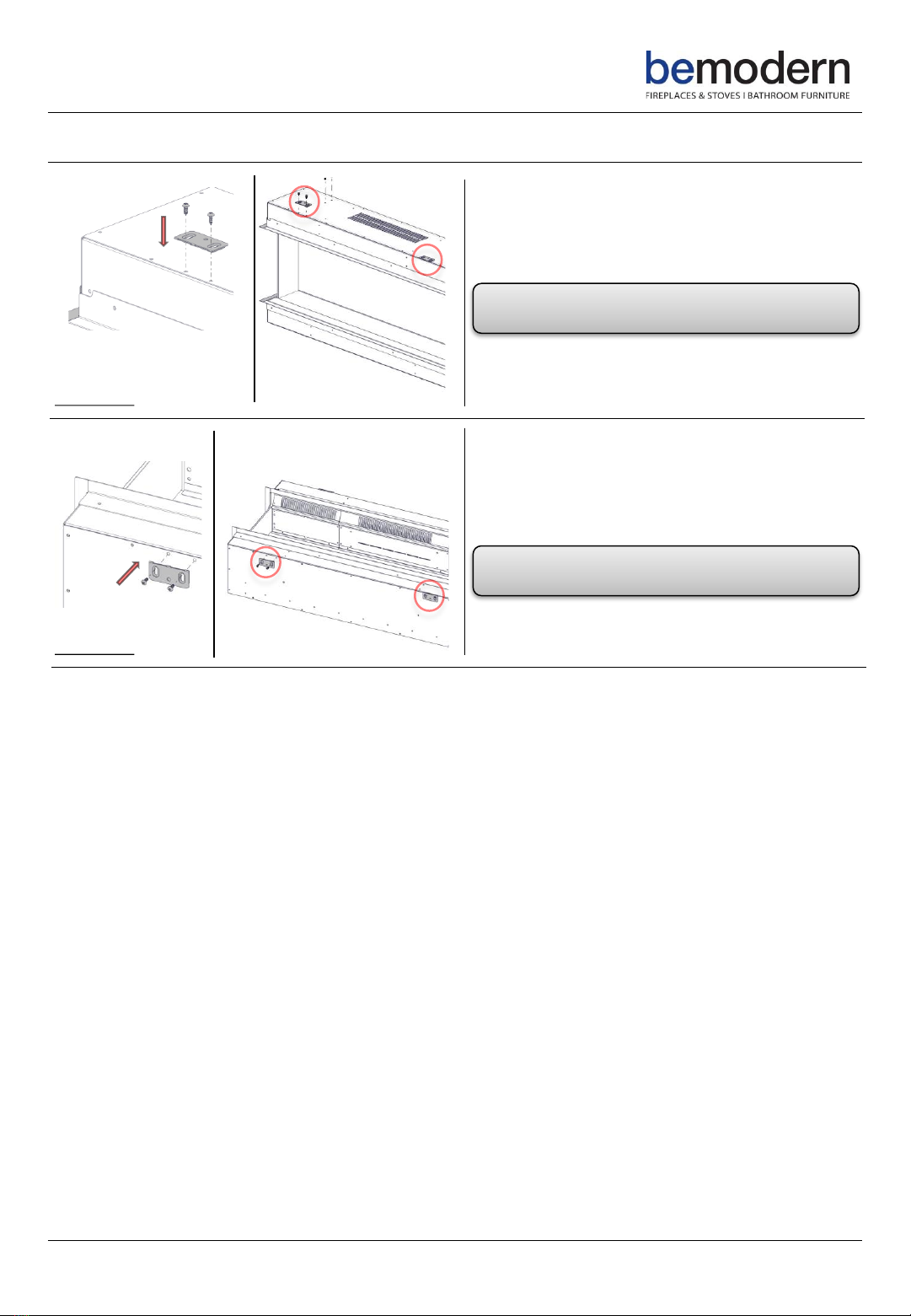

Preparing The Fire Continued…..

200826_1

Diagram 15

Next locate and fit the 2 x Fixing Brackets to the top of

the fire.

Remove the 4 x Screws in the top of the fire and fit the

brackets in the required positions.

Note: Leave the brackets folded down and the screws

backed off slightly until the fire is lifted into the stud wall.

See Diagram 15

Diagram 16

With the fire on its back locate and fit another 2 x Fixing

Brackets to the bottom of the fire.

Remove the 4 x Screws in the bottom of the fire and fit

the brackets in the required positions.

Note: Leave the brackets folded down and the screws

backed off slightly until the fire is lifted into the stud wall

See Diagram 16

Installation- Stud wall

200826_1

Diagram 12

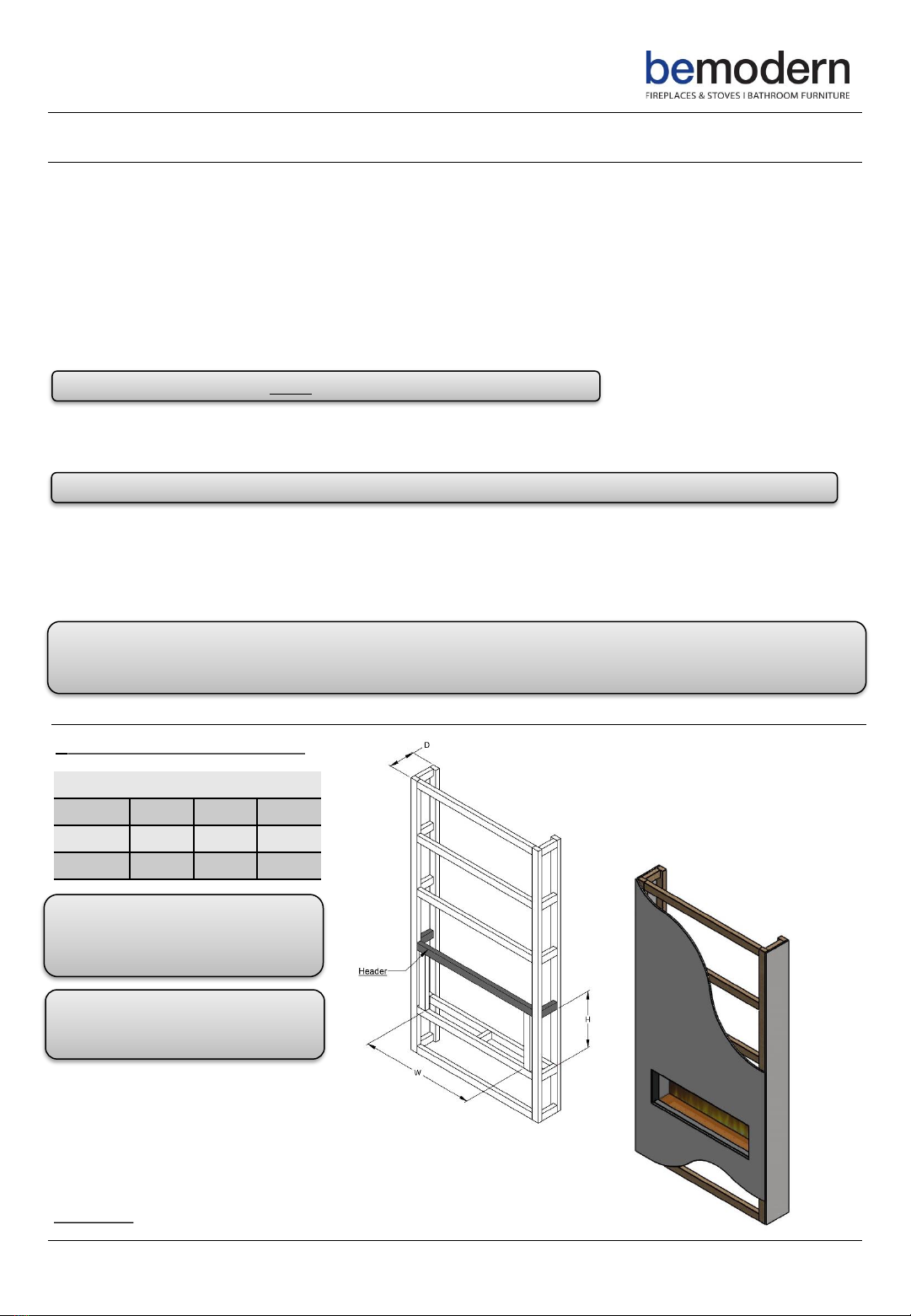

Once the fire has been prepared, use the following opening dimensions to construct the stud wall which the fire

will be housed in. It is essential to include a header at the required height to ensure the appliance does not support

the weight of the finished wall- See Diagrams 12, 13 and 14. The base of the opening / stud work must also be able

to take the full weight of the fire.

The fire should be positioned on a firm level surface and in a clean ‘dust free’ environment. If the product is to be

installed into an open chimney or flue, it is important that the chimney / flue is blocked off to prevent any up /

down draughts and falling debris which could restrict and alter the airflow of the product.

Note: Any protruding headers MUST be made of a non-combustible material.

To install into a stud wall the mounting bracket must be removed from the rear of the fire as previously shown in

Diagram 7, Page 9.

Note: Before proceeding further ensure there is power to the fire before any cladding / plasterboard is installed.

The product should never be sealed into an opening with the use of silicones or adhesives as this can also alter the

airflow and hinder any future servicing of the product.

Ensure the design of the stud wall allows for the plug or fuse spur to be easily accessible.

Note: The following diagrams are examples of how the stud wall could be constructed and finished with

12.5mm plasterboard. Please adjust to your bespoke design, ensuring the ‘required opening sizes’ detailed in the

following tables are adhered to. This will ensure the minimum clearances are maintained during installation.

REQUIRED OPENING DIMENSIONS (mm)

FIRE W H D

1000 3SL 1025** 505 235

1250 3SL 1275** 505 235

1 Sided (Fully Recessed) Installation

Note: Ensure there is a minimum 10mm

clearance between the fire and the wall

behind.

Note: ** Where possible we recommend

the stud wall is built around the fire to

allow for any manufacturing tolerances.

See P3.
