DESCRIPTION Left view

Right view

1 Clutch lever

2 Left handle switch

3 Meter

7 Fuel tank

8 Rear brake pedal

9 Shift pedal

10 Side stand

11 Rear shock absorber

4 Right handle switch

6 Front brake lever

5 Throttle grip

910

145

7 - 8

TIP

CONSUMER INFORMATION

The vehicle identifi-

cation number or

the engine serial

number are used to

cle,they are also to

assist your dealer in

terms of ordering

parts or referring to

special service

information

Meter & Indicator

engine serial number

●The vehicle identifi-

cation number ① is

stamped on the right

side steering head

tube.

●The engine serial

number ② is stamped

on the lower left of the

engine.

VIN No.

ENGINE No.

INSTRUMENT AND CONTROL

FUNCTIONS

“ ”（Off）position:

All the circuits are off.

“ ”（On） position:

The circuits are on.

“ ”(Parking): (IF EQUIPPED)

The taillight, license plate light and auxiliary lights

are on. The hazard lights and turn signal lights can

be turned on, but all other electrical systems are off.

The key can be removed.

“ ” (The steering lock) (IF EQUIPPED)

Turn the steering handle to left, press the key to “ ”

position, the steering lock is locked. When it needs

to open, insert the key and turn to “ ” position, the

steering lock is released;

Do not turn your key to lock the vehicle while

driving which is not necessary and is also apt to

cause accident.

Press the key in a proper force.

NOTICE

Vehicle identification number

( VIN )

miles

TRIP AB

TOTAL

124 6 7

1. TACHOMETER

Tachometer indicates the revolution per minute of

engine.

2. ADJUST BUTTON

Short press the button to switch between km/h and

mph.Long press the button to reset the "Trip" mileage.

3. SELECT BUTTON

Short press the button to switch between trip and

odometer functions on the meter.Press button

“SELECT” for several seconds, there will appear the

interface for time adjustment: “SELECT” for selection

of digits of time display and “ADJUST” for adjustment

of each value.

WARNING

Turn on the direction signal lamps in time when

changing the driveway or turning a direction

and turn off the lamps.

Turn the switch to " " position, the high beam of

headlamp turn on and the indicator lamp on the

meter would also turn on; turn the switch to " "

position, the low beam of headlamp turn on.

Direction indicator lamp switch

Turn the switch to " " position, the left direction

signal lamp flashes; turn the switch to " " position,

the right direction signal lamp flashes. And the indi-

cator lamps would turn on accordingly.

Dimmer switch

Press down on the button, to activate the horn.

Horn button

When passing other vehicles, press this button so

the high beams of the headlamp would flash to

alarm the vehicles in front of you.

Passing switch (IF EQUIPPED)

HANDLEBAR

2. Dimmer switch “ / ”

1. Passing switch

3. Direction indicator lamp switch “ / ”

4. Horn switch “ ”

2. Hazard Switch “ ”

1. Engine stop switch“ / ”

3. Electric starter button “ ”

LEFT HANDLE

RIGHT HANDLE

9 - 10

4. FUEL LEVEL INDICATOR

It indicates the fuel level in the fuel tank.

5.TURNING INDICATOR

The indication lamps would flash with the turning

signals.

6.HIGH BEAM INDICATOR LAMP

When the high beam lamp of the headlamp turns on,

the high beam indicator lamp would be on.

7. NEUTRAL INDICATOR LAMP

When the transmission is in the neutral, the indicator

lamp would be on.

8. ENGINE CONTROL SYSTEM TROUBLE INDI-

CATOR

Return to authorized dealer if this indicator is activated

during riding.

9.SPEEDOMETER

Speedometer shows the running speed, kilome-

ters/hours.

10. ODOMETER & TRIP METER

Relative mileage (TRIP): it records the mileage the

vehicle covers in a period of time.Odometer (TOTAL): it

records the total mileage the vehicle has covered in

km.

11. CLOCK

It shows the time.

12. ENGINE OIL PRESSURE WARNING LAMP

When this indicator light up, that means the bike has

the risk of insufficient lubrication and should be

checked / repaired immediately.

13. WATER TEMPERATURE INDICATOR

This indicator indicates the temperature of cooling

liquid. When the pointer is in between C and H, the

temperature is normal. It should stop to check the

water tank if the pointer is higher than H level.

14. GEAR INDICATOR LAMP

Numbers on the meter indicate the gear positions of

the vehicle including 1, 2, 3, 4 ,5,and6.

Under normal conditions, this switch shall be on

"Operate" ( ) position. Use this switch under

emergency situation, for example accident or

key switch problems.

NOTICE

11 - 12

When the switch is on " " position and the power

is on, the engine runs.

When the switch is on " " position and the power

is off.

Engine stop switch

When starting the engine or shifting, pull the clutch

lever to cut off driving on the rear wheel.

Clutch lever switch(IF EQUIPPED)

Pull the clutch lever or put in Neutral gear and press

the button to run the electric motor and start the

engine.

Electric starter button

Pull the brake lever properly to use the front brake.

Front brake lever

REAR SHOCK ABSORBER

Throttle grip is to control the speed of engine. Twist

the grip towards yourself when revving up or turn it in

opposite way to slow down.

Throttle grip

Turn to “ ” and the four direction signal lamps would

flash to warn for emergency situation;turn to "●" for

daytime driving.

Hazard Switch

Turn switch to position of " " to light up the front

lamp; Turn to " " to light up meter lamp, city light

and tail lamp.

Light switch (IF EQUIPPED)

Each shock absorber is equipped with a spring pre-

load adjusting ring, the spring of the rear wheel can

be adjusted in compliance with the driver's weight

and loading condition, driving method and road con-

ditions. Adjust when vehicle it is stable on the main

stand or side stand, turn the preload ring to the place

required.

WARNING

Gasoline is extremely flammable and can be

explosive under certain conditions, creating the

potential for serious burns. Turn the ignition

switch off. Do not smoke. Make sure the area is

well ventilated and free from any source of

flame or sparks; this includes any appliance

with a pilot light. Never fill the tank completely

to the top. If the tank is filled completely to the

top, heat may cause the fuel to expand and over-

flow through the vents in the tank cap. After

refueling, make sure the tank cap is closed

securely. If gasoline is spilled on the fuel tank,

wipe it off immediately.

Never fill the tank so the fuel level rises into the

filler neck. If the tank is overfilled, heat may

cause the fuel to expand and flow into the

Evaporative Emission Control System resulting

in hard starting, engine hesitation and non-com-

pliance with the emission regulation.

Recommended fuel:

Regular Unleaded Gasoline Only

Fuel tank capacity:

14 L

FUEL TANK

To open fuel tank cap, please insert the key and turn

it clockwise and open the cover.

To close the fuel tank, please recap and then press it.

Take away the key when you hear the sound of lock-

ing.

fuel tank cover

E5 E10

1.Gasoline containing up to 5% ethanol by volume.

2.Gasoline containing up to 10% ethanol by volume.

Use fuel identified by either of the above symbols.

PRE-OPERATION CHECKS

Inspect your vehicle each time you use it to make

sure the vehicle is in safe operating condition.

Always follow the inspection and maintenance pro-

cedures and schedules described in the Owner's

Manual.

Before using this vehicle, check the following points:

WARNING

Failure to inspect or maintain the vehicle prop-

erly increases the possibility of an accident or

equipment damage. Do not operate the vehicle if

you find any problem. If a problem cannot be

corrected by the procedures provided in this

manual, have the vehicle inspected by a dealer.

13 - 14

Step the rear brake pedal to brake the rear wheel.

Brake light will turn on while rear brake is in use.

REAR BRAKE PEDAL

Slow down the vehicle

when turning to the low

gear. Revving up the

engine slightly to shift

gears in more smooth

way to avoid damaging

gears.

SHIFT PEDAL ITEM CHECKS

Fuel • Check fuel level in fuel tank.

• Refuel if necessary.

• Check fuel line for leakage

Engine oil • Check oil level in engine.

• If necessary, add recommended oil

to specified level.

• Check vehicle for oil leakage.

ITEM CHECKS

Disc brake

( If equipped )

• Check operation.

• If soft or spongy, have dealer bleed

hydraulic system.

• Check brake pads for wear. Replace

if necessary.

• Check fluid level in reservoir. If

necessary, add recommended brake

fluid to specified level.

• Check hydraulic system for leakage.

Drum brake

( If equipped )

• Check operation.

•Check brake shoes for wear. Replace

if necessary.

Throttle grip • Make sure that operation is smooth.

• Check cable free play.

• If necessary, have a dealer adjust

cable free play and lubricate cable

and grip housing.

Clutch lever • Make sure that operation is smooth.

• Check cable free play.

• If necessary, have a dealer adjust

cable free play and lubricate cable.

Rear Brake Pedal

TORQUE VALUE

Upper fixing bolt: 37-44N.m

Lower fixing bolt: 22-29N.m

Adjustable

STIFFER

SOFTER

Locknut

Adjusting nut

N 6

3 4

STARTING THE ENGINE

1. Turn the key to “ON”.

2. Put in neutral gear, or pull the clutch lever.

3. Start the engine by pushing the start switch.

The speed can be adjusted by opening and closing

the throttle. To increase the speed, turn the throttle

grip in direction (a). To reduce the speed, turn the

throttle grip in direction (b).

Read the Owner’s Manual carefully to become famil-

iar with all controls. If there is a control or function

you do not understand, ask your dealer.

OPERATION AND IMPORTANT

RIDING POINTS

WARNING

Failure to familiarize yourself with the controls

can lead to loss of control, which could cause an

accident or injury.

WARNING

Do not start the engine indoor with bad ventila-

tion or without ventilation. Do not leave a start-

ing vehicle when no one else is around.

WARNING

It is dangerous only to use either the front brake

or rear brake which may cause skid or lose

control. Be careful and use brakes properly when

you drive on wet road or curved road.

Do not run the engine in high speed when you

do not drive the vehicle, or it will become over-

heating and damage its inner parts.

NOTICE

15 - 16

ITEM CHECKS

Wheels and tires • Check for damage.

• Check tire condition and tread depth.

• Check air pressure.

Brake levers • Make sure that operation is smooth.

Brake pedal • Lubricate pivots if necessary.

Sidestand,

Mainstand

( If equipped )

• Lubricate pivots if necessary.

Instruments,

lights, signals

and switches

• Check operation.

ACCELERATION AND DECELERATION

There is never a more important period in the life

of your engine than the period between 0 and 1000

km. For this reason, you should read the following

material carefully. Since the engine is brand new, do

not put an excessive load on it for the first 1000 km.

The various parts in the engine wear and fit to the

correct operating clearances. During this period, pro-

longed full-throttle operation or any condition that

might result in engine overheating. The engine

should not be over revved and all the gears shall not

be over 80% of red zone engine rpm; don't operate

the throttle under a fully open position; change the

gears in time to keep the engine rpm in reasonable

ENGINE BREAK-IN

1. Close the throttle completely.

2. Apply both front and rear brakes simultaneously

for safety concern.

BRAKING

WARNING

Failure to properly maintain the vehicle or

performing maintenance activities incorrectly

may increase your risk of injury or death during

service or while using the vehicle. If you are not

familiar with vehicle service, have a dealer

perform service.

● The annual checks must be performed every

year, except if a kilometer-based maintenance,

is performed instead.

● The vehicle may have different accessory for

different market and some parts may not exist

for common chart.

NOTICE

17 - 18

1. The vehicle should be parked on firm and flat

road.

2. Turn the power key to the position " " to stop

the engine.

3. Remove ignition key from the switch after locking

for security reason.

PARKING

Periodic inspection, adjustment, and lubrication will

keep your vehicle in the safest and most efficient

condition possible. Safety is an obligation of the

PERIODIC MAINTENANCE AND

ADJUSTMENT

vehicle owner/operator. The most important points of

vehicle inspection, adjustment, and lubrication are

explained on the following pages. The intervals given

in the periodic maintenance and lubrication chart

should be simply considered as a general guide

under normal riding conditions. However, depend-

ing on the weather, terrain, geographical

location, and individual use, the maintenance inter-

vals may need to be shortened.

range. It is strongly suggested to use the vehicle

very carefully during its running in period; also the

rider has to be familiar to the performance.

19 - 20

The spark plug is an important engine component,

which should be checked periodically, preferably by

a dealer. Since heat and deposits will cause any

spark plug to slowly erode, it should be removed and

checked in accordance with the periodic mainte-

nance. In addition, the condition of the spark plug

can reveal the condition of the engine.

The porcelain insulator around the center electrode

of the spark plug should be a medium-to-light tan

(the ideal color when the vehicle is ridden normally).

If the spark plug shows a distinctly different color, the

engine could be operating improperly. Do not attempt

to diagnose such problems yourself. Instead, have a

dealer check the vehicle.

If the spark plug shows signs of electrode erosion

and excessive carbon or other deposits, it should be

replaced.

Before installing a spark plug, the spark plug gap

should be measured with thickness gauge and, if

necessary, adjusted to specification.

Clean the surface of the spark plug gasket and its

mating surface, and then wipe off any grime from

the spark plug threads.

CHECKING THE SPARK PLUG

The engine oil level should be checked before each

ride. In addition, the oil must be changed at the inter-

vals specified in the periodic maintenance and lubri-

cation chart.

ENGINE OIL

1. Start the engine, warm it up for several minutes,

and then turn it off.

TO CHECK THE ENGINE OIL LEVEL

GAP

Type

Gap

NGK CR8E

0.7 - 0.8mm

The engine oil should be between the minimum

and maximum level marks.

NOTICE

21 - 22

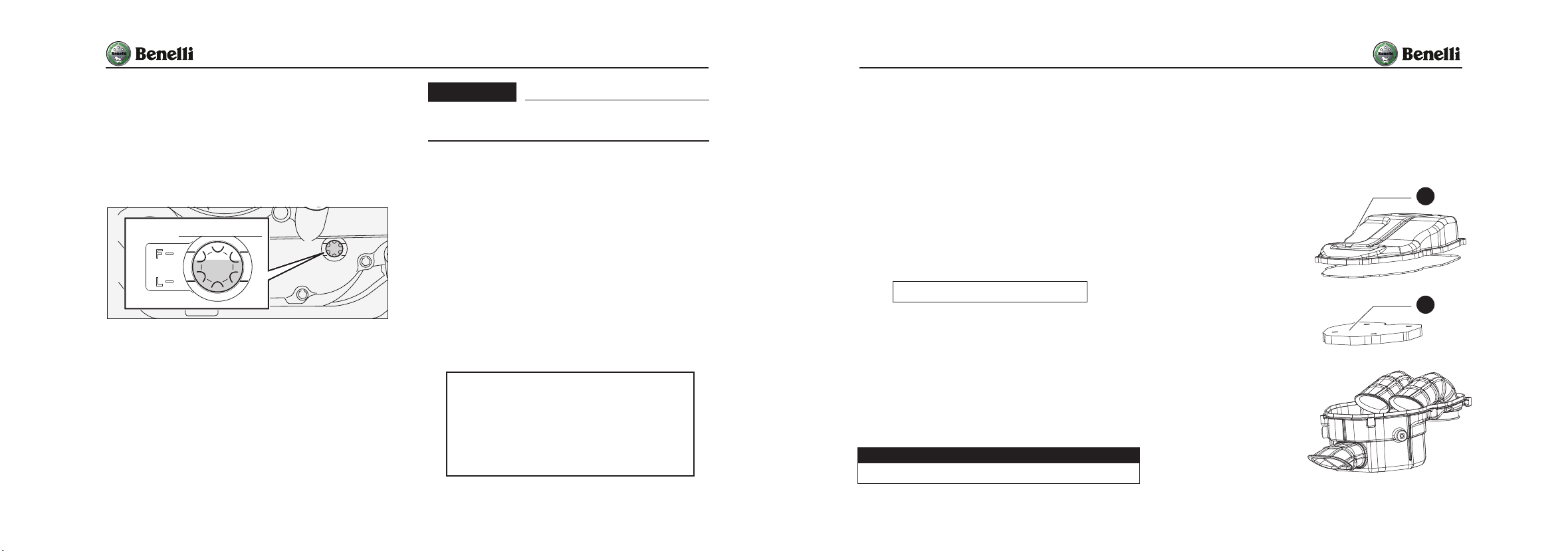

The air filter element should be replaced and should

be cleaned at the intervals specified in the periodic

maintenance and lubrication chart.

1. The air filter locat-

ed under the seat,Re-

move the seat.

2. Park the vehicle

on firm ground.

3. Remove the air

filter case cover by

removing the screws.

4. Pull the air filter

element out.

5. Insert a new air

filter element into the

air filter case.

6. Install the air filter

case cover by install-

ing the screws.

AIR FILTER

REPLACING THE AIR FILTER ELEMENT

1. Start the engine, warm it up for several minutes,

and then turn it off.

2. Place an oil pan under the engine to collect the

used oil.

3. Remove the engine oil filler cap and the engine

oil drain bolt to drain the oil from the crankcase.

4. Install the washer and the engine oil drain bolt,

and then tighten the drain bolt to the specified

torque.

5. Refill with the specified amount of the recom-

mended engine oil, and then install and tighten the

oil filler cap.

TO CHANGE THE ENGINE OIL

2. Wait a few minutes until the oil settles.

3. Hold the vehicle vertically.Inspect the engine oil

level through the engine oil level lens on the right

side on the engine.

4. If the engine oil is below the minimum level mark,

add sufficient oil of the recommended type to refill it

to the correct level.

Good carburetion is the key of engine performance.

Only use good quality fuel from gasoline station to

prevent stain in the fuel from clogging the fuel pump

strainer, or even the injectors.

IDLE SPEED

1. Keep the vehicle on flat surface.

2.Start the engine and warm up the engine for sever-

al minutes.

3. Clip the digital Tachometer to the spark plug cable.

4. If the idle speed is not in correct range, contact

the nearest authorized dealers.

IDLING ADJUSTMENT

The valve clearance changes with use, resulting in

improper air-fuel mixture and/or engine noise. To

prevent this from occurring, the valve clearance must

be adjusted by a dealer at the intervals specified in

the periodic maintenance and lubrication chart.

The engine is required to be in normal operating

temperature for accurate idling adjustment.

VALVE CLEARANCE

Idle speed: 1,500±100r/min

IN: 0.15 ~ 0.19mm EX: 0.20 ~ 0.25mm

Valve clearance( Cold engine )

Type

Capacity

Full synthetic oil

SL10W-50 jaso MA2

2.5 L ± 0.1L

A: Air Filter cover

B: Air Filter

Inhaltsverzeichnis

Andere Benelli Motorrad Handbücher

Benelli

Benelli BJ750GS Bedienungsanleitung

Benelli

Benelli TORNADO NAKED TNT125 Bedienungsanleitung

Benelli

Benelli LEONCINO 800 Bedienungsanleitung

Benelli

Benelli TRK 502 2017 Bedienungsanleitung

Benelli

Benelli TNT 15 Bedienungsanleitung

Benelli

Benelli Tornado 650 Bedienungsanleitung

Benelli

Benelli sprite-barracuda Installationsanleitung

Benelli

Benelli TRK249 Bedienungsanleitung

Benelli

Benelli BJ250-18 Bedienungsanleitung

Benelli

Benelli BN 600 i Bedienungsanleitung

Benelli

Benelli rivercide 250 cc Bedienungsanleitung

Benelli

Benelli BN600GT Bedienungsanleitung

Benelli

Benelli TRK 502X Bedienungsanleitung

Benelli

Benelli Tornado Naked Tre 1130 2006 Bedienungsanleitung

Benelli

Benelli BN251 Bedienungsanleitung

Benelli

Benelli Tre 1130 K Amazonas Bedienungsanleitung

Benelli

Benelli 2009 TREK1130 Gebrauchsanweisung

Benelli

Benelli Tornado Naked Tre 899 Bedienungsanleitung

Benelli

Benelli Tornado Naked TRE TR 160 2011 Bedienungsanleitung

Benelli

Benelli Leoncino Bedienungsanleitung

Benelli

Benelli Tornado Tre Novicento 903 Gebrauchsanweisung

Benelli

Benelli TnT302S Bedienungsanleitung

Benelli

Benelli Tornado TNT600 Bedienungsanleitung

Benelli

Benelli Tornado Naked Tre 1130 Bedienungsanleitung

Beliebte Motorrad Handbücher anderer Marken

OHVALE

OHVALE GP-0 Stücklistenhandbuch

Yamaha

Yamaha Star XV19CTSZ 2009 Bedienungsanleitung

KTM

KTM 350 XCF-W USA Bedienungsanleitung

HYOSUNG

HYOSUNG ST7 Bedienungsanleitung

Husqvarna

Husqvarna FC 250 2016 Bedienungsanleitung

Ducati

Ducati SCRAMBLER 800 Gebrauchsanweisung

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Bedienungsanleitung

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Bedienungsanleitung

Yamaha

Yamaha 2006 YZF-R1V Bedienungsanleitung

KTM

KTM Freeride E-XC 2021 Bedienungsanleitung

Fantic

Fantic Enduro 125 Bedienungsanleitung

Ducati

Ducati Supersport 750 desmodue Bedienungsanleitung

MV Agusta

MV Agusta 2008 F4 312RR 1078 Gebrauchsanweisung

Yamaha

Yamaha XVS650A Bedienungsanleitung

Yamaha

Yamaha YZF-R6T(C) Handbuch

Ducati

Ducati 748 monoposto strada Bedienungsanleitung

ATK

ATK 1988 250 Bedienungsanleitung

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Bedienungsanleitung
