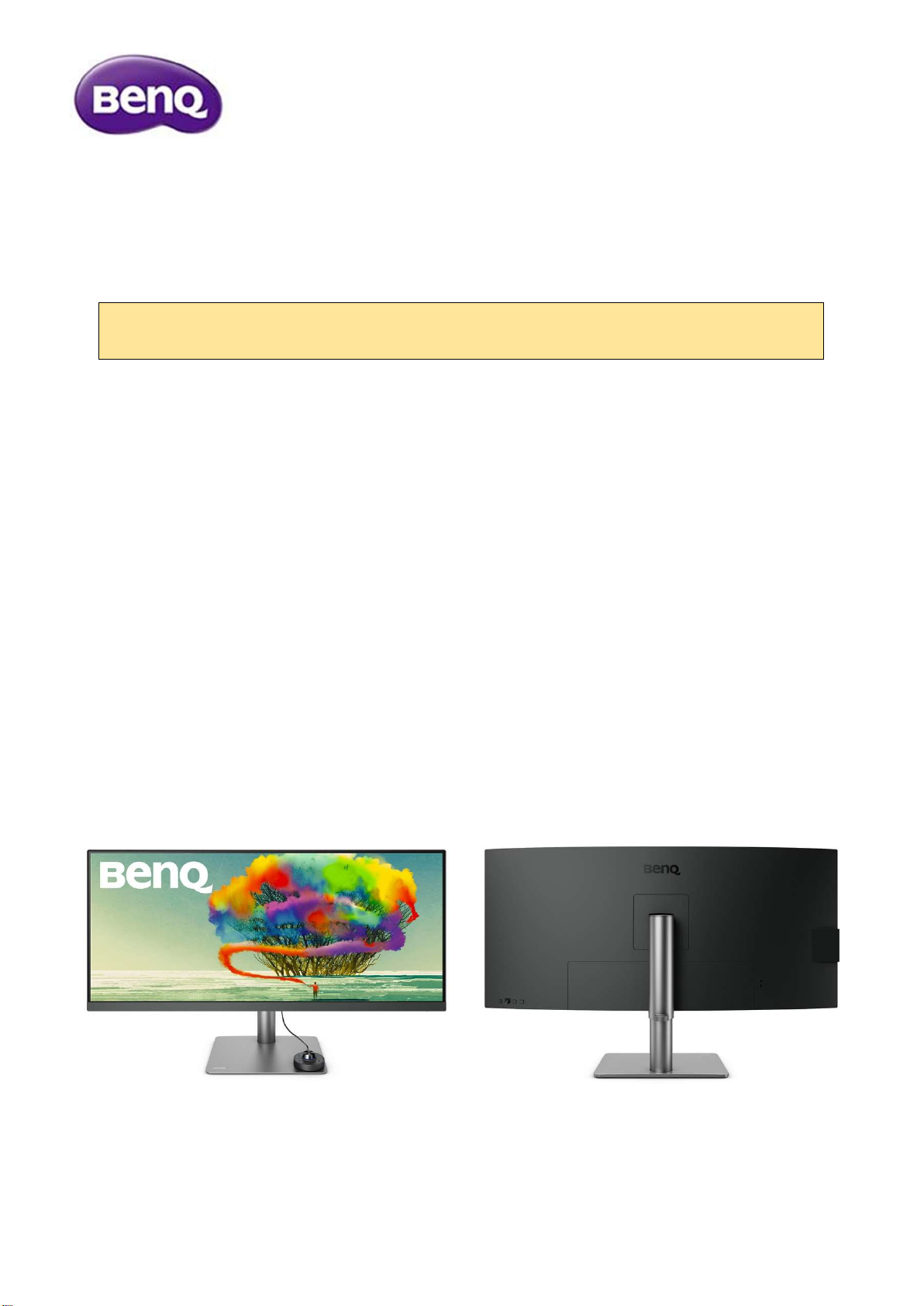

BenQ AQCOLOR PD3420Q Bedienungsanleitung

Recycle Disassemble Instruction

(Dismantled Information)

Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU

on waste electrical and electronic equipment (WEEE)

Materials and components with hazardous content

LCDs may contain hazardous substances like Pb and BFRs which are covered by

exemptions under the RoHS directive. However, the majority is present in the printed

circuit boards assembly. In order to reduce emissions as much as possible, a complete

disposal of the old appliance is required. This treatment may only be performed in

authorized handling plants.

Product Name:

LCD Monitor

Model No.:

PD3420Q

Disassembly Tools

Tool picture

Philips Screwdriver for M3 Screw

Nosed Pliers

Diagonal Cutting Pliers

Slotted screwdriver

Six Point Sockets

Philips Screwdriver for M2.5 Screw

Knife

Disassembly process

Disassemble Monitor Head

1. Remove ASSY Stand

1.1 Remove base by release Screw.

1.2 Remove ASSY CLMN by hand.

2. Remove ASSY Rear Cover

2.1 Remove IO cover by hand.

2.2 Remove screw to release Rear Cover.

2.3 Remove ctrl BD and IF BD FFC. Remove SPK and Jack BD wire on the I/F

BD.

2.4 Remove Slider module from RC by Screwdriver and hand

2.5 Remove Jack BD, OSD BTN holder, and SPK from RC by Screwdriver and

hand

2.6 Remove OSD BTN by Screwdriver and hand

WEEE ANNEX VII

3. Remove SHD and PCB.

3.1 Remove mylar, lamp wire and USB BD FFC. Remove screw

8F.8A224.4R2* 2pcs

3.2 Remove LVDS from PANEL. Then, remove mylar and screw by

screwdriver.

3.3 Remove wire and tape by hand.

4. Remove MF and USB SHD from PANEL

4.1 Remove USB SHD. Remove screw and USB BD.

4.2 Remove screw by screwdriver, and remove MF from PNL.

WEEE ANNEX VII

WEEE ANNEX VII

WEEE ANNEX VII

Disassemble Stand

1.Disassemble Column

a.Remove the screws of VESA assembly / and the screws of VESA plastic and VESA

iron

b. Remove the upper cover of hinge and remove the riser plastic screws

c. Remove the screws attaching the hinge semi-finished product and the head semi-

finished product

d. Remove the screws that secure the hinge semi-finished POM

e.

Remove the screws that lock the appearance of hinge

f.

Remove the screws that lock the up and down travel of lift
