Recycle Disassemble Instruction

(Dismantled Information)

Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU

on waste electrical and electronic equipment (WEEE)

Materials and components with hazardous content

LCDs may contain hazardous substances like Pb and BFRs which are covered by

exemptions under the RoHS directive. However, the majority is present in the printed

circuit boards assembly. In order to reduce emissions as much as possible, a complete

disposal of the old appliance is required. This treatment may only be performed in

authorized handling plants.

Product Name:

LCD Monitor

Model No.:

SW271C

Disassembly Tools

Tool picture

Philips Screwdriver for M3 Screw

Nosed Pliers

Diagonal Cutting Pliers

Slotted screwdriver

Six Point Sockets

Philips Screwdriver for M2.5 Screw

Knife

Disassembly process

1. Disassemble process

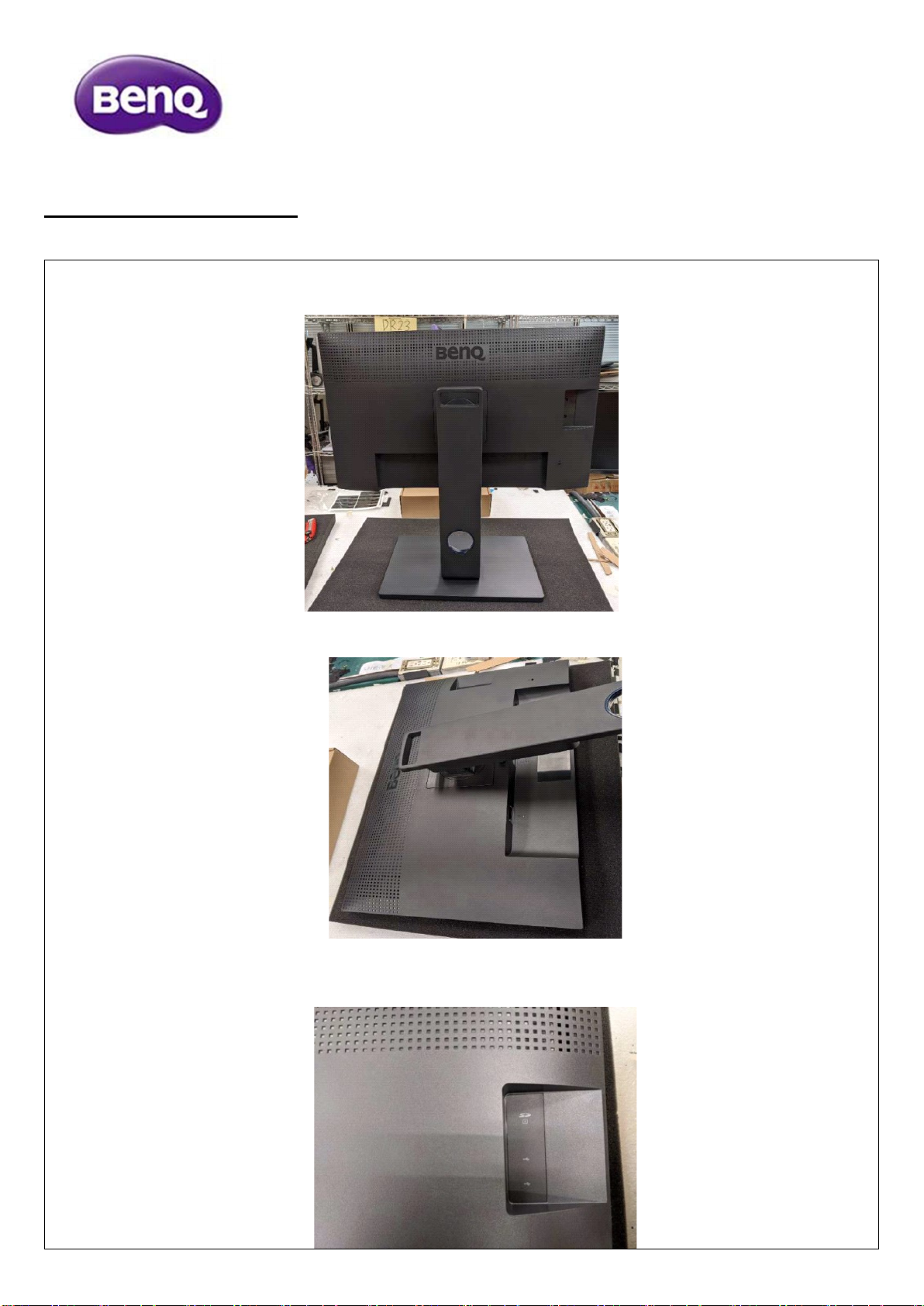

1.1 Disassembly of the monitor head.

1.2 Disassemble the stand from the head.

1.3 Remove the mylar from the head.

1.4 Remove the screws from the RC.

1.5 Disassemble the RC from the FC.

1.6 Remove the tapes and mylars from the SHD and PNL.

1.7 Remove the mylar and the tape from the PNL and the SHD.

1.8 Take the conductive tape away from the PNL.

1.9 Unscrew the screws from the SHD.

1.10 Take the PCABs out of the SHD.

1.11 Remove the sponge and the screws from the FC.

1.12 Uninstall the CTRL BD from the FC.

Disassembly of the stand

1. Disassemble Column

a. Remove VESA plate& VESA cover by loosing screws.

b. Remove hinge cover front by loosing screws.

c. Remove column cover by hand.

d. Remove slider from column housing by loosing screws.

e. Remove spring by loosing screw.

f. Remove Lift BKT by loosing screw.

g. Remove ASSY Rail by loosing screws.

h. Remove ASSY Swivel by loosing screws.

i. Remove Ring cover by knife.
