BenQ T241W Bedienungsanleitung

T241W

24’’ Wide-Screen LCD Monitor

User Manual

Downloaded from ManualMonitor.com Manuals

Table of Contents2

Table of Contents

Package contents ..................................................................................................................3

Installation .............................................................................................................................4

To connect the monitor to your PC .......................................................................... 4

To connect the monitor to the power source ............................................................ 4

Adjusting your monitor ........................................................................................................5

Functions of the buttons and indicator ..................................................................... 5

OSD icon list ............................................................................................................... 5

Troubleshooting ....................................................................................................................7

Specifications .........................................................................................................................8

24’’ Wide-Screen LCD monitor ................................................................................. 8

Downloaded from ManualMonitor.com Manuals

3Package contents

1. Package contents

1. LCD Monitor

2. Monitor Base (the shape of base may vary according to

the monitor model)

3. Power Cord (plug may vary according to the electrical

standards for your area)

4. Analog Signal Cable

5. Quick Installation Guide

6. CD-ROM (contains user manual)

7. Audio Cable (optional)

Downloaded from ManualMonitor.com Manuals

4 Installation

2. Installation

To connect the monitor to your PC

1. Make sure that the PC and monitor are unplugged.

2. Connect the signal cable (VGA/HDMI) to the monitor and the PC.

To connect the monitor to the power source

Connect the separate power cable to the monitor and a grounded outlet.

Downloaded from ManualMonitor.com Manuals

5Adjusting your monitor

3. Adjusting your monitor

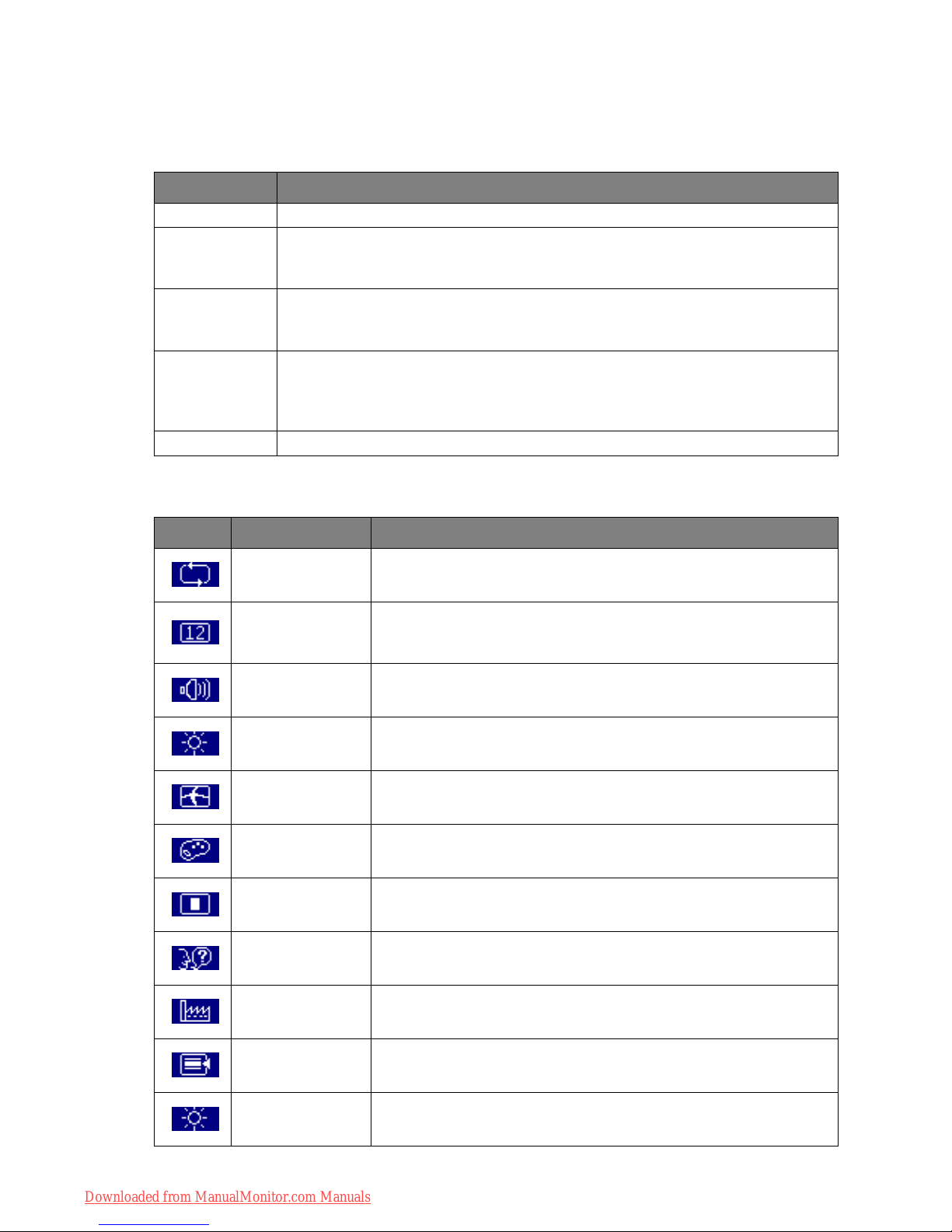

Functions of the buttons and indicator

OSD icon list

Item Function

Enter Enter OSD menu, select item, enter submenu, and confirm recall.

1. Positive adjustment, change within several selections.

2. Hot key of "Brightness".

1. Minus adjustment, change within several selections.

2. Hot key of "Contrast".

Exit

1. Leave menu, cancel recall. (Settings will be saved automatically after

adjustments are made.)

2. Hot key of "Input Select" for selecting input signal through hardware.

Auto Hot key of auto adjustment (for geometric settings only).

Icon Function Description

Auto Adjust * Optimize the picture performance automatically

Input Select

* Select the input from Analog and Digital Inputs

* Factory default: Analog (VGA)

Audio * Select "Volume" and "Mute" submenu

Luminance * Select "Brightness" and "Contrast" adjustment submenu

Geometry * Select "H. Position", "V. Position", "Pixel Clock" and "Phase"

adjustment submenu

Color * Select color temperature or to set up user mode

OSD * Adjust the position and time of OSD menu on the screen

Language * Select your own preference of language of OSD menu

Recall * Reset monitor parameters back to factory preset value

Miscellaneous * Select "Miscellaneous" adjustment submenu

Brightness * Adjust the luminance of the screen

Downloaded from ManualMonitor.com Manuals

6 Adjusting your monitor

Contrast * Adjust the contrast level of the screen

H. Position * Shift the screen left or right

V. Position * Shift the screen up or down

Pixel Clock * Adjust the monitor internal sampling clock rate

Phase * Adjust the monitor internal signal phase

OSD H. Position * Shift the OSD left or right

OSD V. Position * Shift the OSD up or down

OSD Time * Set OSD display duration time

Sharpness * Adjust the sharp level of the screen

DDC/CI * Switch "DDC/CI" On or Off

Information * Show the display information

Volume * Adjust the level of the sound

Audio Input

Select * Select the audio input source: Auto Detect/Line-In.

Mute * Turn the sound to mute

DCR * Switch "DCR" On or Off

Over Drive * Adjust the level of the "Over Drive"

Display Mode * Switch "Display Mode": Aspect/Full/1:1

Overscan

* Switch "Overscan" On or Off

* Select On to remove the black borders around the displayed


Downloaded from ManualMonitor.com Manuals

7Troubleshooting

4. Troubleshooting

Symptom Remedy

*Blank Screen*

Power indicator is off • Make sure the power cable is connected properly (see

Installation on page 4).

• Make sure that the monitor was turned on using the

power switch (see To connect the monitor to your PC

on page 4).

Power indicator lights orange • Perhaps a power saving mode is active? Press any key

on your keyboard or move the mouse.

Power indicator lights green • A screen saver may have activated automatically after a

certain period of inactivity. Press any key on your key-

board or move the mouse.

"No Signal Detected!" message • Is the signal cable connected to the monitor and the

PC's graphics port (see Installation on page 4)?

• Is the PC turned on (see your PC's documentation)?

*Display Problems*

Image is displaced to the left/right

or to the top/bottom

• If the image appears normal but off-center, you can

adjust it using the OSD functions. For further informa-

tion, see "Auto Adjust" in the OSD icon list section.

Image is blurred • Check brightness and contrast settings (see "Lumi-

nance" in the OSD icon list section).

• Check the sharpness setting (see "Sharpness" in the

OSD icon list section).

Color problems • If the colors are off (e.g., white is not really displayed as

white etc.), you should adjust the color temperature

(see "Color" in the OSD icon list section).

Downloaded from ManualMonitor.com Manuals

8 Specifications

5. Specifications

24’’ Wide-Screen LCD monitor

Item T241W

Panel Display Size 518.4 (H) x 324 (V) mm

Pixel Pitch 0.27 (H) x 0.27 (V) mm

Monitor Display Colors 16.7 M colors

Input Signal Frequency

Horizontal: 30 - 94 KHz

Vertical: 50 - 76 Hz

Connector Analog D-sub 15 pin

HDMI HDMI 19pin

Tilt Tilt Angle -5° - +20°

Swivel Swivel Angle -45° - +45°

Dimensions

(W x H x D)

Net 565.6(W) x 444.8(H) x 220.1(D) mm

Weight Net 8.7 kg

Power AC AC 90-264V, 47-63 Hz

Consumption Active: < 70W / Standby: < 2W
