Welcome

Joybee GP1 Mini Projector

User Manual

Table of contents2

Table of contents

Important safety

instructions .........................3

Introduction........................7

Projector features .................................. 7

Shipping contents.................................. 8

Projector exterior view.......................... 9

Controls and functions ....................... 10

Projector .............................................. 10

Positioning your

projector............................13

Obtaining a preferred projected image

size........................................................ 13

Connection .......................15

Connecting a computer ...................... 15

Connecting Video source devices....... 16

Connecting a composite Video source

device.................................................... 18

Connecting a USB Reader

source device........................................ 19

Connecting an iPod Dock device

(Optional Accessory)........................... 20

Operation ..........................21

Starting up the projector..................... 21

Using the menus.................................. 22

Utilizing the password function ......... 23

Switching input signal......................... 25

Adjusting the projected image ............ 25

Magnifying and

searching for details............................. 27

Selecting the aspect ratio..................... 27

Optimizing the image.......................... 28

Hiding the image ................................. 31

Freezing the image ...............................31

Operating in a high

altitude environment ...........................32

Adjusting the sound.............................32

Personalizing the

projector menu display........................33

Shutting down the projector ...............33

Projector menu operation ...................34

Presenting From a USB

Reader................................42

Entering USB Reader main screen ......42

Playing back photos and movies .........42

"PC-less" presentations ........................43

Using USB Reader menus....................44

USB Reader menu operation...............46

Projection with iPod Dock

(Optional Accessory)........51

Maintenance......................52

Care of the projector............................52

Troubleshooting ...............54

Specifications ....................55

Projector specifications........................55

Dimensions...........................................56

Timing chart.........................................56

Warranty and Copyright

information.......................57

Regulation statements ......58

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage of 19 volts AC, but could fail if

power cuts or surges of ±10 volts

occur. In areas where the mains

voltage may fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible

power supply (UPS).

5. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the projector or remote

control.

Important safety instructions4

Safety Instructions (Continued)

6. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

7. Never replace any electronic

components unless the projector is

unplugged.

8. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

9. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. Refer

servicing only to suitably qualified

professional service personnel.

10. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

11. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around the

projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity, dust,

or cigarette smoke may contaminate

optical components, shortening the

projector's life span and darkening the

image.

- Locations near fire alarms

- Locations with an ambient temperature

above 60°C / 140°F

- Locations where the altitudes are higher

than 12000 m (40000 feet).

12. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth or

any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

13. Always place the projector on a level,

horizontal surface during operation.

14. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

12000 m

(40000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

15. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

16. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's wall socket

and call BenQ to have the projector

serviced.

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• USB reader making photo and movie play quick

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• Up to 5 sets of picture modes providing multiple choices for different projection

purposes

• Digital keystone correction to correct distorted images

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• Component HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input signal contrast/brightness settings, and is directly

proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

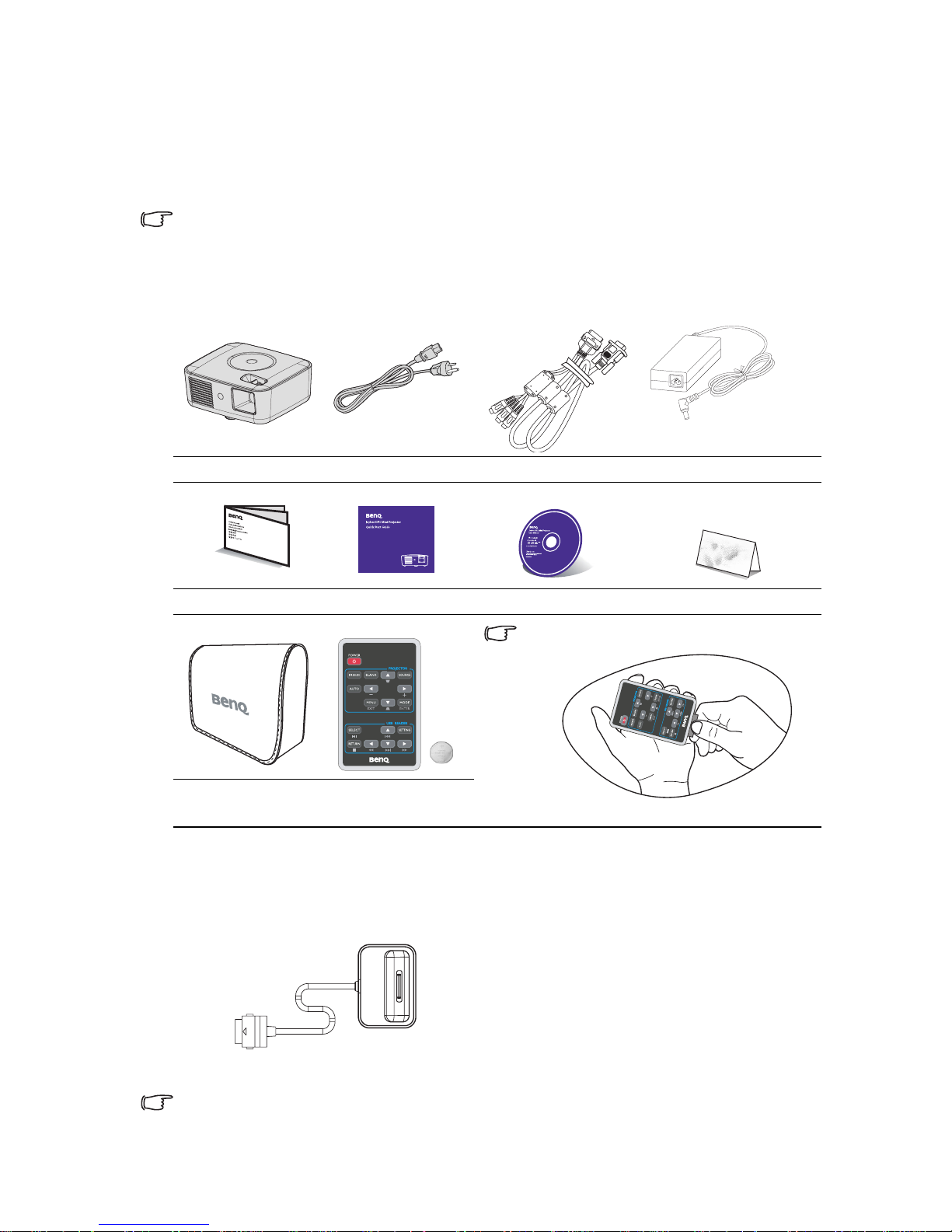

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Optional accessories

Optional accessories may vary by retailers. Please contact your sales dealer for purchase.

Projector Power cord Multi-input cable AC adapter

Safety manual Quick start guide User manual CD Warranty card*

Pull the tab before using the remote

control.

Projector carrying

bag

Remote control

with battery

1. iPod Dock with cable

Introduction 9

Projector exterior view

1. External control panel

(See "Projector" on page 10 for

details.)

2. Vent (heated air exhaust)

3. Front IR remote sensor

4. Focus ring

5. Projection lens

6. Multi-input socket

-RGB (PC)/Component video

(YPbPr/ YCbCr) /Composite video/

Audio input (L/R)

7. USB Reader slot

8. Audio output socket (only for USB

Reader)

9. AC adapter inlet

10. Tripod socket

11. Adjuster foot

Front/upper side

6 7 9

810

Rear/lower side

Introduction10

Controls and functions

Projector

5. Power

Toggles the projector between standby

mode and on.

See "Starting up the projector" on page 21

and "Shutting down the projector" on

page 33 for details.

6. MENU/EXIT

Turns on th e On -S creen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings. See "Using

the menus" on page 22 for details.

7. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection. See

"Correcting keystone" on page 26 for

details.

8. MODE/ENTER

Selects an available picture setup mode.

See "Selecting a picture mode" on page 28

for details.

Enacts the selected On-Screen Display

(OSD) menu item. See "Using the menus"

on page 22 for details.

9. Key LED indicator

Indicates the touch-key and source status.

See

"Indicators" on page 53

for details.

10. SOURCE

Displays the source selection bar. See

"Switching input signal" on page 25 for

details.

1. Focus ring

Adjusts the focus of the projected image.

See "Fine-tuning the image clarity" on page

26 for details.

2. BLANK

Used to hide the screen picture. See "Hiding

the image" on page 31 for details.

3. Power and Ring LED indicator

Indicates the power on or off and warning

status. See "Indicators" on page 53 for details.

4. Volume/Arrow keys ( /-, /+)

Magnifies or reduces the volume level. See

"Adjusting the sound" on page 32 for details.

Magnifies or reduces the volume level. See

"Adjusting the sound" on page 32 for details.

When the On-Screen Display (OSD) menu

is activated, the #4 and #7 keys are used as

directional arrows to select the desired

menu items and to make adjustments. See

"Using the menus" on page 22 for details.

Keypad functions under USB mode

# Keypad Keypad Operation

2BLANK Used to hide the screen picture.

4Volume/Arrowkeys

Acts as fast reverse play ( / ) or fast forward play ( / ) during playback.

6MENU/EXIT Stops playback and goes back to USB Reader main menu.

Goes back to previous OSD menu.

Press for three seconds to display Projector Menu

7 Keystone/Arrow

keys Acts as previous file selection ( / ) or next file selection ( / ).

8 MODE/ ENTER Enacts the selected menu item.

Plays back and pauses the photo and movie.

Andere Handbücher für Joybee GP1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ Commuter CP120 Bedienungsanleitung

BenQ

BenQ LU935 Bedienungsanleitung

BenQ

BenQ W1110s Bedienungsanleitung

BenQ

BenQ PB9200 - XGA LCD Projector Installationsanleitung

BenQ

BenQ LW500 Bedienungsanleitung

BenQ

BenQ PB2220/ PB2120 Bedienungsanleitung

BenQ

BenQ LX820ST Bedienungsanleitung

BenQ

BenQ MX731 Bedienungsanleitung

BenQ

BenQ TH670 Bedienungsanleitung

BenQ

BenQ TH685 Bedienungsanleitung

BenQ

BenQ TH682ST Bedienungsanleitung

BenQ

BenQ CinePrime W2700 Bedienungsanleitung

BenQ

BenQ PB8250 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ MS517 Bedienungsanleitung

BenQ

BenQ MP524 Bedienungsanleitung

BenQ

BenQ I Series Bedienungsanleitung

BenQ

BenQ PE7800 - DLP Projector - 800 ANSI Lumens Bedienungsanleitung

BenQ

BenQ MX808STH Bedienungsanleitung

BenQ

BenQ Mainstream MP620p Bedienungsanleitung

BenQ

BenQ SL703S - DLP Micro SVGA Projector Bedienungsanleitung

BenQ

BenQ MH74I Bedienungsanleitung

BenQ

BenQ PB2120 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ TH690ST Bedienungsanleitung

BenQ

BenQ MX661 Gebrauchs- und Wartungshandbuch

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
