BenQ LW650 Bedienungsanleitung

Digital Projector

User Manual

LW650 / LH650 V 1.00

2 Warranty and Copyright information

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal

usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is

found to be defective within the warranty period, BenQ's only obligation and your exclusive

remedy shall be replacement of any defective parts (labor included). To obtain warranty

service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in

accordance with BenQ's written instructions, especially the ambient humidity must be

in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet,

and avoiding to operate the projector in a dusty environment. This warranty gives you specific

legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

reproduced, transmitted, transcribed, stored in a retrieval system or translated into any

language or computer language, in any form or by any means, electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ

Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specifically disclaims any warranties, merchantability or

fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this

publication and to make changes from time to time in the contents hereof without obligation to

notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are

copyrights of their respective companies or organizations.

3Table of Contents

Table of Contents

Warranty and Copyright information ...............................................................................2

Important safety instructions .........................................................................................4

Introduction ....................................................................................................................8

Shipping contents ............................................................................................................. 8

Projector exterior view ...................................................................................................... 9

Controls and functions ................................................................................................... 10

Positioning your projector ............................................................................................13

Choosing a location ........................................................................................................13

Obtaining a preferred projected image size.................................................................. 14

Mounting the projector ................................................................................................... 17

Adjusting the projected image .......................................................................................18

Connection ...................................................................................................................20

Operation .....................................................................................................................23

Starting up the projector .................................................................................................23

Using the menus ............................................................................................................. 24

Securing the projector ....................................................................................................25

Switching input signal ..................................................................................................... 26

Shutting down the projector ...........................................................................................27

Menu operation ............................................................................................................28

Menu System ................................................................................................................... 28

Basic Menu ......................................................................................................................28

Advanced Menu .............................................................................................................. 29

Maintenance ................................................................................................................46

Care of the projector .......................................................................................................46

Light source information ................................................................................................ 46

Troubleshooting ...........................................................................................................49

Specifications ..............................................................................................................50

Projector specifications .................................................................................................50

Dimensions ......................................................................................................................51

Timing chart .................................................................................................................... 52

4 Important safety instructions

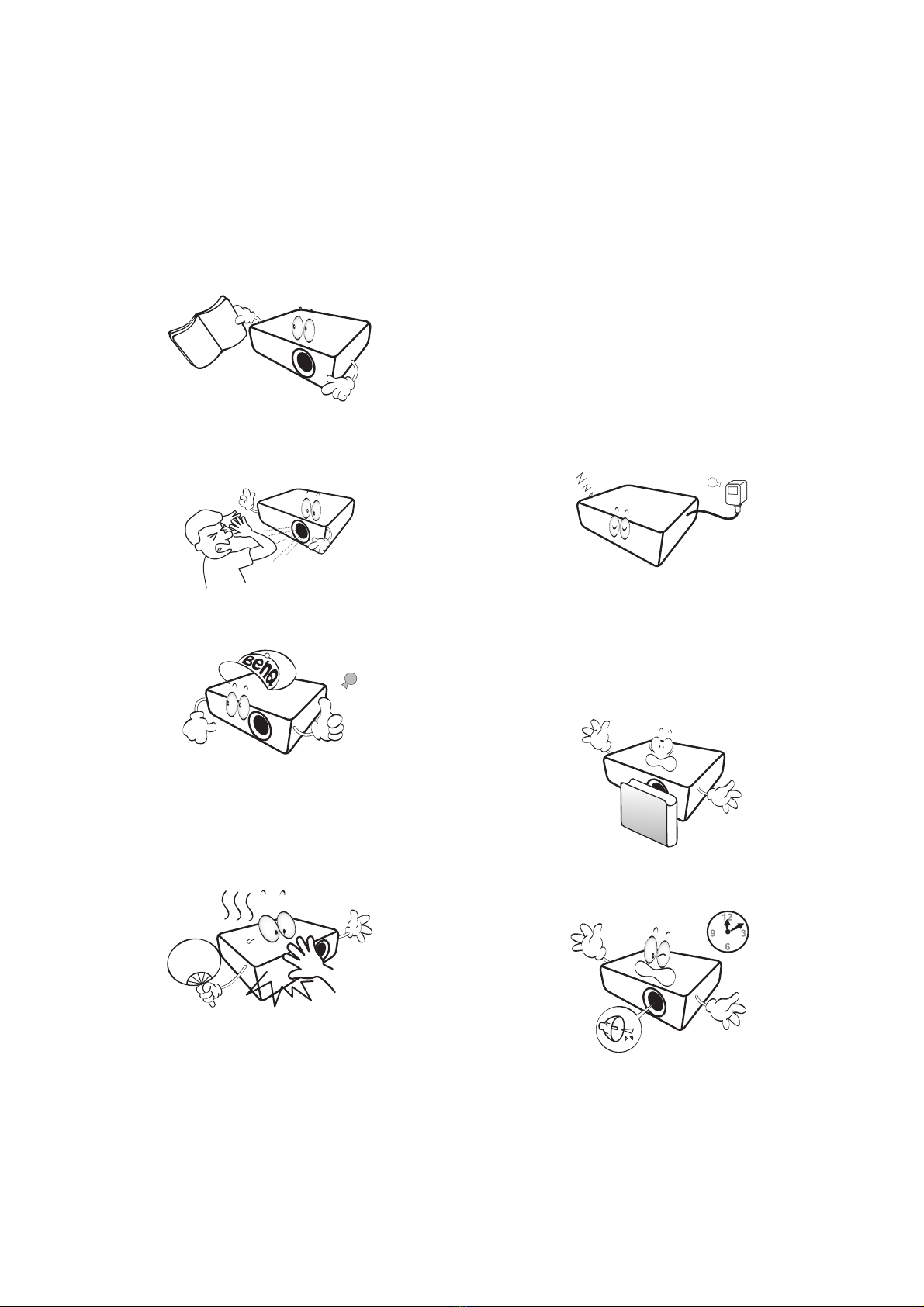

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before you

operate your projector. Save it for future

reference.

2. Do not look straight at the projector lens

during operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter (if any) or

remove the lens cap (if any) when the

projector light source is on.

5. The light source becomes extremely hot

during operation.

6. In some countries, the line voltage is NOT

stable. This projector is designed to

operate safely within a mains voltage

between 100 to 240 volts AC, but could

fail if power cuts or surges of ±10 volts

occur. In areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible power

supply (UPS).

7. Do not block the projection lens with any

objects when the projector is under

operation as this could cause the objects

to become heated and deformed or even

cause a fire. To temporarily turn off the

light source, use the blank function.

8. Do not operate light sources beyond the

rated light source life.

5Important safety instructions

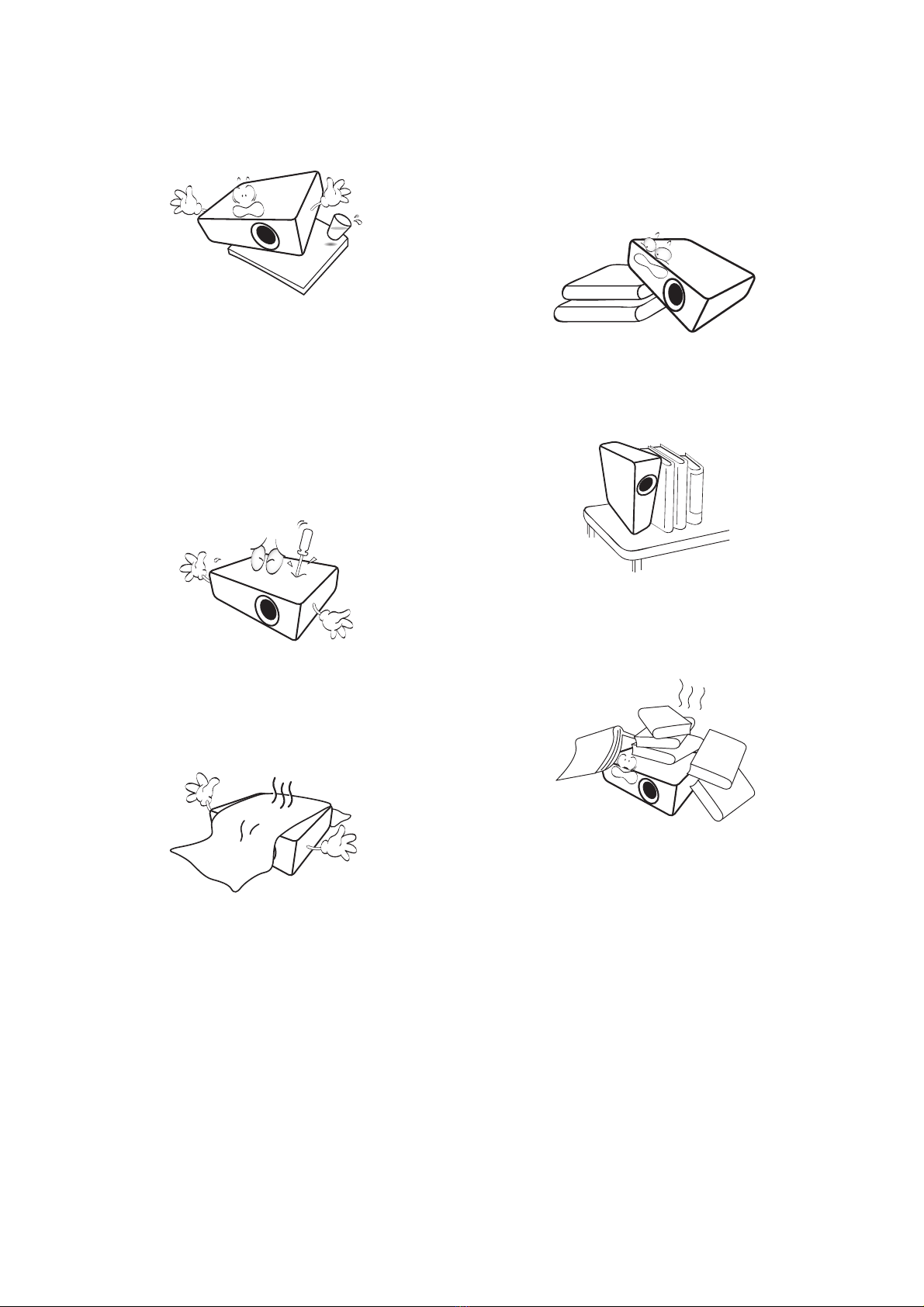

9. Do not place this product on an unstable

cart, stand, or table. The product may fall,

sustaining serious damage.

10. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death if

you should come into contact with live

parts.

Under no circumstances should you ever

undo or remove any other covers. Refer

servicing only to suitably qualified

professional service personnel.

11. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding

or any other soft surface.

- Do not cover this projector with a cloth or any

other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

12. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more than 10

degrees left to right, nor at angle of more than 15

degrees front to back. Using the projector when it

is not fully horizontal may cause a malfunction

of, or damage to, the light source.

13. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

14. Do not step on the projector or place any

objects upon it. Besides probable physical

damage to the projector, doing so may

result in accidents and possible injury.

15. When the projector is under operation,

you may sense some heated air and odor

from its ventilation grill. It is a normal

phenomenon and not a product defect.

6 Important safety instructions

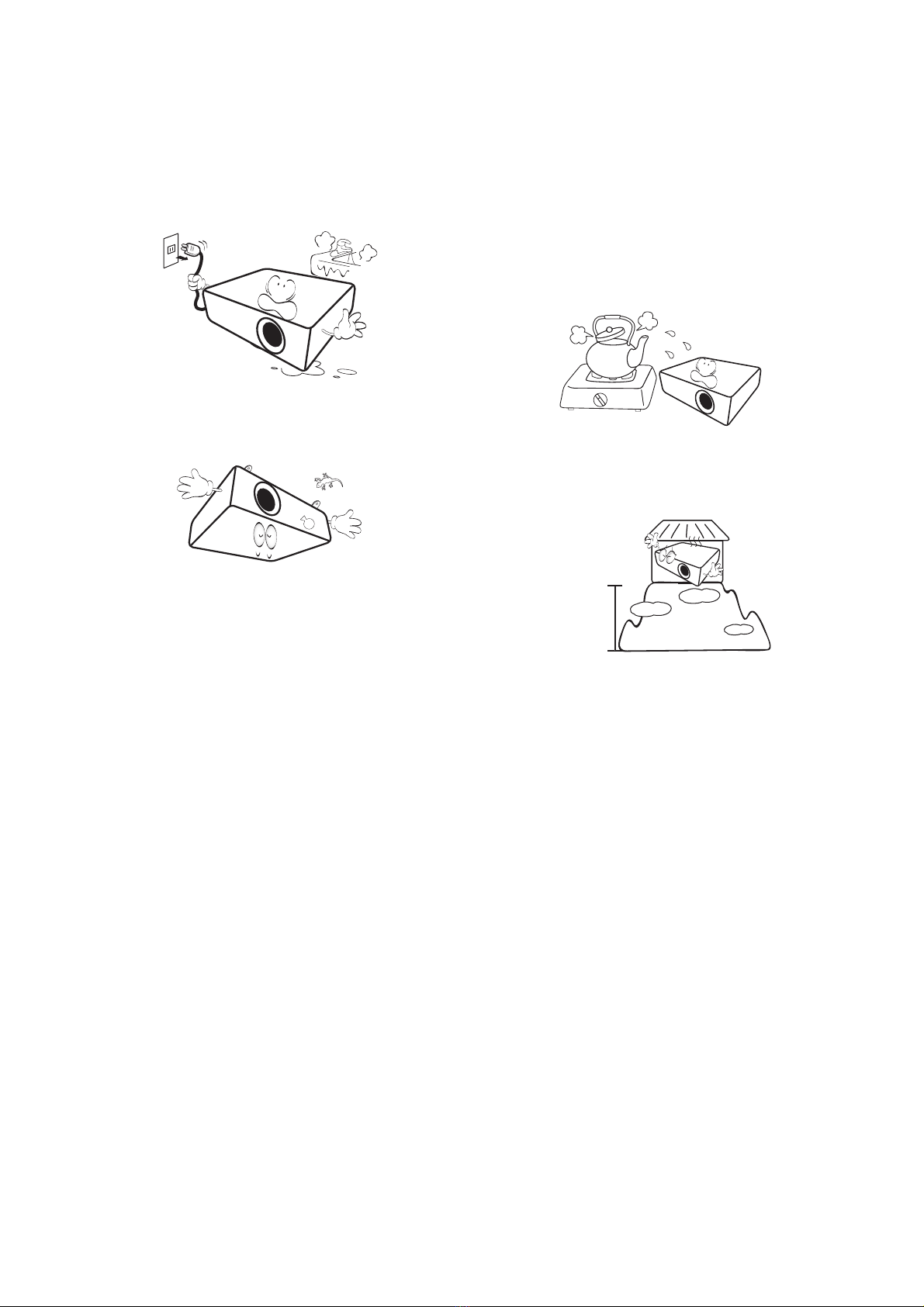

16. Do not place liquids near or on the

projector. Liquids spilled into the projector

may cause it to fail. If the projector does

become wet, disconnect it from the power

supply's power outlet and call BenQ to

have the projector serviced.

17. This product is capable of displaying

inverted images for ceiling/wall mount

installation.

18. This apparatus must be earthed.

19. Do not place this projector in any of the

following environments.

- Space that is poorly ventilated or confined. Allow

at least 50 cm clearance from walls and free flow

of air around the projector.

- Locations where temperatures may become

excessively high, such as the inside of a car with

all windows rolled up.

- Locations where excessive humidity, dust, or

cigarette smoke may contaminate optical

components, shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above

40°C / 104°F

- Locations where the altitudes are higher than

3000 m (10000 feet).

3000 m

(10000 feet)

0 m

(0 feet)

7Important safety instructions

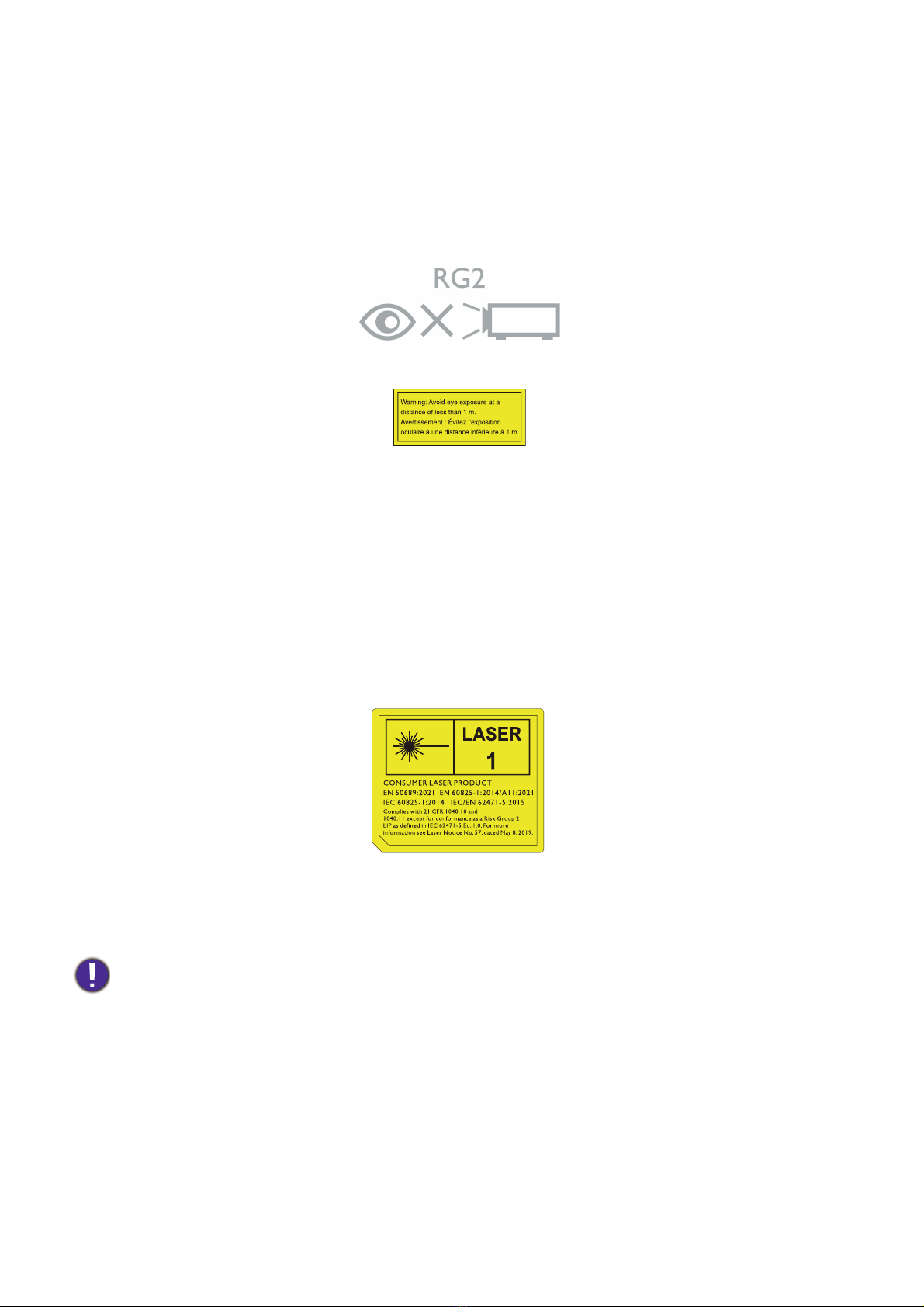

Risk Group 2

1. According to the classification of photobiological safety of light sources and light source

systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

The projector’s light source unit uses a laser.

• Notice is given to supervise children and to never allow them to stare into the projector beam

at any distance from the projector.

• Notice is given to use caution when using the remote control for starting the projector while

in front of the projection lens.

• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes

inside the beam.

Laser Caution

This product belongs to CLASS 1 consumer laser product and complies with IEC

60825-1:2014, EN 60825-1:2014/A11:2021 and EN 50689:2021.

Above laser caution are located on the bottom of this apparatus.

Caution – Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

8 Introduction

Introduction

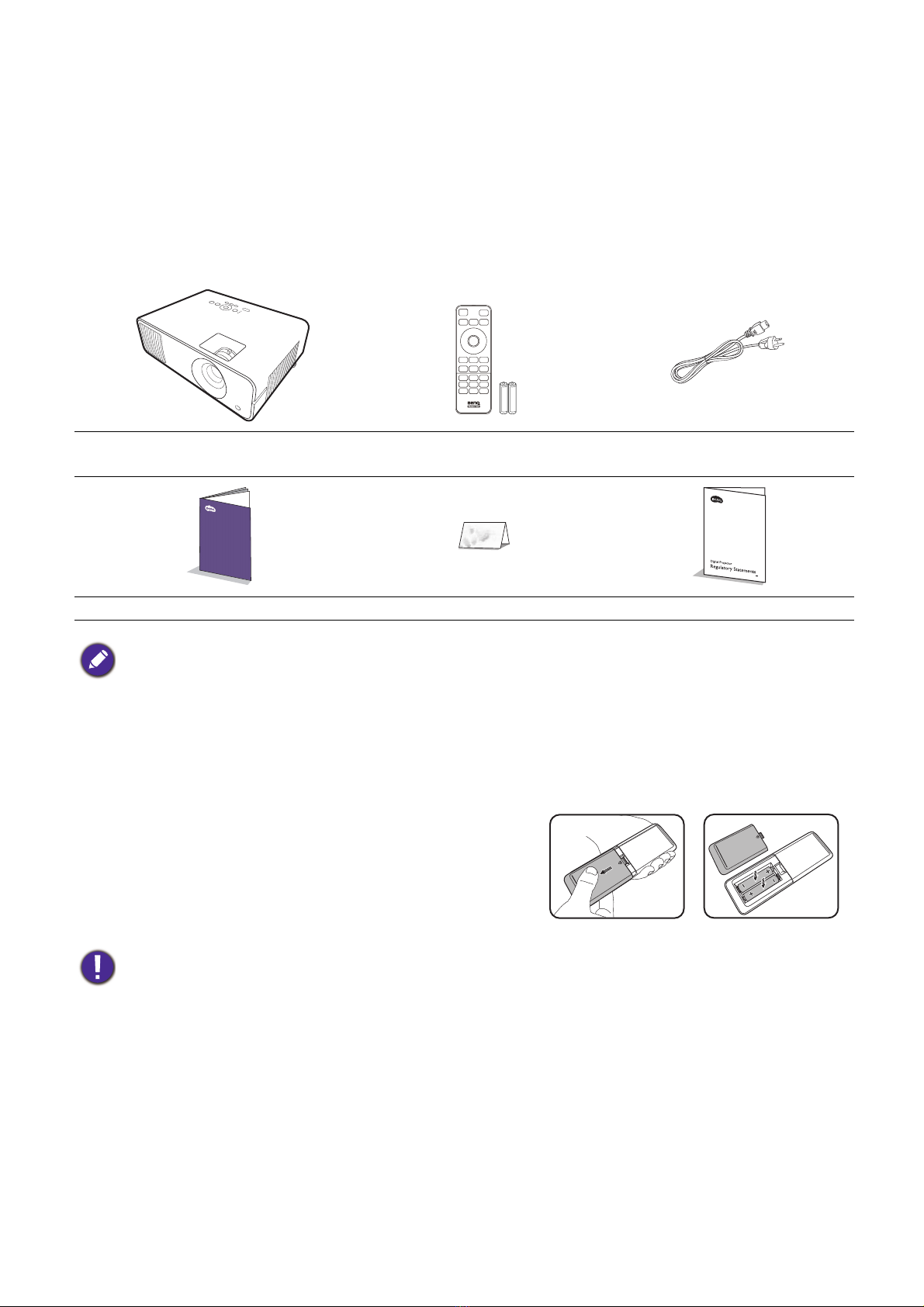

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are

missing, please contact your place of purchase.

Standard accessories

Optional accessories

• Wireless Dongle (EZC5201BS)

Replacing the remote control batteries

1. Press and open the battery cover, as illustrated.

2. Remove the old batteries (if applicable) and install

two AAA batteries. Make sure that the positive and

negative ends are positioned correctly, as illustrated.

3. Replace the battery cover until it clicks into place.

Projector Remote control with

batteries Power cord

Quick start guide Warranty card* Regulatory statements

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed

information.

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the

kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local environment

regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are dead or if you will not be using the remote control for an extended period of time,

remove the batteries to avoid damage to the remote control from possible battery leakage.

9Introduction

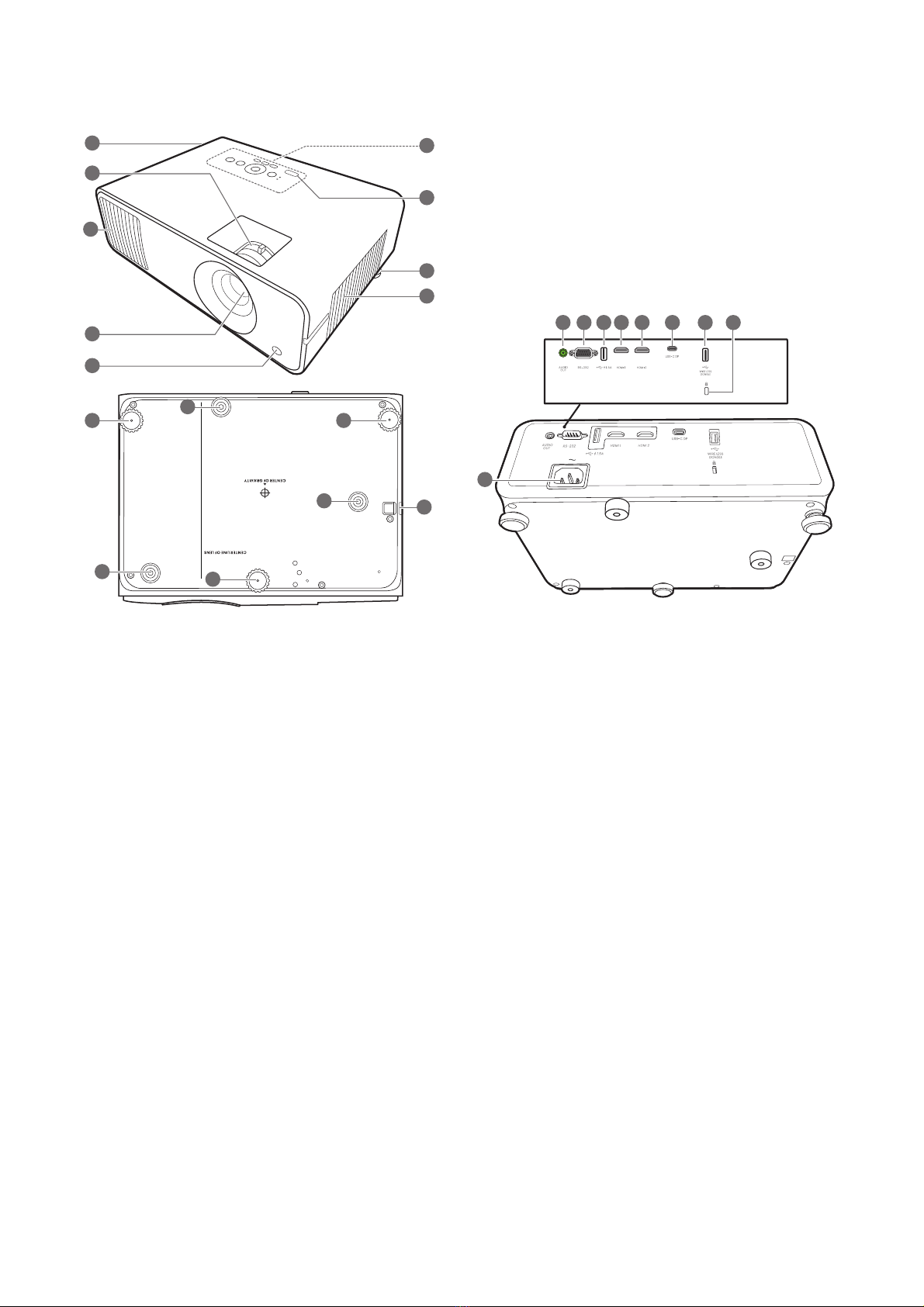

Projector exterior view

1. Vent (air exhaust)

2. Focus ring and Zoom ring

3. Vent (air inlet)

4. Projection lens

5. IR remote sensor

6. Adjuster feet

7. External control panel

(See Controls and functions on page 10.)

8. Audio output jack

9. RS-232 control port

10. USB Type A port with power charging

11. HDMI 1 input port

12. HDMI 2 input port

13. USB Type C port

14. USB Type A port (for Wireless dongle)

15. Kensington anti-theft lock slot

16. AC power jack

17. Wall mount holes

18. Security bar

17 18

6 6

910 1412 1311

10 Introduction

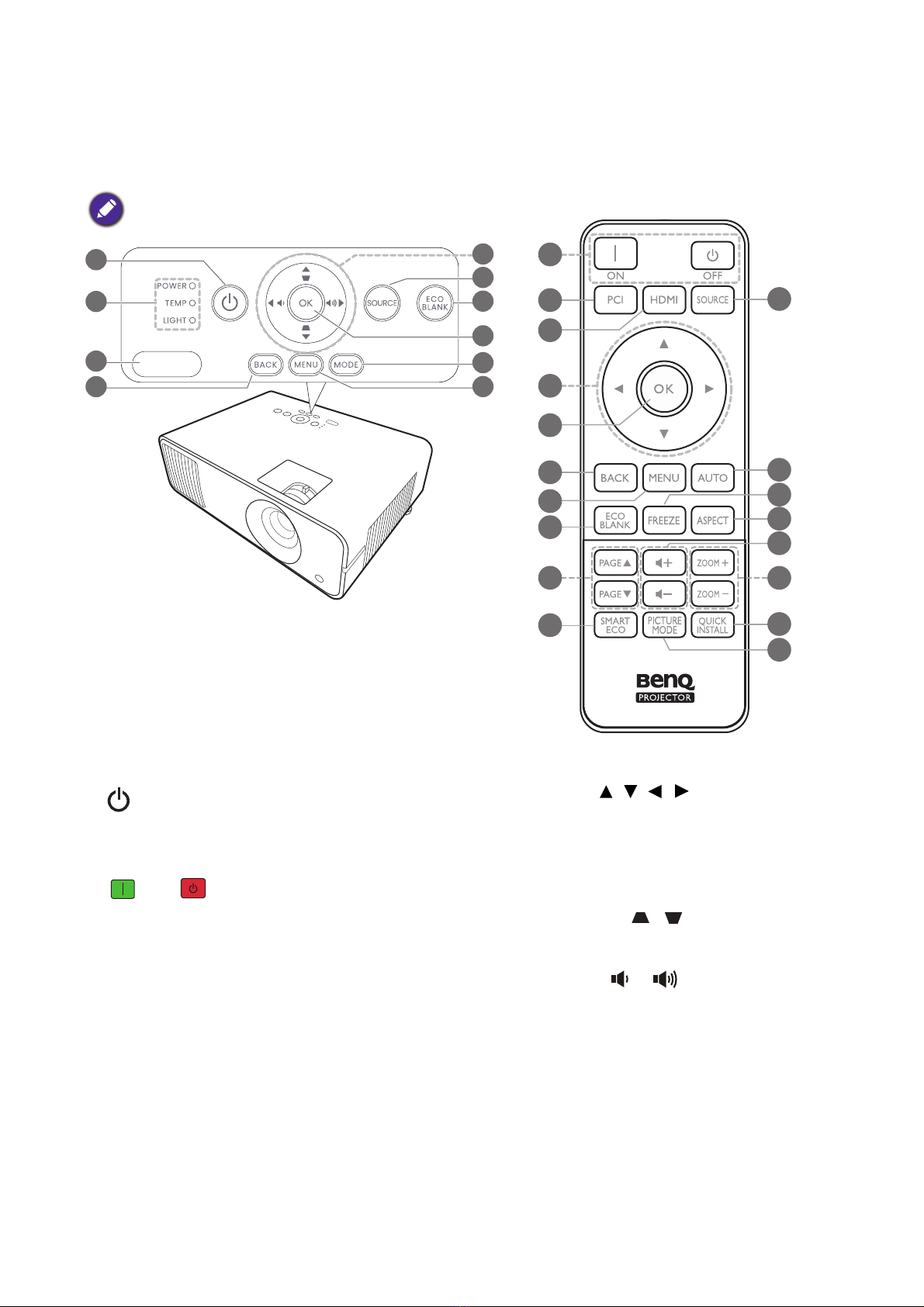

Controls and functions

Projector & Remote control

1. POWER

Toggles the projector between standby

mode and on.

ON/ Off

Toggles the projector between standby

mode and on.

2. POWER indicator light/TEMPerature

warning light/LIGHT indicator light

(See Indicators on page 48.)

3. IR remote sensor

4. BACK

Goes back to previous OSD menu, exits

and saves menu settings.

5. Arrow keys ( , , , )

When the On-Screen Display (OSD) menu

is activated, these keys are used as

directional arrows to select the desired

menu items and to make adjustments.

Keystone keys ( , )

Displays the keystone correction page.

Volume keys /

Decreases or increase the projector

volume.

All the key presses described in this

document are available on the remote control

or projector.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ Portable Series Bedienungsanleitung

BenQ

BenQ EH620 Bedienungsanleitung

BenQ

BenQ LW730 Bedienungsanleitung

BenQ

BenQ MP727 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ MS531 Bedienungsanleitung

BenQ

BenQ Portable Series Bedienungsanleitung

BenQ

BenQ MX768 Bedienungsanleitung

BenQ

BenQ MP515 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ MS504 Bedienungsanleitung

BenQ

BenQ HT9050 Bedienungsanleitung

BenQ

BenQ MX704 Bedienungsanleitung

BenQ

BenQ TH585 Bedienungsanleitung

BenQ

BenQ Portable Series Bedienungsanleitung

BenQ

BenQ LK952 Bedienungsanleitung

BenQ

BenQ Home Entertainment PE5120 Bedienungsanleitung

BenQ

BenQ MX764 Bedienungsanleitung

BenQ

BenQ QSG-MX723 Bedienungsanleitung

BenQ

BenQ TH682ST Bedienungsanleitung

BenQ

BenQ Joybee GP2 Gebrauchs- und Wartungshandbuch

BenQ

BenQ PB8140/PB8240/PB8250 Bedienungsanleitung

BenQ

BenQ PB8140 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ MX750 Bedienungsanleitung

BenQ

BenQ W1500 Bedienungsanleitung

BenQ

BenQ W7000+ Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
