BenQ LX890UST Bedienungsanleitung

Quick Start Guide

Digital Projector

LX890UST / LW890UST / LH890UST

BenQ QSG-L890UST.book Page 1 Wednesday, April 18, 2018 8:18 AM

BenQ QSG-L890UST.book Page 2 Wednesday, April 18, 2018 8:18 AM

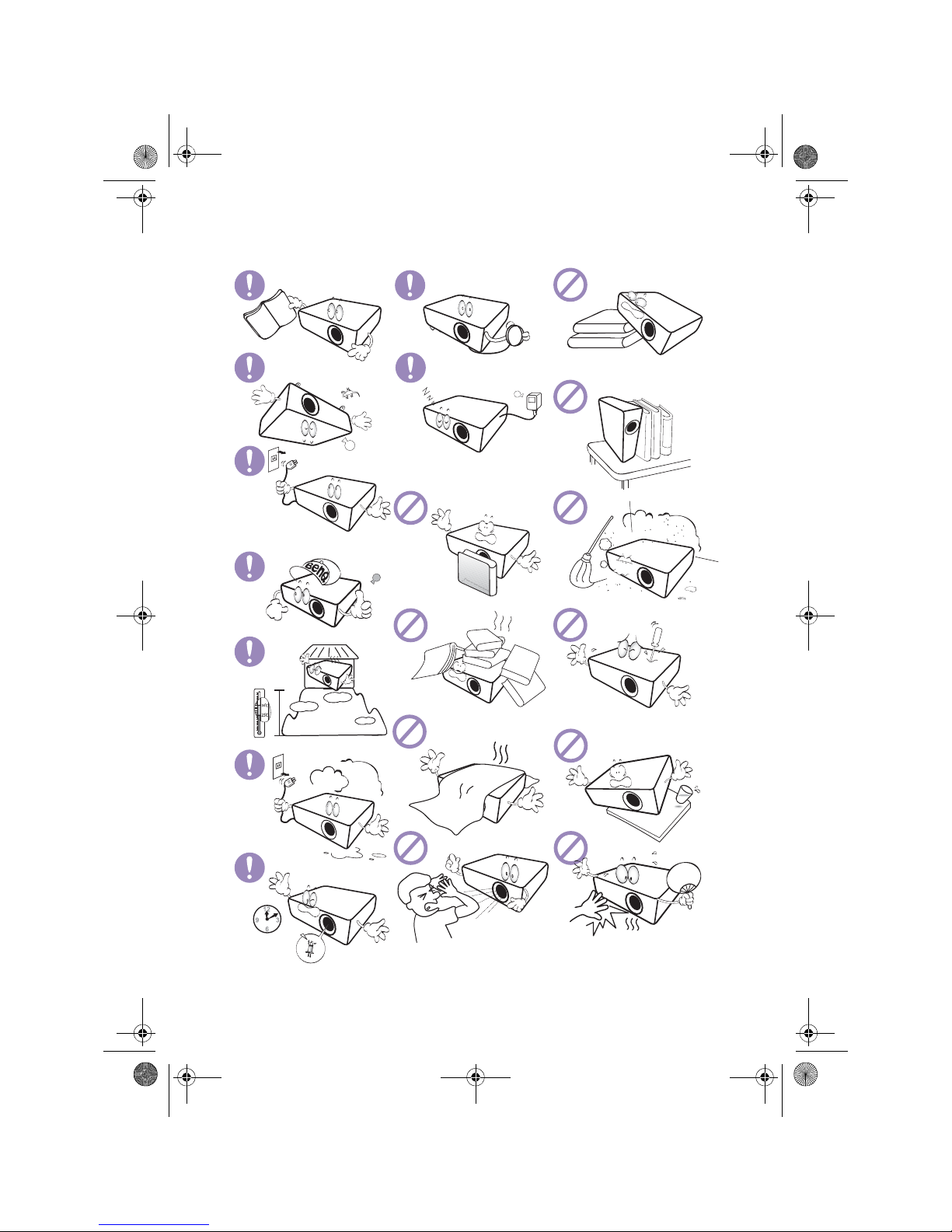

Important safety instructions

To ensure safe use of this product, Please read the user manual for details before you

operate your projector.

Risk Group 2

1. According to the classification of

photobiological safety of light

sources and light source systems,

this product is Risk Group 2, IEC

62471-5:2015.

2. Possibly hazardous optical

radiation emitted from this

product.

3. Do not stare at operating light

source. May be harmful to the

eyes.

4. As with any bright source, do not

stare into the direct beam.

The projector's light source unit uses a

laser.

Laser Caution

(For China and other regions) This

product belongs to CLASS 1 laser

product and complies with IEC 60825-1

:2014.

(For north America) This product

belongs to CLASS 2 laser product.and

complies with IEC 60825-1:2007.

LASER RAOIATION, DO NOT STARE

INTO BEAM, CLASS 2 LASER

PROOUCT.

(For north America)

(For other regions)

CAUTION

LASER RADIATION DO NOT

STARE INTO BEAM

WAVELENGTH: 450~460 mm

PULSE DURATION: 1.09 ms

MAX OUTPUT: 0.119 mJ

CLASS II LASER PRODUCT

This product complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007.

LASER RADIATION DO NOT

STARE INTO BEAM

WAVELENGTH: 450~460 mm

PULSE DURATION: 1.09 ms

MAX OUTPUT: 0.119 mJ

CLASS 2 LASER PRODUCT

IEC/EN 60825-1:2007

for USA only

IEC/EN 60825-1:2014

IEC 6247I-5:2015 RG2

BenQ QSG-L890UST.book Page 2 Wednesday, April 18, 2018 8:18 AM

World Wide Region Japan Region

BenQ QSG-L890UST.book Page 4 Wednesday, April 18, 2018 8:18 AM

Remote control

OFF

COMPUTER 1

COMPUTER 2

COMPO 1

HDMI 1

HDMI 2

*1COMPO 2

AUTO

SOURCE

MENU/EXIT

ECO BLANK

MODE/ENTER

*2LASER

VOLUME +

VOLUME -

BRIGHT

CONTRAST

MUTE

LAMP MODE

Number keys

*3QUICK INSTALL

FREEZE

*1PIP

ASPECT

NETWORK SETTING

*1Not operational on this projector

*2No LASER key on Japan region’s remote controls

*3TEST key acts as QUICK INSTALL key on Japan region’s remote control

KEYSTONE / UP

World Wide Region Japan Region

KEYSTONE / LEFT

KEYSTONE / DOWN

KEYSTONE / RIGHT

BenQ QSG-L890UST.book Page 5 Wednesday, April 18, 2018 8:18 AM

14 5 8 8

3 3

BenQ QSG-L890UST.book Page 6 Wednesday, April 18, 2018 8:18 AM

Projection dimensions

• Installation distance D is measured from the projector rear side to the wall

surface, which is also indicated on the scale of the wall mount.

• Projection distance a is measured from the projector rear side to the projection

surface.

• Vertical offset V is measured from the bottom edge of the wall plate to the top

edge of screen.

30 mm

Scale value = D

Center Plate height 260 mm

With cover 269 mm

Ceiling height (H)

=30mm+ Plate

height +V+h+F

Thickness of the screen

Image center

BenQ QSG-L890UST.book Page 7 Wednesday, April 18, 2018 8:18 AM

Image adjustment area

LX890UST

The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio.

a. base on an image 762 mm from the floor, if the image is lower, the min ceiling height is reduced by the

measurement.

b. Assume the thickness of projection screen(X) is 0 mm.

c. Assume the thickness of projection screen(X) is 30 mm.

Screen size Minimum

Ceiling height

Ve r ti c al

offset Installation distance (D)

Diagonal (M) Height

(h)

Width

(W) HaVXb=0 mm

(D=a)

Xc=30 mm

(D=a+30 mm)

Inch mm (mm) (mm) (mm) (mm) (mm) (mm)

73 1854 1113 1483 2359 185.4 118 148

78 1981 1189 1585 2449 198.9 150 180

83 2108 1265 1687 2538 212.3 182 212

88 2235 1341 1788 2628 225.8 214 244

93 2362 1417 1890 2718 239.3 246 276

98 2489 1494 1991 2807 252.7 278 308

100 2540 1524 2032 2843 258.1 291 321

101 2565 1539 2052 2861 260.8 298 328

-1.5 cm +1.5 cm

+3.5 cm

-3.5 cm

BenQ QSG-L890UST.book Page 8 Wednesday, April 18, 2018 8:18 AM

LW890UST

The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio.

a. base on an image 762 mm from the floor, if the image is lower, the min ceiling height is reduced by the

measurement.

b. Assume the thickness of projection screen(X) is 0 mm.

c. Assume the thickness of projection screen(X) is 30 mm.

LH890UST

The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio.

a. base on an image 762 mm from the floor, if the image is lower, the min ceiling height is reduced by the

measurement.

b. Assume the thickness of projection screen(X) is 0 mm.

c. Assume the thickness of projection screen(X) is 30 mm.

All measurements are approximate and may vary from the actual sizes. BenQ

recommends that if you intend to permanently install the projector, you should

physically test the projection size and distance using the actual projector in situ

before you permanently install it, so as to make allowance for this projector's

optical characteristics. This will help you determine the exact mounting position so

that it best suits your installation location.

Screen size Minimum

Ceiling height

Ve r ti c al

offset Installation distance (D)

Diagonal (M) Height

(h)

Width

(W) HaVXb=0 mm

(D=a)

Xc=30 mm

(D=a+30 mm)

Inch mm (mm) (mm) (mm) (mm) (mm) (mm)

80 2032 1077 1723 2288 150 85 115

85 2159 1144 1831 2365 160 112 142

90 2286 1212 1939 2443 170 139 169

95 2413 1279 2046 2520 180 166 196

100 2540 1346 2154 2598 190 194 224

105 2667 1414 2262 2675 200 221 251

110 2794 1481 2369 2752 211 248 278

115 2921 1548 2477 2830 221 275 305

119 3023 1602 2563 2892 229 297 327

Screen size Minimum

Ceiling height

Ve r ti c al

offset Installation distance (D)

Diagonal (M) Height

(h)

Width

(W) HaVXb=0 mm

(D=a)

Xc=30 mm

(D=a+30 mm)

Inch mm (mm) (mm) (mm) (mm) (mm) (mm)

81 2057 1009 1793 2247 178 81 111

86 2184 1071 1904 2321 189 107 137

91 2311 1133 2015 2395 201 134 164

96 2438 1195 2125 2469 213 160 190

101 2565 1258 2236 2543 224 187 217

106 2692 1320 2347 2617 236 214 244

111 2819 1382 2457 2691 248 240 270

116 2946 1445 2568 2765 259 267 297

121 3073 1507 2679 2839 271 293 323

BenQ QSG-L890UST.book Page 9 Wednesday, April 18, 2018 8:18 AM

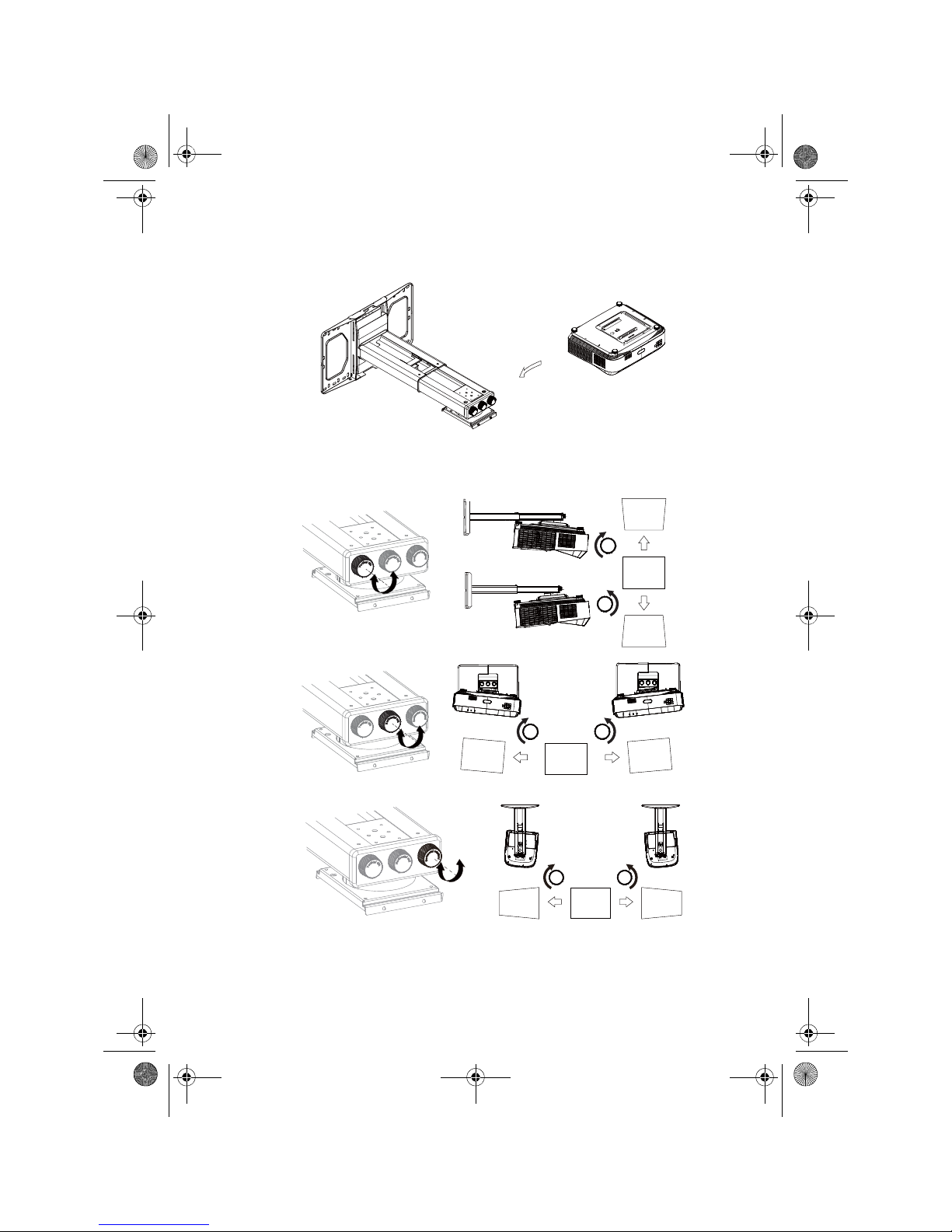

Mounting the projector

1. Slide the projector into the wall mount.

2. Adjust the Vertical Tilt/Horizontal Roll/Horizontal Rotation to adjust screen

alignment and image position.

Adjustment buttons

Adjustment

directions

Adjustment directions

BenQ QSG-L890UST.book Page 10 Wednesday, April 18, 2018 8:18 AM
