BenQ MX768 Bedienungsanleitung

Digital Projector

MX768/MW769

Table of contents2

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view.........................10

Controls and functions ..........................11

Positioning your

projector ..................... 16

Choosing a location................................16

Obtaining a preferred projected image

size..............................................................17

Connection ................. 20

Connecting a computer or monitor...22

Connecting Video source devices.......24

Operation ................... 27

Starting up the projector ......................27

Adjusting the projected image .............28

Using the menus......................................33

Securing the projector...........................34

Switching input signal .............................36

Magnifying and searching for details ...37

Selecting the aspect ratio ......................37

Optimizing the image .............................39

Setting the presentation timer.............43

Hiding the image......................................44

Freezing the image ..................................44

Operating in a high altitude

environment.............................................44

Adjusting the sound................................45

Personalizing the projector menu

display ........................................................46

Select the lamp saver mode..................46

Use Teaching Template......................... 47

Controlling the projector through a LAN

environment............................................. 48

Using the Web Control Lock.............. 57

Displaying image through Q Presenter ..

.................................................................... 58

Using the Projection Login Code ....... 61

Using the broadcassting function........ 62

Remote Desktop Control through Q

Presenter .................................................. 63

Presenting From a USB Reader...........64

Shutting down the projector ............... 66

Menu operation ...................................... 67

Maintenance ............... 83

Care of the projector............................ 83

Lamp information ................................... 84

Troubleshooting......... 91

Specifications.............. 92

Dimensions .............................................. 93

Ceiling mount installation..................... 93

Timing chart............................................. 94

Warranty and Copyright

information............... 101

Ta b l e o f c o n t e n t s

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire.

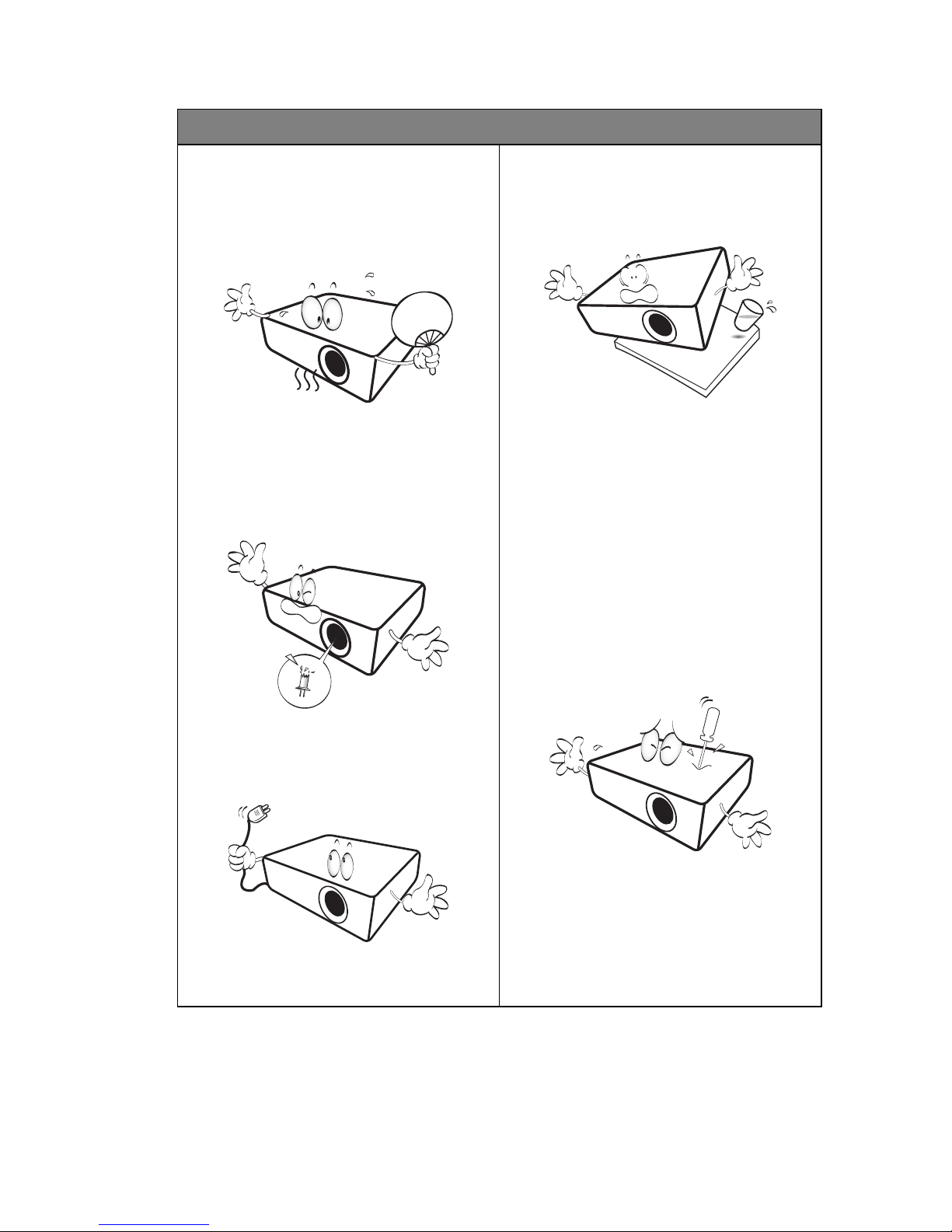

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

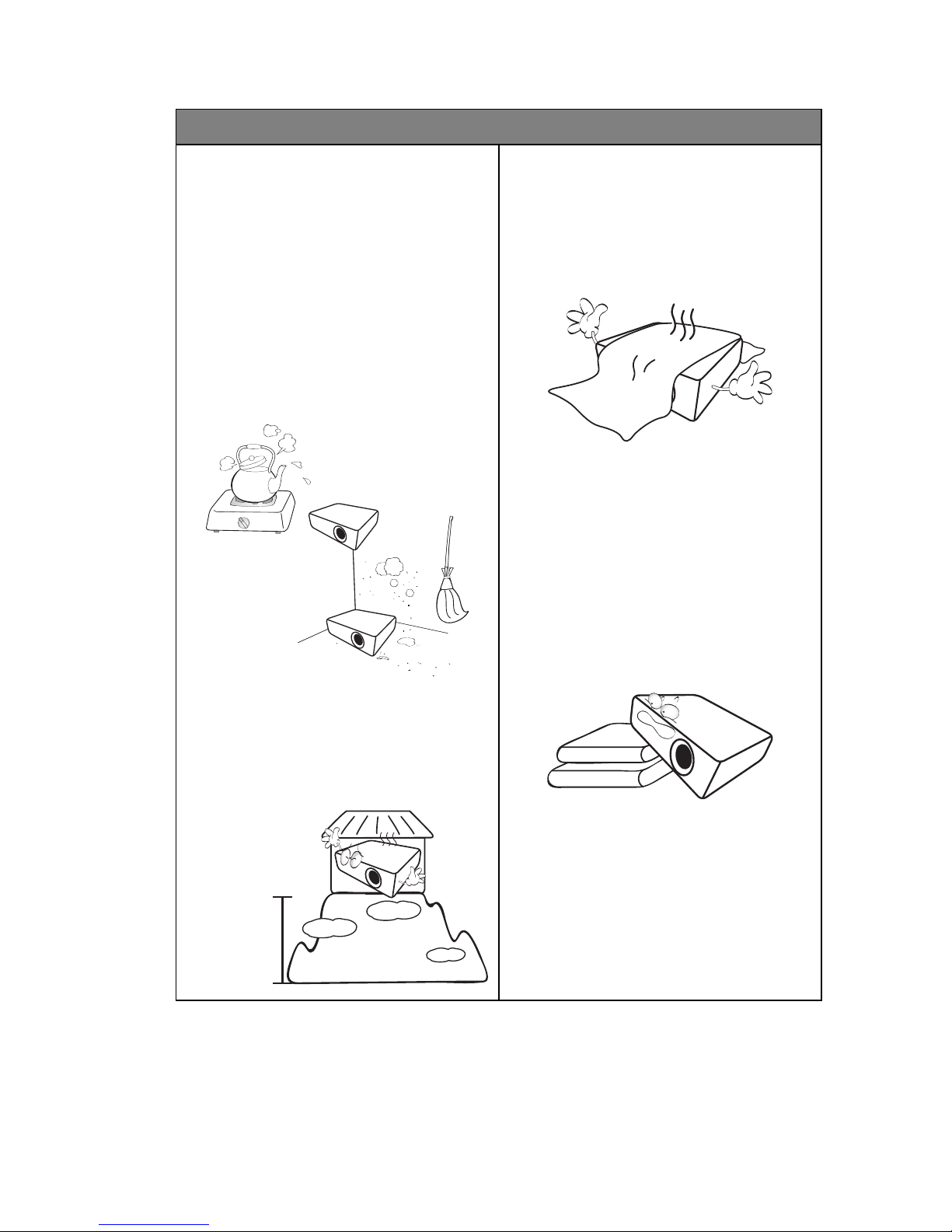

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around

the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span and

darkening the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

wall socket and call BenQ to have the

projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

Introduction 7

Introduction

Projector features

This model is one of the best projectors available in the world. You can enjoy the best

video quality across various devices such as PC, laptop, DVD and VCR even document

camera to bring all possibility to life.

The projector offers the following features.

• 2D keystone for easy horizontal and vertical keystone correction allows you to project

a rectangular image from any angle

• Corner Fit allows you to adjust four corners of the projected image

• Surface Fit allows you to adjust vertical and horizontal angles to make the projected

image fit in a concave or convex screen

• SmartEco™ starts your dynamic power saving

• LAN display for network control and web server

• LAN display 4-1 (maximum 4PC/ NB display to 1 projector)

• Remote desktop feature for LAN and USB display 1-M (maximum 1PC/ NB can display

to 8 projectors at the same time)

• USB display supports computer connection via USB mini-B to type A cable

• USB Reader supports USB flash drive or hard disk drive display

• Microphone input with big speaker (20W x 1) can save extra audio systems for schools

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• 3D color management allowing color adjusents to your liking

• Selectable quick cooling function makes the projector cool in a shorter time

• Presentation timer for better control of time during presentations

• One-key auto-adjustment to display the best picture quality

• Component HDTV compatibility (YPbPr)

• Less than 0.5 W power consumption in standby mode

• The apparent brightness of the projected image will vary depending on the ambient lighting

conditions, selected input signal contrast/brightness settings, and is proportional to

projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

projector Remote control or remote control without

laser (depending on region) & batteries

Power cord VGA cable

Quick start guide User manual CD

Warranty card*

Introduction 9

Optional accessories

1. Spare lamp kit

2. Ceiling mount kit

3. BenQ wireless dongle

4. carry bag

5. 3D glasses

Introduction10

Projector exterior view

1. External control panel

(See "Projector" on page 11 for

details.)

2. Lamp cover

3. Focus ring

4. Projection lens

5. Lens cover

6. Ventilation holes (intake)

7. Zoom slide lever

8. Front IR remote sensor

9. Quick-release button

10. Audio output jack

11. Audio input jack

12. Audio (L/R) input jack

13. S-Video input jack

14. RS-232 control port

15. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

16. HDMI input jack

17. USB type B jack

18. USB type A jack

19. RJ45 LAN input jack

20. Rear IR remote sensor

21. Ventilation holes (exhaust)

22. Speaker

23. Rear adjuster foot

24. USB mini-B jack

25. Kensington anti-theft lock slot

26. 12V DC output terminal Used to

trigger external devices such as

anelectric screen or light control,

etc. Consult your dealer for how to

connect these devices.

27. Ceiling mount holes

28. RGB signal output jack

29. AC power cord inlet

30. Video input jack

31. Microphone input jack

Front/upper side

11 18

14 17

272930

10 13 19 20

26 23

28 2531

Rear/lower side

Andere Handbücher für MX768

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BenQ Projektor Handbücher

BenQ

BenQ SP840 Bedienungsanleitung

BenQ

BenQ MP622 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ W1500 Gebrauchs- und Wartungshandbuch

BenQ

BenQ MS517 Bedienungsanleitung

BenQ

BenQ MW870UST Gebrauchs- und Wartungshandbuch

BenQ

BenQ PB8140/PB8240/PB8250 Bedienungsanleitung

BenQ

BenQ MS517 Bedienungsanleitung

BenQ

BenQ W5700S Bedienungsanleitung

BenQ

BenQ W703D Bedienungsanleitung

BenQ

BenQ I Series Bedienungsanleitung

BenQ

BenQ PB2140/PB2240 Bedienungsanleitung

BenQ

BenQ PB2120 - SVGA DLP Projector Bedienungsanleitung

BenQ

BenQ W7000 Bedienungsanleitung

BenQ

BenQ W10000/W9000 Bedienungsanleitung

BenQ

BenQ SP820 - XGA DLP Projector Bedienungsanleitung

BenQ

BenQ MX813ST Bedienungsanleitung

BenQ

BenQ SH915 Bedienungsanleitung

BenQ

BenQ RS232 Commands Bedienungsanleitung

BenQ

BenQ LU9255 Bedienungsanleitung

BenQ

BenQ Home Entertainment Series Bedienungsanleitung

BenQ

BenQ MS524AE Bedienungsanleitung

BenQ

BenQ MW814ST Bedienungsanleitung

BenQ

BenQ SH910 Bedienungsanleitung

BenQ

BenQ MU641 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
