BenQ treVolo U Kurzanleitung
1
BenQ treVolo U Firmware Upgrade User
Guide (Windows)
2
Firmware Upgrade Process Guide
The firmware of treVolo U can be upgraded through treVolo U updater v1.0.1.1
The updator is available in Microsoft Windows 10 platform or above. Below is the
procedures for firmware upgrade.
1. Download the treVolo U_updater-1.0.1.1 from BenQ official website.
Once downloaded, please decompress the file to get treVolo U_updater-1.0.1.1
Then please double-click the treVolo U_updater icon, which looks like the below
image.
2. Please double-click the installer to activate the firmware upgrade process;
please make sure that the battery level is at least or over 60% before upgrading
the firmware. As soon as the procedure is completed, the below screen will pop
up.
3
【 】 【 】 .

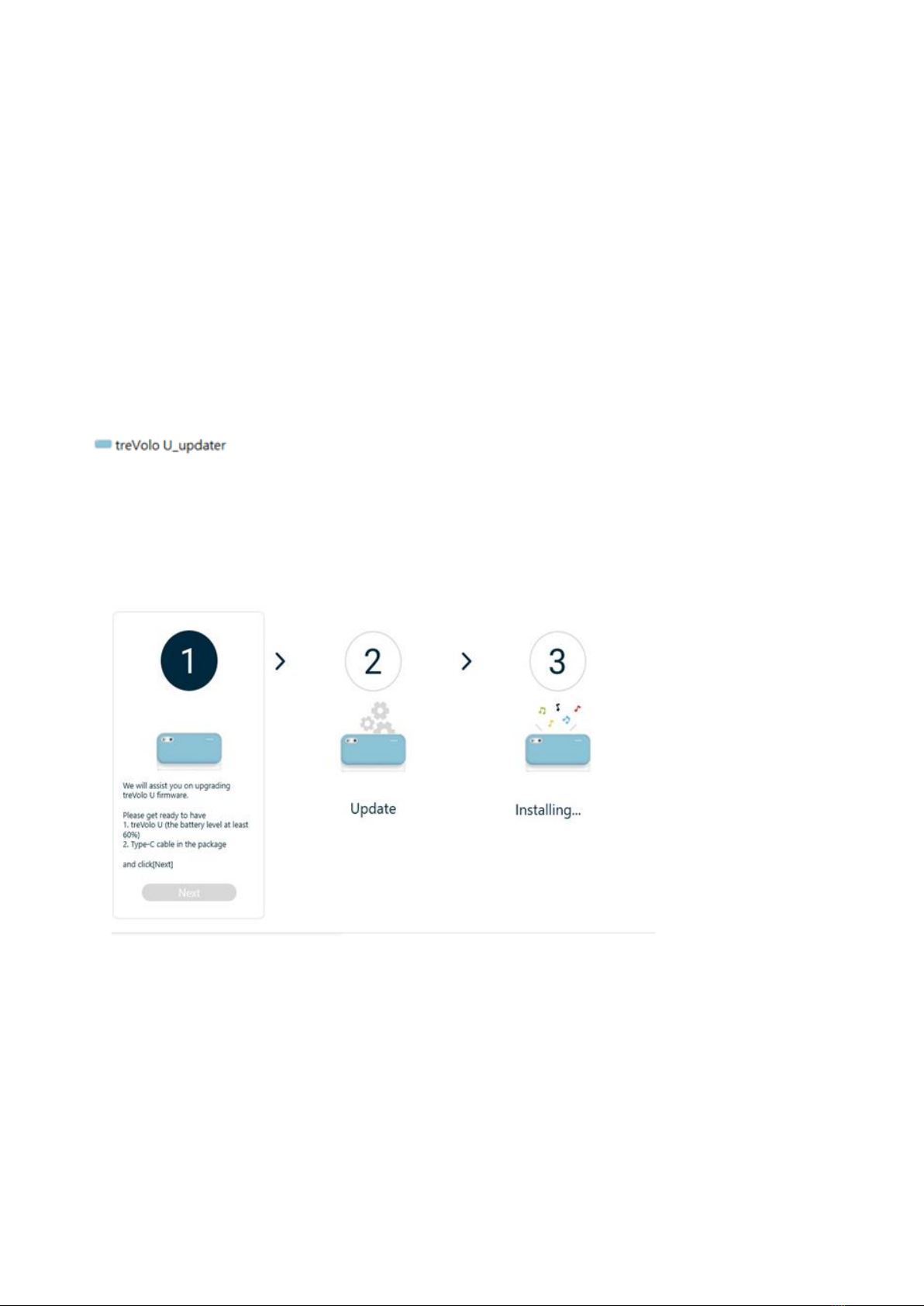

4. Press 【NEXT】and the below screen will pop up：
5. Now please connect treVolo U with your device via the Type-C cable that
comes with your package.
Next, follow the steps on the application interface like shown below:
4
6. Press 【Volume UP】button and 【Bluetooth】button at the same time, then
press 【Power】button to transform treVolo U into Firmware Upgrade Mode.

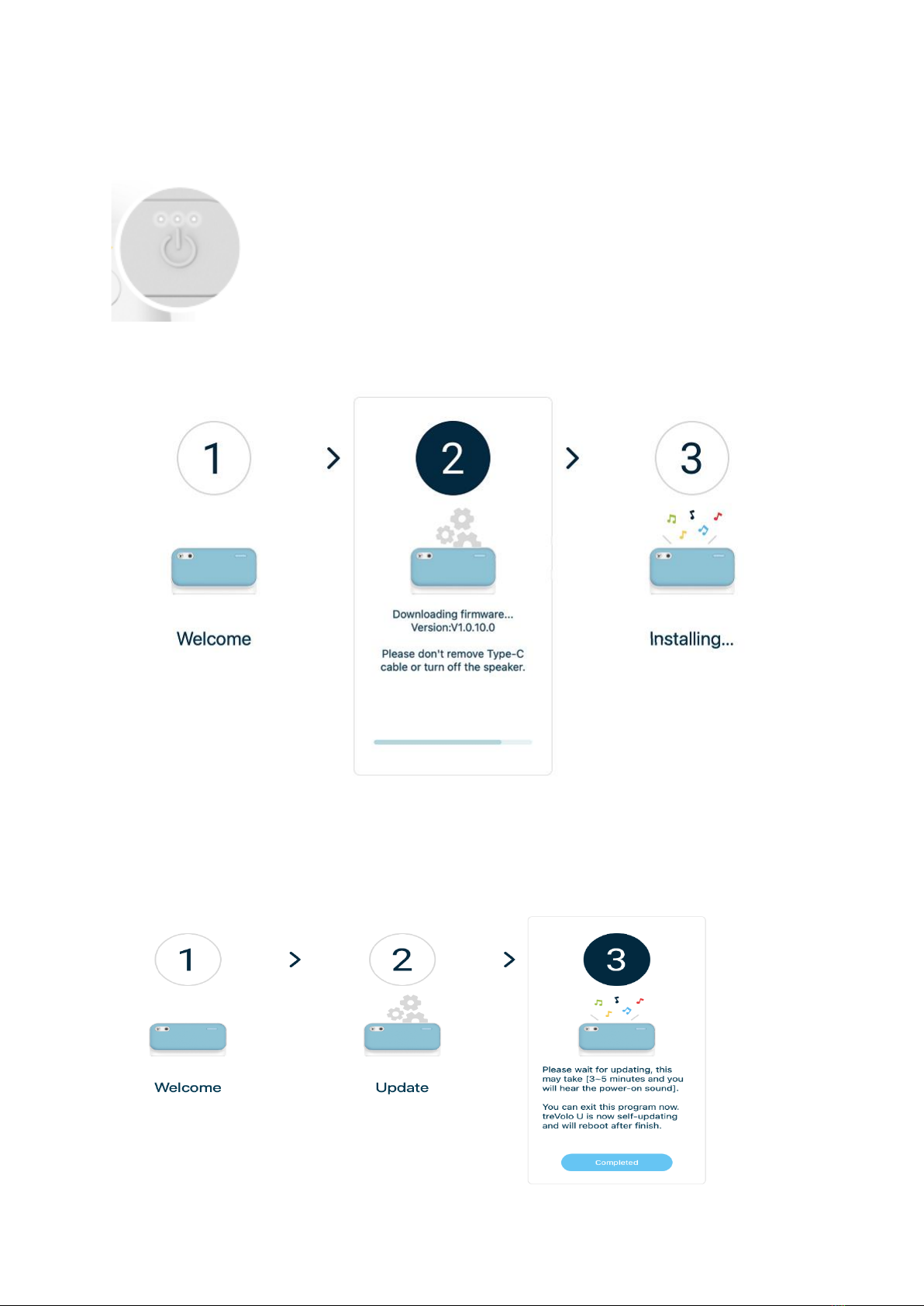

7. After transforming into Firmware Upgrade Mode, the three LED lights will spark
at the same time as the image below.
Now return to Application and press【update】.
8. If the firmware upgrade is successfully in process, the application interface
will look as the below image.
5
When the below screen pops up, the upgrading process is completed.
Please press 【Exit Program】and please wait for 3~5 minutes.
9. After the firmware is upgraded to the latest version in 3-5 minutes, you will
hear the turn-on sound from the speaker. The whole process is then
completed.
6
BenQ treVolo U Firmware Updater User
Guide(macOS)
7
Firmware updater macOS manual
treVolo U speaker can be updated via treVolo U_updater-1.0.0.4 program. The
task can be performed in MacOS platform. The followings are the detailed
procedures.
1. Please download the treVolo_U_updater v1.0.0.4 from BenQ official website.
2. After downloading, please unzip the .zip file by clicking the zip icon twice, and
the treVolo U updater will appear as the below file image.
3. Please double-click the folder icon, the treVolo U firmware updater will be
available and look as the below image.
4. Please make sure the battery level of treVolo U is at least or over 60% and take
the Type-C cable out from the package for further procedures.
8
5. Next, open the treVolo application to start the firmware update process. The
application interface will look as the below image when you open it.
Then select【English】as the firmware language:
9
6. Then use the Type C cable to connect treVolo U speaker with your device, and
follow the shown instruction on the screen:
Connect the Speaker with macOS system as the following image:
10
7. After transforming into Firmware Upgrade Mode, the three LED lights will spark
at the same time as the image below.
8. Please return to the treVolo U updater, and if the firmware upgrade is
successfully in process, the application interface will look as the below image.
9. After the firmware is upgraded to the latest version in 3-5 minutes, you will
hear the power-on sound from the speaker. The whole process is then
completed.
