BENSON OUH Series Kurzanleitung

WARNINGS

Installation of Benson Equipment must be carried out in accordance with the current IEE

wiring regulations (BS 7671), BS 6896 (Industrial & Commercial) and any other relevant

British Standards and Codes of Practice by a qualified installer. All external wiring MUST

comply with the current IEE wiring regulations.

WIRING DIAGRAM MANUAL FOR

BENSON OUH OIL FIRED HEATER

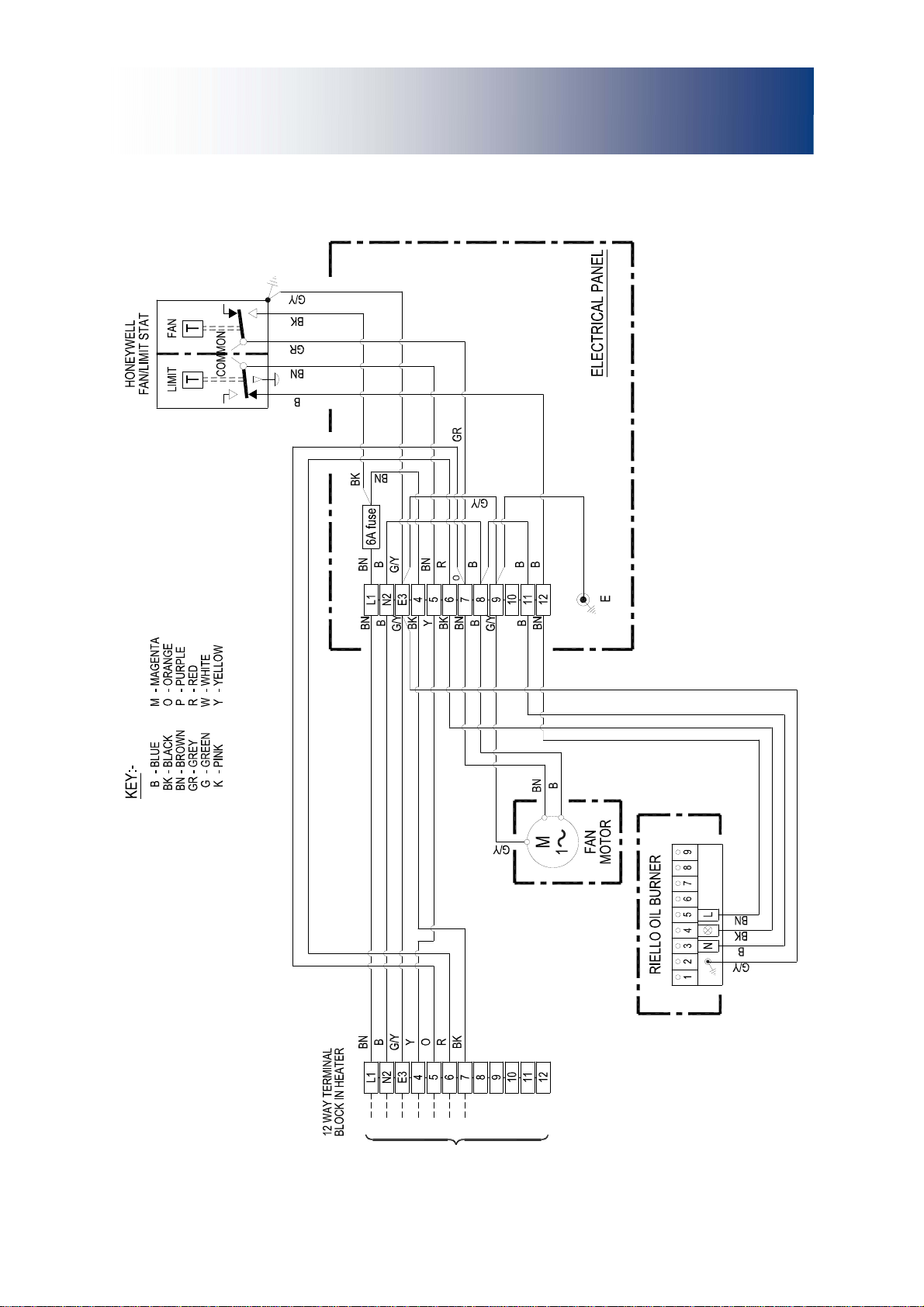

Wiring Diagrams - OUH Oil Fired Unit Heaters

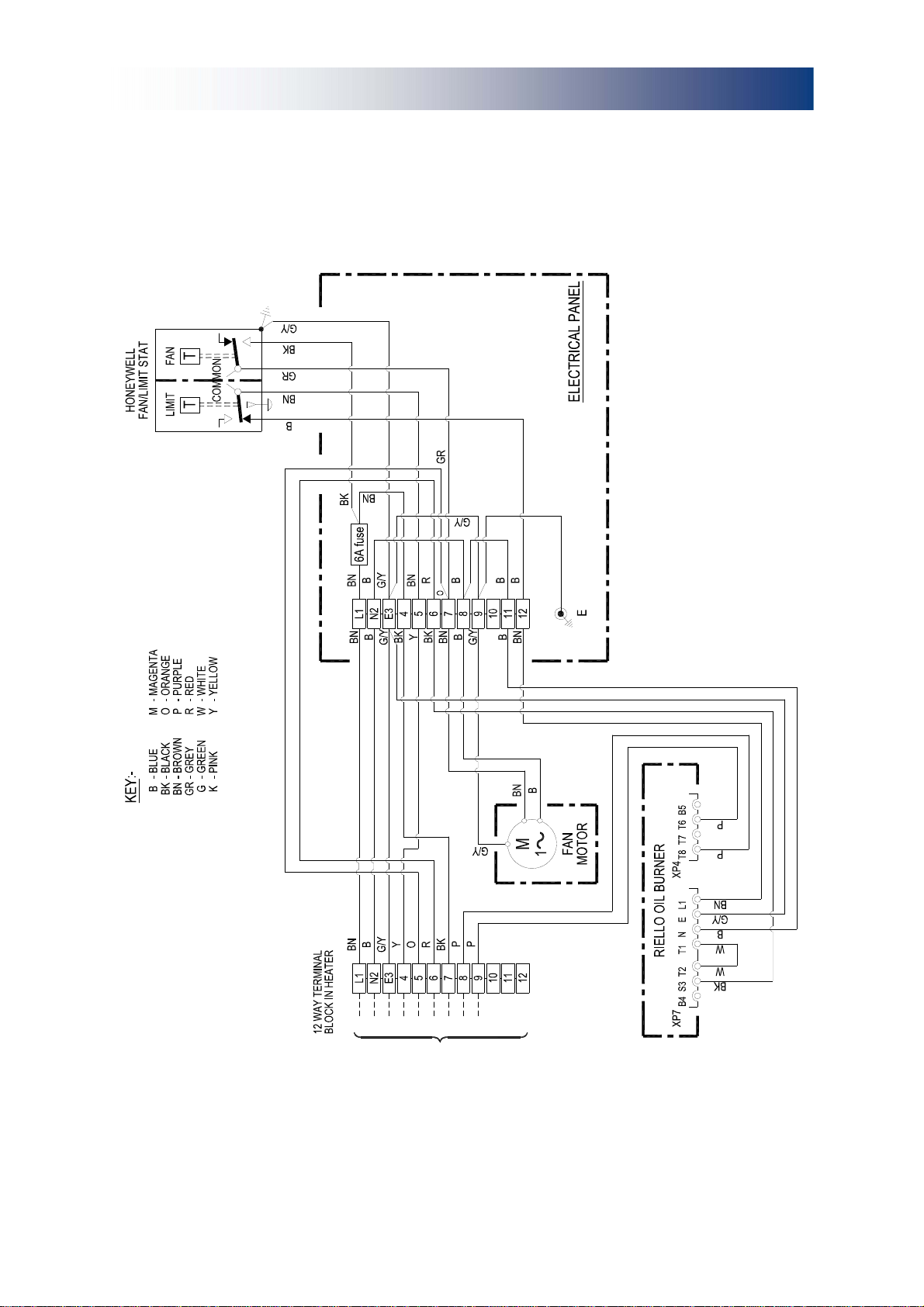

Internal Wiring Diagram 33-65-100

OUHA 100-140 ON/OFF Riello Oil Fired Burner

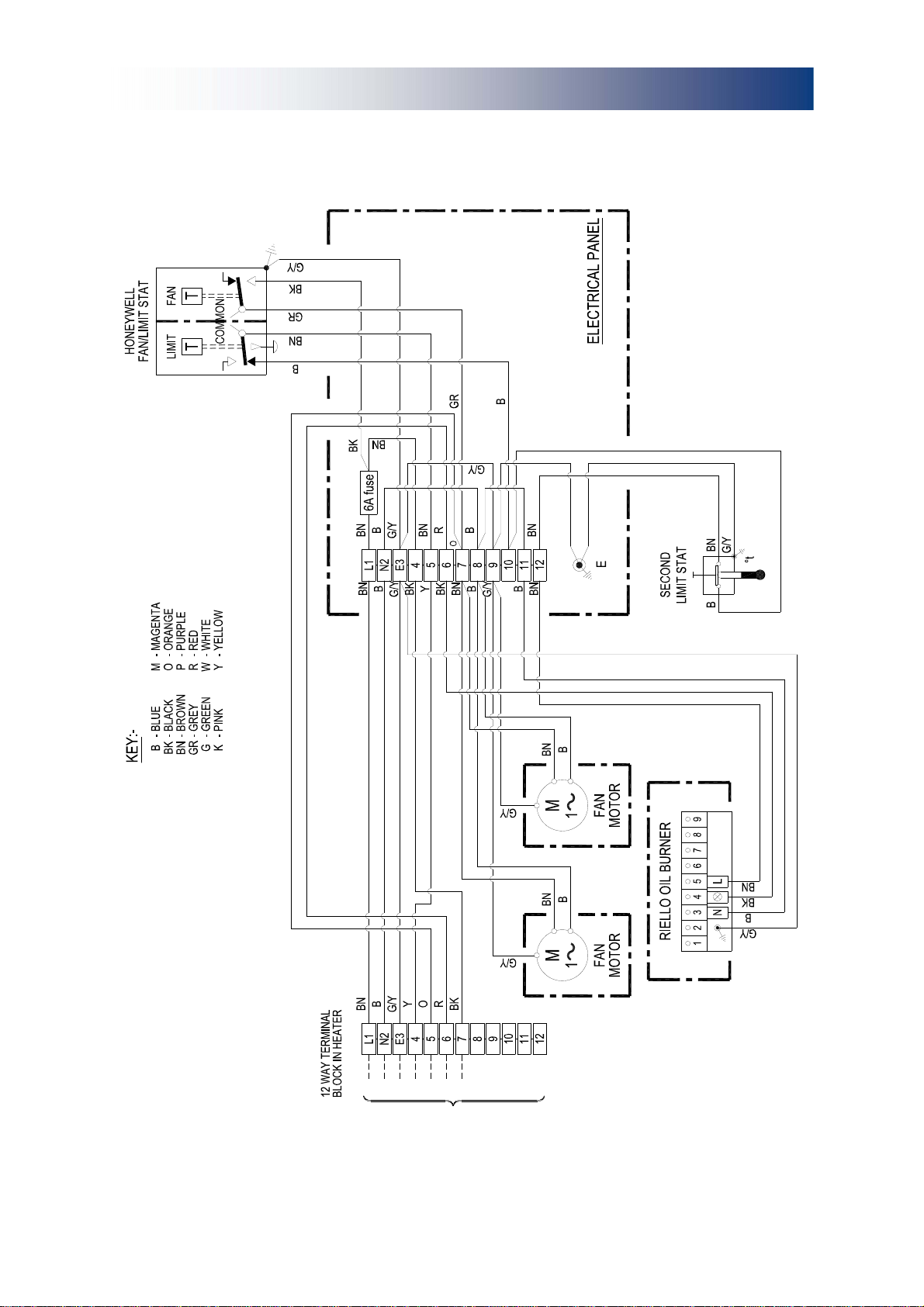

Internal Wiring Diagram 33-65-106

OUHA 200-350 ON/OFF Riello Oil Fired Burner

Internal Wiring Diagram 33-65-107

OUHA 100-140 HI/LOW Riello Oil Fired Burner

Internal Wiring Diagram 33-65-108

OUHA 200-350 HI/LOW Riello Oil Fired Burner

Internal Wiring Diagram 33-65-191

OUHC 200-350 ON/OFF Riello Oil Fired Burner

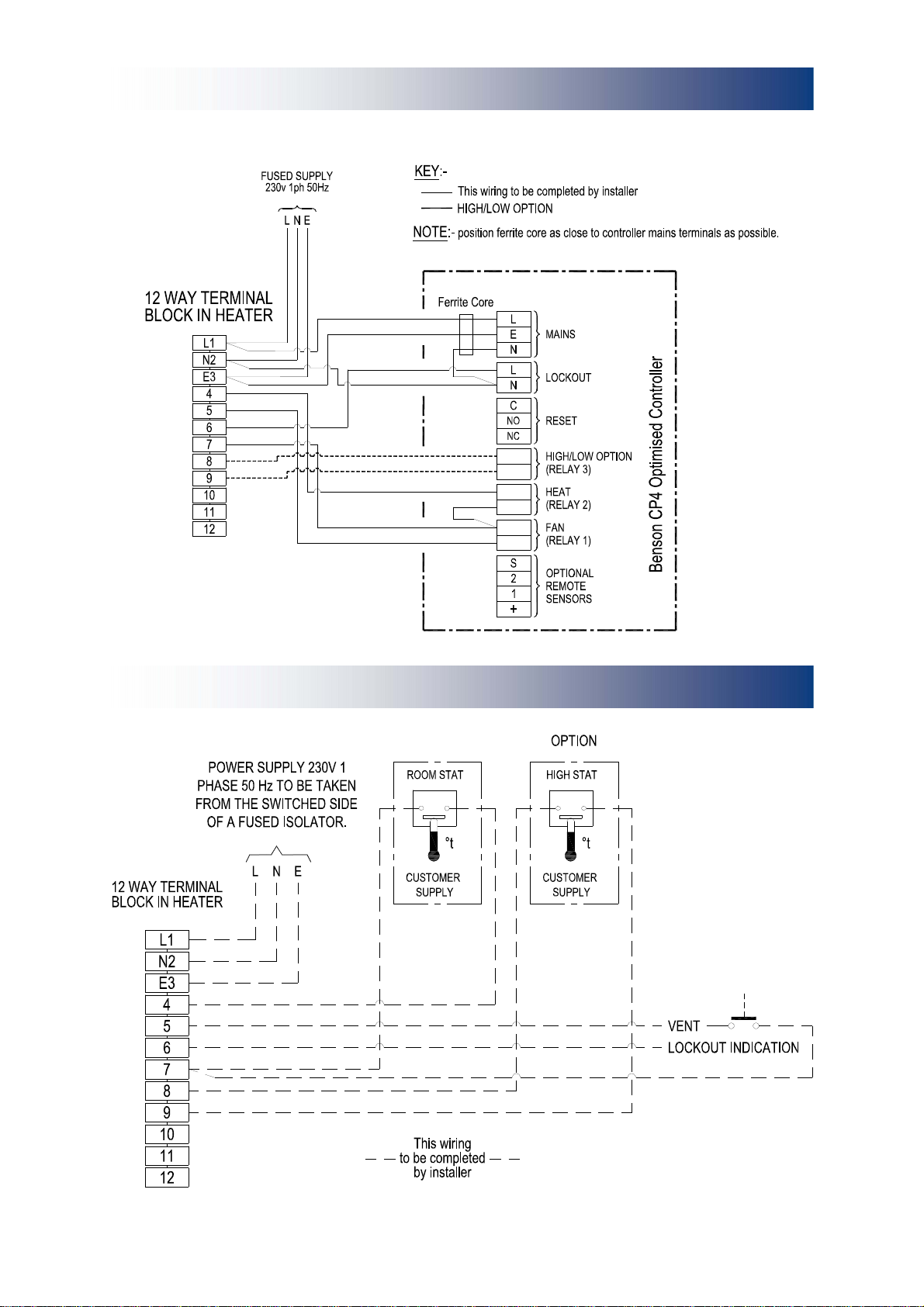

Remote Connections 33-65-228

ON/OFF (HI/LOW) Less Controls

Remote Connections 33-65-131

ON/OFF (HI/LOW) to CP4

Remote Connections 33-65-130 HI/LOW to CP2OU

Remote Connections 33-65-102 ON/OFF to CP2OU

Remote Connections 33-65-229

HI/LOW to SmartCom SC3-MZ

Remote Connections 33-65-228

ON/OFF to SmartCom SC3-SZ

Benson Heating Ludlow Road Knighton

Powys LD7 1LP United Kingdom.

Telephone 01547 528534

Facsimile 01547 520399

Email [email protected]

Website www.bensonheating.co.uk

Benson Heating Ltd is a registered trademark of AmbiRad Limited. Because of continuous product

innovation, Benson Heating reserve the right to change product specification without due notice.
