BETTENERGY ELESHELL-6.1 Bedienungsanleitung
User Manual ELESHELL
User Manual
Model:
ELESHELL-6.1/9.6/10.2/14.3K
ELESHELL User Manual
Contents
1 General Information............................................................................................................................. 4
1.1 Validity.................................................................................................................................. 3
1.2 Intended Use.......................................................................................................................... 3
1.3 Product Identification.............................................................................................................4
2 Safety Measures.................................................................................................................................. 6
3 Technical Data......................................................................................................................................7
4 Technical Items.................................................................................................................................. 10
5 Product Overview....................................................................................................................... 11
5.1 Product Introduction......................................................................................................... 11
5.2 Interface Introduction........................................................................................................11
5.2.1 "Start" Button..........................................................................................................12
5.2.2......................................................................................................................................12
5.2.3 COM1 port.............................................................................................................. 13
5.2.4 COM2 port................................................................................................................. 14
6 Installation Guide..................................................................................................................... 14
6.1 Inspection before Installation.......................................................................................... 14
6.1.1 Checking Outer Packing.......................................................................................15
6.1.2 Checking Accessories...........................................................................................15
6.2 Tools................................................................................................................................... 18
6.3 Installation Requirements................................................................................................ 19
6.3.1 Installation environment requirements................................................................19
6.3.2 Installation bracket requirements........................................................................ 18
6.4 Installation Instructions.....................................................................................................19
6.4.1 Overall Dimensions............................................................................................... 19
6.5 Cable Connect..................................................................................................................... 22
7 Cleaning & Maintenance..................................................................................................26
7.1 Cleaning................................................................................................................................ 26
7.2 Maintenance.........................................................................................................................26
7.2.1 Recharging requirements during normal storage................................................ 26
7.2.2 Recharging requirements for over discharged.................................................. 27
8 Common Issues & Solutions..................................................................................................28
8.1 Common Issues & Solutions........................................................................................... 28
8.2 Emergency.........................................................................................................................30
8.3 About Battery System......................................................................................................... 30
ELESHELL User Manual
1 General Information
1.1 Validity
This user manual is applicable to ELESHELL6.1/9.6/10.2/14.3K
This manual contains ELESHELL6.1/9.6/10.2/14.3K information, usage, guidance,
safety information, installation guide and details on common operation issues
and subsequent maintenance measures.
1.2 Intended Use
ELESHELL6.1/9.6/10.2/14.3K is an energy storage unit，that is designed
for residential application scenarios with the capability of short-term backup.
Notes:
ELESHELL6.1/9.6/10.2/14.3K is not suitable for supporting life-sustaining
medical devices. This product is intended for used only in accordance with
the information provided in the enclosed documents and applicable local
standards and regulations. Any other use may result in personal injury or
property damage. The illustrations in this manual are only intended to help
explain the concept of the system configuration, including use guidelines,
safety precautions, common operating problems, and subsequent battery
maintenance.
This manual introduces the ELESHELL6.1/9.6/10.2/14.3K battery products.
Please read this manual carefully before using the battery. For any questions,
please contact BSD immediately for advice and clarification.
Alterations to the product, e.g. changes or modifications, are only
permitted with the express written permission of BSD. Unauthorized changes
will not be allowed by warranty claims. BSD shall not be liable for any
damage resulting from such changes. Any use of the product other than
described in the intended use section does not qualify as appropriate. The
enclosed documentation is an integral part of this product. Please keep the
documentation in a safe and convenient place for future reference.
ELESHELL User Manual
Product model labels (see Section 1.3) must be attached to the product.

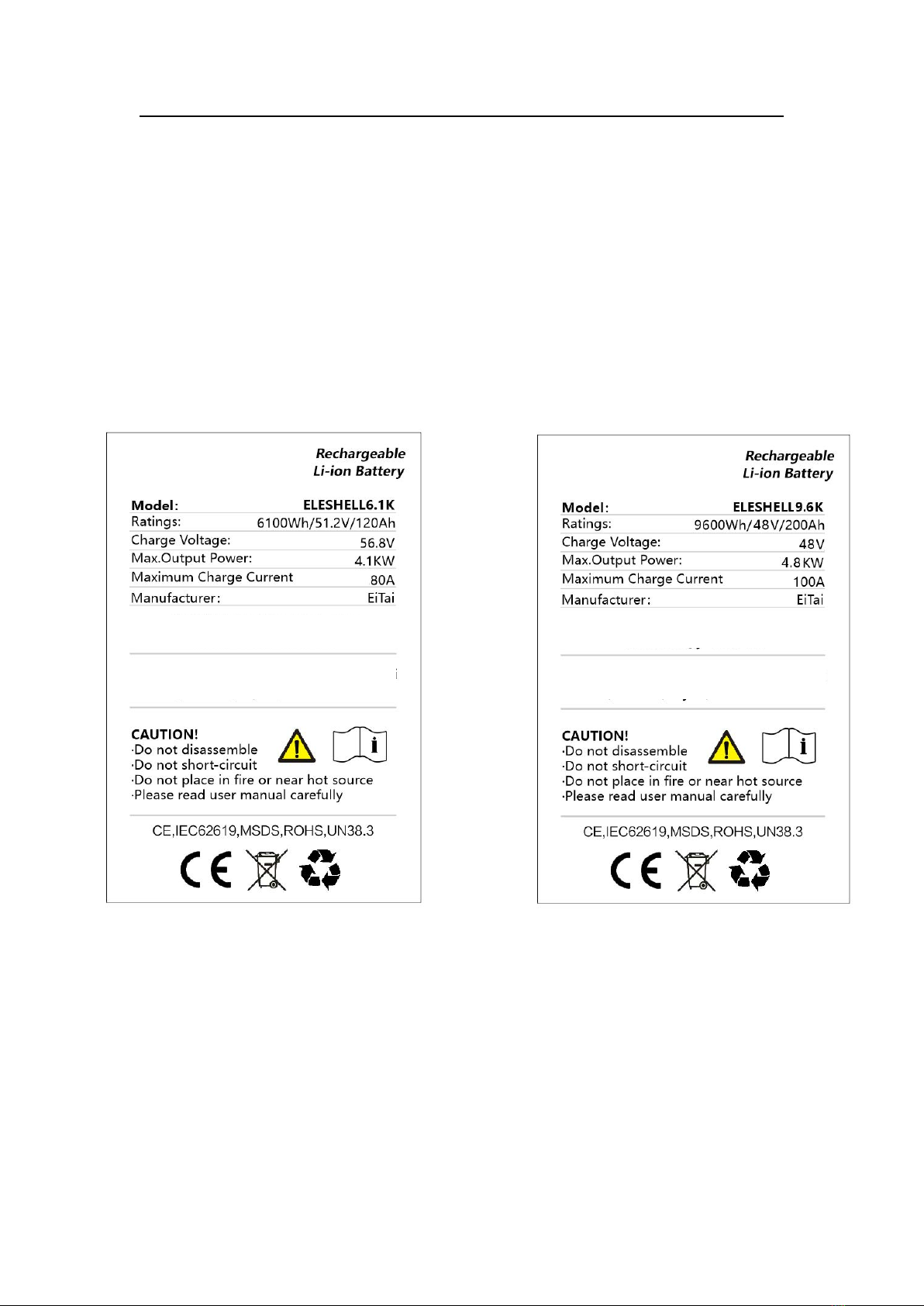

1.3 Product Identification
The type labels were attached on the product, which contain the product
identification information. For safe usage, the user must be well-informed of
the contents in the type labels.
The Labels include:
ELESHELL User Manual
ELESHELL User Manual
2 Safety Measures
This section contains safety information that must always be observed when
using or installing batteries. To prevent personal injury or property damage and
ensure long-term operation of the batteries, please read this section carefully,
always Watch for warnings from all safety messages.
Environmental requirements:
1. Do not expose the battery to temperature above 50 °C;
2. Do not place the battery near any heat source;
3. Do not expose the battery to moisture or liquid；
4. Do not expose the battery to a corrosive gas or liquid；
5. Do not expose the battery to a combustible gas or liquid；
6. Do not expose the battery to direct sunlight for extended periods of time；
7. Battery power terminals are not allowed to contact conductive objects, such
as electric wires；
8. Place the battery in safe place that away from children and animals；
Operation Precautions:
1. Do not disassemble the battery；
2. Do not touch the battery pack with wet hands；
3. Do not smash, fall, or puncture the battery；
4. Do not reverse the polar series connection battery；
5. Do not short-circuit the terminal, and remove all metal jewelry items that
may produce a short-circuit before installation and repair；
6. Always handle the products in accordance with the local safety regulations；
7. Store and use the battery in the user's manual；
ELESHELL User Manual
8. Ensure reliable grounding；
9. Disconnecting all batteries to the wires before installation and repair；
10. Do not stack batteries outside the protective packaging during storage or
handling；
11. The stacking of packaging batteries shall not exceed the quantity specified
on the packaging；
12. Continued operation of a damaged battery may lead to dangerous situations,
causing serious injuries such as electric shock or combustion；
3 Technical parameters
Basic Parameters Technical Specification
Model ELESHELL
6.1 K
ELESHELL
9.6K
ELESHELL
10.2K
ELESHELL
14.3K
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4
Nominal Capacity (Ah) 120A.h 200A.h 200A.h 280 A.h
Nominal Voltage (V) 51.2V 48V 51.2V 51.2V
Total Energy 6100W.h 9600W.h 10240W.h 14336W.h
Depth of Discharge
（90%DOD）5490W.h 8640W.h 9216W.h 12902 W.h
Maximum Charging
Voltage (V) 56.8V
53.25V
56.8V 56.8V
End of Voltage (V) 49V
45.94V
49V 49V
Nominal charging
current (A)
80A
100A 100A 120A
Maximum Charging
Current (A)
80A
100A 100A 120A
Maximum
Charging Power
(W)
3072W 4800W 5120W 7168W
Working Humidity ≤95%rh
Store Humidity ≤95%rh
Working Altitude ≤2000m
Maximum number of
Parallel 16 pcs
Protection Level IP65
Net Weight (Kg) 60KG
78KG
80KG 120KG
Dimensions (mm) 422*867.5*118 509*871.7*133 509*871.7*133 412*750*235
Product Certificate CE,ROHS ,UN38.3,MSDS,
Circle Life ≥6000 Times，80%DOD /25℃/0.5C，60%EOL
Communication Port CAN，RS485，RS232
Operating temperature -10℃ ~ 55℃
Storage temperature
≤25℃，12 months；
≤35℃，6 months；
≤45℃，3months
Note: Operating current derating according to the cell voltage and temperature.
ELESHELL User Manual
4 Technical Items
No. Name Comment
1 Discharge Battery output power for load
2 Charge Put the electricity into the battery through the charger
3 Full Charge The battery is fully charged with 100% SOC.
4 Standby Ready for charging or discharging
5 Turn-off Turn-off battery output
6 SOC State of Charging (Useable Capacity)
7 Battery voltage Voltage between the battery B+ /B -
8 Single-string Voltage Single-cell voltage
9 Alarm Indicates that the battery is in an abnormal state
10 Protection Battery stops charging or discharging
11 Fault Battery or BMS is damaged and need to be replaced
12 Over discharged Battery is lack of electricity, and need to be
charged in time
ELESHELL User Manual
ELESHELL User Manual
5
Product Overview
5.1 Brief Introduction.
ELESHELL6.1K/9.6K/10.2K/14.3K is a lithium battery energy storage system with an
operating voltage range of between 49V~56.8V, it is used for household energy storage
applications, in cooperation with low voltage inverters to achieve home energy storage purpose.
ELESHELL6.1K/9.6K/10.2K/14.3K has a built-in B M S (Battery Management System)
which can manage and monitor cells information, including voltage, current and the
temperature. In addition, the BMS can balances battery charging to extend lifespan. BMS has
the protections including over-discharge, overcharge, over-current, high / low temperature, etc.
The system can automatically manage the charging status, discharge state, balance state. Multiple
batteries can be connected in parallel to expand storage capacity to meet larger capacity and
continuous power support time,ELESHELL6.1K/9.6K/10.2K/14.3K support up to 16 parallel
operations.

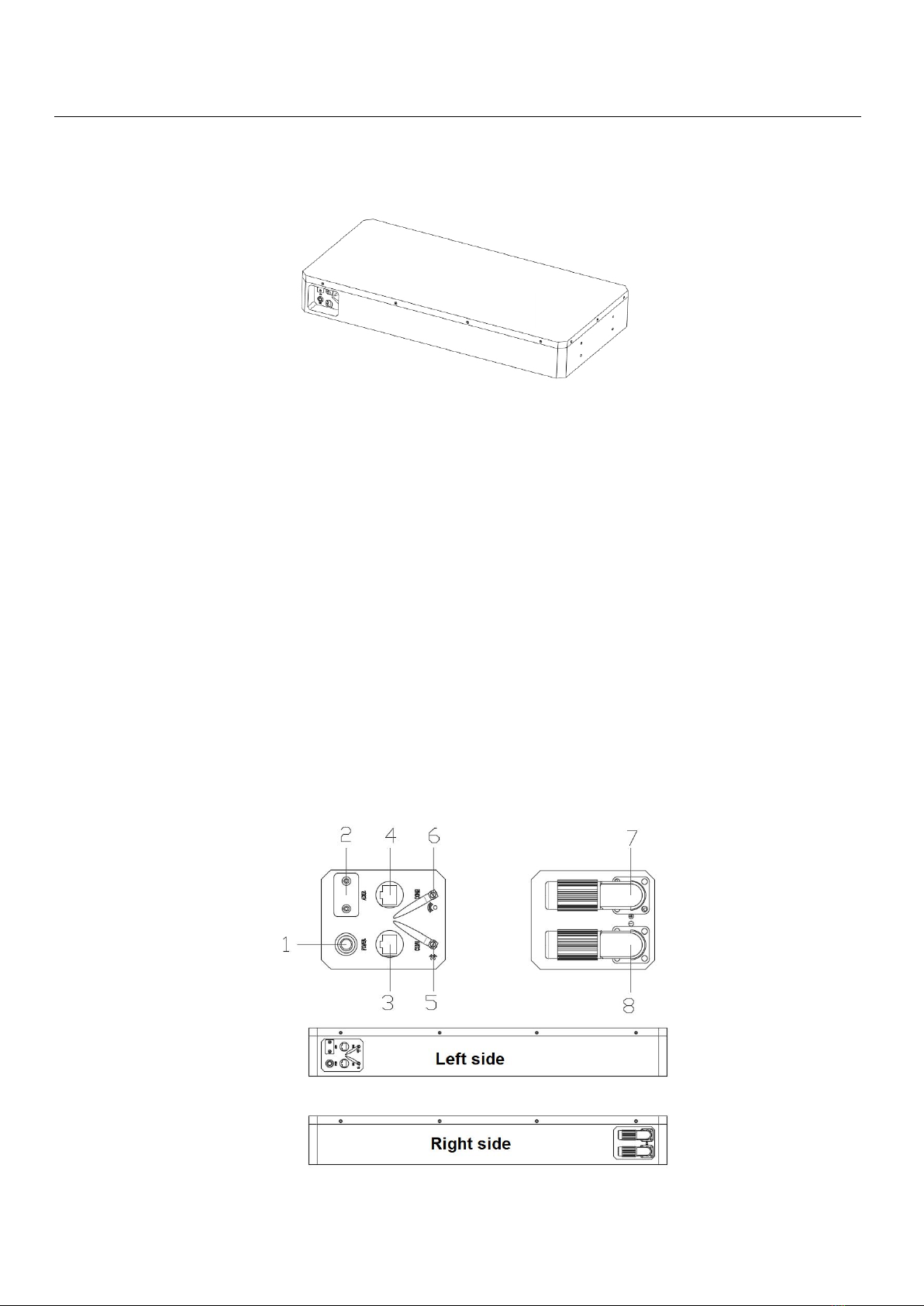

5.2 Interface Introduction
