BIG TREE TECH KNOMI 2 Bedienungsanleitung
KNOMI 2
VERSION 2024-01-05
WWW.BIGTREE-TECH.COM
REVISION LOG
2023.11
Version
v1.0
2024.01v1.2
Date
Original
Corrected: The direction of antenna pasting.
Revisions
The printed part for the StealthBurner Main Body for KNOMI 2 has been
updated to version 1.1. The gap has been increased to accommodate
the Orbiter V2.0 and prevent issues caused by printing tolerances.
Updated:
WWW.BIGTREE-TECH.COM
TABLE OF CONTENTS
Specifications
Performance Comparison Test
Install KNOMI 2 to StealthBurner 6
Adding Relevant Macros 13
Updating Firmware 16
KNOMI UI 19
3
Configuring WI-FI
Thanks for providing guidance on Voron's official style build guide.
TABLE OF CONTENTS
To Extrude and Retract Filament 20
To ABL/QGL/Homing 22
Nozzle/Bed Temperature Adjustment 23
Settings 26
Adjust KNOMI UI Colors 27
Adjust Backlight Brightness 29
Get Online Manual 29
Packing List 1
Overview 2
FAQ 31
KNOMI UI Status Icons 30
WWW.BIGTREE-TECH.COM
Specifications
Screen
Display Size
Display Area
Resolution
Viewing Angle
Backlight Brightness
Backlight Lifespan
Chip
Power Supply
Input
Logic Voltage
Rated Power
Communication & Memory
Communication
Screen Communication
Wireless Connectivity
Flash
PSRAM
Operating & Storage Conditions
Firmware Support
Operating Temperature
1.28 inches
32.4(H)mm x 32.4(V)mm
240 RGB × 240 dots
178°
400 Cd/m²
>20,000 hours
GC9A01
DC 5V 1A
DC 3.3V
5W
ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps), operating center frequency range: 2412 - 2484 MHz
SPI
Onboard 2.4GHz Wi-Fi + Bluetooth Low Energy (BLE) SoC IEEE 802.11 b/g/n (2.4GHz Wi-Fi) and Bluetooth 5 (LE)
16MB
8MB
Klipper
-20°C to 70°C
-30°C to 80°CStorage Temperature
MOUNTING PLATE
Before you start the assembly, we recommend preparing these two
printed parts in advance. The Mounting Plate is designed with a
snap-on feature due to size limitations and considerations for the air
duct design. This may cause some wear and tear through repeated
disassembling and reassembling. Hence, we suggest printing several
extra copies of this part for future use.
DOWNLOAD THE PRINTED PARTS
https://github.com/bigtreetech/KNOMI
PERFORMANCE COMPARISON TEST
DOES USING KNOMI 2 IMPACT YOUR STEALTHBURNER'S PERFORMANCE?
We have customized installation print parts for KNOMI 2, facilitating its easy installation into your Voron StealthBurner. In particular,
our StealthBurner Main Body not only retains the original fan positions but also incorporates a circular ventilation opening at the top,
enhancing compatibility and optimizing heat dissipation.
Mounting Plate
WWW.BIGTREE-TECH.COM
StealthBurner Main Body for KNOMI 2 v1.1
Wind Speed
Wind Speed
Wind Speed
Wind Speed
Wind Speed
Wind Speed
Acoustic Energy Level [dB]
Acoustic Energy Level
Streamlines 3
Acoustic Energy Level [dB]
Acoustic Energy Level
Streamlines 3

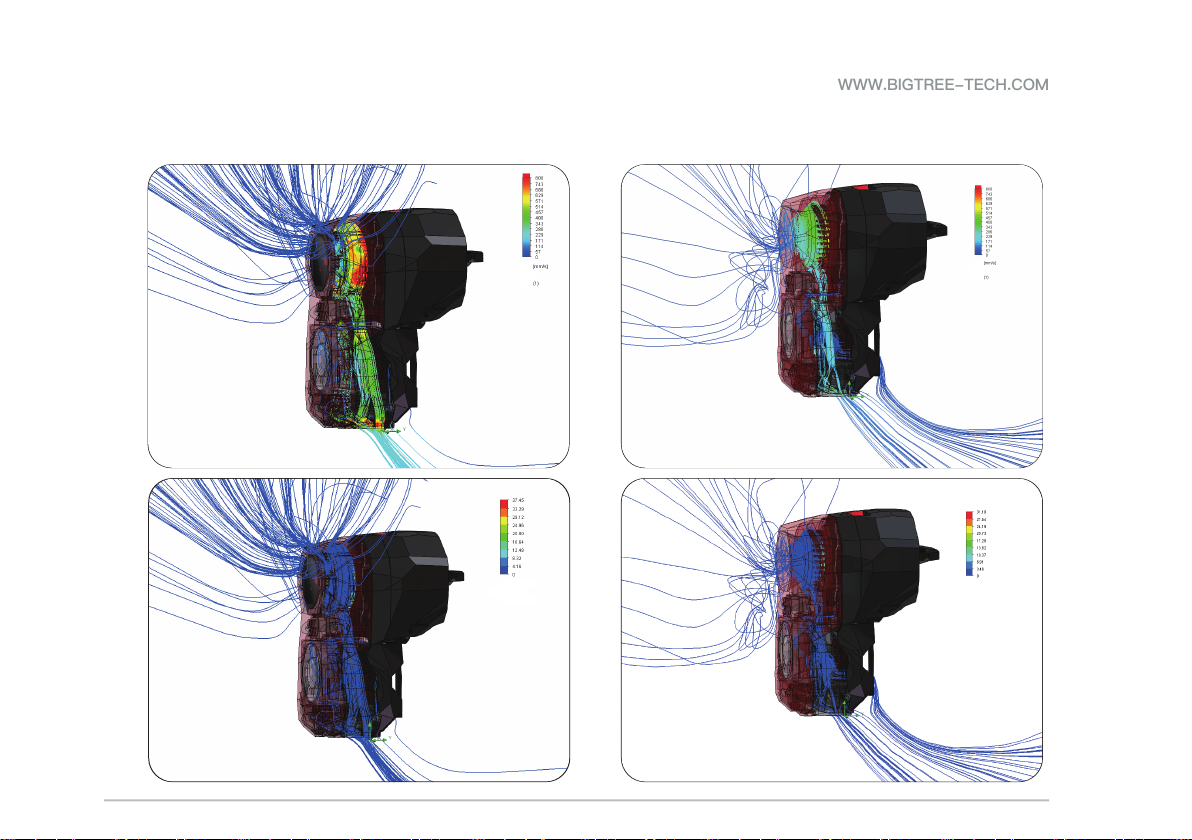

PERFORMANCE COMPARISON TEST
We conducted a comparative analysis measuring wind speed and acoustic energy levels between the original StealthBurner and our customized
version featuring vents and KNOMI 2 add-on. The results showed that both versions performed similarly, indicating that adding KNOMI 2 will not
compromise the performance of the StealthBurner.
WWW.BIGTREE-TECH.COM
Using our customized printed parts with KNOMI 2.
Using our customized printed parts with KNOMI 2.
Using the original version without KNOMI 2.
Using the original version without KNOMI 2.
1
PACKING LIST
KNOMI 2 1pc
CABLE ( ZH1.25 2-Pin to Dual DuPont 2.54 1-Pin )
1pc
WWW.BIGTREE-TECH.COM
ANTENNA 1pc
2
OVERVIEW
WWW.BIGTREE-TECH.COM
+
POWER IN
DC 5V
-
USB-C（UART TO USB）
DC 5V IN
BOOT
35.65mm
38.48mm
38.42mm
41.12mm
3
KNOMI 2 STARTUP
Power KNOMI 2 via the USB-C or ZH1.25 connector. On power up, KNOMI 2 will display the HELLO
interface indicating readiness for network configuration.
This interface appears in three cases: first boot, after factory reset, or if unable to connect to the
previously set Wi-Fi within 15 seconds of boot.
If KNOMI 2 is already installed in the StealthBurner but you need to switch
Wi-Fi networks, you can also press the BOOT button using a thin tool like a
hex key.
CONFIGURING WI-FI
WWW.BIGTREE-TECH.COM
Before initial setup and powering on, ensure the external antenna is connected.
After successful configuration, the antenna can be removed for installing in the
StealthBurner. Note that the antenna will need to be reattached per this manual's
instructions after final assembly.
4
WWW.BIGTREE-TECH.COM
CONNECTING TO KNOMI 2
Use a device that supports Wi-Fi to find and connect to
the “BTT-KNOMI” network.
Your browser will automatically open up the configuration page. If it does not
redirect automatically, you can manually enter "http://knomi.local" in your
browser to access it.
Enter the printer‘s IP address, and then
click the Submit button.
In the SSID box, select the Wi-Fi name that
the printer is connected to. After entering
the password in the pop-up dialogue box,
click the Connect button.
Once you see the word "connected"
appear under STATUS, this indicates
a successful network connection.
Approximately 10 seconds later, KNOMI 2 will switch to the main interface.
1
2
3
CONFIGURING WI-FI
