BIGBIG WON CHOCO Bedienungsanleitung

Wireless Game Controller

CHOCO

产品手册 / 取扱説明書

PRODUCT MANUAL

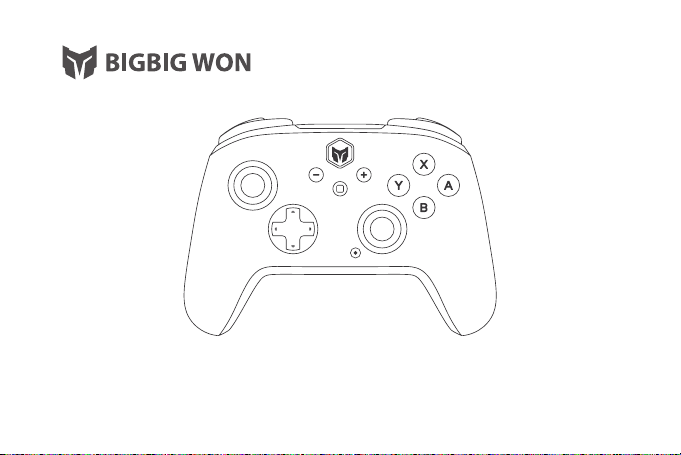

NAME OF EACH PART

Channel light

Home Screenshot

A/B/X/Y

Right joystick

Left joystick

D-pad

Type-C Cable

This controller supports real-time adjustment of various parameters through our mobile APP,

which is simpler and more intuitive.

Apple users can download it by searching "BIGBIG WON TOOLS" in APP Store;

Android users can get the APP installation package from the ofﬁcial website:

https://www.bigbigwon.com/support/controller/choco-app/

APP DOWNLOAD

Press HOME button for 3 seconds to turn on/off the controller.

TURN ON/OFF

There are two connection methods for this contoller, Bluetooth connection and wired connection. The connection

methods are described as follows:

CONNECTION

CHOCO Wireless Controller*1 / User Manual *1 / After-sales Card *1 / Qualiﬁed Certiﬁcation *1 /

USB cable *1

Switch / win10/11 / Android / iOS

IN-THE-BOX

SUPPORTED

PLATFORM

This controller supports Switch and Xinput modes, you need to switch to the corresponding mode before

connecting with the game console, the settings are as follows:

1. Press and hold A+HOME for 3 seconds until the HOME indicator turns red, then it is in Switch mode.

2. Press and hold B+HOME for 3 seconds until the HOME indicator turns green, then it is in Xinput mode.

Note: When connecting to iOS and Android via Bluetooth, you must switch to Xinput mode.

MODE SWITCH

Bluetooth connection: After the controller is turned on, long press the pairing button on the top for 3 seconds, the

ﬁrst channel light will ﬂash fast, which means it enters the pairing mode, when the connection is completed, the ﬁrst

channel light will stays on.

(In Switch mode, there is a situation where two indicator lights are on at the same time. When the ﬁrst indicator light

is on, it means that the controller is connected to the game console. If there is a second or third indicator light also

lit at the same time, it means the controller is the second or third accessed controller on the game console.)

Wired connection: Use a Type-C cable to connect the controller to the game console.

Note: This controller supports Switch and Xinput modes, the default is Switch mode.

(When the controller is wire-connected to the Switch in Switch mode, you need to open "Settings - Controllers &

Sensors - Pro Controller Wired Communication")

This controller comes with two back buttons and supports setting mapping in the following ways:

Setting mapping: Short press FN + (M1/M2) and release it, FN indicator light breathes green to indicate that it enters

the mapping mode;

at this time, press the front button that needs to be mapped to M1/M2, FN indicator light turns green and blinks twice

to indicate that the mapping is complete.

Clear Mapping: Press and hold the "desired unmapped button (M1/M2)", double-click FN, and the FN indicator will

turn green and blink twice, which means that you have ﬁnished clearing the mapping of this button.

APP: The shortcut setting only supports mapping the value of the controller's buttons to the back buttons

(M1/M2), but you can modify all the buttons of the controller with the APP.

MAPPING

This controller supports setting turbo, and the supported buttons include A/B/X/Y/L/R/ZL/ZR a total of eight

buttons, and the setting methods are as follows:

Setting Turbos: Press and hold FN + "button to be set", the FN indicator will ﬂash orange, which means it is

turned on successfully.

When the turbo is triggered, the FN indicator will ﬂash according to the turbo frequency.

Clear Turbo: Press and hold the "button to cancel turbo", double click FN, the FN indicator light will ﬂash

orange twice, it means the turbo setting of this button has been cleared.

Turbo Frequency: Press and hold FN + ←to cycle between 5/s, 10/s and 20/s,default is 5/s.

TURBO

This controller supports recording macros, each set of macros must be bound to a back button (M1/M2) as

a trigger; the buttons that support recording are A/B/X/Y, ↑/↓/←/→, L/R/ZL/ZR, RS/LS, and the eight

directions of the joystick, and the settings are as follows:

Record a MACRO: Press and hold FN+ (M1/M2) for 3 seconds, the FN indicator light breathes blue to

indicate that you are in macro recording mode. Press the controller button to record, click FN when ﬁnished,

the FN indicator turns blue and ﬂashes twice to indicate the end of recording. While the macro is being

triggered, the FN indicator will blink blue until it ends.

Clear a MACRO: Press and hold the "button with macro (M1/M2) you want to cancel", double-click FN, and

the FN indicator will turn blue and ﬂash twice to indicate that the macro for this button is cleared.

APP: The shortcut setting only supports approximate macro recording, after downloading APP, you can edit

the macros through APP, such as the duration of each step and the interval time; meanwhile, APP can store

multiple sets of macros and generate a library, which can be selected and applied at any time.

MACRO RECORDING

APP: The shortcut setting only supports turbo setting for the eight buttons A/B/X/Y/L/R/ZL/ZR. After

downloading the APP, you can set the turbo setting for all buttons of the controller.

The default setting of this controller has a certain amount of joystick dead zone, users who have the need for

0 dead zone can press FN + press down left OR right joysticks (LS/RS) to switch the 0/10 dead zone of the

left and right joysticks respectively.

Note: If the joystick has 0 deadzone, it means higher control precision, but it will also lead to joystick drift

in games with no deadzone.

APP: The shortcut setting only supports the joystick dead zone 0/10 switching, after downloading the APP,

you can set the joystick dead zone in a more reﬁned way through the APP, and it also supports the settings

of joystick curve, dead zone compensation, and so on.

DEADZONE OF JOYSTICK

The controller has a joystick dynamic calibration technology, which will calibrate the joystick in real time by

comparing the center point of each joystick return; the joystick equipped with this technology can achieve

relatively equal drift in all directions.

(With a zero dead zone, the joystick will physically drift and there is no way to avoid it.)

If the joystick drifts severely (i.e. dynamic calibration does not take effect), or if it cannot be pushed to its

maximum value, you can try to calibrate the joystick manually by doing the following:

1. Press and hold the + and - buttons simultaneously for 3 seconds, the FN indicator light breathes orange to

indicate that it is in calibration mode.

2. Push the joystick to the limit and turn it in an even circle, repeat 3-5 times.

JOYSTICK CALIBRATION

When the controller's gyroscope drifts, you can try to calibrate the gyroscope as follows:

1. Place the controller horizontally on the desktop and press the + and Screenshot button at the same time,

the FN button indicator will breathe purple, which means it enters the calibration mode.

2. Wait for a few moments for the FN button indicator to double ﬂashin purple, which means the calibration is

complete.

GYROSCOPE CALIBRATION

This controller supports vibration adjustment in the following way:

Press FN + →to cycle the vibration of the motor to strong, medium, weak and off.

VIBRATION ADJUSTMENT

When the battery is too low, the FN indicator light turns red and continues to ﬂash slowly.

After connecting to the power supply, the FN indicator turns red and breathes, indicating that it is charging, and

returns to its original state when the battery is full.

BATTERY

3. Short press the + button and - button at the same time, the FN indicator ﬂashes twice and then goes out,

calibration is complete.

If the controller is misconﬁgured or functions abnormally, you can try to reset it to restore it in the following way:

Press and hold the HOME button for 10 seconds until the controller vibrates, indicating that the reset is complete.

RESET

12-month limited warranty from the date of purchase.

WARRANTY

WELCOME TO THE BIGBIGWON COMMUNITY

The BIGBIG WON community is built to connect those who seek the winning edge. Join us Discord and

Follow our social channels for the latest offerings, exclusive event coverage, and opportunities to score

BIGBIG WON hardware.

BIGBIG WON DISCORD

@BIGBIG WON
