BILT HARD TL-LB-52BP Bedienungsanleitung

User Manual

Thank you for ordering our product. If you have any

issue, please email it and your order ID to

inquiry@bilthardusa.com or call (888) 680-2849.

our website: bilthardusa.com

Using tips: Video on YouTube

52cc Backpack Type

Gas Leaf Blower

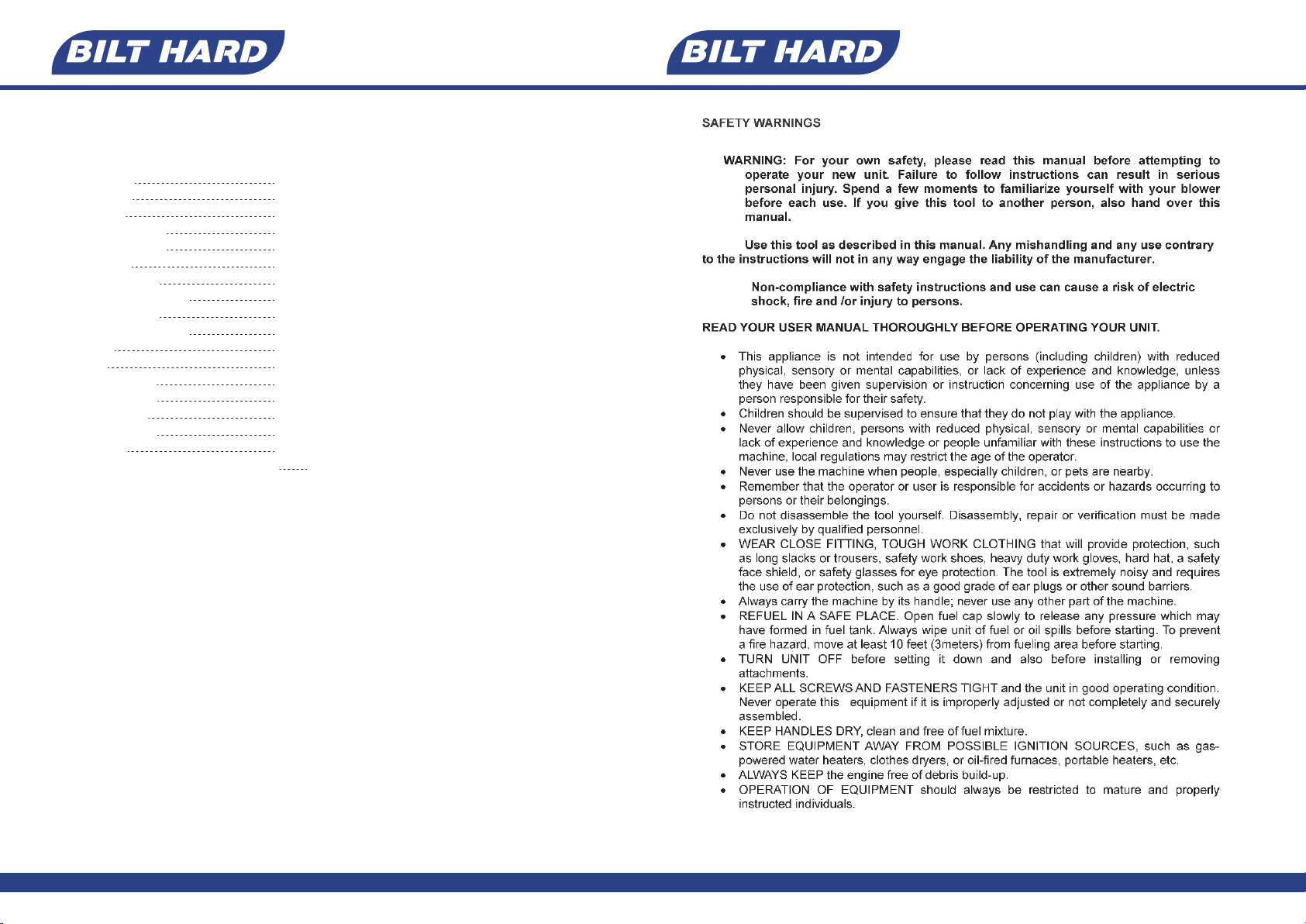

LIMITED 30 DAY WARRANTY

BILT HARD makes every eﬀort to assure that its products meet high quality and durability standards, and

warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 30 days from the date of purchase.

This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents,

repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to

lack of maintenance.

We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or

consequential damages arising from the use of our product. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.

This warranty is expressively in lieu of all other warranties, express or implied, including the warranties of

merchantability and ﬁtness. To take advantage of this warranty, the product or part must be returned to us.

Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our

inspection veriﬁes the defect, we will either repair or replace the product at our election or we may elect to

refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return

repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes

not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives

you speciﬁc legal rights and you may also have other rights which vary from state to state.

www.bilthardusa.com

(888) 680-2849

inquiry@bilthardusa.com

Model: TL-LB-52BPModel: TL-LB-52BP

Specifications

98.5 dB(A)K=3 dB(A)

TL-LB-52BP

73.62 inch

17.32 inch

18.74 lbs

Air cooled, two-stroke, single cylinder gasoline

52cc

Diaphragm

Flywheel magneto, capacitor discharge

L7RTC gap (0.02362~0.02756) inch

Spark arrestor muer

Mixed (gasoline and two-stroke oil)

40:1 high performance, two-stroke air

3000 rpm

7500 rpm

174.48 mph

636 cfm

1.45 kW

MODEL

Length

Width

Net weight

Engine type

Engine

Carburetor

Ignition system

Spark plug

Exhaust system

Fuel

Oil

Idle speed

Max speed

Air speed

Air volume

Power

Measured sound pressure level

Measured sound power level: 108.3 dB(A)K=3 dB(A)

Guarantee sound power level: 116 dB(A)

Vibration value: 13.76 ft/s² K=4.92 ft/s²

Model: TL-LB-52BPModel: TL-LB-52BP

1. Turn the switch to position I.

2. Pump the fuel by pressing the priming pump 8 times.

3. Toggle the choke lever upward.

4. Pull the starter 2-3 times.

5. Toggle the choke lever downward.

6. Pull the starter, machine start-up.

1. Switch on.

2. Toggle the choke lever downward.

3. Pull the starter, machine start-up.

Model: TL-LB-52BPModel: TL-LB-52BP

Fuel

Use a mixture of unleaded gasoline and 2-stroke engine oil for best results.

WARNING: Do not pour gasoline directly into the machine. This will cause

irreversible damage to the engine and will void the warranty. Do not use a fuel

mixture that has been stored for more than 90 days.

Oil / fuel mixture

First put oil in an approved container. Then add gasoline, and shake the

container to get a full mix. The oil / fuel ratio must be 40: 1.

Refueling

Open the fuel tank by removing its cap. Gently pour the fuel. Wipe oﬀ any

overﬂow. Then close the tank.

Model: TL-LB-52BPModel: TL-LB-52BP

①

②

③

④

⑤

⑥

⑦

⑧

⑨⑩⑪

⑫⑬⑭

⑮⑯⑰

⑱

1. Assemble straight pipe with swivel to the pipe (13).

2. Assemble ﬂexible pipe (13) to elbow (12) on blower.

3. Assemble clamps (A1 and B) onto both extremities and tighten.

4. Loosen wing nut (C) completely, install stick handle clamp (D).

5. Align notches (E) in handle clamp; stick handle should be angled away from

operator.

6. Slide the stick handle onto pipe (14).

7. Position the stick handle for comfortable operation and tighten wing nut(C).

8. Assemble the pipe (17) to the straight pipe (16), turning straight pipe

clockwise to lock in place.

9. Assemble straight pipe (16) to straight pipe (15) tightly.

10. Use a white nylon cable to tie the long cable to clamp A1.

TROUBEL SHOOTING GUIDE

ENGINE DOES NOT START

RemedyPossible CauseWhat To check

Contact with

dealer

Contact with

dealer

Re-ﬁll with fresh fuel

(2-cycle engine oil

and gasoline, 40 : 1)

Clear as required;

restart

Crank the engine with

plug removed, replace

the plug, and restart

Clean and regap the

plug to 0.6~0.7 mm

restart

Faulty recoil starter.

Fluid in the crankcase

Internal damage

Loose spark plug

Excess wear on

cylinder, piston, rings

Fuel/ mixture incorrect

stale, contaminated

Check for clogged fuel

ﬁlter and/ or vent.

If the plug is wet,

excess fuel may be

in the cylinder.

The plug may be fouled

or improperly gapped

Does the engine

crank?

Good

compression?

Does the tank

contain fresh fuel

of the proper grade?

Is fuel visible and

moving in the rectum

line when priming?

Check the spark

plug

Replace the plug with

a Champion RCY6J

Restart

The plug may be

damaged internally

or of the wrong size

TROUBEL SHOOTING GUIDE

LOW POWER OUTPUT

RemedyPossible CauseWhat To Check

Contact with

dealer

Operator is overworking

the machine

Contact with

dealer

Carburetor mixture is

too lean

Reﬁll with fresh fuel

of the correct mixture

2-cycle oil and gasoline

40 : 1 ratio

Improper fuel ratio

Clean, repair or replace

as necessary

Fan, fan over, cylinder

ﬁns dirty or damaged

Decarbonize

Carbon deposits on

piston or in the muﬄer

Service the air cleaner

Clogged air cleaner

element

Tighten or replace

loose or damaged

spark plug

Repair or replace

ﬁlter and/ or fuel line

Air leakage or clogged

fuel line

Drain the fuel dealer

replace the fuel

Water in the fuel

Contact with

dealer

Piston seizure

Contact with

dealer

Faulty carburetor and/

or diaphragm

idle engine until cool;

ﬁnd reason for overheat

Overheating condition

Check fuel octane rating;

check for presence of

alcohol in the fuel.

Refuel as necessary

Improper fuel

DecarbonizeImproper fuel

Is the engine

overheating?

Engine is knocking

Engine is rough

at all speeds. May

also have black

smoke and/ or

unburned fuel at

the exhaust.

Model: TL-LB-52BPModel: TL-LB-52BP

TROUBEL SHOOTING GUIDE

ADDITIONAL PROBLEMS

RemedyPossible CauseSymptom

Clean the element

Clogged air cleaner

element

Replace the fuel ﬁlter

as required

Clogged fuel ﬁlter

Contact with dealer

Carburetor mixture

too lean

Adjust: (2800~3000) rpmIdle speed set too low

Poor acceleration

Test and replace as

required

Ground (stop) wire is

disconnected, or switch

is defective

Correct plug:

Champion RCY6J

Overheating due to

incorrect spark plug

Idle engine until coolOverheated engine

Engine diﬃcult

to shut oﬀ

Tighten as requiredLoose bolt or fastener

Inspect and replace fan

as required

Warped or damaged

blower fan

Return blower to dealerEnternal engine damage

Excessive vibration

RefuelFuel tank empty

Clean or replace the

fuel ﬁlter as required

Clogged fuel ﬁlter

Drain，

replace with clean fuel

Water in the fuel

Clean and replace spark

tighten the terminal

Shorted spark plug or

loose terminal

Contact with dealerIgnition failure

Contact with dealerPiston seizure

Engine stops abruptly

Model: TL-LB-52BP
