FAUCET INSTALLATION CONT.
1. Select faucet location.
• Make sure the faucet is far enough away so not to interfere with the regular faucet or any other attachments.
• If mounting faucet on the countertop, make certain the spout of the faucet will reach over the sink.
• Check underneath the sink/countertop for any obstructions and for tool clearances required for mounting the faucet.
• Make certain the faucet will fit flat against the sink/countertop, so 1-7/8 inch rubber washer will seal against
chrome base plate and sink/countertop.
2. Mark the center of the faucet location.
CAUTION:To avoid possibly damaging sink and/or countertop, consult a qualified plumber or installer,
special tools may be required for drilling porcelain, stainless steel, tile, etc.
3. Using appropriate tools for particular sink or countertop construction, make a 1/2 inch diameter mounting hole.

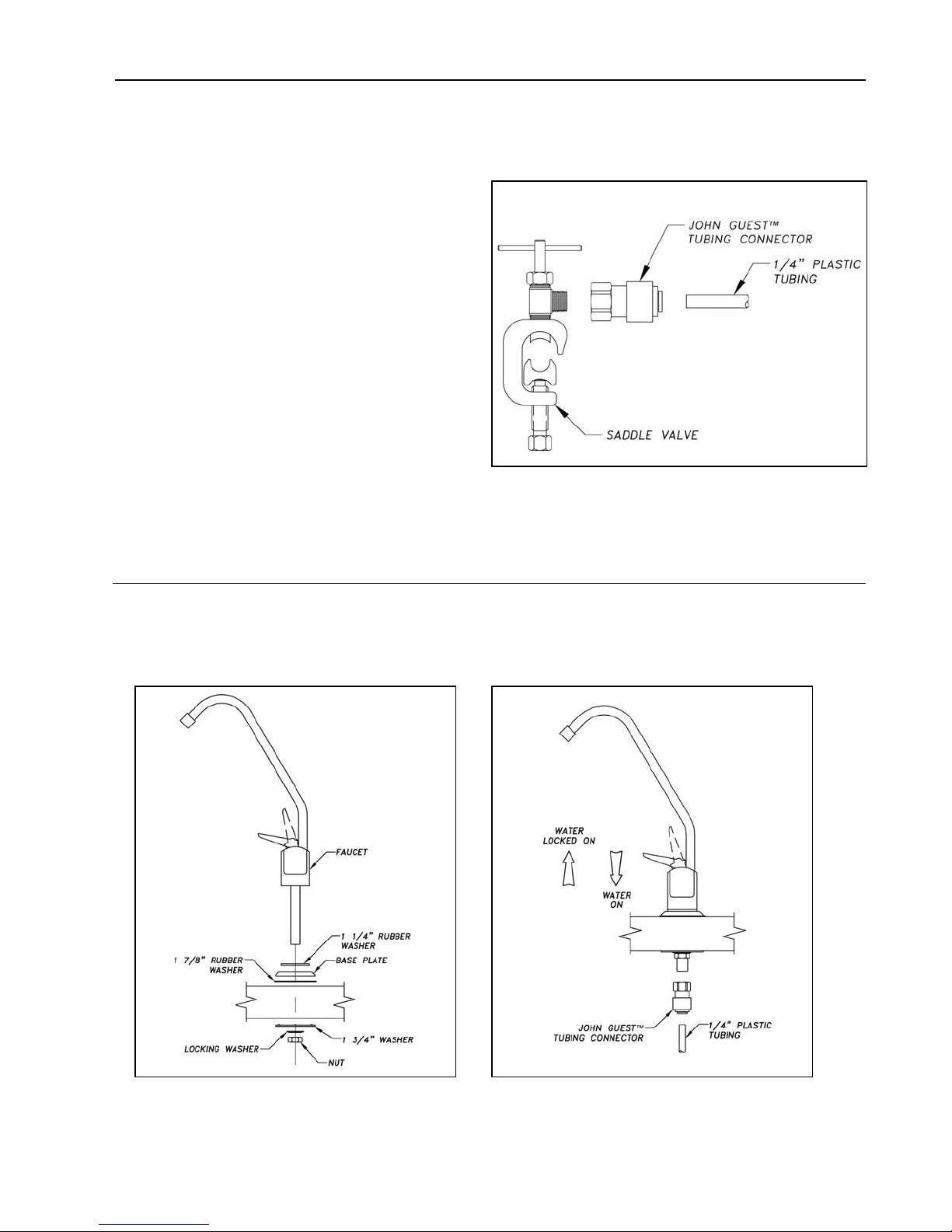

4. Install the 1-1/4 inch rubber washer onto the faucet, followed by the chrome base plate, and finally the 1-7/8 inch
rubber washer. These parts must be installed onto the faucet before mounting the faucet to the sink or countertop.
5. Install faucet into the mounting hole. From under the sink install the 1-3/4 inch washer, the locking washer and
thread the 9/16 inch nut onto the faucet. Align the faucet to desired position, and firmly tighten the nut.

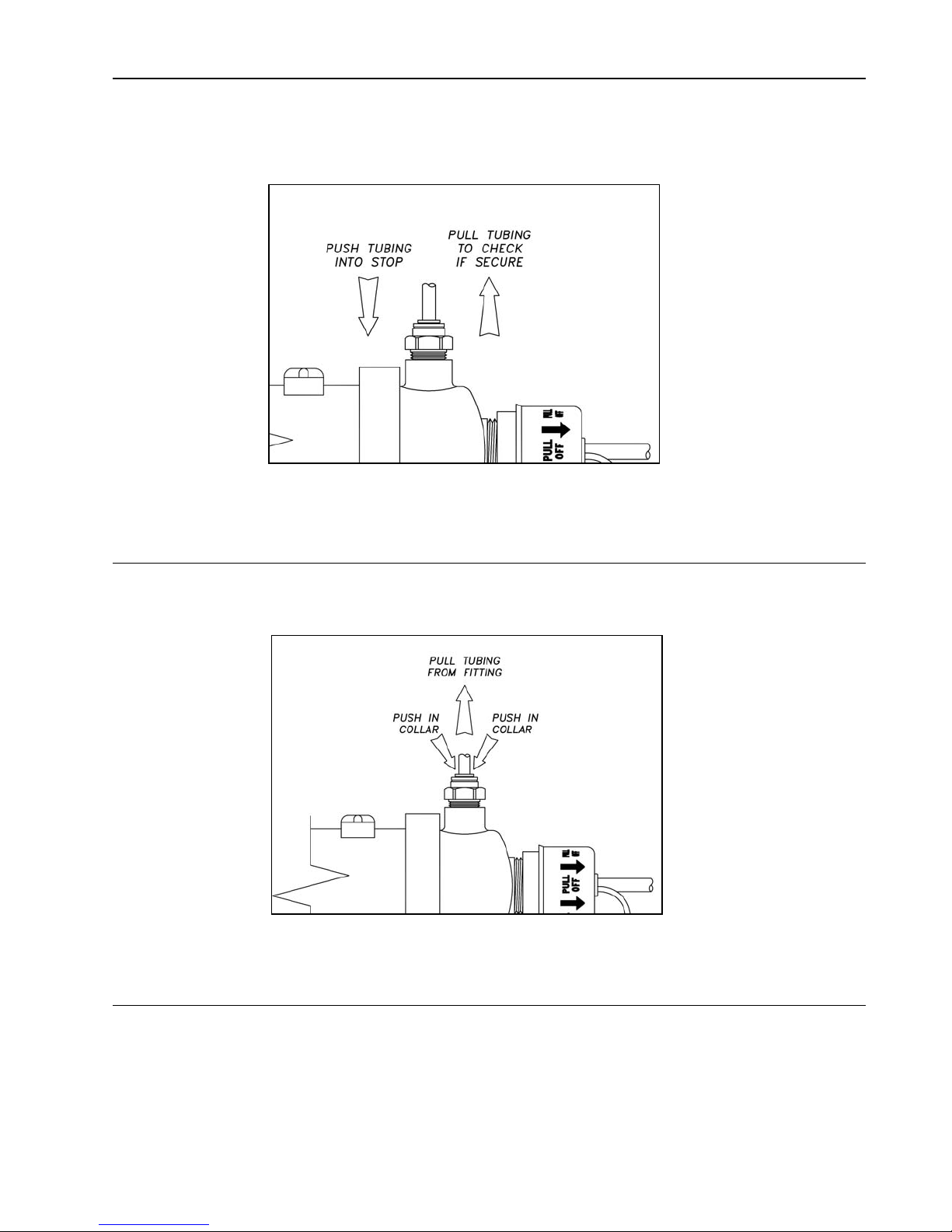

6. Install John Guest™Tubing Connector on to the inlet of the faucet. Insert 1/4 inch OD tubing into the end of
tubing connector. See “Tubing Installation”.
SYSTEM INSTALLATION

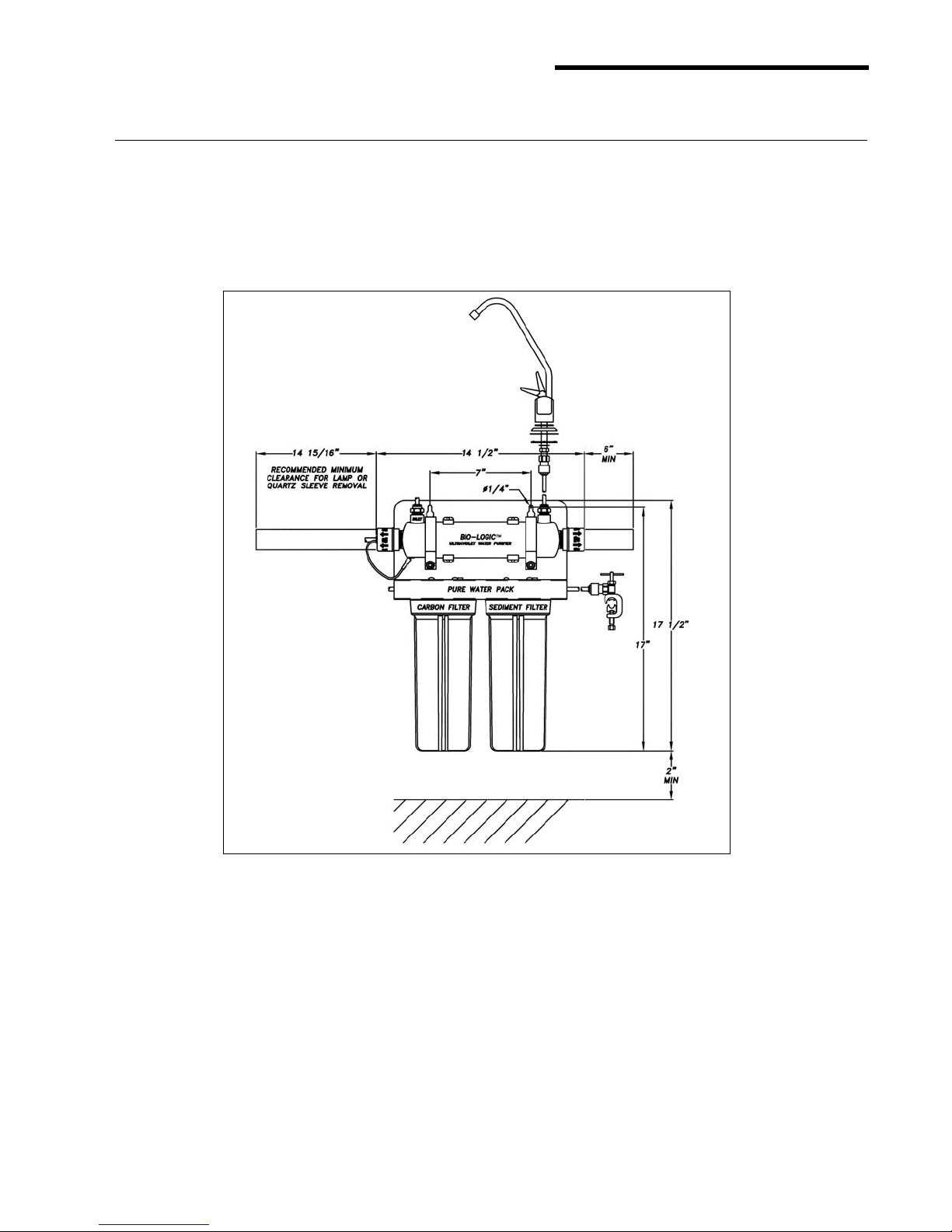

1. Once a suitable location, for the system, has been chosen, mark the location of the mounting screws, using the
holes on the mounting bracket as a template.
2. Using appropriate fasteners, for the type wall chosen, mount the system through the holes of the mounting bracket.

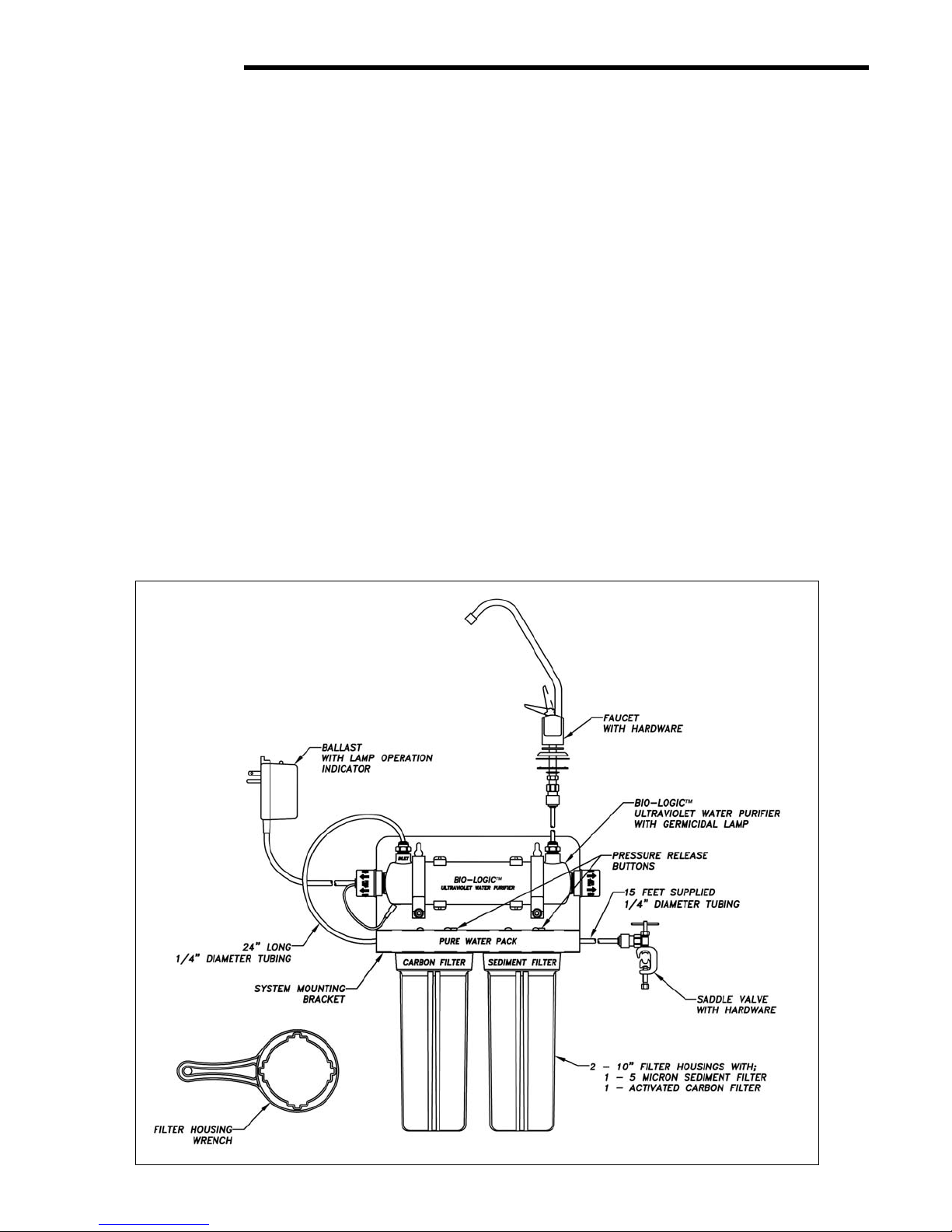

3. Tubing Connections:
a. Run the tubing, connected to the saddle valve, to the inlet fitting of the sediment filter.
b.Run the precut 24" tubing from the outlet of the carbon filter, to the inlet of the Bio-Logic®water purifier.
c. Run the tubing from the faucet to the outlet of the Bio-Logic®water purifier. Measure, cut tubing. The tubing
must be cut square, free of burrs and sharp edges. Leave enough slack in the tubing so the system can be easily
removed, if necessary.
4. Turn on the faucet, supplied by the Pure Water Pack™system. NOTE: Lifting the handle, of the faucet, will
lock the faucet in the “ON” position, while holding the handle down the faucet is “ON”, the faucet well shut off
when the handle is released. Slowly open the saddle valve, by turning the “T” handle counter-clockwise until fully
open, and allow the system to fill with water.
5. Once water begins to flow from the faucet, allow water to run for several minutes until it is clear with no air
bubbles. Turn off the faucet and check the system for leaks. If leaks occur see “Troubleshooting” section. If no
leaks occur, proceed to install the ultraviolet lamp.
6. Unpack the lamp and ballast. While holding lamp end, carefully push lamp socket on. Carefully slide lamp straight
into the quartz sleeve, without angling. Push the end cap on, over the static gland nut. For 120v or 220-240v
operation, attach the ground connector to the grounding tab of the chamber.
CAUTION: Lamp and quartz sleeve are easily damaged. Exercise care when handling.
7. For 120v operation, plug ballast into an approved Ground Fault Circuit Interrupt (GFCI) receptacle. Where a
2-prong or unprotected 3-prong receptacle is encountered, it must be replaced by a properly grounded Ground
Fault Circuit Interrupt (GFCI) receptacle. Installation must be in accordance with the National Electrical Code
and any local codes and ordinances by a qualified Electrician.
For 12v DC operation;
• The ballast must be wired to an adequate 12v DC source with appropriate gauge wire for the voltage and current. It
is recommended that the ballast have a dedicated run to the 12v source, and protected by either a fuse or circuit breaker.
• Always disconnect the battery(s), or other 12v source, before installation or performing any maintenance.
• The ballast is supplied with a 6-foot, 2 wire, power cord and 5-foot lamp cord, the ballast must be located so the
lamp is easily removed and does put any tension on the lamp, which could cause damage to the lamp and/or
quartz sleeve. All installed wiring should be protected from heat, wear points (abrading) or mechanical stress.
Secure ballast using the mounting tabs located on the ballast body.
• Wire ballast power cord as follows;
Brown wire - Positive (+) to protected (fuse or circuit breaker) 12v DC source.
Blue wire - Negative (-) to suitable chassis ground.
• If there are any questions or concerns regarding the installation and/or wiring of the 12v system, consult a qualified installer.
8. It is recommended, when the carbon filter is new, to flush out the system thoroughly prior to use. Turn on the
