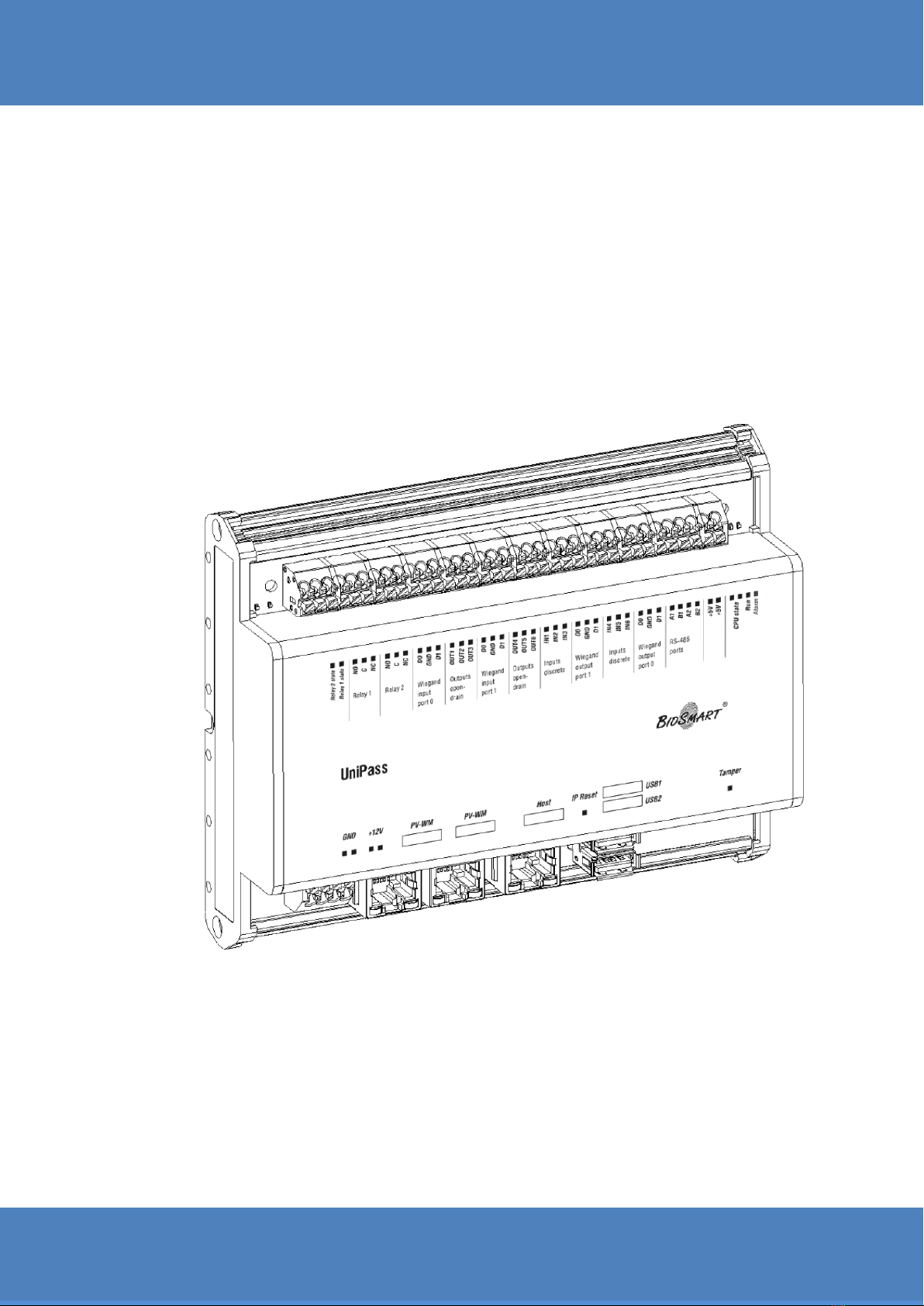

BioSmart UniPass Bedienungsanleitung

BioSmart UniPass

Installation Guide

www.biosmart-tech.com

1 UniPass Installation Guide v1.2|10.2018|en

Contents

Contents.............................................................................................................................................................1

Safety Instructions.............................................................................................................................................2

1. Overview ....................................................................................................................................................3

Specifications......................................................................................................................................3

Circuit board.......................................................................................................................................4

Circuit board LEDs and jumpers .........................................................................................................4

Connector names and description .....................................................................................................5

2. Installation .................................................................................................................................................6

Cable types .........................................................................................................................................6

General installation notes ..................................................................................................................6

Mounting on wall ...............................................................................................................................6

Mounting on DIN-rail..........................................................................................................................7

Power supply connection ...................................................................................................................7

Network connection...........................................................................................................................8

PV-WM Readers connection ..............................................................................................................8

Fail-safe lock connection....................................................................................................................9

Fail-secure lock connection ..............................................................................................................10

Exit buttons and door sensors connection...................................................................................11

Wiegand connection.....................................................................................................................11

2 UniPass Installation Guide v1.2|10.2018|en

Safety Instructions

Safety instructions must be followed in addition to International Standards (ISO/IEC)*, and other

safety regulations.

Caution

Caution indicates a hazard with a low level of risk which, if not avoided, could

result in minor or moderate injury.

Note

Note indicates an important remark, which should be taken into attention.

Caution

General requirements:

Read, follow and retain instructions –All safety and operating instructions

must be read and followed properly before putting the unit into operation.

Do not turn on the power supply until all installation procedures are

finished –this may lead to injury or equipment damage.

Do not disconnect or connect cables while unit is powered on –this may

lead to unit malfunction and software errors.

Do not expose unit to heat or fire –high temperature impact may lead to

case deformation and circuit board damage.

Make sure that all cables and screws are fastened properly - otherwise

case damage or circuit shortcut may happen.

Note

Additional requirements:

Use a clean, dry cloth to remove any dirt or dust from the unit.

*IEC 60204-1: Safety of machinery –Electrical equipment of machines. (Part 1: General requirements)

3 UniPass Installation Guide v1.2|10.2018|en

1. Overview

The BioSmart UniPass Controller is designed for use as part of the BioSmart biometric access

monitoring and control system. The controller provides a means to track working hours and

attendance by identifying users through the unique biometric characteristics of subcutaneous palm

veins and RFID proximity cards. It can also be used for access monitoring and control.

Controller is designed to work with BioSmart PV-WM Readers.

Controller is compatible with BioSmart Studio software version V5.7.1 and above.

Specifications

Number of users*

1 000 000

Number of proximity cards*

1 000 000

Number of palms veins patterns

300 000

Identification time by palm veins (1:1000)

Less than 2 seconds

FAR (False Acceptance Rate)**

0,00008 %

Interface for communication with computer

Ethernet, (IEEE 802.3, 100BASE-T)

Power supply

12VDC±15%, 1A (standalone, 3A

with readers)

Power relay outputs (NC, С, NO outputs)

Power rating of power relays

12-24VDC, 7А

Number of readers

Up to 2

Readers interface

TCP-IP, USB

Wiegand outputs/inputs

2/2

RS-485 interface

PoE sources on board

Discrete inputs

Operating temperature

-40 to +50 °C

Case type

Laid-on plastic

Dimensions (H x W x D)

180 х 125 х 40

Weight

Net:244 g; gross:300 g

Warranty

5 years

Note: * - Each user can be provided with single card code

** - Calculated value. Depends on user’s templates quality

4 UniPass Installation Guide v1.2|10.2018|en

Circuit board

Circuit board LEDs and jumpers

Name

Type

Description

SOM STATE

LED

Indicates CPU state

+5V

LED

Indicates main circuits power presence

RUN

LED

Indicates work mode

ALARM

LED

Indicates if an errors occurs

REL1

LED

Indicates if Relay 1 is powered on

REL2

LED

Indicates if Relay 2 is powered on

IN_1

LED

Indicates if discrete input 1 is activated

IN_2

LED

Indicates if discrete input 2 is activated

IN_3

LED

Indicates if discrete input 3 is activated

IN_4

LED

Indicates if discrete input 4 is activated

IN_5

LED

Indicates if discrete input 5 is activated

IN_6

LED

Indicates if discrete input 6 is activated

RST

Jumper

Reset to default settings

IP RST

Jumper

IP settings reset

TMPR

Jumper

Reserved

5 UniPass Installation Guide v1.2|10.2018|en

Connector names and description

№

Name

Description

Used for

NO1

Normally open relay 1 output

Common relay 1 output

NC1

Normally closed relay 1 output

Fail-safe lock

NO2

Normally open relay 2 output

Fail-safe lock/ Fail-secure lock ?!?!?!

Common relay 2 output

Fail-secure lock

NC2

Normally closed relay 2 output

Fail-safe lock

WI01

Wiegand input 0 DATA1

RFID reader connection

GND

Wiegand ground

RFID reader connection

WI00

Wiegand input 0 DATA0

RFID reader connection

OUT1

RFID reader input

RFID reader green led

OUT2

RFID reader input

RFID reader red led

OUT3

RFID reader input

RFID reader sound

WI10

Wiegand input 1 DATA0

RFID reader connection

GND

Wiegand ground

RFID reader connection

WI11

Wiegand input 1 DATA1

RFID reader connection

OUT4

RFID reader input

RFID reader green led

OUT5

RFID reader input

RFID reader red led

OUT6

RFID reader input

RFID reader sound

IN1

Discrete input 1

Enter/exit buttons, door sensors

IN2

Discrete input 2

Enter/exit buttons, door sensors

IN3

Discrete input 3

Enter/exit buttons, door sensors

WO10

Wiegand output 1 DATA0

External controller, Wiegand 1

GND

Wiegand ground

External controller, Wiegand ground

WO11

Wiegand output 1 DATA1

External controller, Wiegand 1

IN4

Discrete input 4

Enter/exit buttons, door sensors

IN5

Discrete input 5

Enter/exit buttons, door sensors

IN6

Discrete input 6

Enter/exit buttons, door sensors

WO00

Wiegand output 0 DATA0

External controller, Wiegand 0

GND

Wiegand ground

External controller, Wiegand ground

WO01

Wiegand output 0 DATA1

External controller, Wiegand 0

RS-485 interface «+»

RS-485 Device (OSDP controllers, Zflex)

RS-485 interface «-»

RS-485 Device (OSDP controllers, Zflex)

RS-485 interface «+»

RS-485 Device (OSDP controllers, Zflex)

RS-485 interface «-»

RS-485 Device (OSDP controllers, Zflex)

+5V

+5VDC output

+5V

+5VDC output

GND

Power ground

Power supply

GND

Power ground

Power supply

+12V

+12VDC Power supply

Power supply

+12V

+12VDC Power supply

Power supply

Eth1

Ethernet (PSE)

PV-WM readers connection

Eth2

Ethernet (PSE)

PV-WM readers connection

Eth3

Ethernet

Network connection

USB (F)

USB port

PV-WM readers connection

USB (F)

USB port

PV-WM readers connection

6 UniPass Installation Guide v1.2|10.2018|en

2. Installation

Cable types

№

Cable connection

Max. length

Type

Ethernet (IEEE 802.3)

100 m.

Four twisted pair cables of no lower than category five

with a wire size of no less than 0.2 mm2

Power source

50 m.

Duplex cable with a wire size of no less than 0.75 mm2(for

example, 3192Y)

Turnstile, lock

20 m.

Duplex cable with a wire size of no less than 0.75 mm2(for

example, 3192Y)

BioSmart PV-WM (USB)

5 m.

USB 2.0 certified 480mbps type A male to B male cable

Exit buttons, sensors

10 m.

CQR-6 or RAMCRO-6 cable

Wiegand interface

60 m.

Four twisted pair cables of no lower than category five

with a wire size of no less than 0.2 mm2

RS-485 interface

100 m.

Four twisted pair cables of no lower than category

five with a wire size of no less than 0.2 mm2

General installation notes

Install the controller on vertical surface;

Cables must be installed in accordance with the operational code for electrical

installations;

Do not lay cables within 30 cm of sources of electromagnetic interference;

All cables must only intersect power cables at a right angle;

All cable extensions must be soldered.

Carefully check for mechanical damage on the surface of the controller circuit board and

case;

In order to avoid short circuits, the protected ends of cables used to connect the controller

must not exceed 5 mm.

Mounting on wall

1. Decide where to install controller, using a mounting template.

2. Drill holes, according to a mounting template and insert dowels inside the holes.

3. Place controller on wall and fix it with self-tapping screws.

4. Connect power supply, PV-WM readers, locks, and buttons, if needed, according to 2.5-2.11

5. Attach the covering.

7 UniPass Installation Guide v1.2|10.2018|en

Mounting on DIN-rail

1. Place the lower clip on the edge of the rail.

2. Pull the upper clip with a slot-head screwdriver.

3. Press the controller to the DIN rail, the upper clip must snap under the pressure of the spring.

Power supply connection

Use a DC 12 V power supply adaptor with a minimum of 1000 mA, (3000 mA if PV-WM readers

are to be connected via Ethernet) which has obtained the approval of IEC/EN 60950-1;

See recommended cable type and maximum length of the cable in Cable types table.

8 UniPass Installation Guide v1.2|10.2018|en

Network connection

See recommended cable type in Cable types table;

The order of connections in the cable’s modular connector must correspond to the TIA/EIA-568-

B standard.

PV-WM Readers connection

9 UniPass Installation Guide v1.2|10.2018|en

See recommended cable type in Cable types table;

Don not connect readers to 12V power supply if UniPass on-board PoE ports are used;

Fail-safe lock connection

See recommended cable type in Cable types table;

Install a diode as it shown on figure, to protect controller relay from reverse current. Use 1N4007

diode (1000V,1A) or similar;

Use separate power supplies for lock and controller;

Inhaltsverzeichnis

Andere BioSmart Controller Handbücher

BioSmart

BioSmart Prox-E Bedienungsanleitung

BioSmart

BioSmart UniPass Pro Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
