Biostar 915GV-M7 Bedienungsanleitung

915GV-M7 DDR2

FCC Information and Copyright

This equipment has been tested and found to comply withthe limits of a Class

B digital device,pursuant toPart15 oftheFCC Rules.These limits are designed

to provide reasonable protection against harmful interference in a residential

installation.This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions,may

cause harmful interferenceto radiocommunications.There is no guarantee

that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the

contents here andspecially disclaims any implied warrantiesofmerchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction..................................................................1

1.1 Motherboard Features..................................................... 1

1.2 Package Checklist...........................................................4

1.3 Layoutand Components..................................................5

Chapter 2: Hardware Installation.................................................6

2.1 Installing Central Processing Unit (CPU)...........................6

2.2 FAN Headers.................................................................. 8

2.3 Installing System Memory................................................9

2.4 Connectorsand Slots..................................................... 10

Chapter 3: Headers & Jumpers Setup......................................13

3.1 How to Setup Jumpers...................................................13

3.2 Detail Settings............................................................... 13

Chapter 4: Useful Help.................................................................20

4.1 Award BIOSBeep Code................................................20

4.2 Extra Information........................................................... 20

4.3 Troubleshooting............................................................. 22

Chapter 5: WarpSpeeder™..........................................................23

5.1 Introduction...................................................................23

5.2 System Requirement..................................................... 23

5.3 Installation.................................................................... 24

5.4 [WarpSpeeder™] includes1 trayicon and 5 panels......... 25

915GV-M7 DDR2

CHAPTER 1: INTRODUCTION

1.1 MOTHERBOARD FEATURES

CPU

SupportsLGA775.

SupportsIntel Pentium 4 processor up to 3.8GHz.

SupportsIntel Celeron D processor.

Front side busat the followingfrequencyranges:

-533MHz (133MHz Core Clock)

-800MHz (200MHz Core Clock)

WARNING!

Warranty will be voidifthe pin protectioncapis not inplacetoprotect thesocket pin

when sending this mainboard for service.

Chipset

North Bridge:Intel 915GV.

South Bridge:Intel ICH6.

Dimensions

Micro ATX Form Factor: 21.899cm (W) x 23.583cm (L)

Operating System Supporting

SupportsWindows2000,and WindowsXP.

Note:Do not support Windows 98SE and Windows ME.

System Memory

Supports Dual Channel DDR2.

Supports up to two DDR2 400/533 devices.

Maximum DRAM capacityisup to 2GB(assuming32-bit

addressing.)

DIMM Socket

Location DDR Module Total Memory

Size

DDR2_A1 256MB/512MB/1GB *1

DDR2_B1 256MB/512MB/1GB *1

Max is 2GB.

On Board IDE

1 on-board connectorssupport 2 IDEdiskdrives.

SupportsPIOMode0~4.

SupportsUltra DMA33/66/100 BusMaster Mode.

915GV-M7 DDR2

Serial ATA

Controllerintegratedin ICH6.

Supports4 Serial ATA(SATA) ports.

-Intel AdvancedHost Controller (AHCI).

Compliant withSATA 1.0 specification.

Data transfer ratesup to 1.5Gb/s.

Slots (Seep.11 for detail information)

Two 32-bit PCI bus master slots.

One PCI-Extreme (PCI-EX) slot.

OneXGPslot (Xtreme Graphic Port).

Super I/O

Chip: ITE8712F.

Low PinCount Interface.

Providesthemost commonly usedlegacySuper I/O

functionality.

Environment Control initiatives,

-H/W Monitor

-FanSpeed Controller

-ITE's"Smart Guardian" function

On BoardAC’97 SoundCODEC

Chip: ALC655

Support6 channels.

SupportsS/PDIF-Out function.

Compliant withAC’97 Version 2.3 specification.

LAN

Chip: RTL8100C.

Supports10/100Mb/sauto-negotiation.

Half/Full duplex capability.

SupportsACPI power management

915GV-M7 DDR2

Front Side On-boardPeripherals

1 IDE connector supports2 hard diskdevices.

1 front panel header supportsfrontpanel facilities.

1 AUX-in connector supports1 AUX audio-in device.

1 CD-in connector supports1 CD-ROMaudio-in device.

1 front audioheader supportsfrontpanel audiofunction.

1 S/PDIF-Out connector supportsdigital audio-outfunction

1 chassisopenheader supportsPC case-opened warning

function.

1 Floppy port supports2 FDD with360K, 720K, 1.2M, 1.44M

and2.88Mbytes.

2 USBheaders support4 USB2.0 portsat frontpanel.

4 Serial ATAconnectorssupport 4SATAdevices.

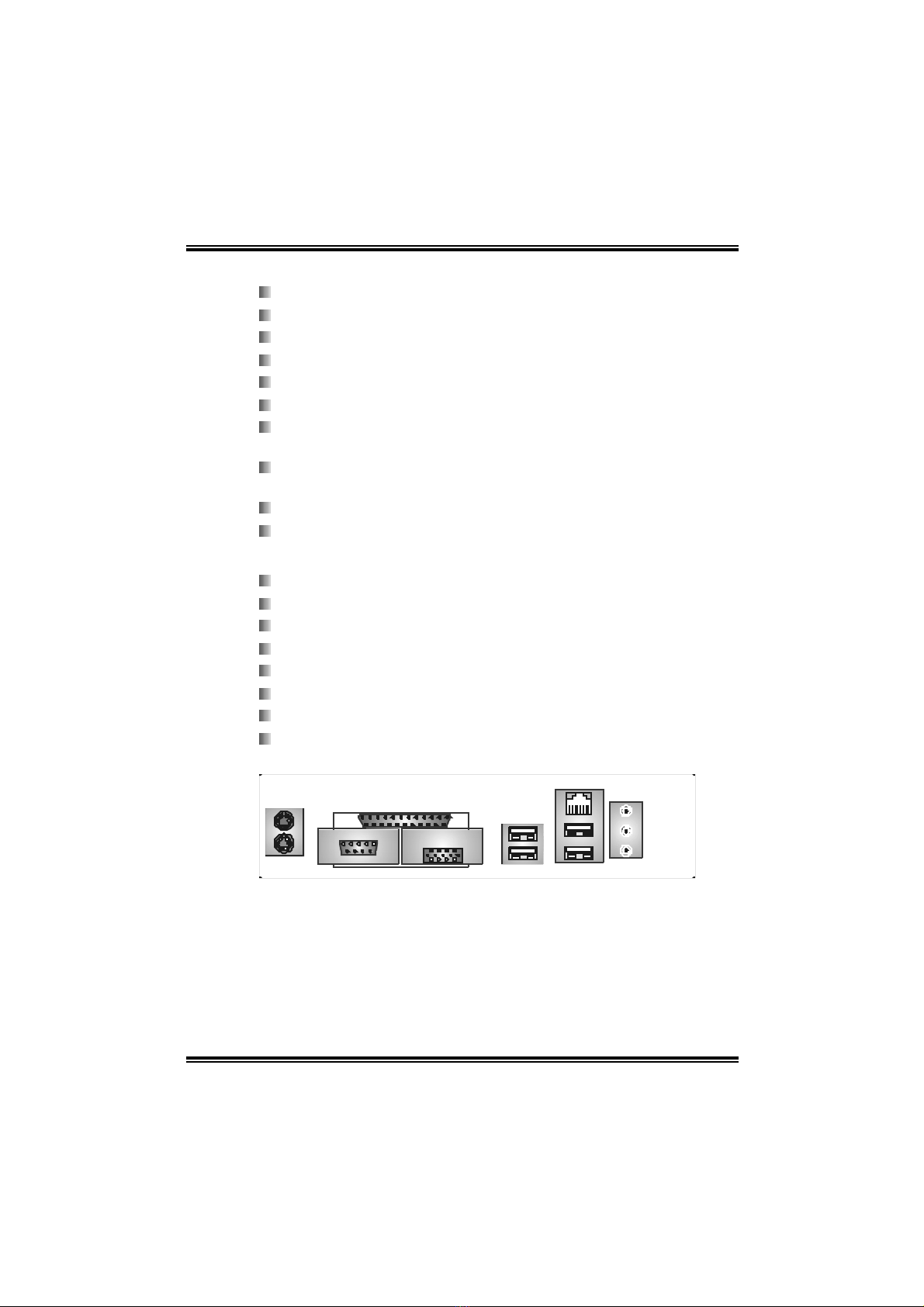

Rear Side Connectors

4 USB2.0ports.

1 VGAport.

1 Serial port.

1 Printer port.

1 RJ-45LANjack.

1 PS/2Mouse port.

1 PS/2Keyboardport.

1 vertical audio portincluding 1line-in connector, 1line-out

connector,and 1 MIC-in connector.

PS/2

Keyboard

PS/2

Mouse

COM

PrinterPort

LAN

USB x2

LineIn/

Surround

LineOut

Mi c In 1/

Bass/Center

US B x2

VGA

915GV-M7 DDR2

1.2 PACKAGE CHECKLIST

FDD Cable *1

HDD Cable * 1

User’s Manual * 1

Serial ATACable *1

Fully Setup Driver CD * 1

Rear I/O Panel forATX Case * 1

S/PDIF Cable *1 (optional)

USB 2.0 Cable *1 (optional)

Serial ATAPower SwitchCable *1 (optional)

915GV-M7 DDR2

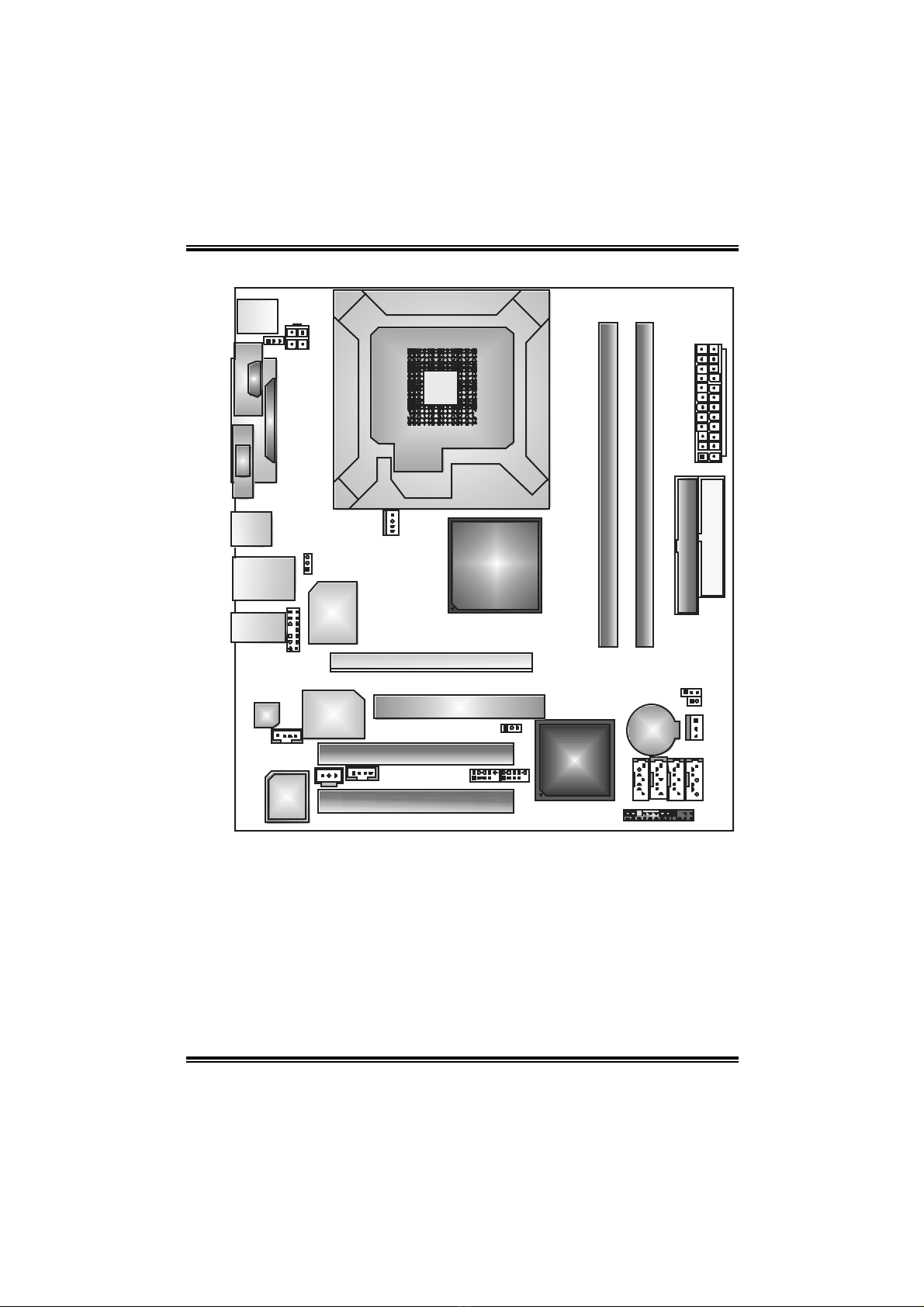

1.3 LAYOUT AND COMPONENTS

JKBV1

JUSBV1

JPANEL1

JUSBV3_1

DDR2_A1

DDR2_B1

IDE1 JATXPWR1

JAU DIO2

PCI2

JCI 1

JCMOS1

SATA1SATA3

SATA2

SATA4

CODEC

JCDIN 1

JSPDIF_OUT1

JSFAN1

Intel915GV

ICH6

PCI1

LGA775

CPU1

JATX PWR2

BAT1

LAN

JUSB4JUSB 3

Super

I/O

JKBMS 1

JAUDIO1

JRJ45USB1

JUSB2

PCI-EX

XGP1

BIOS

JAUX 1

FDD1

JCFAN1

JPRNT1

JVGA1

JCOM1

Note: ■representsthe 1st pin.

915GV-M7 DDR2

Pin Ca

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRALPROCESSINGUNIT (CPU)

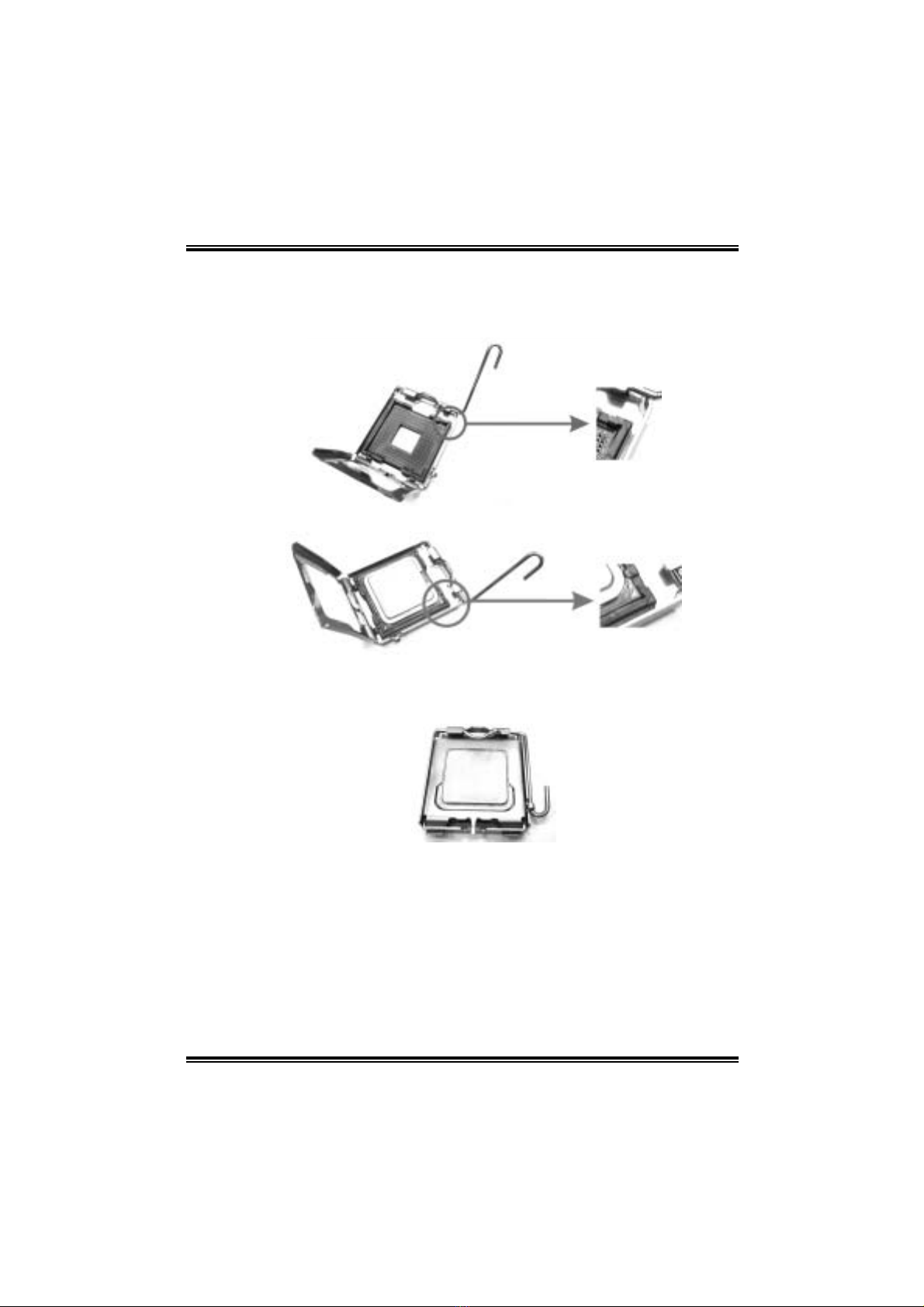

Step 1: Pull the socket lockinglever out from the socket andthen raise

thelever up to a90-degreeangle.

Special Notice:

Remove Pin Cap before installation, and make

goodpreservation for future use. When the CPU

is removed, cover the Pin Cap on the empty

socket to ensure pin legs won’t be damaged.

915GV-M7 DDR2

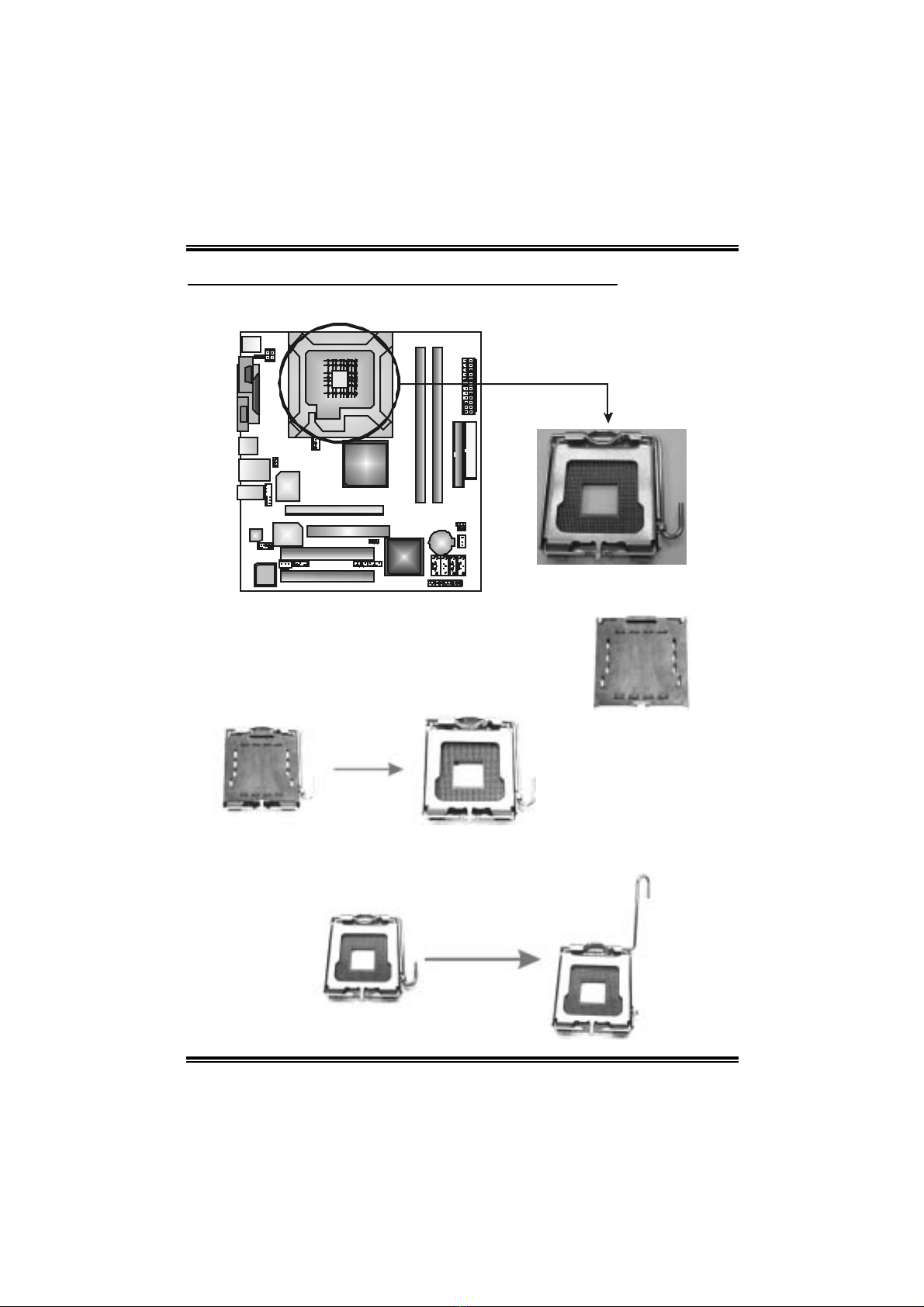

Step 2: Lookforthe triangular cut edge on socket, and the golden dot on

CPU should pointforwardsthistriangular cut edge.The CPU will

fitonlyin the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Holdthe CPUdown firmly, and then lowerthelever to locked

position to complete the installation.

Step 4:Put the CPU Fan andheatsinkassemblyon the CPUand buckleit

on the retention frame.Connectthe CPU FAN power cableinto

the JCFAN1.This completesthe installation.

915GV-M7 DDR2

2.2 FAN HEADERS

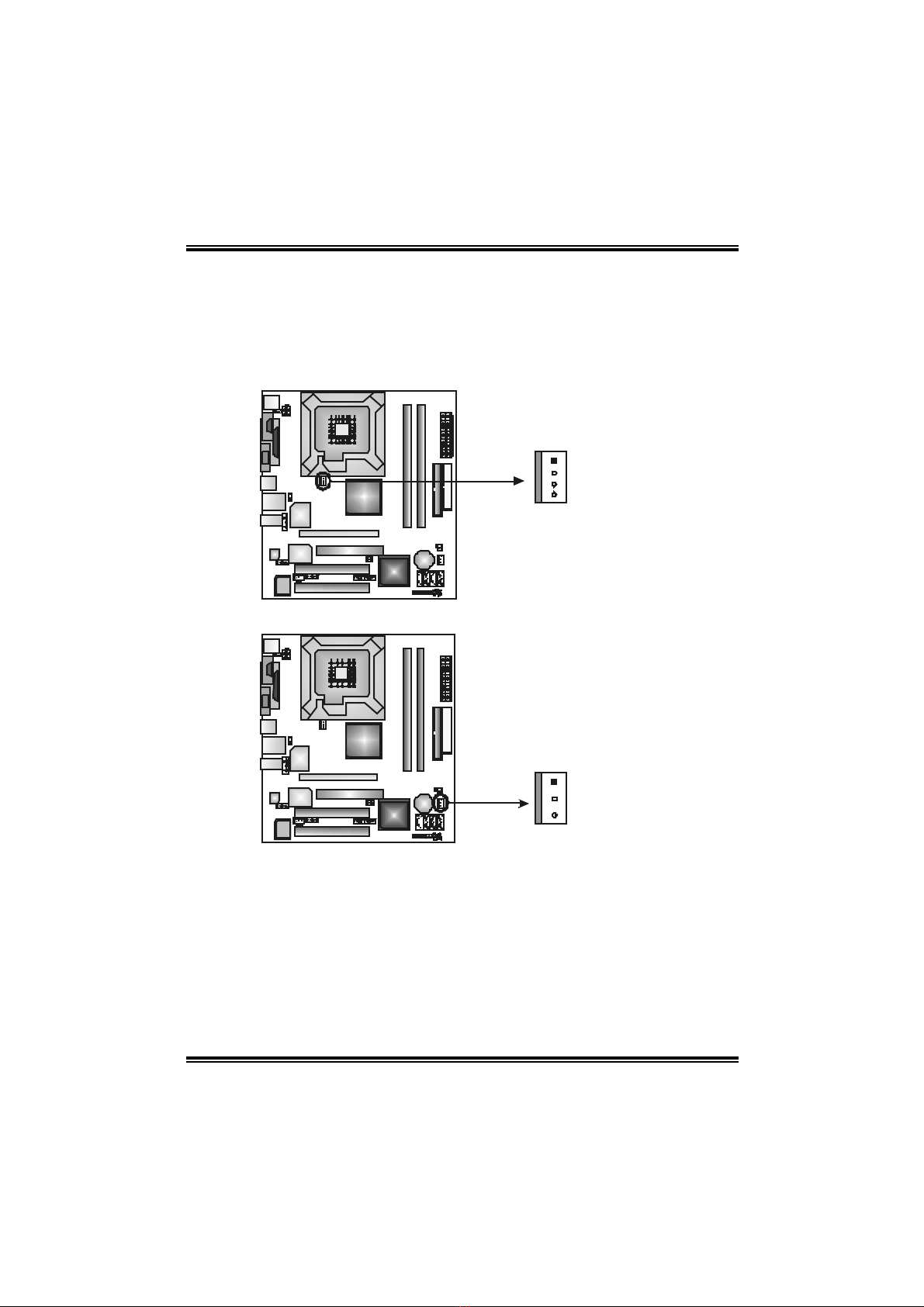

These fan headerssupport cooling-fansbuiltinthecomputer.The fan

cableand connectormaybe different accordingtothe fan manufacturer.

Connect thefancable to the connector whilematchingthe blackwireto

pin#1.

JCFAN1: CPUFan Header

Assignment

1 Ground

2 Power

3 FAN RPMrate

sense

4 Smart Fan

Control

JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

3 FAN RPMrate

sense

Note:

TheJCFAN1reserves systemcooling fan with Smart FanControl utility. It supports 4-pin

head connector. When connecti ng with wires onto connectors, please note that the r ed

wire is the positive and should be connected to pin#2, and the bl ack wire is Ground and

shoul d be connected to GND.
