H61MGC/H61MLC UEFI BIOS Manual

UEFI BIOS Setup...................................................................................... 1

1 Main Menu ............................................................................................. 3

2 Advanced Menu...................................................................................... 4

3 Chipset Menu ....................................................................................... 17

4 Boot Menu............................................................................................. 22

5 Security Menu ...................................................................................... 24

6 Performance Menu .............................................................................. 25

7 Exit Menu ............................................................................................. 30

H61MGC/H61MLC UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a

disk. This system controls most of the input and output devices such as keyboard,

mouse, serial ports and disk drives. BIOS activates at the firs t stage of the booting

process, load ing and executing the operating s ystem. Some additional features, s uch

as virus and password protectio n or chips et fine-tuning optio ns are also inc luded in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plug and Play Support

This AMI UEF I BIOS suppo rts the P lug and Play Vers ion 1.0A specification.

EPA Green PC Support

This AMI UEFI BIOS s upports Vers ion 1. 03 of the EPA Green PC spec ification.

ACPI Support

AMI ACPI UEFI BIOS support Versio n 1.0/2.0 of Advanced Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also suppo rts Version 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

H61MGC/H61MLC UEFI BIOS Manual

Supported CPUs

This AMI UEF I BIOS s uppo rts the Intel CPU.

Using Setup

When starting up the co mputer, press

<Del> during the Power-On Self-Test

(POST) to enter the UEFI BIOS setup

utility.

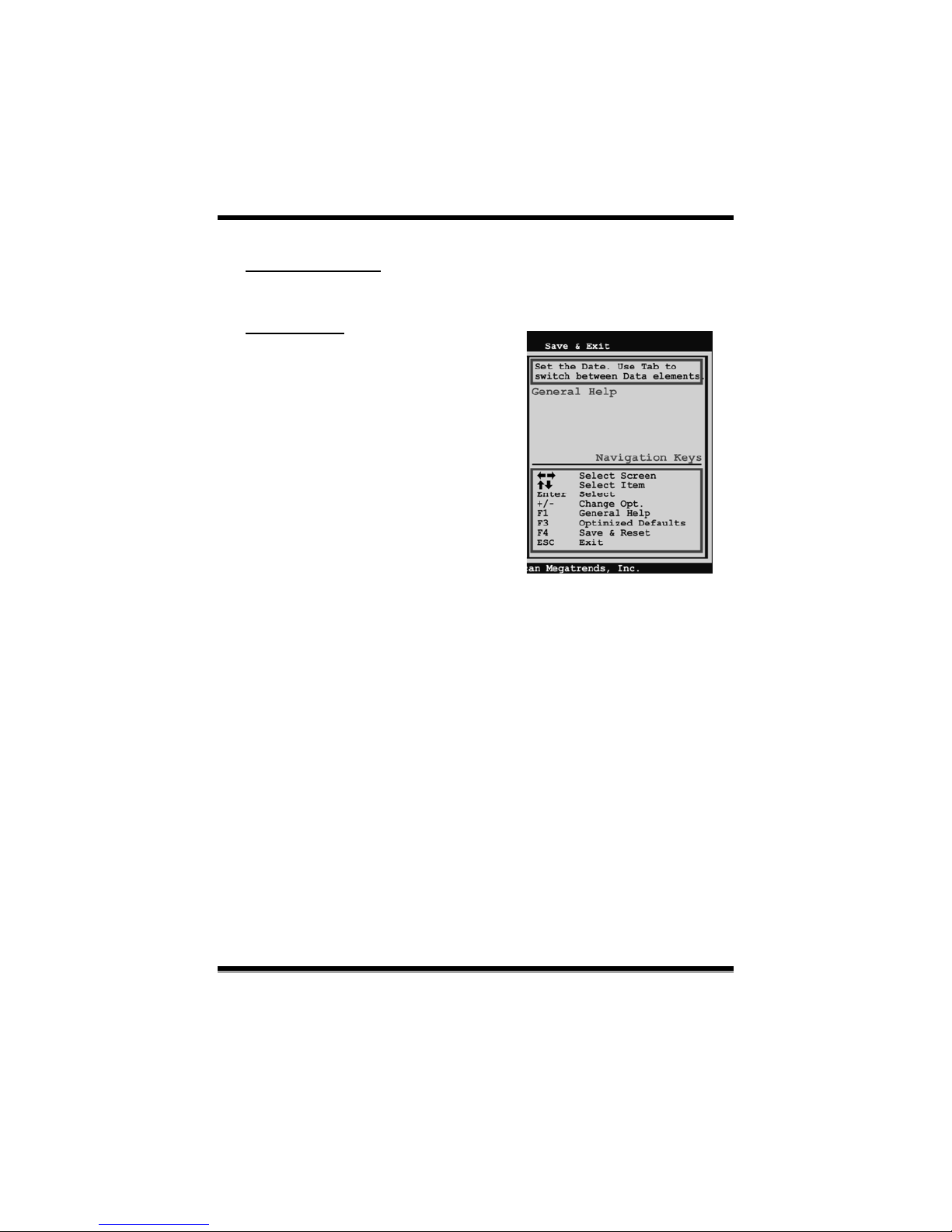

In the UEFI BIOS setup utility, you will

see General Help description at the top

right corner, and this is providing a brief

description of the selec ted item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use thes e keys to select item and change

the settings.

Notice

zThe default UEFI BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after changing

any settings, please load the default settings to ensure system’s compatibility and

stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the UEFI BIOS firmware is being continuously

updated. The UEFI BIOS informatio n described in this manual is for yo ur reference

only. The actual UEFI BIOS information and settings on board may be slightly

different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsible fo r any mistakes fo und in this user’s manual and any system damage that

may b e caused by wrong-settings.

H61MGC/H61MLC UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS SETUP UTILIT

Main Advanced Chipset Boot Security Performance

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Set the Date. Use Tab to

switch between Data elements.

BIOS Information

Compliency

Project Code

Model Name

Build Date

Total Memory

System

Time

[00:00:00]

System Date [Sat 01/01/2011]

Access Level Administrator

Save & Exit

System Language [English]

BIOS Version

BIOS Information

Shows system information including UEFI BIOS version, model name, marketing

name, built date, etc.

Total Memor y

Shows system memory size, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the system internal c loc k.

Access Level

Shows the access level of current user.

H61MGC/H61MLC UEFI BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILIT

> ACPI Settings/WakeUp Event control

> CPU Configuration

> SATA Configuration

> USB Configuration

> SMART FAN Control

> Super IO Configuration

> H/W Monitor

> PCI Subsystem Settings

PCI, PCI-X and PCI Express

Settings.

Main Advanced Chipset Boot Security Performance Save & Exit

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

PCI Su bs ystem Settings

BIOS SETUP UTILIT

PCI Bus Driver Version V x.xx.xx

PCI Common Settings

PCI Express Device S ettings

PCI Express Link Settings

WARNING: Enabling ASPM may cause some

PCI-E devices to fail

PCI ROM Priority [Legacy ROM]

PCI Latency Timer [32 PCI Bus Clocks]

VGA Palette Snoop [Disabled]

No Snoop [Enabled]

Maximum Payload [Auto]

Maximum Read Request [Auto]

ASPM Support [Disabled]

In case of multiple Opiton

ROMs (Legacy and EFI

Compatible), specifies what

PCI Option ROM to launch.

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

H61MGC/H61MLC UEFI BIOS Manual

PCI ROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Optio n ROM to launch

Options: Legacy ROM (Default) / EFI Compatible ROM

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Optio ns: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Cloc ks /

128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224

PCI Bus Clocks / 248 PCI Bus Clocks

VGA Palette Snoop

This item enables or disables VGA Palette Registers Snooping.

Options: Dis abled (Default) / Enabled

No Snoop

This item enables or disables PCI Express Device No Snoop option.

Options: Enabled (Default) / Disabled

Maximum Payload

This item sets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOS to s elect the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto co nfigures; Disabled – Dis ables ASPM.

Options: Disabled (Default) / Auto / Force LO

H61MGC/H61MLC UEFI BIOS Manual

ACPI Settings/WakeUp Event control

BIOS SETUP UTILIT

EuP Control [Disabled]

ACPI Sleep State [S1 (CPU Stop Clock)]

Lock Legacy Resources [Disabled]

PME Wake up from S5 [Disabled]

Wake system with Fixed Time [Disabled]

PS2 Keyboard PowerOn [Disabled]

PS2 Mouse PowerOn [Disabled]

USB Device Wakeup from S3/S4 [Disabled]

Wake up date [EveryDay]

Wake up hour 0

Wake up minute 0

Wake up second 0

Stroke key [Wake Key]

Specific key

Advanced

When EuP Enabled,System meets

EuP requirement.

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

ACPI Sleep State

This item selects the highest ACPI s leep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to

RAM)

Lock Legacy Resources

The item enables or disables Lock of Legacy Resources.

Options: Disabled (Default) / Enabled

PME Wake up from S5

The item enables the s ystem to wake fro m S5 using PME event.

Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. W hen this item

is enabled, the system will wake on the hr::min::sec specified.

Options: Disabled (Default) / Enabled

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choos e the system boot up time, input ho ur, minute and second to specify.

PS2 Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke Keys Selected

This item will show only when Keyboard PowerOn is set “Stroke Key.”

Optio ns: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F 3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific Key Enter

This item will s how only when Keyboard PowerOn is set “Specific Key.” Press

Enter to set Specific key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

USB Device Wakeup from S3/S4

This item allows you to enable or d isabled the USB res ume from S3/S4 function.

Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual

CPU Configuration

BIOS SETUP UTILIT

CPU Configuration

Processor Stepping

Microcode Revision

Max Processor Speed

Min Processor Speed

Processor Speed

Processor Cores

Intel HT Technology

EMT64

Hyper-threading [Enabled]

Active Processor Cores [All]

Limit CPUID Maximum [Disabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Execute-Disable Bit [E nabled]

Intel Virtualization Technology[Disabled]

Power Technology [Energy Efficient]

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Enabled for Windows XP and

Linux(OS optimized for

Hyper-Threading Technology)

and Disabled for other OS(OS

not optimized for

Hyper-Threading Technology).

When Disabled only one thread

per enabled core is enabled.

Hyper-threading

Hyper Threading Technology can improve performance b y splitting instructions into

multiple streams. This item is enabled for Windows XP and Linux (OS optimized for

Hyper-Threading Technology) and disabled for other OS (OS not optimized for

Threading Techno logy). When this item is dis abled, only one thread per enabled core

is enabled.

Options: Enabled (Default) / Disabled

Active Processor Cores

This item sets number of cores to enable in each processor package.

Options: All (Default) / 1 / 2 / 3

Limit CPUID Maximum

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines the kind of basic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual

Execute-Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined

with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux

9.2, RedHat Enterprise 3 Update 3.).

Options: Enabled (Default) / Disabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetches data and instructions from the memory into the Level 2 c ache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hard ware ad jac ent c ache line p refetch mechanis m that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cac he latenc y b y making the next cache line

immediately available if the processor requires it as well.

Options: Enabled (Default) / Disabled

Intel Virtualization Tech

Virtualization Techno lo gy can virtually separate your system reso urc e into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Disabled (Default) / Enabled

Power Technology

This item enables the power management features.

Options: Energy Efficient (Default) / Disabled / Custom

CPU C3 Report

This item enables /disables CPU C3 (ACPI C2) report to OS.

Options: Disabled (Default) / ACPI C-2 / ACPI C-3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar M6VSA Bedienungsanleitung

Biostar

Biostar EIH81-IHP Bedienungsanleitung

Biostar

Biostar TP61A Benutzerhandbuch

Biostar

Biostar Racing X470GT8 Bedienungsanleitung

Biostar

Biostar H310MDG2 Bedienungsanleitung

Biostar

Biostar TA880GB - BIOS Benutzerhandbuch

Biostar

Biostar TPOWER X58 - BIOS Benutzerhandbuch

Biostar

Biostar A55MLV Benutzerhandbuch

Biostar

Biostar P43B-A7 - BIOS Benutzerhandbuch

Biostar

Biostar K8T890-A9 Bedienungsanleitung

Biostar

Biostar B650MXC PRO Bedienungsanleitung

Biostar

Biostar B650MS2 Bedienungsanleitung

Biostar

Biostar M7VIG Pro-D Benutzerhandbuch

Biostar

Biostar A320MH 2.0 Bedienungsanleitung

Biostar

Biostar Hi-Fi Z77X Bedienungsanleitung

Biostar

Biostar A960A3+ Benutzerhandbuch

Biostar

Biostar P4M80-M7 Bedienungsanleitung

Biostar

Biostar G41D3B Benutzerhandbuch

Biostar

Biostar TPower I45 Benutzerhandbuch

Biostar

Biostar N4SLI-A9 Benutzerhandbuch

Biostar

Biostar Z490GTA EVO Bedienungsanleitung

Biostar

Biostar TA780G M2 HP PLUS - BIOS Benutzerhandbuch

Biostar

Biostar G41D-M7 Handbuch

Biostar

Biostar MCP6P3 Benutzerhandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
