TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

UEFI BIOS Setup.......................................................................................1

1Main Menu...............................................................................................3

2Advanced Menu.......................................................................................4

3Chipset Menu.........................................................................................19

4Boot Menu..............................................................................................25

5Security Menu.......................................................................................27

6Performance Menu...............................................................................28

7Exit Menu...............................................................................................34

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose ofthis manual is to describethe settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what acomputer can do without accessing programs from a

disk. This system controls most of the input and output devices such as keyboard,

mouse, serial ports and disk drives. BIOS activates at the first stage of the booting

process, loading and executing the operating system. Some additional features, such

as virus and password protection or chipset fine-tuning options are also included in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plugand Play Support

ThisAMI UEFI BIOSsupportsthe Plugand Play Version 1.0A specification.

EPA Green PC Support

ThisAMI UEFI BIOSsupports Version 1.03 ofthe EPA Green PCspecification.

ACPI Support

AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

Supported CPUs

ThisAMI UEFI BIOSsupportsthe Intel CPU.

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter the UEFI BIOS setup

utility.

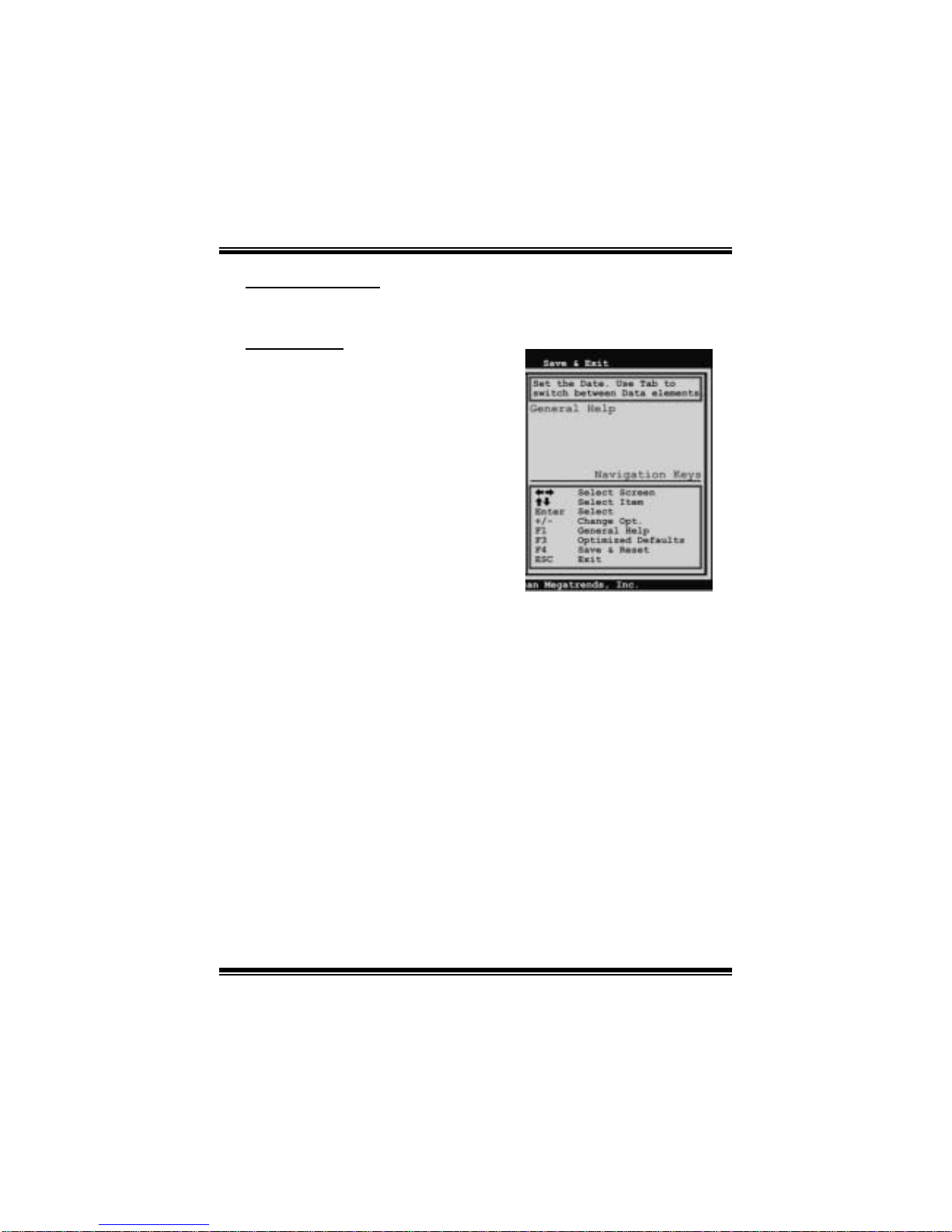

In the UEFI BIOS setup utility, you will

see General Help description at the top

right corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default UEFI BIOS settings apply for most conditions to ensure optimum

perform ance of the motherboard. If the system becomes unstable after changing

any settings, please load the default settings to ensure system’s compatibility and

stability. Use Load Setup Default under the Exit Menu.

zFor better system performance, the UEFI BIOS firmware is being continuously

updated. The UEFI BIOS information described in this manual is for your reference

only. The actual UEFI BIOS information and settings on board may be slightly

different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview ofthe basicsystem information.

BIOS SETUP UTILITY

Main Advanced Chipset Boot Security Performance

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Set the Date. Use Tab to

switch between Data elements.

BIOS Information

Compliency

Model Name

Marketing Name

Build Date

Total Memory

System

Time

[00:00:00]

System Date [Sat 01 /01/2011]

Access Level Administrator

Save & Exit

System Language [English]

BIOS Information

Shows system information including UEFI BIOS version, model name, marketing

name, built date, etc.

Total Memory

Shows systemmemory size, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the systeminternal clock.

Access Level

Shows the access level of current user.

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

> ACPI Settings/WakeUp Event control

> CPU Configuration

> SATA Configuration

> USB Configuration

> SMART FAN Control

> Super IO Configuration

> H/W Monitor

> PCI Subsystem Settings

PCI, PCI-X and PCI Express

Settings.

Main Advanced Chipset Boot Security Performance Save & Exit

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

PCISubsystem Settings

BIOS SETUP UTILITY

PCI Bus Driver Version V x.xx.xx

PCI Common Settings

PCI Express Device Settings

PCI Express Link Settings

WARNING: Enabling ASPM may cause some

PCI-E devices to fail

PCI ROM Priority [Legacy ROM]

PCI Latency Timer [32 PCI Bus Clocks]

VGA Palette Snoop [Disabled]

PERR# Generation [Disabled]

SERR# Generation [Disabled]

Relaxed Ordering [Disabled]

Extended Tag [Disabled]

No Snoop [Enabled]

Maximum Payload [Auto]

Maximum Read Request [Auto]

ASPM Support [Disabled]

Extended Synch [Disabled]

In case of multiple Opiton

ROMs (Legacy and EFI

Compatible), specifies what

PCI Option ROM to launch.

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

PCIROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Option ROMto launch

Options: Legacy ROM (Default) / EFICompatible ROM

PCI LatencyTimer

Thisitem sets the value to be programmed intoPCI Latency TimerRegister.

Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks /

128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224

PCI Bus Clocks / 248 PCI Bus Clocks

VGA Palette Snoop

Thisitem enables or disables VGA Palette Registers Snooping.

Options: Disabled (Default) / Enabled

PERR# Generation

Thisitem enables or disables PCI Deviceto generate PERR#.

Options: Disabled (Default) / Enabled

SERR# Generation

Thisitem enables or disables PCI Deviceto generate SERR#.

Options: Disabled (Default) / Enabled

Relaxed Ordering

Thisitem enables or disables PCI Express DeviceRelaxed Ordering.

Options: Disabled (Default) / Enabled

Extended Tag

If this item is enabled, the system allowsDevice to use 8-bit Tag field as a requester.

Options: Disabled (Default) / Enabled

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

No Snoop

Thisitem enables or disables PCI Express DeviceNo Snoop option.

Options: Enabled (Default) / Disabled

Maximum Payload

This item sets Maximum Payload ofPCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOSto select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto configures; Disabled – Disables ASPM.

Options: Disabled (Default) / Auto / Force LO

Extended Synch

If this item is enabled, the system allows generation of Extended Synchronization

patterns.

Options: Disabled (Default) / Enabled

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

ACPISettings/WakeUpEventcontrol

BIOS SETUP UTILITY

ACPI Settings/Wakeup Event Control

ACPI Sleep State [S1 (CPU Stop Clock)]

EuP Control [Disabled]

PME Wake up from S5 [Disabled]

Wake system with Fixed Time [Disabled]

Ring-In Wake up from S5 [Disabled]

PS2 Keyboard PowerOn [Disabled]

PS2 Mouse PowerOn [Disabled]

USB Device Wakeup from S3/S4 [Disabled]

Wake up date [EveryDay]

Wake up hour 0

Wake up minute 0

Wake up second 0

Stroke key [Wake Key]

Specific key

Advanced

Select the highest ACPI sleep

state the system will enter

when the SUSPEND button is

pressed.

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

ACPI SleepState

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to

RAM)

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

PMEWake up from S5

The item enables the system to wake from S5 using PME event.

Options: Disabled (Default) / Enabled

Wake systemwith Fixed Time

Thisitem enables or disables the system to wake on by alarm event. When this item

is enabled, thesystem will wakeon the hr::min::sec specified.

Options: Disabled (Default) / Enabled

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choose the system boot up time, input hour, minute and second to specify.

Ring-In Wake up from S5

Thisitem enables the system towake from S5 usingRing-In event.

Options: Disabled (Default) / Enabled

PS2 Keyboard PowerOn

Thisitem allows you to control thekeyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke KeysSelected

Thisitem will show only when Keyboard PowerOn is set “Stroke Key.”

Options: Wake Key (Default)/ Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific KeyEnter

This item will show only when Keyboard PowerOn is set “Specific Key.” Press

Enterto set Specific key.

PS2Mouse PowerOn

Thisitem allows you to control themouse power on function.

Options: Disabled (Default) / Enabled

USBDevice Wakeup from S3/S4

Thisitem allows you to enable or disabled the USB resumefrom S3/S4 function.

Options: Disabled (Default) / Enabled

TH67MU3/H67MU3/H67MH

UEFI BIOS Manual

CPU Configuration

BIOS SETUP UTILITY

CPU Configuration

EMT64

Processor Speed

Microcode Revision

Intel HT Technology

Processor Stepping

Processor Cores

Hyper-threading [Enabled]

Active Processor Cores [All]

Limit CPUID Maximum [Disabled]

Hardware Prefetcher [Enabled]

Adjacent Cache Line Prefetch [Enabled]

Execute-Disable Bit [Enabled]

Intel Virtualization Technology[Disabled]

Power Technology [Energy Efficient]

Local x2APIC [Disabled]

Advanced

Select Screen

Select Item

Select

Change Opt.

General Help

Optimized Defaults

Save & Reset

Exit

Enter

+/-

ESC

Enabled for Windows XP and

Linux(OS optimized for

Hyper-Threading Technology)

and Disabled for other OS(OS

not optimized for

Hyper-Threading Technology).

When Disabled only one thread

per enabled core is enabled.

Hyper-threading

Hyper Threading Technology can improve performance bysplitting instructions into

multiple streams. This item is enabled forWindows XP and Linux (OS optimized for

Hyper-Threading Technology) and disabled for other OS (OS not optimized for

Threading Technology). When this itemis disabled, only one thread per enabled core

is enabled.

Options: Enabled (Default) / Disabled

Active Processor Cores

Thisitem sets number of cores to enable in each processor package.

Options: All (Default) / 1 / 2 /3

Limit CPUID Maximum

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

Andere Handbücher für H67MH

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar NF4ST-A9 Benutzerhandbuch

Biostar

Biostar M6TSB Bedienungsanleitung

Biostar

Biostar H67MH Benutzerhandbuch

Biostar

Biostar B450MH Bedienungsanleitung

Biostar

Biostar P4M890-M7 SE Bedienungsanleitung

Biostar

Biostar B660GTA Bedienungsanleitung

Biostar

Biostar TA990FXE Benutzerhandbuch

Biostar

Biostar TForce4U-775 Bedienungsanleitung

Biostar

Biostar Hi-Fi A85X Bedienungsanleitung

Biostar

Biostar NF520B A2G PLUS - BIOS SETUP Bedienungsanleitung

Biostar

Biostar G31-M7 Benutzerhandbuch

Biostar

Biostar J1900NH3 Benutzerhandbuch

Biostar

Biostar M6TSL Bedienungsanleitung

Biostar

Biostar M7 VKS Bedienungsanleitung

Biostar

Biostar H61MHB Bedienungsanleitung

Biostar

Biostar H61MLB Bedienungsanleitung

Biostar

Biostar P4 TPT Benutzerhandbuch

Biostar

Biostar U8868 Bedienungsanleitung

Biostar

Biostar Hi-Fi A88S2G Benutzerhandbuch

Biostar

Biostar GF8200 M2G PLUS - BIOS Bedienungsanleitung

Biostar

Biostar TA785G3 HD - BIOS Benutzerhandbuch

Biostar

Biostar TA880GXE - BIOS Benutzerhandbuch

Biostar

Biostar TA790GX XE - BIOS Bedienungsanleitung

Biostar

Biostar B560MH-E 2.0 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
