Biostar M7VIG Pro D Bedienungsanleitung

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

M7VIG Pro Features .......................................................................................................... 1

Package contents..............................................................................................................2

Layout of M7VIG ProCPU Installation..............................................................................2

CPU Installation.................................................................................................................3

DDR DIMM Modules: DDR1-2 ........................................................................................... 4

SDR DIMM Modules: SDR1-2............................................................................................ 4

Jumpers, Headers, Connectors & Slots..........................................................................6

ESPAÑOL ..................................................................................................11

Características del M7VIG Pro ....................................................................................... 11

Contenido del Paquete....................................................................................................12

Disposición del M7VIG Pro............................................................................................. 12

Instalación de la CPU......................................................................................................13

Módulos DDR DIMM: DDR1-2......................................................................................... 14

Módulo SDR DIMM: SDR1-2............................................................................................14

Conectores, Cabezales, Puentes y Ranuras.................................................................16

TROUBLE SHOOTING............................................................................. 21

SOLUCIÓN DE PROBLEMAS ................................................................. 22

iip

iio

English

M7VIG Pro Features

 Use VIA VT8375 (KM266)/ VT8235 Chipset, Winbond W83697HF, LAN

Chip- VT6103 (optional).

 Contains on board I/O facilities, which include one serial port, one VGA port,

a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB

2.0 ports, a LAN port (optional) and a game port.

 Supports the single AMD Socket A for Athlon™(Thunderbird™) / Athlon

XP™/ Duron ™processors running at 200/266 MHz Front Side Bus (FSB).

 Supports Ultra 133/100/66/33, PIO modes, IDE hard disk drives, LBA

mode.

 Supports 2 DDR 200/266 MHz (without ECC) devices, maximun memory

size up to 2GB.

 Supports 2 SDR 100/133 MHz (without ECC) devices, maximun memory

size up to 2 GB.

 Supports one CNR Slot (Type B only), three 32-bit PCI Bus slots, and one

AGP Slot.

 Complies with PC Micro-ATX form factor specifications.

 Supports popular operating systems such as Windows NT, Windows 2000,

Windows ME, Windows XP, LINUX and SCO UNIX.

 AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 6CH DAC, applicable for leading motherboard chipsets.

 Line-in phonejack share with rear out.

 Supports front audio pin head functions.

iip

iio

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for ATX Case X 1 (Optional)

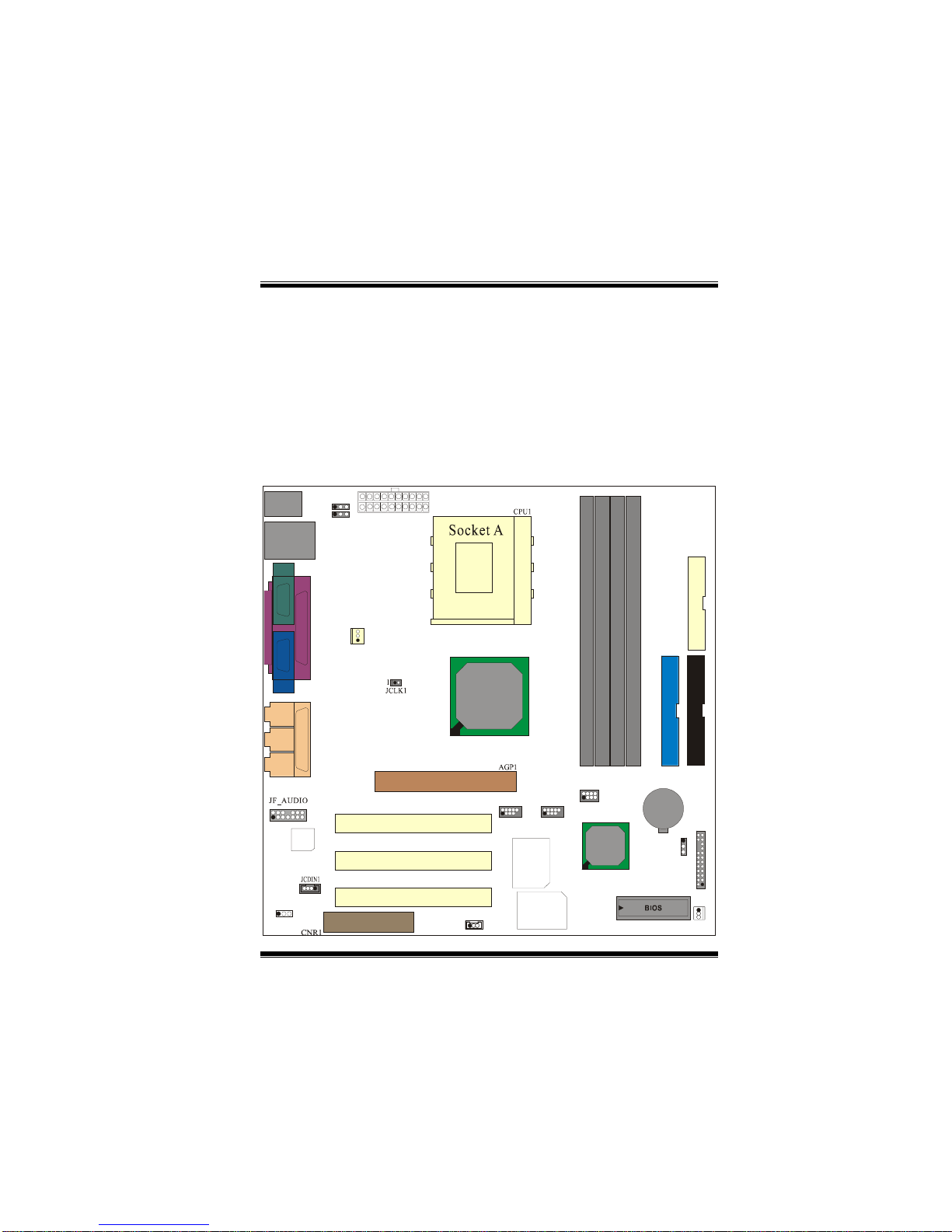

Layout of M7VIG Pro

JPRNT1

JCOM1

JVGA1

JKBMS1

JUSBLAN1

JAUD GAME

JSPKR1

SP-OUT

JMIC1

MIC-IN

JLIN1

LINE-IN

JMIC1

GAME Port

PCI3

PCI2

PCI1

T8375

(

KM 266

)

JCFAN1

JSFAN1

JPANEL1 12

2324

FDD1

FLOPPY DISK CONN.

IDE1 IDE2

PRIMARY IDECONN.

JCMOS1

BAT1

JDIMMVOLT

JATXPWR1

JUSB2

JWOL1

JCODECSEL

213

Winbond

I/O

T8235

SECONDARY IDE CONN.

SDR2

SDR1

DDR2

DDR1

JUSB3

JKBV11

JUSBV1

Codec

LAN Chip

iip

iio

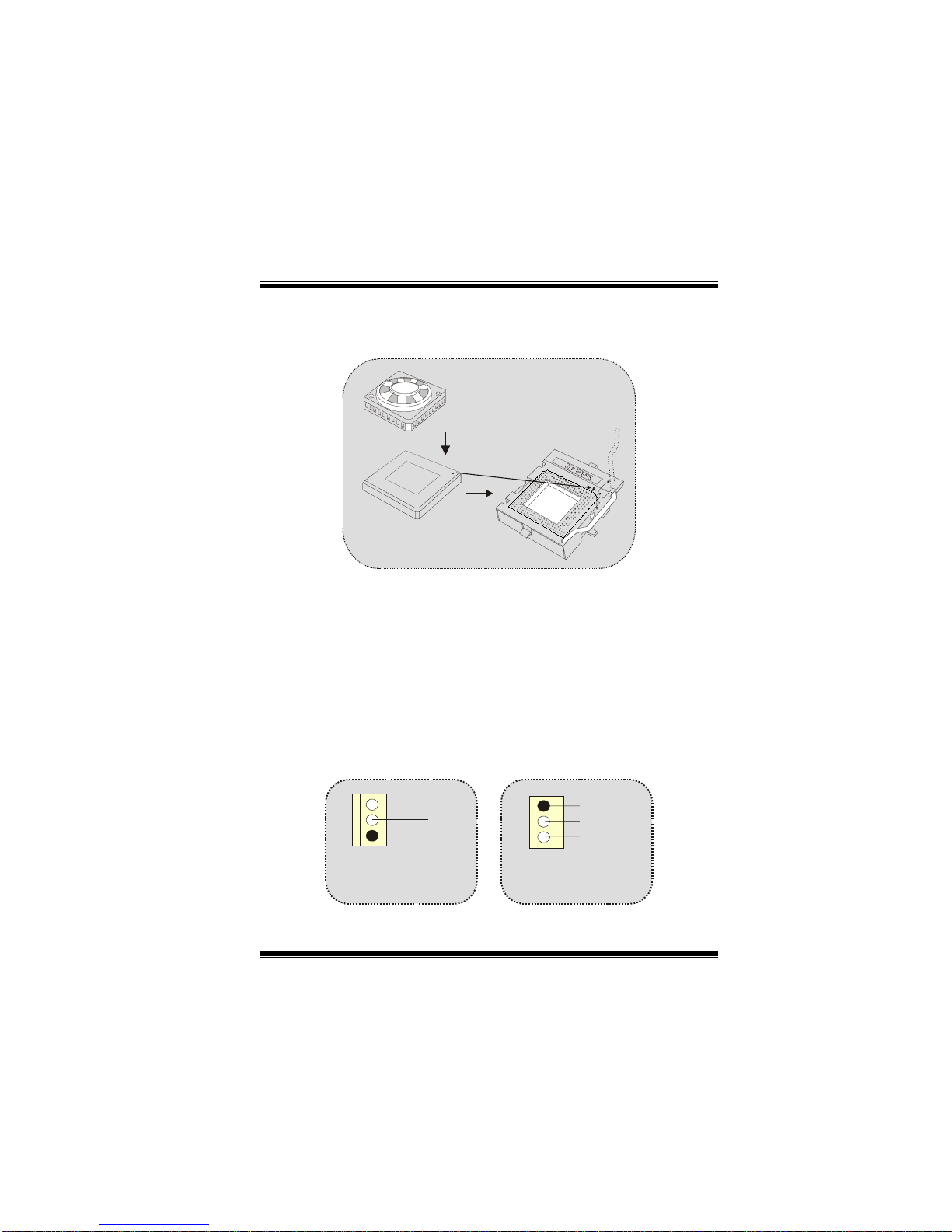

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JSFAN1

Ground

12V

Sense

JCFAN1

1Ground

12V

Sense

iip

iio

DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unbuffered DDR 200/266 MHz Type

required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

 The list shown above for DRAM configuration is only for reference.

SDR DIMM Modules: SDR1-2

DRAM Access Time: 3.3V Unbuffered SDR 100/133 MHz Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location SDR Module Total Memory

Size (MB)

SDR 1 64MB/128MB/256MB/512MB/1GB

SDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

 The list shown above for DRAM configuration is only for reference.

When you use DDR SDRAM, the memory power will

automatically set to 2.5V.

When you use SDRAM, the memory power will automatically set

to 3.3V.



For the above settings, you can only use one kind of memory on

this motherboard. It is forbidden to insert both kind of memory

simultaneously. You must insert only DDR or SDRAM.

iip

iio

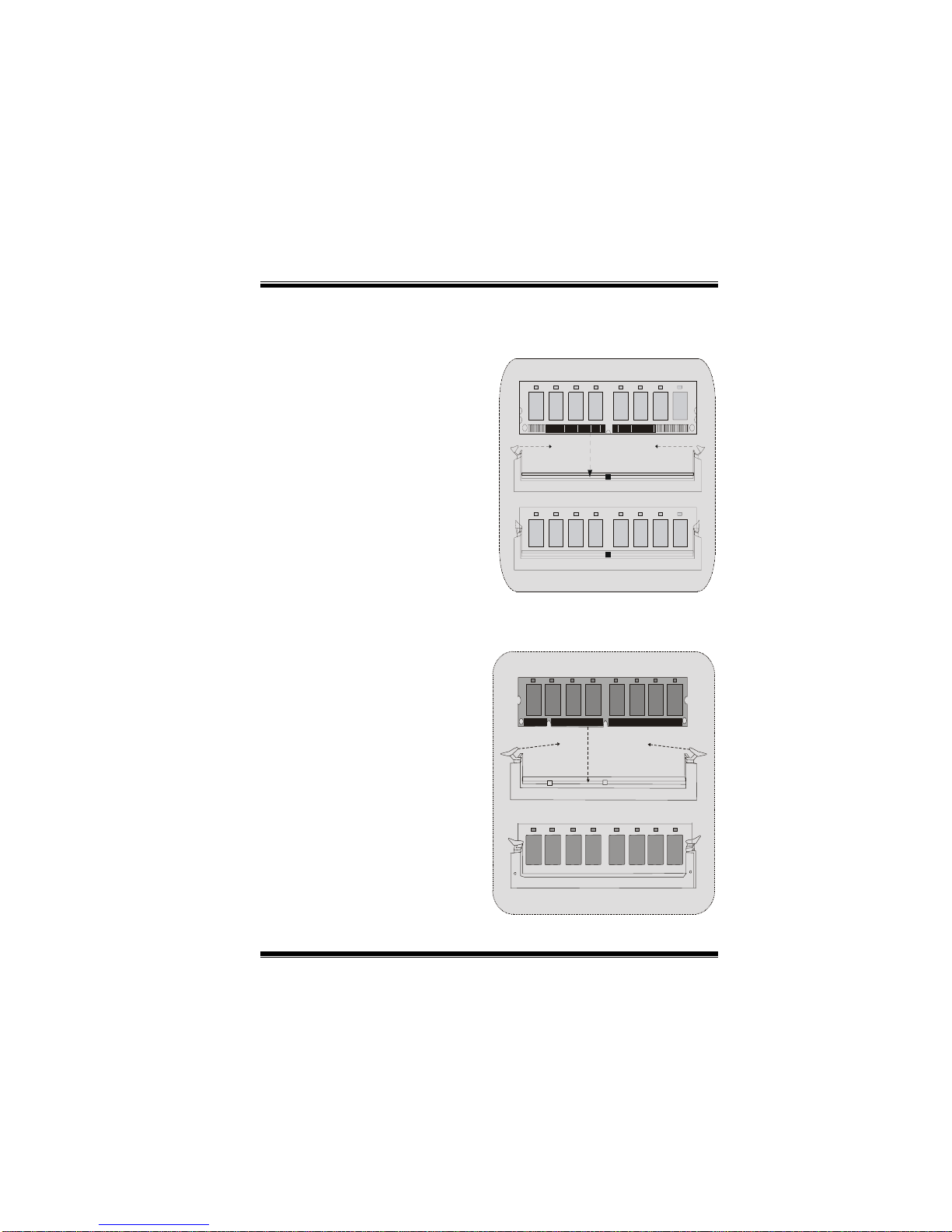

How to install a DIMM Module

DDR SDRAM

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

SDRAM

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle,

then push down vertically so that

it will fit into the place.

3. The Mounting Holes and

plastic tabs should fit over the

edge and hold the DIMM

memory modules in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100/ 133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports

modem only.

Peripheral Component Interconnect Slots: PCI1-3

This motherboard is equipped with 3 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards. This PCI slot is designated as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP). An AGP card will take advantage of

AGP technology for improved video efficiency and performance,

especially with 3D graphics.

iip

iio

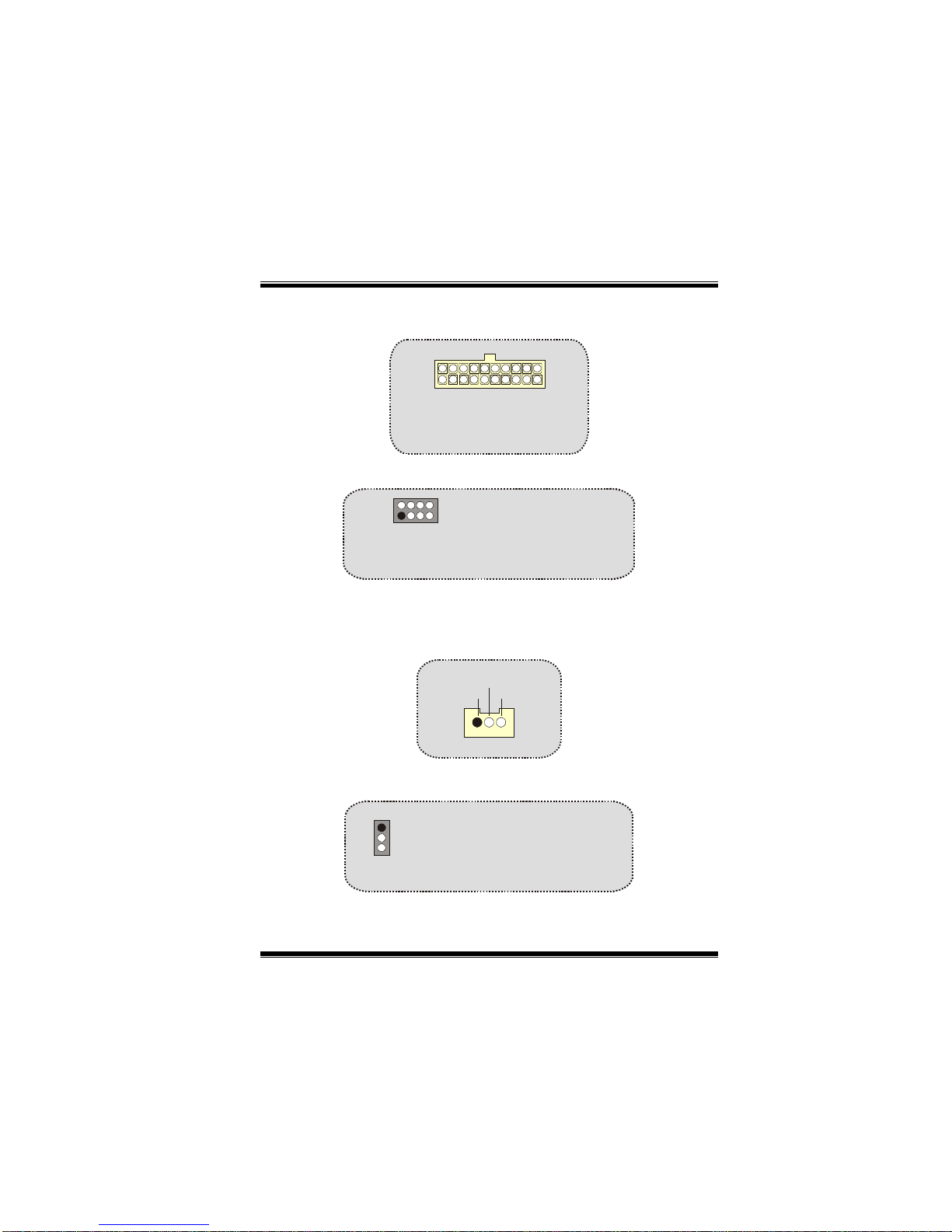

Power Connectors: JATXPWR1

DIMM Power Selection Connector: JDIMMVOLT

 It strongly recommended to set DDR DIMM voltage in default setting

2.5V, and it for over voltage function.

Wake On LAN Header: WOL1

Clear CMOS Jumper: JCMOS1

WOL1

5V_SB Wake up

Ground

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Main Power Conn.)

JCMOS1

Pin 1-2 on ==> Normal Operation

(default)

Pin 2-3 on ==> Clear CMOS Data

JDIMMVOLT

Pin 1-2 on ==> 2.5V

Pin 3-4 on ==> 2.6V

Pin 5-6 on ==> 2.7V

Pin 7-8 on ==> 2.8V

(Default ==> 2.5V)

iip

iio

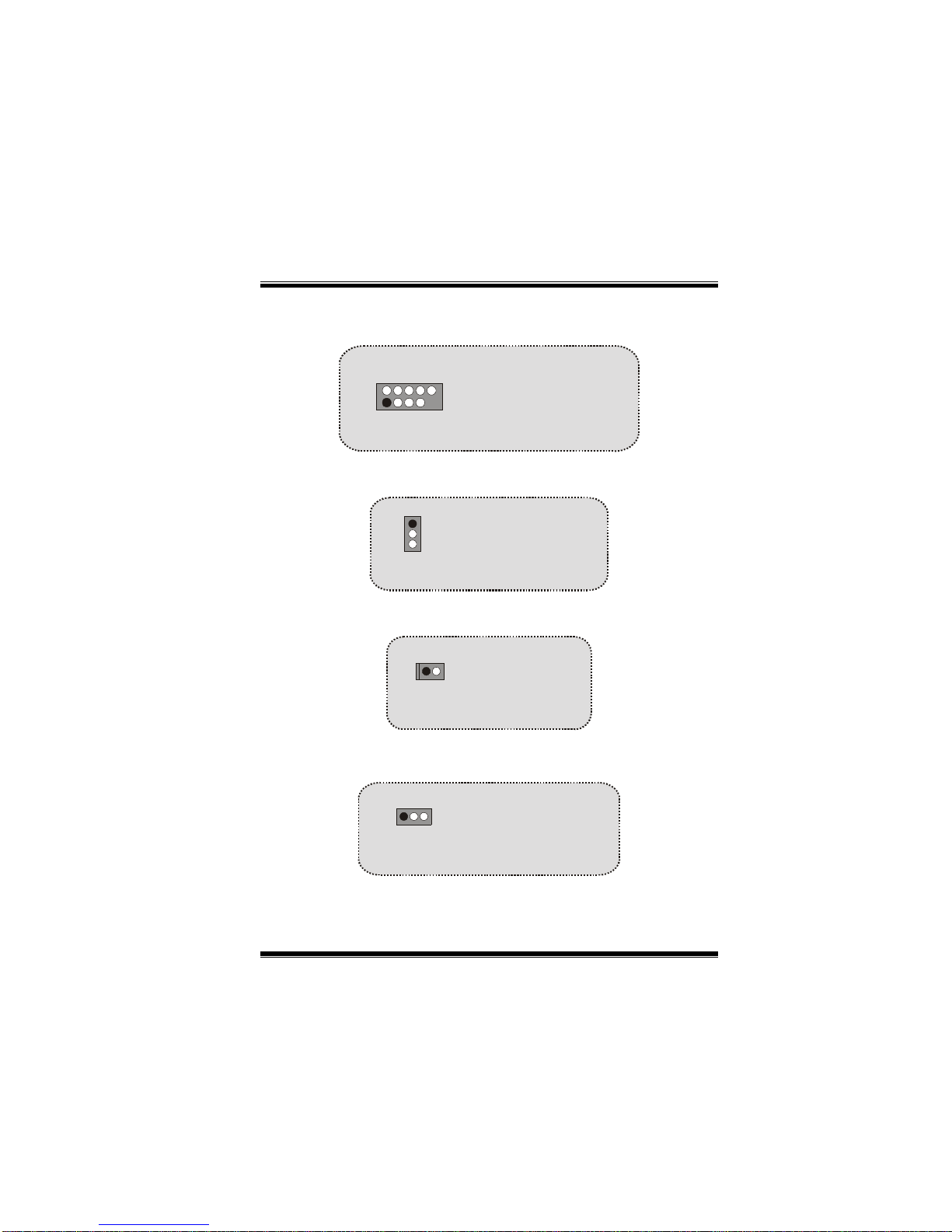

Front USB Header: JUSB2/ JUSB3

5V/ 5VSB Selection for USB: JUSBV1

CPU Frequency Selection: JCLK1

5V/ 5VSB Selection for Keyboard: JKBV1

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

JKBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JUSBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JCLK1

On ==> 100MHz

Off ==> 133MHz

Andere Handbücher für M7VIG Pro D

Inhaltsverzeichnis

Sprachen:

Andere Biostar Hauptplatine Handbücher

Biostar

Biostar U8668 D Benutzerhandbuch

Biostar

Biostar P4TSE Pro Benutzerhandbuch

Biostar

Biostar NF520B A2G PLUS - BIOS SETUP Bedienungsanleitung

Biostar

Biostar TForce4U-775 Bedienungsanleitung

Biostar

Biostar M7VIZ-SATA Bedienungsanleitung

Biostar

Biostar U8568 Pro Bedienungsanleitung

Biostar

Biostar Hi-Fi H87S3 Benutzerhandbuch

Biostar

Biostar M5SAA Bedienungsanleitung

Biostar

Biostar TP67B PLUS - BIOS Benutzerhandbuch

Biostar

Biostar M6TBA Bedienungsanleitung

Biostar

Biostar A57A2 Benutzerhandbuch

Biostar

Biostar H61MHV3 Bedienungsanleitung

Biostar

Biostar GAMING Z170X Bedienungsanleitung

Biostar

Biostar P4VMA-M Bedienungs- und Montageanleitung

Biostar

Biostar TFORCE 945P Bedienungsanleitung

Biostar

Biostar VIOTECH 3200 Benutzerhandbuch

Biostar

Biostar Hi-Fi H170Z3 Bedienungsanleitung

Biostar

Biostar A68N-2100E Bedienungsanleitung

Biostar

Biostar A960D+V3 Bedienungsanleitung

Biostar

Biostar TZ77B Bedienungsanleitung

Biostar

Biostar TFORCE 550 SE Benutzerhandbuch

Biostar

Biostar TZ77XE4 Bedienungsanleitung

Biostar

Biostar M7NCG Pro Bedienungsanleitung

Biostar

Biostar Z690 VALKYRIE Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
