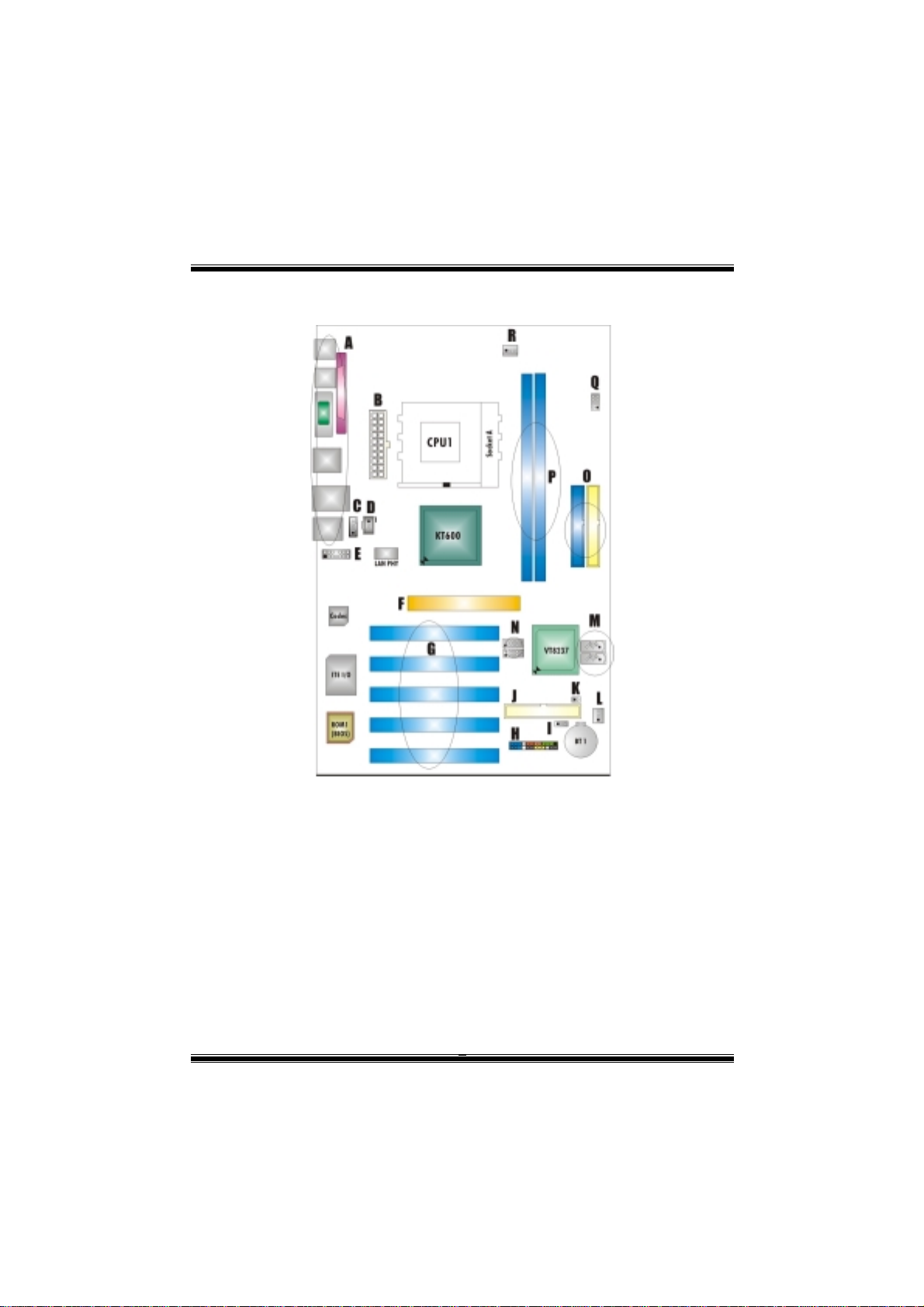

Layout of M7VIT 800

NOTE: ●represents the first pin.

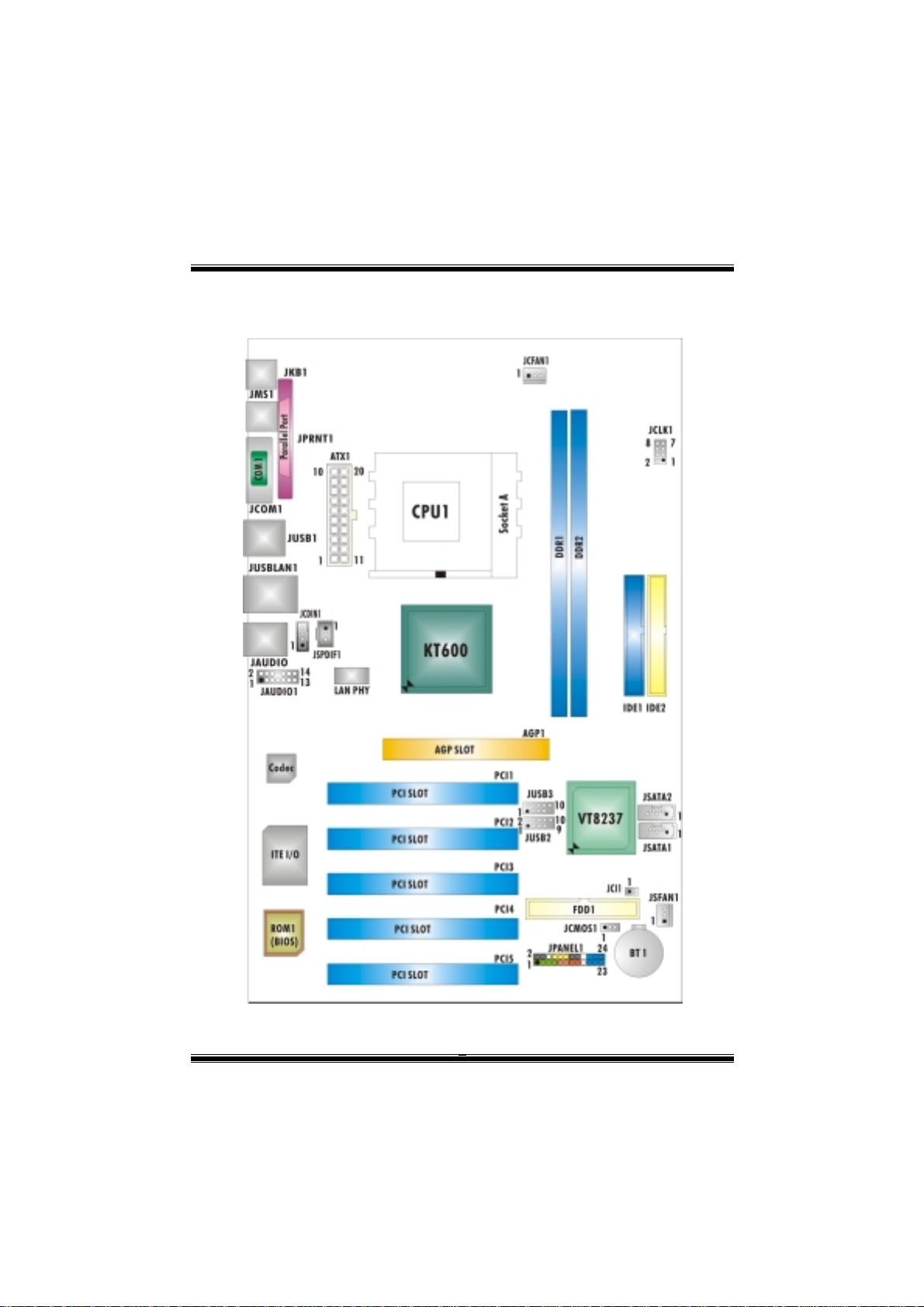

Component Index

A. Back Panel Connector J. Floppy Disk Connector:FDD1

B. ATX Power Connector:ATX1 K. Case Open Connector:JCI1

C. CD-ROM Audio-In Header:JCDIN1 L. System FAN Header:JSFAN1

D. Digital Audio Connector:JSPDIF1 M. Serial ATA Connectors:JSATA1-2*

E. Front Audio Header:JAUDIO1 N. Front USB Header:JUSB2/JUSB3

F. Accelerated Graphics Port Slot:AGP1 O. IDE Connectors:IDE1-2

G. PCI BUS Slots:PCI 1-5 P. DDR Modules:DDR1-2

H. Front Panel Connector:JPANEL1 Q. Frequency Selection:JCLK1

I. Clear CMOS Function:JCMOS1 R. CPU Fan Connector:JCFAN1

*stands for “Optional.”

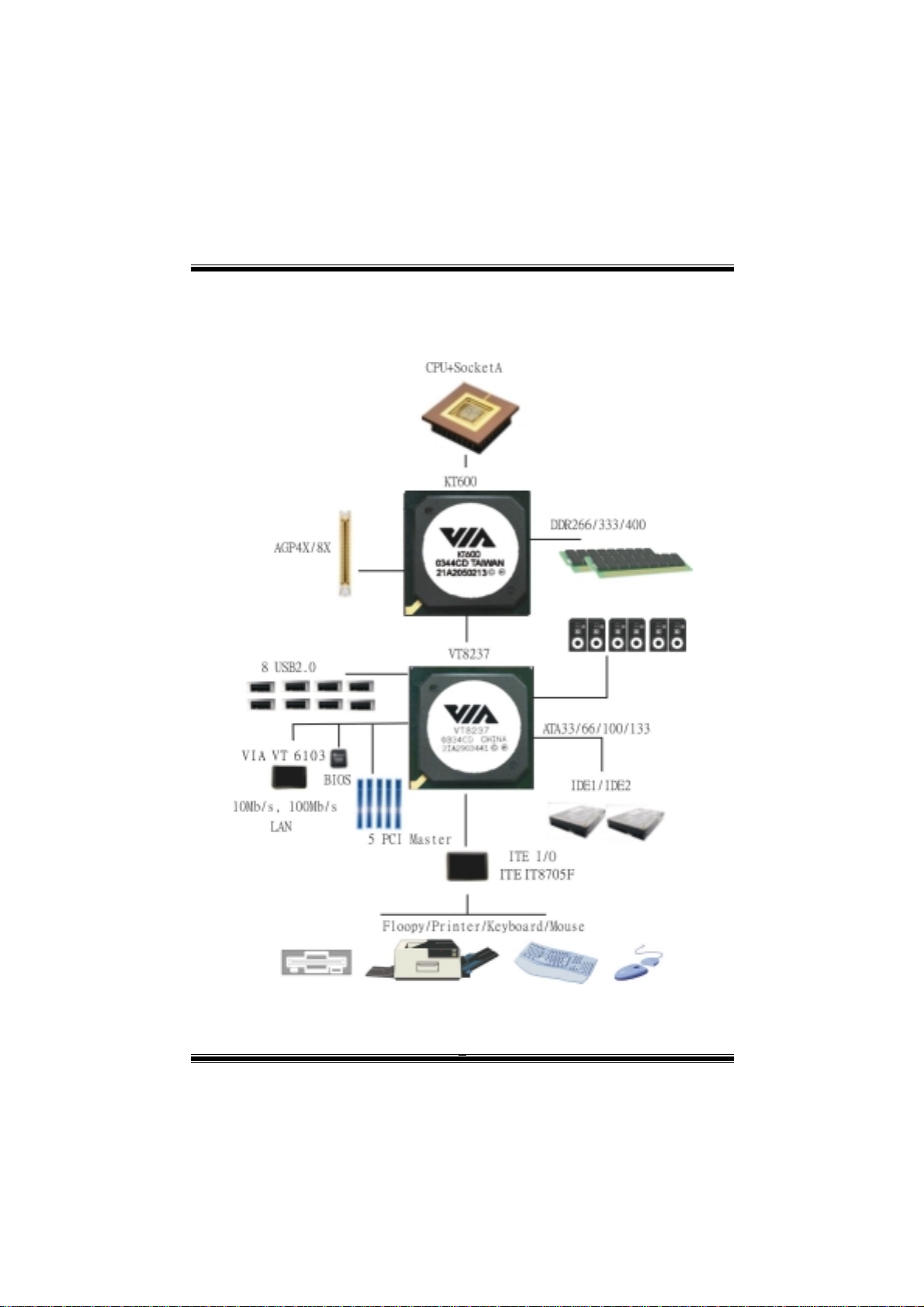

M7VIT 800 System Structure

English

M7VIT Bravo Features

A. Hardware

CPU

Provides Socket A.

Supports single AMD® Athlon XP/ Duron Family processor.

Front Side Bus at 200/266/333/400 MHz.

Chipset

North Bridge: VIA KT600.

South Bridge: VIA VT8237.

Main Memory

Supports up to 2 DDR devices.

Supports 266/333/400 MHz (without ECC) DDR devices.

Maximum memory size is 2GB.

Super I/O

Chip: U2 ITE8705F.

Provides the most commonly used legacy Super I/O functionality.

Environment Control initiatives,

- H/W Monitor

- ITE's “Smart Guardian” function

Slots

Five 32-bit PCI bus master slots.

One AGP 4X/8X compatible slot.

On Board IDE

Supports four IDE disk drives.

Supports PIO Mode 4, Master Mode and Ultra DMA 33/66/100/133 Bus Master

Mode.

LAN

PHY: VIA VT6103.

Supports 10 Mb/s and 100 Mb/s auto-negotiation

Half/Full duplex capability.

On Board AC’97 Sound Codec

Chip: CMI9761A.

Compliant with AC’97 specification.

Supports 6 channels.

Supports stereo Microphone.

On Board Peripherals

a. Rear side

1 x serial port.

1 x parallel port. (SPP/EPP/ECP mode)

1x Audio ports in vertical position.

1 x RJ-45 LAN jack.

1 x PS/2 mouse and 1 x PS/2 keyboard.

4 x USB2.0 ports.

b. Front Side

1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

4 USB2.0 ports.

1 front audio header.

1 S/PDIF Out header. (Optional)

Dimensions

ATX Form Factor: 19.1cm X 29.3cm (W X L)

B. BIOS & Software

BIOS

Award legal BIOS.

Supports APM1.2.

Supports ACPI.

Supports USB Function.

Software

Supports Warpspeeder™, 9th Touch™, FLASHER™.

Offers the highest performance forWindows 98 SE, Windows 2000, Windows Me,

Windows XP, UNIX Series etc.

Package contents

HDD Cable X 1

FDD Cable X 1

User’s Manual X 1

Fully Setup Driver CD X 1

USB 2.0 Cable X 1 (optional)

S/PDIF Cable X 1 (optional)

Rear I/O Panel for ATX Case X 1 (optional)

How to set up Jumper

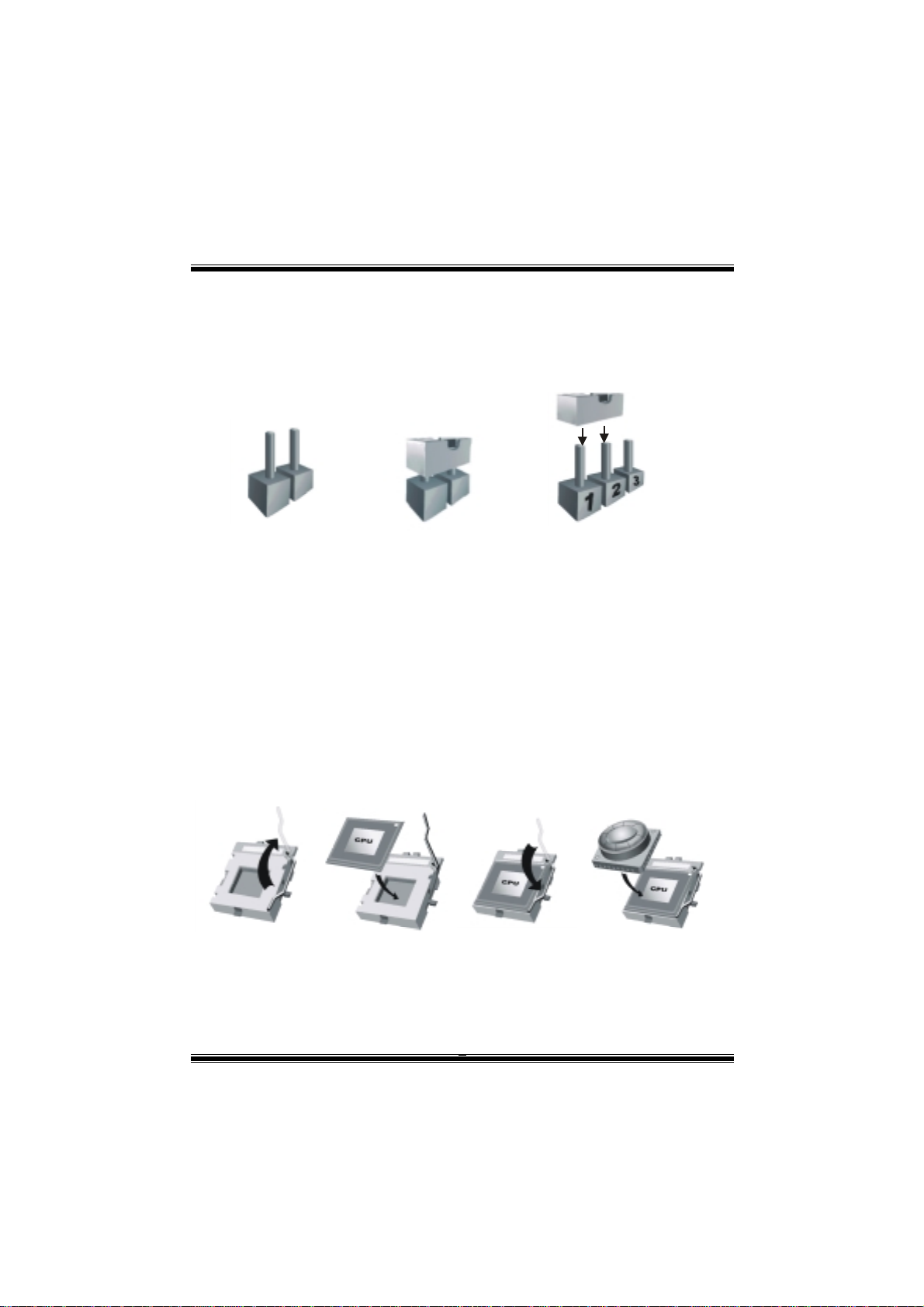

The illustration shows how to set up a jumper. When the Jumper cap is placed on pins, the

jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The

illustration shows a 3-pin jumper whose pin 1 and 2 are “close” when jumper cap is placed

on these 2 pins.

Jumper open Jumper close Pin1-2 close

CPU Installation

Step1: Pull the lever sideways away from the socket and then raise the lever up to a

90-degree angle.

Step2: Look for the white dot/cut edge. The white dot/cut edge should point towards the

lever pivot. The CPU will fit only in the correct orientation.

Step3: Hold the CPU down firmly, and then close the lever to complete the installation.

Step4: Put the CPU Fan on the CPU and buckle it. Connect the CPU fan power cable to

the JCFAN1. Then the installation is completed.

Step1 Step2 Step3 Step4

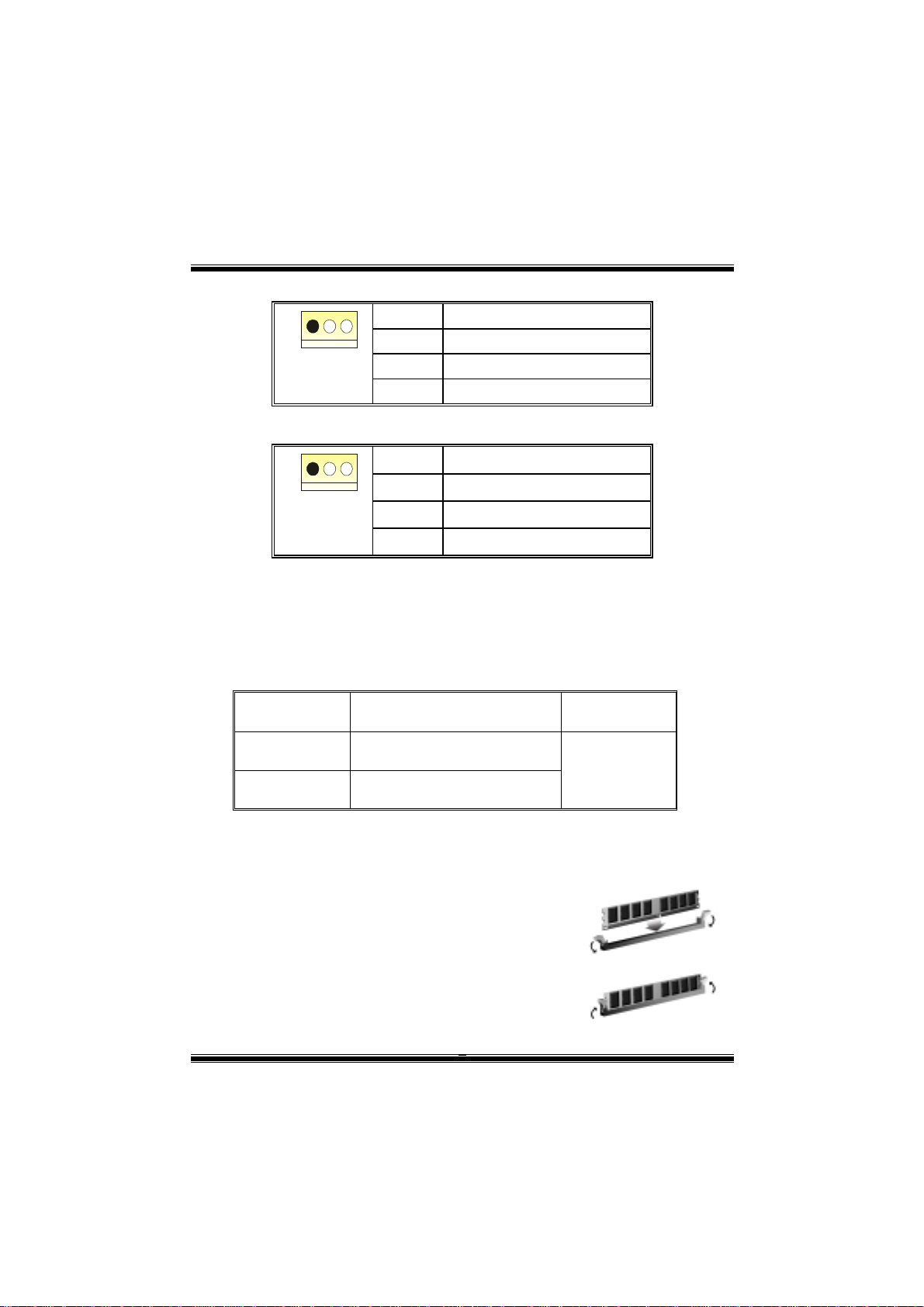

CPU Fan Header: JCFAN1

Pin Assignment

1 Ground

2 +12V

JCFAN1

3 FAN RPM rate Sense

System Fan Header: JSFAN1

Pin Assignment

1 Ground

2 +12V

JSFAN1

3 FAN RPM rate Sense

DDR DIMM Modules: DDR1, DDR2

DRAM Access Time: 2.5V Unbuffered/ Registered DDR 266 MHz (PC2100)/

DDR 333 MHz (PC2700)/ DDR 400 MHz (PC3200) Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

***Only for reference***

Installing DDR Module

1. Unlock a DIMM slot by pressing the retaining clips

outward. Align a DIMM to the slot in the way that

the notch of the DIMM matches the break of the

slot.

2. Insert the DIMM vertically and firmly into the slot

until the retaining chip snap back in place and the

DIMM is properly seated.

Jumpers, Headers, Connectors & Slots

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the

provided floppy drive ribbon cables.

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Block Mode, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality.

It has two HDD connectors IDE1 (primary) and IDE2 (secondary).

The IDE connectors can connect a master and a slave drive, so you can connect

up to four hard disk drives. The first hard drive should always be connected to

IDE1.

Peripheral Component Interconnect Slots: PCI 1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for Peripheral

Component Interconnect, and it is a bus standard for expansion cards. This PCI

slot is designated as 32 bits.

Accelerated Graphics Port Slot: AGP1

Your monitor will attach directly to that video card. This motherboard supports

video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port

(AGP). An AGP card will take advantage of AGP technology for improved video

efficiency and performance, especially with 3D graphics.

Serial ATA Connector: JSATA1/ JSATA2 (Optional)

The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it

satisfies the SATA 1.0 spec and can transfer data with 1.5 Gb/s speed.

Pin Assignment Pin Assignment

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

JSATA1/ JSATA2 7 Ground

Note: 1. When plugging SATA HDD on JSATA1 connector, SATA BIOS will

automatically detect as channel 1.

2. When plugging SATA HDD on JSATA2 connector, SATA BIOS will

automatically detect as channel 0.
